VOKERA
MYNUTE 14-48 SP - (Assembly 6)
Appliance Code: 41-094-09

Appliance Diagram


Assembly 6 diagram for Vokera Mynute 14-48 SPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 7620, Expansion Vessel EXPANSION VESSEL
Vokera part no. 7620		 £104.19
2   MAIN FRAME
Vokera part no. 7619
3   BAR
Vokera part no. 5589
4   SELF TAPPING HEX HEAD 3.9 X L0MM LONG STEEL
Vokera part no. 5180
5   CABLE CLAMP
Vokera part no. 5371
6   SCREW
Vokera part no. 5171
7   SCREW
Vokera part no. 5124		 £0.30
8 Part number 7621, Heating Manifold HEATING MANIFOLD
Vokera part no. 7621		 £207.97
9 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
10 Part number 5203, Plastic Washer PLASTIC WASHER
Vokera part no. 5203		 £0.21
11 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
12   ERP PUMP - REPLACED 6025
Vokera part no. 20192664		 £227.37
12 Part number 6025, NOW USE 20192664 15/50 excel complete pump assy NOW USE 20192664 15/50 EXCEL COMPLETE PUMP ASSY
Vokera part no. 6025
13 Part number 6897, Pump Washer PUMP WASHER
Vokera part no. 6897		 £0.72
14   PUMP CABLE
Vokera part no. 7780		 £7.32
15   SILICONE TUBE
Vokera part no. 5971		 £6.82
16   ROOM SEALED CHAMBER
Vokera part no. 8158		 £58.96
17 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
18 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
19   GROMMET FAN GASKET
Vokera part no. 5900
20   SCREW
Vokera part no. 5080		 £0.21
21   COVER
Vokera part no. 5948
22 Part number 5926, Pressure Switch PRESSURE SWITCH
Vokera part no. 5926		 £64.38
23 Part number 5925, OBSOLETE Pressure Differential Switch Housing OBSOLETE PRESSURE DIFFERENTIAL SWITCH HOUSING
Vokera part no. 5925
24   RIVET
Vokera part no. 5094
25   AIR DEFLECTOR
Vokera part no. 5972
26   SEAL
Vokera part no. 5927		 £4.47
27 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
28 Part number 7098, Gas Cock GAS COCK
Vokera part no. 7098		 £25.56
29 Part number 9763, 3/4" Flow/Return Valve Straight 3/4" FLOW/RETURN VALVE STRAIGHT
Vokera part no. 9763		 £30.84
29   NOW USE 9763 FLOW/RETURN VALVE
Vokera part no. 7835
30 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
31   O-RING
Vokera part no. 0667
32   BY- PASS BOBBIN
Vokera part no. 0666
33 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
34 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
35 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
36   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
37 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
38 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
39   OBSOLETE NUT
Vokera part no. 0599
40   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
41 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
42 Part number 5172, Burner Plate BURNER PLATE
Vokera part no. 5172		 £0.29
43 Part number 7623, NG Burner NG BURNER
Vokera part no. 7623		 £81.17
44   MAIN BURNER L.P.G
Vokera part no. 7624
45   MACHINE SCREW 10MM L X 5MM 0
Vokera part no. 5092
46 Part number 5049, Gasket GASKET
Vokera part no. 5049		 £0.55
47   CONNECTOR SLEEVE
Vokera part no. 5455
48   HIGH LIMIT THERMOSTAT CLIP
Vokera part no. 6615
49   NOW USE 6493 RESISTOR
Vokera part no. 4028
49 Part number 6493, Resistor Replaced 4028 RESISTOR REPLACED 4028
Vokera part no. 6493		 £15.89
50   HIGH LIMIT STAT
Vokera part no. 6614		 £9.87
51 Part number 5438, Gas Valve GAS VALVE
Vokera part no. 5438		 £166.39
52 Part number 0563, Gas Valve Operator GAS VALVE OPERATOR
Vokera part no. 0563
53   GAS CONNECTION
Vokera part no. 8159
54   GAS VALVE TO BURNER CONNECTION
Vokera part no. 8160
55 Part number 5280, Pilot Assembly PILOT ASSEMBLY
Vokera part no. 5280		 £14.76
56   SCREW
Vokera part no. 5176		 £0.30
57 Part number 4891, Pilot Jet NG.27 PILOT JET NG.27
Vokera part no. 4891		 £0.89
58 Part number 4893, Pilot Jet LPG 22 PILOT JET LPG 22
Vokera part no. 4893		 £1.00
59 Part number 5309, Spark Electrode SPARK ELECTRODE
Vokera part no. 5309		 £7.96
60   PILOT PIPE
Vokera part no. 8161
61   PILOT TUBE UNION
Vokera part no. 5456
62   THERMOCOUPLE
Vokera part no. 8221
63   SPRING FOR GAS REGULATOR N.G
Vokera part no. 0550
65   OBSOLETE CASE LOCATING CLIP R/H
Vokera part no. 5580
66   SCREW
Vokera part no. 5207
67   GAS CONTROL KNOB EXTENSION
Vokera part no. 7912
68   GAS CONTROL KNOB
Vokera part no. 8162
69 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
70   PUMP RETURN TUBE
Vokera part no. 7782
71 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
72   OBSOLETE 3/4'' INCH GAS NIPPLE
Vokera part no. 5975
73   HEAT EX. RETURN PIPE
Vokera part no. 7615		 £16.75
74 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
75 Part number 7781, Pipe PIPE
Vokera part no. 7781
76   FLOW PIPE
Vokera part no. 7836
77   FLOW PIPE
Vokera part no. 8163
78 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
79   OBSOLETE CASE LOCATING CLIP L/H
Vokera part no. 5581
80 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
81   MODE SELECTOR SWITCH
Vokera part no. 5591
82   BRACKET
Vokera part no. 7788
83   RIVET
Vokera part no. 5093
84   OBSOLETE FRONT CONTROL PANEL
Vokera part no. 8188
85   SELF TAPPING SCREW
Vokera part no. 5169
86   OBSOLETE SCREW C/S PHILLIPS 4MM X 12MML
Vokera part no. 5199
87   SCREW M4 X 8
Vokera part no. 5086
88 Part number 5800, Piezo Ignitor PIEZO IGNITOR
Vokera part no. 5800		 £14.69
89   OBSOLETE SCREW
Vokera part no. 5075
90   OBSOLETE TERMINAL BLOCK COVER PLATE
Vokera part no. 7918
91   CONTROL PANEL BRACKET
Vokera part no. 7785
92   R/H CONTROL PANEL HINGE
Vokera part no. 7787
93   CLOCK BLANKING PLATE
Vokera part no. 7790
94 Part number 8377, Pressure Gauge PRESSURE GAUGE
Vokera part no. 8377		 £19.98
95   DECORATIVE LOGO STRIP
Vokera part no. 8165
96   CONTROL KNOB
Vokera part no. 7789
97 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
98   COMBUSTION CHAMBER SIDE PANELS
Vokera part no. 7831
99   COMBUSTION CHAMBER COVER
Vokera part no. 5957
100 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
101 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
102 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
103 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
103 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
104   FAN UNION TUBE
Vokera part no. 5966
105 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
105 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
106 Part number 7948, Venturi Rep 6984 (Negative) VENTURI REP 6984 (NEGATIVE)
Vokera part no. 7948		 £10.75
106 Part number 6984, NOW USE 7948 VENTURI NOW USE 7948 VENTURI
Vokera part no. 6984
107 Part number 6985, Venturi (Positive) VENTURI (POSITIVE)
Vokera part no. 6985		 £4.88
108   FAN OUTLET CONNECTOR
Vokera part no. 7779
109 Part number 5910, Fan Assembly FAN ASSEMBLY
Vokera part no. 5910		 £106.11
109 Part number 7618, NOW USE 5910 FAN NOW USE 5910 FAN
Vokera part no. 7618
110 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
111 Part number 5958, Hood Assembly HOOD ASSEMBLY
Vokera part no. 5958
112   FIBRE WASHER - SPECIAL
Vokera part no. 5067
113 Part number 5962, Combustion Chamber Back Panel COMBUSTION CHAMBER BACK PANEL
Vokera part no. 5962		 £15.04
114 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
115 Part number 6026, Combustion Chamber Assembly COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 6026
116 Part number 5300, Metal Side Panel (L/H) METAL SIDE PANEL (L/H)
Vokera part no. 5300		 £5.64
117   OBSOLETE METAL PANEL REAR
Vokera part no. 5959
118   METAL SIDE PANEL R/H
Vokera part no. 5299
119 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
120   SCREW
Vokera part no. 5081		 £0.24
121 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
122   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
123 Part number 5388, Heat Exchanger with 2 x 5023 Washers HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 5388		 £164.16
123   ENGINEERS AND AGENTS ONLY MAIN HEAT EXCHANGER IN PLACE 5388 & 10021231
Vokera part no. 01005247		 £112.03
124 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
125 Part number 5961, Combustion Chamber Front Panel COMBUSTION CHAMBER FRONT PANEL
Vokera part no. 5961		 £15.04
126 Part number 5960, NOW USE 2819 Front Plate for Combustion Chamber NOW USE 2819 FRONT PLATE FOR COMBUSTION CHAMBER
Vokera part no. 5960
126 Part number 2819, Combustion Cover COMBUSTION COVER
Vokera part no. 2819		 £16.94
127   BLANKING PLUG
Vokera part no. 7238
133   OUTER CASING
Vokera part no. 7793
134   CLIP SPECIAL
Vokera part no. 5588
135   SEAL
Vokera part no. 4039
136   SCREW
Vokera part no. 5077		 £0.15
137   CLIP
Vokera part no. 3412		 £0.96

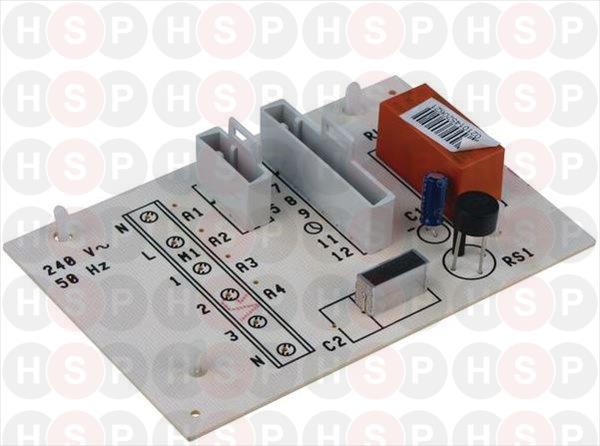

138 Part number 8166, Main Printed Circuit Board MAIN PRINTED CIRCUIT BOARD
Vokera part no. 8166		 £56.66
139   ELECTRONIC IGNITION MOUNTING PLATE
Vokera part no. 7786
140   LEAD FOR PIEZO
Vokera part no. 6151
143   TUBE
Vokera part no. 8098
