VOKERA
MYNUTE 12/48 RSE - (Assembly10)
Appliance Code: 41-094-03

Appliance Diagram


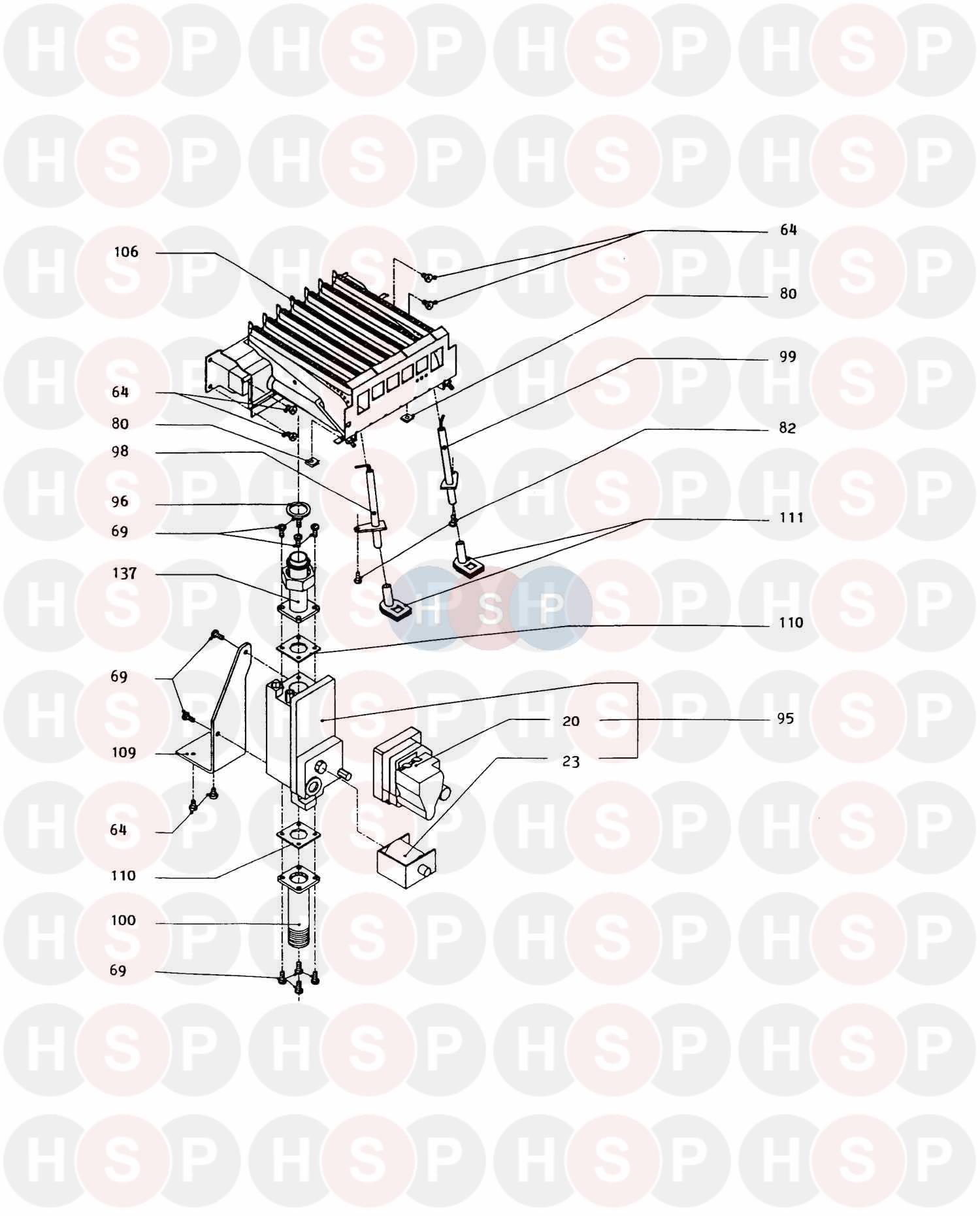

Assembly10 diagram for Vokera Mynute 12/48 RSEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

10 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
11 Part number 0341, Fibre Washer FIBRE WASHER
Vokera part no. 0341		 £2.06
12   AUTO BY-PASS RETAINING CAP
Vokera part no. 0549
13   OBSOLETE WASHER
Vokera part no. 0551
14   SPRING FOR AUTO BY-PASS (LARGE)
Vokera part no. 0552
15   OBSOLETE AUTO BY-PASS BOBBIN
Vokera part no. 0553
16   O-RING
Vokera part no. 0554		 £0.44
17 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
18 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
19 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
20   SERVO PRESSURE REGULATOR
Vokera part no. 0598
21   OBSOLETE NUT
Vokera part no. 0599
22   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
23   SOLENOID
Vokera part no. 0602
24 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
25   HEATING MANIFOLD
Vokera part no. 3175
26 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
27 Part number 3409, High Limit Stat HIGH LIMIT STAT
Vokera part no. 3409		 £21.43
28   CLIP
Vokera part no. 3412		 £0.96
30   O-RING FOR PUMP UNION
Vokera part no. 3740
31   6 LITRE EXPANSION VESSEL
Vokera part no. 3800
32 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
33 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
34   NUT (FOR F/R VALVES 4539)
Vokera part no. 4064
35   22MM OLIVE (FLOW AND RETURN VALVES)
Vokera part no. 4065
37   PUMP UNION NUT
Vokera part no. 4114
38 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
39   OBSOLETE PUMP CABLE
Vokera part no. 4220
40 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
41 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
42 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
43   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
44   EXPANSION VESSEL CLAMP BRACKET
Vokera part no. 4449
45 Part number 4539, FLOW RETURN VALVE FLOW RETURN VALVE
Vokera part no. 4539
46   COCK
Vokera part no. 4541
47   PLUG
Vokera part no. 4768
48 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
49 Part number 4931, Pump Over-Run Thermostat PUMP OVER-RUN THERMOSTAT
Vokera part no. 4931
50   HINGE (CONTROL PANEL L/H)
Vokera part no. 4934
51   HINGE (CONTROL PANEL R/H)
Vokera part no. 4935
52   EARTH TERMINAL TAG
Vokera part no. 4975
53   SPACER FOR THERMOSTATS
Vokera part no. 4976
54 Part number 4980, On/Off Switch ON/OFF SWITCH
Vokera part no. 4980
55   SWITCH
Vokera part no. 4981
56 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
57 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
58   PUMP WASHER
Vokera part no. 5036		 £0.96
59   WASHER
Vokera part no. 5039		 £0.44
60 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
62 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
63 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
64 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
65   SCREW
Vokera part no. 5080		 £0.21
66   SCREW
Vokera part no. 5081		 £0.24
67   SCREW
Vokera part no. 5083		 £0.15
68   SELF TAPPING SCREW
Vokera part no. 5085
69 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105		 £0.93
70   SCREW
Vokera part no. 5124		 £0.30
71 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
72   MACHINE SCREWS FOR MOUNTING THERMOSTAT
Vokera part no. 5129
73   SCREW
Vokera part no. 5131
74   HEXAGON M4 NUT (BRASS)
Vokera part no. 5132
75   TOOTHED LOCK WASHER OD 8MM ID 4MM
Vokera part no. 5133
76   EARTH CONNECTOR
Vokera part no. 5134
77   OBSOLETE CUP WASHER
Vokera part no. 5138
78   EDGE CLIP FOR 4577
Vokera part no. 5143
79 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
81   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
82   SELF TAPPING SCREW
Vokera part no. 5169
83   SCREW
Vokera part no. 5171
84 Part number 5262, Temperature Gauge TEMPERATURE GAUGE
Vokera part no. 5262
85 Part number 5263, Pressure Gauge PRESSURE GAUGE
Vokera part no. 5263		 £21.86
86   THERMOSTAT KNOB
Vokera part no. 5264
87 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
88 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
89   ON/OFF SWITCH
Vokera part no. 5284
90   OBSOLETE PLASTIC COVER
Vokera part no. 5285
91   CABLE CLAMP
Vokera part no. 5371
92 Part number 5388, Heat Exchanger with 2 x 5023 Washers HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 5388		 £164.16
92   ENGINEERS AND AGENTS ONLY MAIN HEAT EXCHANGER IN PLACE 5388 & 10021231
Vokera part no. 01005247		 £112.03
93 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
94 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
95 Part number 5634, Gas Valve GAS VALVE
Vokera part no. 5634
96   WASHER
Vokera part no. 5635
97   OBSOLETE PLASTIC TRADE MARK LABEL VOKERA (WHITE)
Vokera part no. 5636
98 Part number 5640, Spark Electrode & Lead SPARK ELECTRODE & LEAD
Vokera part no. 5640		 £15.75
99 Part number 5641, Sensing Electrode & Lead SENSING ELECTRODE & LEAD
Vokera part no. 5641		 £15.75
100   GAS CONNECTION
Vokera part no. 5776
101 Part number 0950, Ignition Box IGNITION BOX
Vokera part no. 0950		 £178.57
102   FRAME
Vokera part no. 5808
103   MYNUTE WHITE CASE
Vokera part no. 5809
104   OBSOLETE FRONT PANEL
Vokera part no. 5810
105   SUPPORT BRACKET
Vokera part no. 5811
106   MAIN BURNER NG
Vokera part no. 5812		 £55.56
108   GUARD
Vokera part no. 5814
109   OBSOLETE MOUNTING BRACKET
Vokera part no. 5861
110 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863		 £0.63
111   OBSOLETE ELECTRODE SEAL
Vokera part no. 5873
112   EXPANSION VESSEL PIPE
Vokera part no. 5899
113 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
114 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
114 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
115 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
115 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
116 Part number 5921, Venturi VENTURI
Vokera part no. 5921
117 Part number 5925, OBSOLETE Pressure Differential Switch Housing OBSOLETE PRESSURE DIFFERENTIAL SWITCH HOUSING
Vokera part no. 5925
118   SUPPRESSOR (MYNUTE NEW TYPE)
Vokera part no. T0031
119   SEAL
Vokera part no. 5927		 £4.47
120   COVER
Vokera part no. 5948
121   OBSOLETE AIR CHAMBER
Vokera part no. 5955
122   ROOM SEALED CHAMBER SIDE PANEL
Vokera part no. 5956
123   COMBUSTION CHAMBER COVER
Vokera part no. 5957
124 Part number 5958, Hood Assembly HOOD ASSEMBLY
Vokera part no. 5958
125 Part number 5960, NOW USE 2819 Front Plate for Combustion Chamber NOW USE 2819 FRONT PLATE FOR COMBUSTION CHAMBER
Vokera part no. 5960
125 Part number 2819, Combustion Cover COMBUSTION COVER
Vokera part no. 2819		 £16.94
126 Part number 5962, Combustion Chamber Back Panel COMBUSTION CHAMBER BACK PANEL
Vokera part no. 5962		 £15.04
127 Part number 5963, Fan Assembly FAN ASSEMBLY
Vokera part no. 5963		 £140.91
128 Part number 5964, Fan Washer FAN WASHER
Vokera part no. 5964
129   FLUE CONNECTION
Vokera part no. 5965
130   FAN UNION TUBE
Vokera part no. 5966
131   PIPE WITH AIR SEPARATOR
Vokera part no. 5967
132   PUMP PIPE
Vokera part no. 5968
133   PIPE
Vokera part no. 5969
134   INSIDE EXCHANGER CONNECTION
Vokera part no. 5970
135   SILICONE TUBE
Vokera part no. 5971		 £6.82
136   AIR DEFLECTOR
Vokera part no. 5972
137   GAS PIPE
Vokera part no. 5974
138   OBSOLETE 3/4'' INCH GAS NIPPLE
Vokera part no. 5975
139 Part number 6026, Combustion Chamber Assembly COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 6026
140   NOW USE 20109067 PUMP 25-50
Vokera part no. 6090
140   ERP PUMP - REPLACED 6090 AND 6110
Vokera part no. 20109067		 £141.00
143   GROMMET FAN GASKET
Vokera part no. 5900
144   RIVET
Vokera part no. 5093
145   RIVET
Vokera part no. 5094
