VOKERA
MYNUTE 12/48 RS - (Assembly13)
Appliance Code: 41-094-04

Appliance Diagram


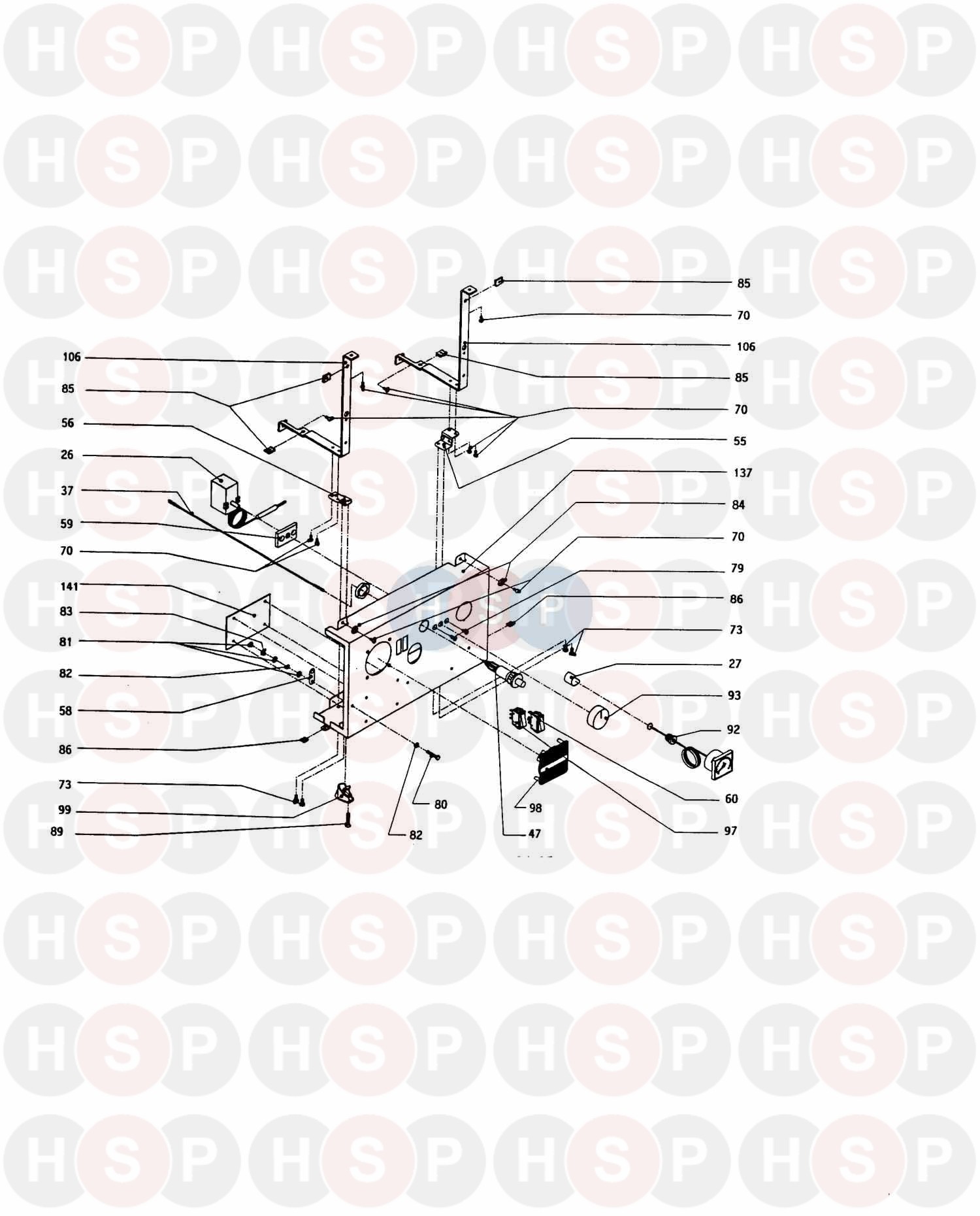

Assembly13 diagram for Vokera Mynute 12/48 RSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

10 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
11 Part number 0341, Fibre Washer FIBRE WASHER
Vokera part no. 0341		 £2.06
12   GAS VALVE SOLENOID 220/240V
Vokera part no. 0402
13   AUTO BY-PASS RETAINING CAP
Vokera part no. 0549
14   OBSOLETE WASHER
Vokera part no. 0551
15   SPRING FOR AUTO BY-PASS (LARGE)
Vokera part no. 0552
16   OBSOLETE AUTO BY-PASS BOBBIN
Vokera part no. 0553
17   O-RING
Vokera part no. 0554		 £0.44
18 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
19 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
20 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
21   N.G JETS 1.35
Vokera part no. 0587		 £0.50
22   OBSOLETE NUT
Vokera part no. 0599
23   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
24 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
25   HEATING MANIFOLD
Vokera part no. 3175
26 Part number 3267, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3267		 £21.43
27   CLIP
Vokera part no. 3412		 £0.96
29   O-RING FOR PUMP UNION
Vokera part no. 3740
30   6 LITRE EXPANSION VESSEL
Vokera part no. 3800
31 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
32 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
33   SEAL
Vokera part no. 4039
34   NUT (FOR F/R VALVES 4539)
Vokera part no. 4064
35   22MM OLIVE (FLOW AND RETURN VALVES)
Vokera part no. 4065
38   PUMP UNION NUT
Vokera part no. 4114
39 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
40   OBSOLETE PUMP CABLE
Vokera part no. 4220
41 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
42 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
43 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
44   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
45   EXPANSION VESSEL CLAMP BRACKET
Vokera part no. 4449
46   GAS CONNECTING BARREL
Vokera part no. 4535
48 Part number 4539, FLOW RETURN VALVE FLOW RETURN VALVE
Vokera part no. 4539
49   COCK
Vokera part no. 4541
50 Part number 4632, ELECTRODE ELECTRODE
Vokera part no. 4632
51 Part number 4640, Gas Valve GAS VALVE
Vokera part no. 4640		 £206.90
52   PLUG
Vokera part no. 4768
53 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
54 Part number 4891, Pilot Jet NG.27 PILOT JET NG.27
Vokera part no. 4891		 £0.89
55   HINGE (CONTROL PANEL L/H)
Vokera part no. 4934
56   HINGE (CONTROL PANEL R/H)
Vokera part no. 4935
57 Part number 4961, Thermocouple THERMOCOUPLE
Vokera part no. 4961		 £9.45
58   EARTH TERMINAL TAG
Vokera part no. 4975
59   SPACER FOR THERMOSTATS
Vokera part no. 4976
60   SWITCH
Vokera part no. 4981
61 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
62 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
63   PUMP WASHER
Vokera part no. 5036		 £0.96
64   WASHER
Vokera part no. 5039		 £0.44
65 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
66 Part number 5049, Gasket GASKET
Vokera part no. 5049		 £0.55
68 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
69 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
70 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
71   SCREW
Vokera part no. 5080		 £0.21
72   SCREW
Vokera part no. 5081		 £0.24
73   SCREW
Vokera part no. 5083		 £0.15
74   MACHINE SCREW 10MM L X 5MM 0
Vokera part no. 5092
75   RIVET
Vokera part no. 5093
76   RIVET
Vokera part no. 5094
77   SCREW
Vokera part no. 5124		 £0.30
78 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
79   MACHINE SCREWS FOR MOUNTING THERMOSTAT
Vokera part no. 5129
80   SCREW
Vokera part no. 5131
81   HEXAGON M4 NUT (BRASS)
Vokera part no. 5132
82   TOOTHED LOCK WASHER OD 8MM ID 4MM
Vokera part no. 5133
83   EARTH CONNECTOR
Vokera part no. 5134
84   OBSOLETE CUP WASHER
Vokera part no. 5138
85   EDGE CLIP FOR 4577
Vokera part no. 5143
86 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
87   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
88   SELF TAPPING SCREW
Vokera part no. 5169
89   SCREW
Vokera part no. 5171
90 Part number 5172, Burner Plate BURNER PLATE
Vokera part no. 5172		 £0.29
91   SCREW
Vokera part no. 5176		 £0.30
92 Part number 5263, Pressure Gauge PRESSURE GAUGE
Vokera part no. 5263		 £21.86
93   THERMOSTAT KNOB
Vokera part no. 5264
94 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
95 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
96 Part number 5280, Pilot Assembly PILOT ASSEMBLY
Vokera part no. 5280		 £14.76
97   ON/OFF SWITCH
Vokera part no. 5284
98   OBSOLETE PLASTIC COVER
Vokera part no. 5285
99   CABLE CLAMP
Vokera part no. 5371
100   ENGINEERS AND AGENTS ONLY MAIN HEAT EXCHANGER IN PLACE 5388 & 10021231
Vokera part no. 01005247		 £112.03
100 Part number 5388, Heat Exchanger with 2 x 5023 Washers HEAT EXCHANGER WITH 2 X 5023 WASHERS
Vokera part no. 5388		 £164.16
101 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
102 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
103   OBSOLETE PLASTIC TRADE MARK LABEL VOKERA (WHITE)
Vokera part no. 5636
104   FRAME
Vokera part no. 5808
105   MYNUTE WHITE CASE
Vokera part no. 5809
106   SUPPORT BRACKET
Vokera part no. 5811
107   GUARD
Vokera part no. 5814
108   EXPANSION VESSEL PIPE
Vokera part no. 5899
109   GROMMET FAN GASKET
Vokera part no. 5900
110 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
111 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
111 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
112 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
112 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
113 Part number 5921, Venturi VENTURI
Vokera part no. 5921
114 Part number 5925, OBSOLETE Pressure Differential Switch Housing OBSOLETE PRESSURE DIFFERENTIAL SWITCH HOUSING
Vokera part no. 5925
115 Part number 5926, Pressure Switch PRESSURE SWITCH
Vokera part no. 5926		 £64.38
116   SEAL
Vokera part no. 5927		 £4.47
117   COVER
Vokera part no. 5948
118   ROOM SEALED CHAMBER SIDE PANEL
Vokera part no. 5956
119   COMBUSTION CHAMBER COVER
Vokera part no. 5957
120 Part number 5958, Hood Assembly HOOD ASSEMBLY
Vokera part no. 5958
121 Part number 5960, NOW USE 2819 Front Plate for Combustion Chamber NOW USE 2819 FRONT PLATE FOR COMBUSTION CHAMBER
Vokera part no. 5960
121 Part number 2819, Combustion Cover COMBUSTION COVER
Vokera part no. 2819		 £16.94
122 Part number 5961, Combustion Chamber Front Panel COMBUSTION CHAMBER FRONT PANEL
Vokera part no. 5961		 £15.04
123 Part number 5962, Combustion Chamber Back Panel COMBUSTION CHAMBER BACK PANEL
Vokera part no. 5962		 £15.04
124 Part number 5963, Fan Assembly FAN ASSEMBLY
Vokera part no. 5963		 £140.91
125 Part number 5964, Fan Washer FAN WASHER
Vokera part no. 5964
126   FLUE CONNECTION
Vokera part no. 5965
127   FAN UNION TUBE
Vokera part no. 5966
128   PIPE WITH AIR SEPARATOR
Vokera part no. 5967
129   PUMP PIPE
Vokera part no. 5968
130   SILICONE TUBE
Vokera part no. 5971		 £6.82
131   AIR DEFLECTOR
Vokera part no. 5972
132   OBSOLETE 3/4'' INCH GAS NIPPLE
Vokera part no. 5975
133 Part number 6026, Combustion Chamber Assembly COMBUSTION CHAMBER ASSEMBLY
Vokera part no. 6026
134   NOW USE 20109067 PUMP 25-50
Vokera part no. 6090
134   ERP PUMP - REPLACED 6090 AND 6110
Vokera part no. 20109067		 £141.00
135   GROMMET
Vokera part no. 6266
136   PIPE
Vokera part no. 6354
137   FRONT PANEL
Vokera part no. 6394
138   PILOT PIPE
Vokera part no. 6395
139   GAS VALVE KNOB
Vokera part no. 6396
141   PRINTED CIRCUIT BOARD
Vokera part no. 6398
142   NOW USE 4888 HIGH LIMIT THERMOSTAT
Vokera part no. 6399
142 Part number 4888, H/l Stat (replaces 6399) H/L STAT (REPLACES 6399)
Vokera part no. 4888		 £41.49
143 Part number 6493, Resistor Replaced 4028 RESISTOR REPLACED 4028
Vokera part no. 6493		 £15.89
144   AIR CHAMBER
Vokera part no. 6495
145   PIPE - GAS VALVE TO BURNER
Vokera part no. 6781
146   GAS VALVE BRACKET
Vokera part no. 6785
147   FLOW PIPE
Vokera part no. 6802
