VOKERA
MAXIM 25 ERP REV 3 (09/2017) - (Casing Electrics)
Appliance Code: 47-364-31 REV 3

Appliance Diagram


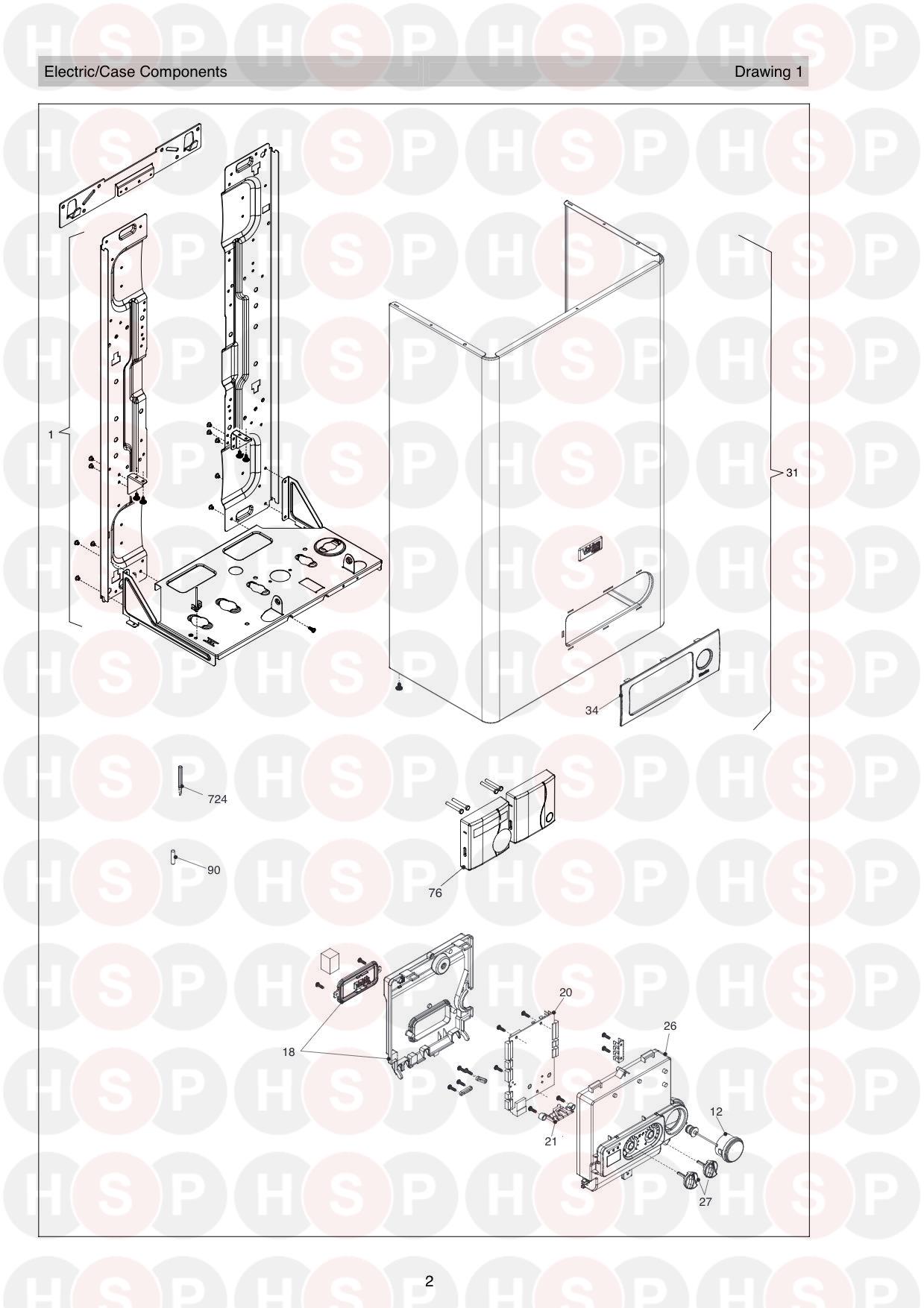

Casing Electrics diagram for Vokera Maxim 25 ERP Rev 3 (09/2017)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   FRAME ASSEMBLY
Vokera part no. 20049618
£43.62
12 Part number 20005580, Quick primer pressure gauge QUICK PRIMER PRESSURE GAUGE
Vokera part no. 20005580
£12.49
18 Part number 20026055, CONTROL PANEL COVER CONTROL PANEL COVER
Vokera part no. 20026055
£23.03
20 Part number 20069541, Printed circuit board Replaced 20055454 & 20025735 (UP TO SERIAL NO. 20116906N0752248 OR 2012089N0950180) PRINTED CIRCUIT BOARD REPLACED 20055454 & 20025735 (UP TO SERIAL NO. 20116906N0752248 OR 2012089N0950180)
Vokera part no. 20069541
£152.69
21   LED LIGHT GUIDE
Vokera part no. 20013352
£0.90
26   INSTRUMENT PANEL
Vokera part no. 20118920
£12.53
27 Part number 20014025, CONTROL KNOB CONTROL KNOB
Vokera part no. 20014025
£2.07
31   CASE ASSEMBLY
Vokera part no. 20119369
£56.77
34   DISPLAY FRAME ON CASING
Vokera part no. 20119367
£3.19
76   REMOTE CONTROL
Vokera part no. 20119368
£112.47
90 Part number 3478, 3 Amp Fuse (individual) 3 AMP FUSE (INDIVIDUAL)
Vokera part no. 3478
£2.05
724   SCREW DRIVER
Vokera part no. 2455
£0.90
