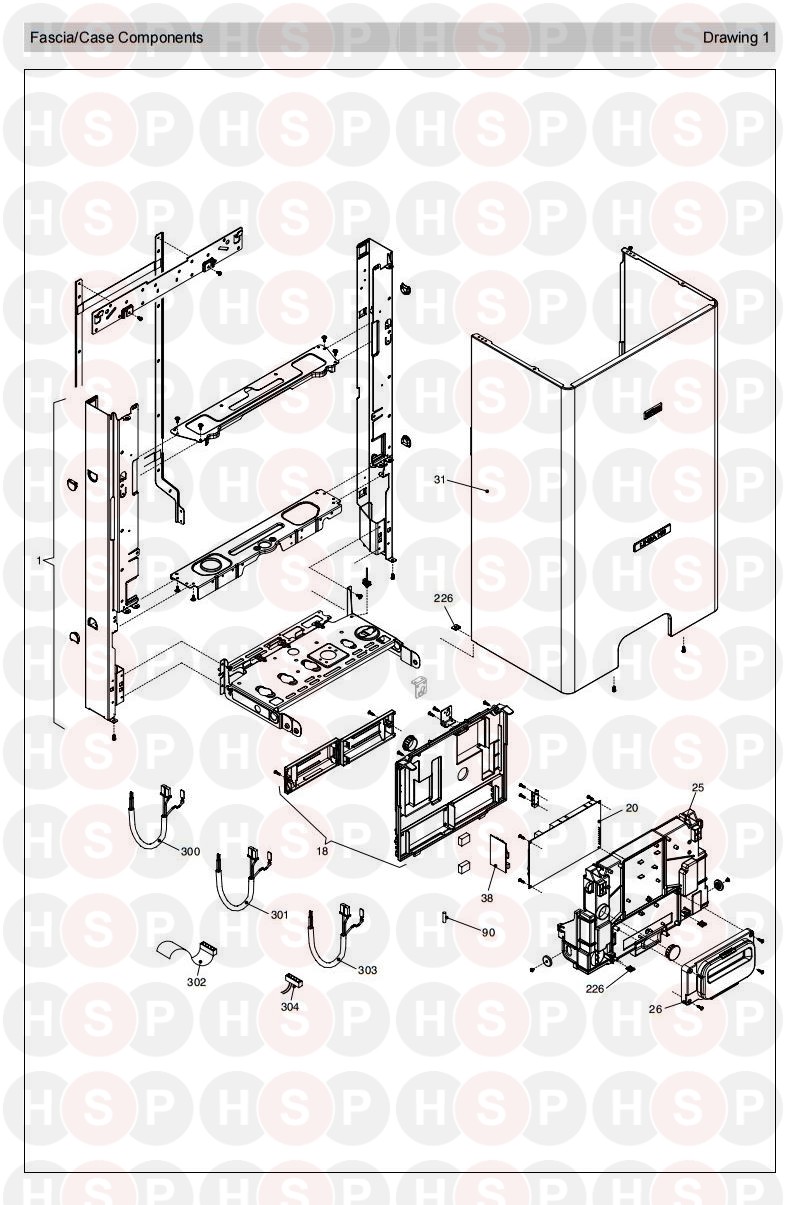

_linea%20casing/111/160510091531116928 "Casing Electrics diagram for Vokera Linea 25 HE Rev 9 (06/2008)")
You can then pinch & zoom to adjust the size.
| 1 | FRAME ASSEMBLY Vokera part no. 01005365 |
£141.11 | ||
| 18 | COVER ASSEMBLY Vokera part no. 10026239 |
£32.79 | ||
| 20 |  |
MAIN PRINTED CIRCUIT BOARD Vokera part no. 20007052 |
£386.59 | |
| 25 | FRONT PANEL Vokera part no. 10025842 |
£21.23 | ||
| 26 |  |
DISPLAY PANEL - REPLACED 10026238 Vokera part no. 10029365 |
£183.35 | |
| 26 |  |
NOW USE 10029365 DISPLAY BOARD Vokera part no. 10026238 |
||
| 31 | CASING Vokera part no. 10026241 |
£131.57 | ||
| 38 |  |
DRIVER PCB Vokera part no. 10027200 |
£52.29 | |
| 90 |  |
3 AMP FUSE (INDIVIDUAL) Vokera part no. 3478 |
£2.05 | |
| 226 |  |
EDGE CLIP Vokera part no. 5128 |
£0.21 | |
| 300 | WIRING J15 & CN3 TO M10 CONNECTOR (EXTERNAL SENSOR/U.H.T) Vokera part no. 10026330 |
£41.17 | ||
| 301 | J3 MAINS TERMINAL BLOCK & WIRES Vokera part no. 10026333 |
£31.26 | ||
| 302 | RIBBON CABLE Vokera part no. 10026341 |
£17.73 | ||
| 303 |  |
CN2 TO W PRESSURE SENSOR, DHW FLOW SWITCH, DHW TEMPERATURE WIRING Vokera part no. 10027158 |
£33.31 | |
| 304 | CABLE CONNECTOR Vokera part no. 10026342 |
£7.77 | ||
