VOKERA
24/96 RSE FLOWMATIC - (Assembly 3)
Appliance Code: 47-094-08

Appliance Diagram


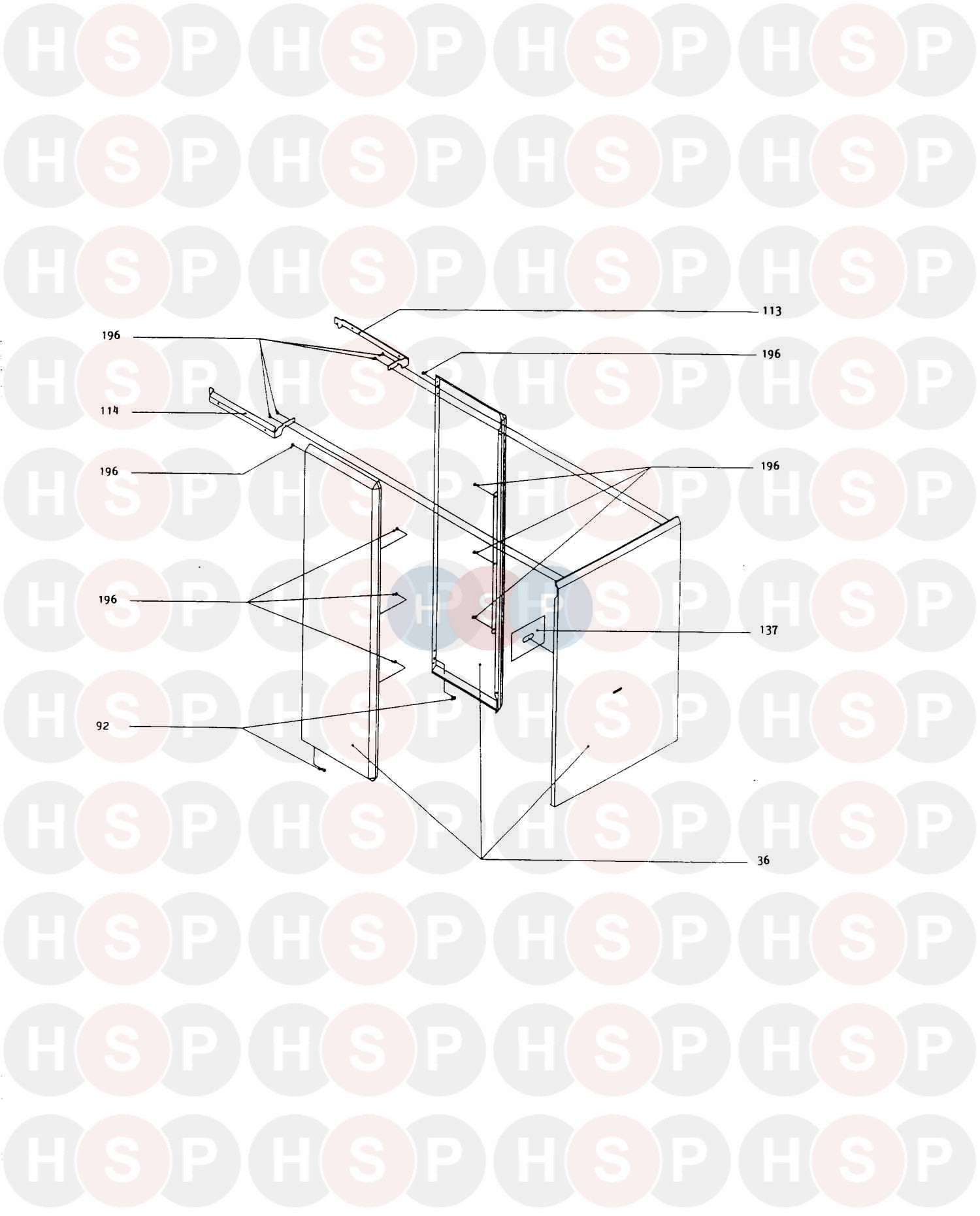

Assembly 3 diagram for Vokera 24/96 RSE FlowmaticClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number T0002, 3 Port Valve Service Kit 3 PORT VALVE SERVICE KIT
Vokera part no. T0002		 £52.84
1 Part number 0139, 3 Way Valve Tail Plate 3 WAY VALVE TAIL PLATE
Vokera part no. 0139		 £25.46
2 Part number 0159, 3 Way Valve Head Shaft 3 WAY VALVE HEAD SHAFT
Vokera part no. 0159		 £34.00
3 Part number 0184, Extension Shaft EXTENSION SHAFT
Vokera part no. 0184		 £34.07
4 Part number 0216, Front Seal FRONT SEAL
Vokera part no. 0216		 £4.84
5   OBSOLETE CLAMP SCREW 3 PORT VALVE TO MANIFOLD
Vokera part no. 0217
6 Part number 0218, Retaining Ring RETAINING RING
Vokera part no. 0218		 £5.75
7 Part number 0219, Shuttle SHUTTLE
Vokera part no. 0219		 £20.16
8   SCREW
Vokera part no. 0220
9   WASHER
Vokera part no. 0221		 £0.96
10 Part number 0226, Diaphragm (6 Screw) DIAPHRAGM (6 SCREW)
Vokera part no. 0226		 £7.16
11 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
12 Part number 0341, Fibre Washer FIBRE WASHER
Vokera part no. 0341		 £2.06
13 Part number 0349, O-RING O-RING
Vokera part no. 0349		 £0.39
14   BY PASS PLUG
Vokera part no. 0364
15   BY PASS SPRING
Vokera part no. 0365
17   DOMESTIC WATER FLOW REGULATING SCREW
Vokera part no. 0367
18   WASHER
Vokera part no. 0371		 £1.47
19   ALUMINIUM WASHER
Vokera part no. 0373
20   VENTURI
Vokera part no. 0381		 £2.97
21 Part number 0394, NG Spring NG SPRING
Vokera part no. 0394		 £2.27
22 Part number 0536, Nylon Plate NYLON PLATE
Vokera part no. 0536		 £10.88
23   AUTO BY-PASS RETAINING CAP
Vokera part no. 0549
24   OBSOLETE WASHER
Vokera part no. 0551
25   SPRING FOR AUTO BY-PASS (LARGE)
Vokera part no. 0552
26   OBSOLETE AUTO BY-PASS BOBBIN
Vokera part no. 0553
27   O-RING
Vokera part no. 0554		 £0.44
28 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
29 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
30 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
31   SERVO PRESSURE REGULATOR
Vokera part no. 0598
32   OBSOLETE NUT
Vokera part no. 0599
33 Part number 0113, Screw SCREW
Vokera part no. 0113
34   PUMP UNION NUT
Vokera part no. 4114
34   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
35   SOLENOID
Vokera part no. 0602
36   OBSOLETE WHITE CASE
Vokera part no. 0603
37 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
38   AUTO BY-PASS CONNECTING TUBE
Vokera part no. 3183
39 Part number 3207, 3 Port Valve 3 PORT VALVE
Vokera part no. 3207		 £135.81
40   DISTRIBUTION MANIFOLD WITH AUTO BY-PASS
Vokera part no. 3208
41 Part number 3212, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3212
42 Part number 3409, High Limit Stat HIGH LIMIT STAT
Vokera part no. 3409		 £21.43
43   CLIP
Vokera part no. 3412		 £0.96
44   O-RING FOR PUMP UNION
Vokera part no. 3740
45 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
46 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
47   RUBBER RING FOR 4018
Vokera part no. 4036
48   NUT
Vokera part no. 4061
49   15MM OLIVE
Vokera part no. 4062
50   NUT (FOR F/R VALVES 4539)
Vokera part no. 4064
51   22MM OLIVE (FLOW AND RETURN VALVES)
Vokera part no. 4065
52   HOT WATER OUTLET NUT AND TAIL
Vokera part no. 4095
55 Part number 4148, Triple Microswitch TRIPLE MICROSWITCH
Vokera part no. 4148		 £29.97
56 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
57   OBSOLETE PUMP CABLE
Vokera part no. 4220
58 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
59 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
60 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
61   CYLINDER VENTING PLUG
Vokera part no. 4321
62   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
63 Part number 4492, Expansion Vessel EXPANSION VESSEL
Vokera part no. 4492		 £92.84
64   HEATING FLOW PIPE WITH UNION
Vokera part no. 4496
65 Part number 4518, Domestic Expansion Vessel DOMESTIC EXPANSION VESSEL
Vokera part no. 4518
66 Part number 4539, FLOW RETURN VALVE FLOW RETURN VALVE
Vokera part no. 4539
68   COCK
Vokera part no. 4541
69   CONNECTION FOR DOM EXP VESSEL
Vokera part no. 4544		 £3.48
70 Part number 4549, Domestic Heat Exchanger DOMESTIC HEAT EXCHANGER
Vokera part no. 4549
71   EXPANSION VESSEL FIXING BRACKET
Vokera part no. 4581
72   TAIL PLATE SEAL
Vokera part no. 4723
73 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
75 Part number 4931, Pump Over-Run Thermostat PUMP OVER-RUN THERMOSTAT
Vokera part no. 4931
76 Part number 4962, Domestic Distribution Manifold DOMESTIC DISTRIBUTION MANIFOLD
Vokera part no. 4962
77   DOMESTIC HEAT EXCHANGER RETURN PIPE
Vokera part no. 4965
78   EARTH TERMINAL TAG
Vokera part no. 4975
79   SWITCH
Vokera part no. 4981
80 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
82 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
83 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.39
84   PUMP WASHER
Vokera part no. 5036		 £0.96
85 Part number 5038, Washer WASHER
Vokera part no. 5038		 £0.44
86   WASHER
Vokera part no. 5039		 £0.44
87 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
89 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
90 Part number 5071, Fibre Washer FIBRE WASHER
Vokera part no. 5071		 £0.25
91 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
92 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
93   SCREW
Vokera part no. 5080		 £0.21
94   SCREW M4 X 8
Vokera part no. 5086
96 Part number 5105, Machine Screw M4 x 10mm MACHINE SCREW M4 X 10MM
Vokera part no. 5105		 £0.93
97   SCREW
Vokera part no. 5124		 £0.30
98 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
99   MACHINE SCREWS FOR MOUNTING THERMOSTAT
Vokera part no. 5129
100   SCREW
Vokera part no. 5131
101   HEXAGON M4 NUT (BRASS)
Vokera part no. 5132
102   TOOTHED LOCK WASHER OD 8MM ID 4MM
Vokera part no. 5133
103   EARTH CONNECTOR
Vokera part no. 5134
104 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
106   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
107   SELF TAPPING SCREW
Vokera part no. 5169
108 Part number 5170, Screw SCREW
Vokera part no. 5170		 £0.44
109   SCREW
Vokera part no. 5171
110   SCREW
Vokera part no. 5176		 £0.30
111   FRAME
Vokera part no. 5251
112   DOOR PANEL
Vokera part no. 5254
113   CASE REINFORCEMENT R/H
Vokera part no. 5255
114   CASE REINFORCEMENT L/H
Vokera part no. 5256
116   CONTROL PANEL SUPPORT BRACKET (R/H)
Vokera part no. 5259
117   GUARD
Vokera part no. 5261
118 Part number 5262, Temperature Gauge TEMPERATURE GAUGE
Vokera part no. 5262
119 Part number 5263, Pressure Gauge PRESSURE GAUGE
Vokera part no. 5263		 £21.86
120   THERMOSTAT KNOB
Vokera part no. 5264
121 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
122 Part number 5275, Spring For Control Panel SPRING FOR CONTROL PANEL
Vokera part no. 5275
123 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
124   ON/OFF SWITCH
Vokera part no. 5284
125   OBSOLETE PLASTIC COVER
Vokera part no. 5285
126   GROMMET
Vokera part no. 5298
127 Part number 5301, Spindle SPINDLE
Vokera part no. 5301		 £3.27
128   PLASTIC BUSH
Vokera part no. 5303
129   PLASTIC BUSH
Vokera part no. 5304		 £1.36
130 Part number 5315, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5315		 £15.04
131 Part number 5316, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5316		 £15.98
132 Part number 5317, NG Burner (replaces 48929 and 10027564) NG BURNER (REPLACES 48929 AND 10027564)
Vokera part no. 5317		 £112.79
133   MAIN BURNER LPG
Vokera part no. 5319		 £111.71
134 Part number 5322, Screw M5x45 SCREW M5X45
Vokera part no. 5322		 £1.45
135 Part number 5323, Washer WASHER
Vokera part no. 5323		 £0.39
136   COVER FOR PCB
Vokera part no. 5329
137   SELF ADHESIVE ALUM SHEET
Vokera part no. 5333
138 Part number 5356, Heat Exchanger HEAT EXCHANGER
Vokera part no. 5356		 £264.20
139   CABLE CLAMP
Vokera part no. 5371
140 Part number 5394, Domestic Thermostat DOMESTIC THERMOSTAT
Vokera part no. 5394
141   OBSOLETE FRONT PANEL SUPPORT (RIGHT)
Vokera part no. 5397
142 Part number 5441, High-limit Thermostat HIGH-LIMIT THERMOSTAT
Vokera part no. 5441		 £7.30
143 Part number 5472, Thermostat Clip THERMOSTAT CLIP
Vokera part no. 5472		 £1.34
144 Part number 5634, Gas Valve GAS VALVE
Vokera part no. 5634
145   WASHER
Vokera part no. 5635
146   OBSOLETE PLASTIC TRADE MARK LABEL VOKERA (WHITE)
Vokera part no. 5636
147 Part number 0940, Electronic Ignition Control Kit (Brahma) ELECTRONIC IGNITION CONTROL KIT (BRAHMA)
Vokera part no. 0940
149 Part number 5640, Spark Electrode & Lead SPARK ELECTRODE & LEAD
Vokera part no. 5640		 £15.75
150 Part number 5641, Sensing Electrode & Lead SENSING ELECTRODE & LEAD
Vokera part no. 5641		 £15.75
151 Part number 5643, Circuit Board CIRCUIT BOARD
Vokera part no. 5643		 £173.51
152   GAS CONNECTION
Vokera part no. 5776
153   FIXING PLATE FOR ELECTRONIC IGNITION
Vokera part no. 5784
154   OBSOLETE MOUNTING BRACKET
Vokera part no. 5861
155 Part number 5863, Gas Valve Gasket GAS VALVE GASKET
Vokera part no. 5863		 £0.63
156   COIL
Vokera part no. 5868
157   CONICAL SPRING LPG
Vokera part no. 5869
158   OBSOLETE AIR CHAMBER
Vokera part no. 5871
159   OBSOLETE GAS PIPE
Vokera part no. 5872
160   OBSOLETE ELECTRODE SEAL
Vokera part no. 5873
161   SIDE PANEL
Vokera part no. 5903
162   FRONT PANEL
Vokera part no. 5904
163 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
164   HOOD ASSEMBLY
Vokera part no. 5907		 £36.82
165 Part number 5909, Combustion Chamber Front (Metal) COMBUSTION CHAMBER FRONT (METAL)
Vokera part no. 5909		 £10.93
166 Part number 5911, Fan Assembly FAN ASSEMBLY
Vokera part no. 5911		 £127.40
167 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
168   FAN TO FLUE CONNECTOR
Vokera part no. 5914
169   TUBE
Vokera part no. 5915
170 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
170 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
171 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
171 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
173   OBSOLETE MAINTENANCE CLIP (LARGE)
Vokera part no. 5919
174   OBSOLETE SEAL FOR MAINTENANCE CLIP (LARGE)
Vokera part no. 5920
175 Part number 5921, Venturi VENTURI
Vokera part no. 5921
176   AIR FLANGE
Vokera part no. 5922
177   AIR DEFLECTOR
Vokera part no. 5923
178 Part number 5925, OBSOLETE Pressure Differential Switch Housing OBSOLETE PRESSURE DIFFERENTIAL SWITCH HOUSING
Vokera part no. 5925
179 Part number 5926, Pressure Switch PRESSURE SWITCH
Vokera part no. 5926		 £64.38
180   SEAL
Vokera part no. 5927		 £4.47
181   OBSOLETE GROMMET
Vokera part no. 5928
182 Part number 5930, Pipe PIPE
Vokera part no. 5930
183   RETURN PIPE AND AIR SEPARATOR
Vokera part no. 5931
184   FLOW PIPE
Vokera part no. 5932
185 Part number 5944, NOW USE 1457 Silicone Tube NOW USE 1457 SILICONE TUBE
Vokera part no. 5944
185 Part number 1457, Silicone tube (1 Metre) SILICONE TUBE (1 METRE)
Vokera part no. 1457		 £2.12
186   COVER
Vokera part no. 5948
187   AIR BAFFLE
Vokera part no. 5950
188   AIR BAFFLE
Vokera part no. 5951
189   PIPE FIXING BRACKET
Vokera part no. 5973
190 Part number 6028, Combustion Chamber COMBUSTION CHAMBER
Vokera part no. 6028		 £22.81
191   NOW USE 20109067 PUMP 25-50
Vokera part no. 6090
191   ERP PUMP - REPLACED 6090 AND 6110
Vokera part no. 20109067		 £141.00
192   REAR PLASTIC DOOR
Vokera part no. 6160
196   RIVET
Vokera part no. 5093
197   RIVET
Vokera part no. 5094
198   EXPANSION PIPE
Vokera part no. 5335
199   PCB
Vokera part no. 6759


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
