VOKERA
21-84 MCF (SEE 47-094-01) - (Assembly 9)
Appliance Code: 41-094-01

Appliance Diagram


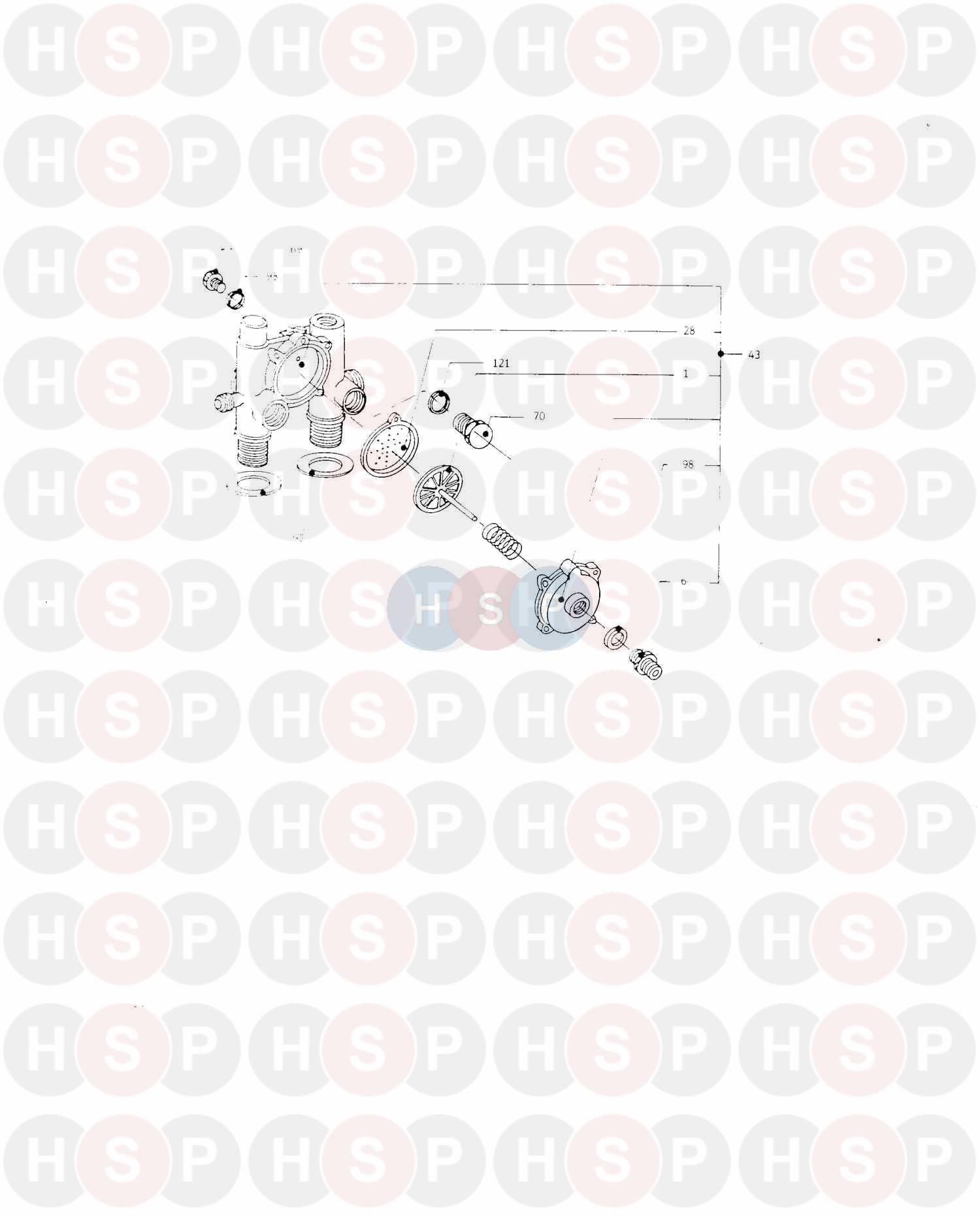

Assembly 9 diagram for Vokera 21-84 MCF (See 47-094-01)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number T0001, Service Kit SERVICE KIT
Vokera part no. T0001		 £54.80
2 Part number 0139, 3 Way Valve Tail Plate 3 WAY VALVE TAIL PLATE
Vokera part no. 0139		 £25.46
3 Part number 0159, 3 Way Valve Head Shaft 3 WAY VALVE HEAD SHAFT
Vokera part no. 0159		 £34.00
4 Part number 0184, Extension Shaft EXTENSION SHAFT
Vokera part no. 0184		 £34.07
5   NYLON PLATE
Vokera part no. 0301
6 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
8   DOMESTIC WATER FLOW REGULATING SCREW
Vokera part no. 0378
9   BY PASS PLUG
Vokera part no. 0379
10   BY PASS PLATE & SPRING
Vokera part no. 0380
11   VENTURI
Vokera part no. 0381		 £2.97
12 Part number 0394, NG Spring NG SPRING
Vokera part no. 0394		 £2.27
13   GAS VALVE SOLENOID 15V DC
Vokera part no. 0401
14 Part number 3611, Domestic diaphragm TP DOMESTIC DIAPHRAGM TP
Vokera part no. 3611
15   OBSOLETE THERMOSTAT WIRE CLIP
Vokera part no. 3725
16   NOW USE 4961 THERMOCOUPLE (LONG)
Vokera part no. 3771
16 Part number 4961, Thermocouple THERMOCOUPLE
Vokera part no. 4961		 £9.45
17   NUT
Vokera part no. 4061
18   15MM OLIVE
Vokera part no. 4062
19   NUT (FOR F/R VALVES 4539)
Vokera part no. 4064
20   22MM OLIVE (FLOW AND RETURN VALVES)
Vokera part no. 4065
21   OBSOLETE GREY CONTROL PANEL
Vokera part no. 4068
23   HOT WATER OUTLET NUT AND TAIL
Vokera part no. 4095
24   ELEC. MAGNETIC COMP. + SPRING + CORE
Vokera part no. 4751
26 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
27 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
28 Part number 4298, Diaphragm DIAPHRAGM
Vokera part no. 4298		 £5.99
29 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
30   CYLINDER VENTING PLUG
Vokera part no. 4321
31   CORK GASKET FOR 4473
Vokera part no. 4325
32   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
33   MAIN HEAT EXCHANGER RS TURBO
Vokera part no. 4333
34   OBSOLETE FLUE DRAUGHT DIVERTER
Vokera part no. 4343
36   OBSOLETE METAL CASE FOR COMBUSTION CHAMBER
Vokera part no. 4383
37 Part number 4441, Temperature Gauge (rep 7171) TEMPERATURE GAUGE (REP 7171)
Vokera part no. 4441		 £20.48
38   PRESSURE GAUGE (CLAMP OR PUSH FIT)
Vokera part no. 4472
39   OBSOLETE CLAMP BRACKET MAIN FLOW PIPE
Vokera part no. 4473
40   EXPANSION PIPE
Vokera part no. 4489
41   MAIN HEATING RETURN WITH UNION
Vokera part no. 4490
42 Part number 4492, Expansion Vessel EXPANSION VESSEL
Vokera part no. 4492		 £92.84
43   HEATING DISTRIBUTION MANIFOLD
Vokera part no. 4493
44   DOMESTIC DISTRIBUTION MANIFOLD
Vokera part no. 4494
45   MECHANICAL 3 WAY VALVE
Vokera part no. 4495
46   HEATING FLOW PIPE WITH UNION
Vokera part no. 4496
47   CYLINDER RETURN PIPE WITH UNION
Vokera part no. 4497
49   GAS CONNECTING BARREL
Vokera part no. 4535
50   OBSOLETE GAS VALVE MOUNTING BRACKET
Vokera part no. 4536
52   LINT GUARD
Vokera part no. 4538
53 Part number 4539, FLOW RETURN VALVE FLOW RETURN VALVE
Vokera part no. 4539
55   COCK
Vokera part no. 4541
56   THERMOCOUPLE
Vokera part no. 4542
59   NTC PROBE
Vokera part no. 4559
61 Part number 4563, MICRO SWITCH MICRO SWITCH
Vokera part no. 4563
64   PILOT BRIDGE (HURRICANE)
Vokera part no. 4580
65   EXPANSION VESSEL FIXING BRACKET
Vokera part no. 4581
66   DOUBLE ACTION HINGE
Vokera part no. 4583
67   STAINLESS STEEL SHIELD
Vokera part no. 4585
69 Part number 4611, Blanking Plug for Heating Manifold BLANKING PLUG FOR HEATING MANIFOLD
Vokera part no. 4611		 £0.90
70   BLANKING PLUG HEATING MANIFOLD
Vokera part no. 4612
72   OBSOLETE MOUNTING RING
Vokera part no. 4626
73   OBSOLETE GAS VALVE TO BURNER CONNECTING PIPE
Vokera part no. 4629
75 Part number 4632, ELECTRODE ELECTRODE
Vokera part no. 4632
76   PILOT PIPE
Vokera part no. 4634
77 Part number 4687, OBSOLETE Domestic Heat Exchanger OBSOLETE DOMESTIC HEAT EXCHANGER
Vokera part no. 4687		 £74.99
78   DOMESTIC CYLINDER SUPPLY (CARBON FREE)
Vokera part no. 4691
79   DOMESTIC CYLINDER HOT WATER OUTLET (CF)
Vokera part no. 4692
81   TAIL PLATE SEAL
Vokera part no. 4723
83   OBSOLETE ELECTRIC WIRE LOCKING SLEEVE
Vokera part no. 4838
84   OBSOLETE INSULATOR PANEL FOR 4774-4566
Vokera part no. 4846
85 Part number 4875, Case Clips CASE CLIPS
Vokera part no. 4875
86   FINGER GUARD
Vokera part no. 4881
88 Part number 4891, Pilot Jet NG.27 PILOT JET NG.27
Vokera part no. 4891		 £0.89
90 Part number 4888, H/l Stat (replaces 6399) H/L STAT (REPLACES 6399)
Vokera part no. 4888		 £41.49
90   NOW USE 4888 HIGH LIMIT THERMOSTAT
Vokera part no. 4978
91 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
92   FIBRE WASHER (PRESSURE GAUGE)
Vokera part no. 5024
93 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
94 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.39
95   PUMP WASHER
Vokera part no. 5036		 £0.96
96 Part number 5038, Washer WASHER
Vokera part no. 5038		 £0.44
97   WASHER
Vokera part no. 5039		 £0.44
98 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
99 Part number 5049, Gasket GASKET
Vokera part no. 5049		 £0.55
100 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
101 Part number 5071, Fibre Washer FIBRE WASHER
Vokera part no. 5071		 £0.25
102   SELF TAPPING SCREW
Vokera part no. 5078
103 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
104   SCREW
Vokera part no. 5080		 £0.21
105   SCREW
Vokera part no. 5081		 £0.24
106   SCREW
Vokera part no. 5083		 £0.15
107   SCREW M4 X 8
Vokera part no. 5086
108   MACHINE SCREW 10MM L X 5MM 0
Vokera part no. 5092
109   OBSOLETE SPLIT PIN FOR AIR SEPARATOR
Vokera part no. 5117
110   SCREW
Vokera part no. 5124		 £0.30
111   OBSOLETE SCREW FOR MOUNTING DOMESTIC MANIFOLD
Vokera part no. 5125
112 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
113   OBSOLETE EDGE CLIPS FOR MAIN FRAME
Vokera part no. 5130
114   SPACER
Vokera part no. 5136
115   OBSOLETE CUP WASHER
Vokera part no. 5138
116   EDGE CLIP FOR 4577
Vokera part no. 5143
117   OBSOLETE EDGE CLIP TO SECURE PILOT ASSEMBLY
Vokera part no. 5146
118   NOW USE 20109067 PUMP 25-50
Vokera part no. 6090
118   ERP PUMP - REPLACED 6090 AND 6110
Vokera part no. 20109067		 £141.00
119   FIBRE WASHER (BY-PASS PLUG)
Vokera part no. 5027
120 Part number 0216, Front Seal FRONT SEAL
Vokera part no. 0216		 £4.84
121 Part number 5042, Washer WASHER
Vokera part no. 5042		 £0.25
123 Part number 0218, Retaining Ring RETAINING RING
Vokera part no. 0218		 £5.75
124 Part number 0219, Shuttle SHUTTLE
Vokera part no. 0219		 £20.16
125 Part number 0341, Fibre Washer FIBRE WASHER
Vokera part no. 0341		 £2.06
126   OBSOLETE NUT
Vokera part no. 0599
127   PIPE FOR MINI EXPANSION VESSEL
Vokera part no. 0407
