VOKERA
20-80 RS TURBO - (Assembly 4)
Appliance Code: 47-094-03

Appliance Diagram

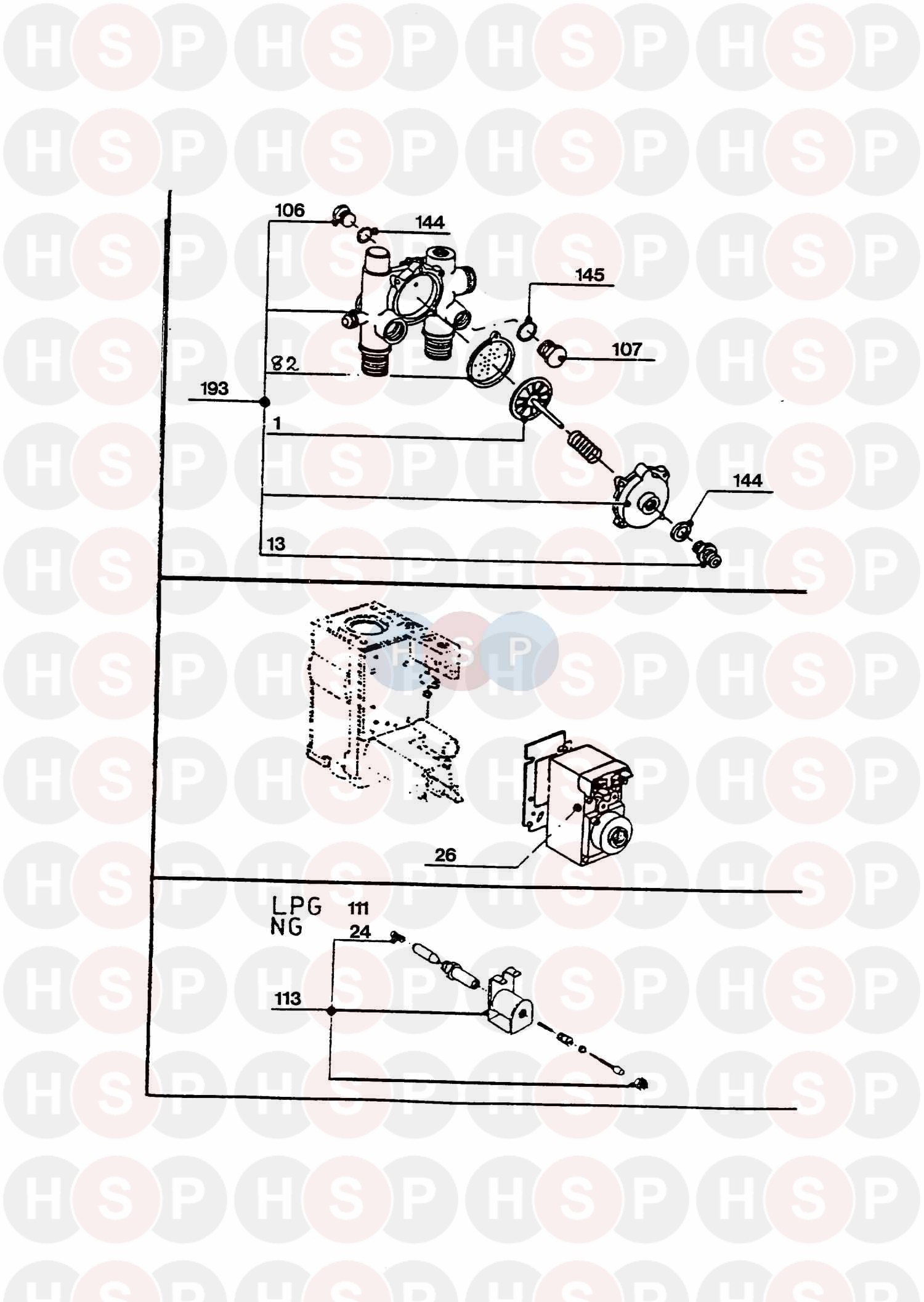

Assembly 4 diagram for Vokera 20-80 RS TurboClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number T0002, 3 Port Valve Service Kit 3 PORT VALVE SERVICE KIT
Vokera part no. T0002		 £52.84
0 Part number 0226, Diaphragm (6 Screw) DIAPHRAGM (6 SCREW)
Vokera part no. 0226		 £7.16
0   CYLINDER VENTING PLUG
Vokera part no. 4321
2 Part number 0139, 3 Way Valve Tail Plate 3 WAY VALVE TAIL PLATE
Vokera part no. 0139		 £25.46
3 Part number 0159, 3 Way Valve Head Shaft 3 WAY VALVE HEAD SHAFT
Vokera part no. 0159		 £34.00
4 Part number 0184, Extension Shaft EXTENSION SHAFT
Vokera part no. 0184		 £34.07
5 Part number 0216, Front Seal FRONT SEAL
Vokera part no. 0216		 £4.84
6   OBSOLETE CLAMP SCREW 3 PORT VALVE TO MANIFOLD
Vokera part no. 0217
7 Part number 0218, Retaining Ring RETAINING RING
Vokera part no. 0218		 £5.75
8 Part number 0219, Shuttle SHUTTLE
Vokera part no. 0219		 £20.16
9   SCREW
Vokera part no. 0220
10   WASHER
Vokera part no. 0221		 £0.96
11   OBSOLETE SCREW M4 X 6
Vokera part no. 0299
12   NYLON PLATE
Vokera part no. 0301
13 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
14 Part number 0341, Fibre Washer FIBRE WASHER
Vokera part no. 0341		 £2.06
16   BY PASS PLUG
Vokera part no. 0364
17   BY PASS SPRING
Vokera part no. 0365
19   DOMESTIC WATER FLOW REGULATING SCREW
Vokera part no. 0367
20   WASHER
Vokera part no. 0371		 £1.47
22   ALUMINIUM WASHER
Vokera part no. 0373
23   VENTURI
Vokera part no. 0381		 £2.97
24 Part number 0394, NG Spring NG SPRING
Vokera part no. 0394		 £2.27
26   GAS VALVE SOLENOID 220/240V
Vokera part no. 0402
30   OBSOLETE FLUE HOOD FOR R/S TURBO
Vokera part no. 3105
31   CLAMP BRACKET
Vokera part no. 3107
32   OBSOLETE AIR INLET ELBOW
Vokera part no. 3108
36   PRESSURE DIFFERENTIAL SWITCH RS TURBO
Vokera part no. 3112
37   PRESSURESOCKET&VENTURI
Vokera part no. 3113
39   OBSOLETE O-RING FOR FAN COUPLING
Vokera part no. 3115
40   OBSOLETE O-RING FOR AIR CONNECTION
Vokera part no. 3116
41   OBSOLETE RUBBER SEAL (AIR INLET TUBE)
Vokera part no. 3127
42   OBSOLETE AIR TUBE CLAMP
Vokera part no. 3128
44   OBSOLETE BAFFLE PLATE
Vokera part no. 3136
45 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
47   OBSOLETE SEAL FOR FRONT COVER
Vokera part no. 3145
48   OBSOLETE SEAL FOR TOP COVER
Vokera part no. 3146
50   OBSOLETE INSPECTION PANEL FOR DRAFT DIVERTER
Vokera part no. 3385
52   PCB
Vokera part no. 3387
53 Part number 3434, R S Turbo Fan Assembly R S TURBO FAN ASSEMBLY
Vokera part no. 3434
55   BURNER BAFFLE RS TURBO
Vokera part no. 3484
56 Part number 3611, Domestic diaphragm TP DOMESTIC DIAPHRAGM TP
Vokera part no. 3611
57   OBSOLETE GROMMET
Vokera part no. 3727
58 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
59 Part number 4008, 3/4in BSP Nipple 3/4IN BSP NIPPLE
Vokera part no. 4008
60   MAIN HEAT EXCHANGER RS TURBO
Vokera part no. 4009
61   GAS VALVE TO BURNER CONNECTING PIPE
Vokera part no. 4013
64   OBSOLETE PUMP RETURN PIPE SUPPORT
Vokera part no. 4018
65 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
67   RUBBER RING FOR 4018
Vokera part no. 4036
68   SEAL (GAS PIPE TO COMBUSTION CHAMBER)
Vokera part no. 4037
69   SEAL
Vokera part no. 4039
72   NUT
Vokera part no. 4061
73   15MM OLIVE
Vokera part no. 4062
74   NUT (FOR F/R VALVES 4539)
Vokera part no. 4064
75   22MM OLIVE (FLOW AND RETURN VALVES)
Vokera part no. 4065
76   HOT WATER OUTLET NUT AND TAIL
Vokera part no. 4095
78   PUMP UNION NUT
Vokera part no. 4114
79   FLOW PIPE WITH AIR SEPARATOR
Vokera part no. 4189
80 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
81 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
82 Part number 4298, Diaphragm DIAPHRAGM
Vokera part no. 4298		 £5.99
83 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
84   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
85 Part number 4441, Temperature Gauge (rep 7171) TEMPERATURE GAUGE (REP 7171)
Vokera part no. 4441		 £20.48
86   OBSOLETE BLANKING PLATE T/CLOCK APERTURE
Vokera part no. 4452
87   PRESSURE GAUGE (CLAMP OR PUSH FIT)
Vokera part no. 4472
88   EXPANSION PIPE
Vokera part no. 4489
89 Part number 4492, Expansion Vessel EXPANSION VESSEL
Vokera part no. 4492		 £92.84
90   MECHANICAL 3 WAY VALVE
Vokera part no. 4495
91   HEATING FLOW PIPE WITH UNION
Vokera part no. 4496
92 Part number 4518, Domestic Expansion Vessel DOMESTIC EXPANSION VESSEL
Vokera part no. 4518
93   GAS CONNECTING BARREL
Vokera part no. 4535
94   OBSOLETE GAS VALVE MOUNTING BRACKET
Vokera part no. 4536
96 Part number 4539, FLOW RETURN VALVE FLOW RETURN VALVE
Vokera part no. 4539
98   COCK
Vokera part no. 4541
99   THERMOCOUPLE
Vokera part no. 4542
100   CONNECTION FOR DOM EXP VESSEL
Vokera part no. 4544		 £3.48
101   HEAT EXCHANGER
Vokera part no. 4545
102 Part number 4563, MICRO SWITCH MICRO SWITCH
Vokera part no. 4563
105   EXPANSION VESSEL FIXING BRACKET
Vokera part no. 4581
106 Part number 4611, Blanking Plug for Heating Manifold BLANKING PLUG FOR HEATING MANIFOLD
Vokera part no. 4611		 £0.90
107   BLANKING PLUG HEATING MANIFOLD
Vokera part no. 4612
108   OBSOLETE MOUNTING RING
Vokera part no. 4626
109 Part number 4632, ELECTRODE ELECTRODE
Vokera part no. 4632
110 Part number 4640, Gas Valve GAS VALVE
Vokera part no. 4640		 £206.90
111   SPRING FOR GAS REGULATOR LPG
Vokera part no. 4668
112   TAIL PLATE SEAL
Vokera part no. 4723
113   ELEC. MAGNETIC COMP. + SPRING + CORE
Vokera part no. 4751
114 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
115   OBSOLETE ELECTRIC WIRE LOCKING SLEEVE
Vokera part no. 4838
116   RUBBER WALL LINER
Vokera part no. 4851		 £11.03
117 Part number 4875, Case Clips CASE CLIPS
Vokera part no. 4875
118   FINGER GUARD
Vokera part no. 4881
119 Part number 5394, Domestic Thermostat DOMESTIC THERMOSTAT
Vokera part no. 5394
120 Part number 4888, H/l Stat (replaces 6399) H/L STAT (REPLACES 6399)
Vokera part no. 4888		 £41.49
121 Part number 4891, Pilot Jet NG.27 PILOT JET NG.27
Vokera part no. 4891		 £0.89
122 Part number 4893, Pilot Jet LPG 22 PILOT JET LPG 22
Vokera part no. 4893		 £1.00
124   MAIN BURNER SUPPORTING SHAFT
Vokera part no. 4925
124   MAIN JETS NG 1.25 DIAMETER
Vokera part no. 0357
126 Part number 4931, Pump Over-Run Thermostat PUMP OVER-RUN THERMOSTAT
Vokera part no. 4931
127   THERMOSTAT KNOB
Vokera part no. 4936
128   MOUNTING PLATE (BACK)
Vokera part no. 4944
129 Part number 4961, Thermocouple THERMOCOUPLE
Vokera part no. 4961		 £9.45
130 Part number 4962, Domestic Distribution Manifold DOMESTIC DISTRIBUTION MANIFOLD
Vokera part no. 4962
131   DOMESTIC HEAT EXCHANGER RETURN PIPE
Vokera part no. 4965
132   SPACER FOR THERMOSTATS
Vokera part no. 4976
133 Part number 4980, On/Off Switch ON/OFF SWITCH
Vokera part no. 4980
134   HEATING SWITCH
Vokera part no. 4983
135   PILOT INJECTOR
Vokera part no. 3497
137 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
138   FIBRE WASHER (PRESSURE GAUGE)
Vokera part no. 5024
139 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
140 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.39
141   PUMP WASHER
Vokera part no. 5036		 £0.96
141   O-RING FOR PUMP UNION
Vokera part no. 3740
142 Part number 5038, Washer WASHER
Vokera part no. 5038		 £0.44
143   WASHER
Vokera part no. 5039		 £0.44
144 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
145 Part number 5042, Washer WASHER
Vokera part no. 5042		 £0.25
146 Part number 5049, Gasket GASKET
Vokera part no. 5049		 £0.55
147   OBSOLETE FIBRE WASHER
Vokera part no. 5064
148   SEAL
Vokera part no. 5068		 £0.51
149 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
150 Part number 5071, Fibre Washer FIBRE WASHER
Vokera part no. 5071		 £0.25
151 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
152   SCREW
Vokera part no. 5077		 £0.15
153   SELF TAPPING SCREW
Vokera part no. 5078
154 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
155   SCREW
Vokera part no. 5080		 £0.21
156   SCREW
Vokera part no. 5081		 £0.24
157   SCREW
Vokera part no. 5083		 £0.15
158   SELF TAPPING SCREW
Vokera part no. 5084
159   MACHINE SCREW 10MM L X 5MM 0
Vokera part no. 5092
160   OBSOLETE SPLIT PIN FOR AIR SEPARATOR
Vokera part no. 5117
161   OBSOLETE NUT
Vokera part no. 5120
162   COWLING SCREW
Vokera part no. 5122
163   SCREW
Vokera part no. 5124		 £0.30
164 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
165   MACHINE SCREWS FOR MOUNTING THERMOSTAT
Vokera part no. 5129
166   OBSOLETE CUP WASHER
Vokera part no. 5138
167   EDGE CLIP FOR 5077
Vokera part no. 5142
168   EDGE CLIP FOR 4577
Vokera part no. 5143
169   OBSOLETE SCREW 3.5M/M X 7
Vokera part no. 5145
170 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
171   CABLE CLIP
Vokera part no. 5155
172   NOW USE 20109067 PUMP 25-50
Vokera part no. 6090
172   ERP PUMP - REPLACED 6090 AND 6110
Vokera part no. 20109067		 £141.00
173   SEAL (FAN TO FLUE HOOD)
Vokera part no. 9156
174 Part number 7281, Silicone Tube SILICONE TUBE
Vokera part no. 7281		 £2.85
174   NOW USE 7281 SILICONE TUBE
Vokera part no. 9164
177 Part number 0536, Nylon Plate NYLON PLATE
Vokera part no. 0536		 £10.88
178   AUTO BY-PASS RETAINING CAP
Vokera part no. 0549
179   OBSOLETE WASHER
Vokera part no. 0551
180   SPRING FOR AUTO BY-PASS (LARGE)
Vokera part no. 0552
181   OBSOLETE AUTO BY-PASS BOBBIN
Vokera part no. 0553
182   O-RING
Vokera part no. 0554		 £0.44
183 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
184 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
185 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
186   AUTO BY-PASS CONNECTING TUBE
Vokera part no. 3183
187 Part number 3207, 3 Port Valve 3 PORT VALVE
Vokera part no. 3207		 £135.81
188   DISTRIBUTION MANIFOLD WITH AUTO BY-PASS
Vokera part no. 3208
189 Part number 3212, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3212
191   RESISTOR
Vokera part no. 4434
193   HEATING DISTRIBUTION MANIFOLD
Vokera part no. 4493
265   FAN SUPPORT
Vokera part no. 0903


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
