VOKERA
20/80 RSS - (Assembly12)
Appliance Code: 41-094-05

Appliance Diagram


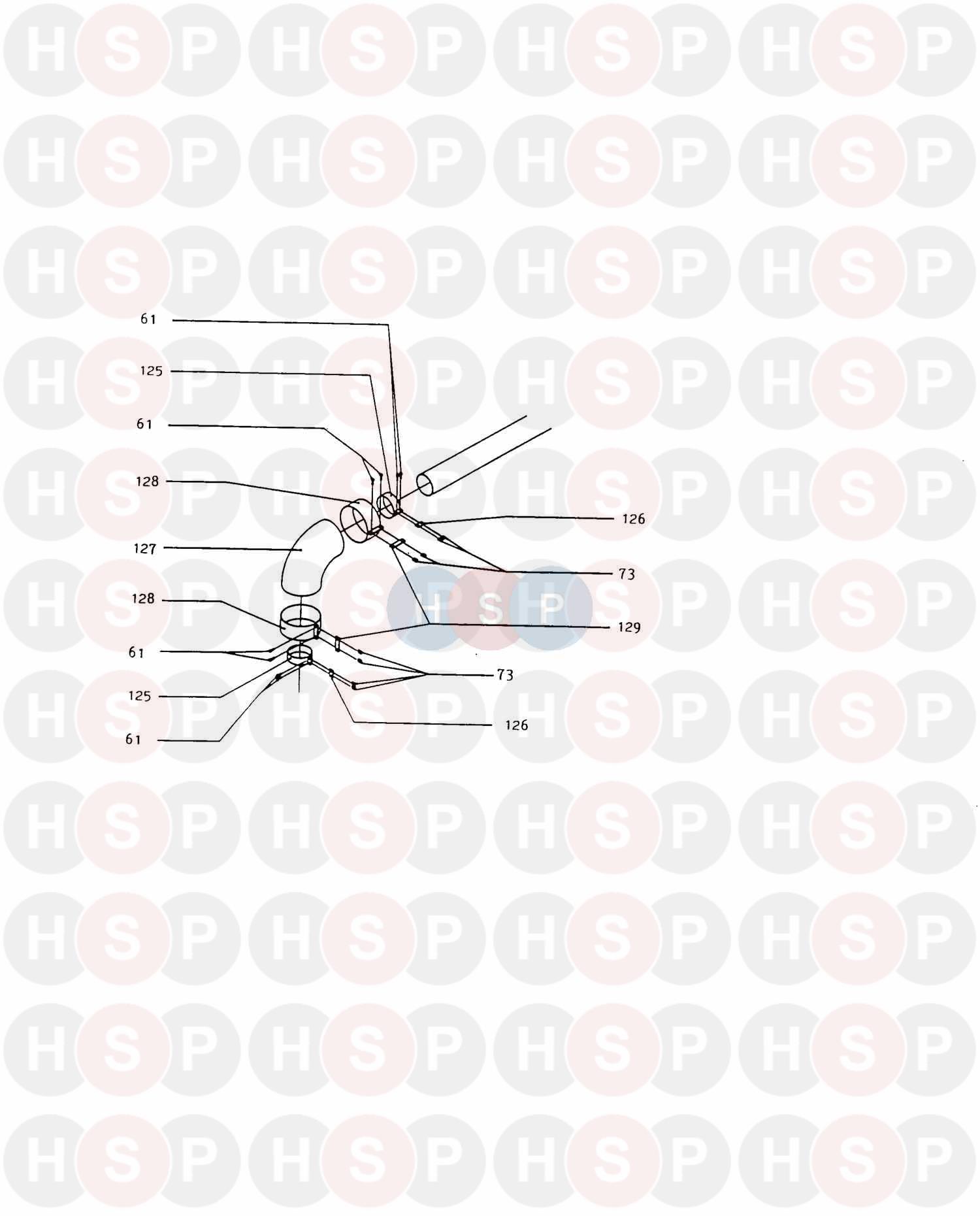

Assembly12 diagram for Vokera 20/80 RSSClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

9 Part number 0309, Front Seal FRONT SEAL
Vokera part no. 0309		 £13.22
10 Part number 0341, Fibre Washer FIBRE WASHER
Vokera part no. 0341		 £2.06
11 Part number 0394, NG Spring NG SPRING
Vokera part no. 0394		 £2.27
12   GAS VALVE SOLENOID 220/240V
Vokera part no. 0402
13   AUTO BY-PASS RETAINING CAP
Vokera part no. 0549
14   OBSOLETE WASHER
Vokera part no. 0551
15   SPRING FOR AUTO BY-PASS (LARGE)
Vokera part no. 0552
16   OBSOLETE AUTO BY-PASS BOBBIN
Vokera part no. 0553
17   O-RING
Vokera part no. 0554		 £0.44
18 Part number 0555, Spring SPRING
Vokera part no. 0555		 £1.18
19 Part number 0556, By-pass Bearer Plate BY-PASS BEARER PLATE
Vokera part no. 0556		 £4.41
20 Part number 0557, Diaphragm DIAPHRAGM
Vokera part no. 0557		 £6.08
21   OBSOLETE NUT
Vokera part no. 0599
22   SCREWS FOR DOMESTIC MANIFOLD
Vokera part no. 0114
23   OBSOLETE WHITE CASE
Vokera part no. 0603
24 Part number 3139, Sight Glass SIGHT GLASS
Vokera part no. 3139		 £5.84
25   HEATING MANIFOLD
Vokera part no. 3175
26 Part number 3212, Heating Thermostat HEATING THERMOSTAT
Vokera part no. 3212
27   CLIP
Vokera part no. 3412		 £0.96
28   O-RING FOR PUMP UNION
Vokera part no. 3740
29 Part number 4007, Sight Glass Retaining Ring SIGHT GLASS RETAINING RING
Vokera part no. 4007		 £0.76
30   NUT (FOR F/R VALVES 4539)
Vokera part no. 4064
31   22MM OLIVE (FLOW AND RETURN VALVES)
Vokera part no. 4065
33   PUMP UNION NUT
Vokera part no. 4114
34 Part number 4174, Boiler Hanging Bracket BOILER HANGING BRACKET
Vokera part no. 4174
35   OBSOLETE PUMP CABLE
Vokera part no. 4220
36 Part number 4250, Safety Valve (Screw Fit) SAFETY VALVE (SCREW FIT)
Vokera part no. 4250		 £13.37
37 Part number 4254, Automatic Air Vent AUTOMATIC AIR VENT
Vokera part no. 4254		 £11.99
38 Part number 4302, Microswitch MICROSWITCH
Vokera part no. 4302		 £17.36
39   SINGLE MICRO SWITCH COVER
Vokera part no. 4332
40   GAS CONNECTING BARREL
Vokera part no. 4535
41 Part number 4539, FLOW RETURN VALVE FLOW RETURN VALVE
Vokera part no. 4539
42   COCK
Vokera part no. 4541
43   EXPANSION VESSEL FIXING BRACKET
Vokera part no. 4581
44 Part number 4640, Gas Valve GAS VALVE
Vokera part no. 4640		 £206.90
45   ELEC. MAGNETIC COMP. + SPRING + CORE
Vokera part no. 4751
46 Part number 4807, Lock Nut LOCK NUT
Vokera part no. 4807		 £0.43
47 Part number 4891, Pilot Jet NG.27 PILOT JET NG.27
Vokera part no. 4891		 £0.89
48 Part number 4961, Thermocouple THERMOCOUPLE
Vokera part no. 4961		 £9.45
49   EARTH TERMINAL TAG
Vokera part no. 4975
50   NOW USE 4888 HIGH LIMIT THERMOSTAT
Vokera part no. 4978
50 Part number 4888, H/l Stat (replaces 6399) H/L STAT (REPLACES 6399)
Vokera part no. 4888		 £41.49
51   SWITCH
Vokera part no. 4981
52 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.43
53 Part number 5025, WASHER WASHER
Vokera part no. 5025		 £0.92
54   PUMP WASHER
Vokera part no. 5036		 £0.96
55   WASHER
Vokera part no. 5039		 £0.44
56 Part number 5041, Washer WASHER
Vokera part no. 5041		 £0.19
57 Part number 5049, Gasket GASKET
Vokera part no. 5049		 £0.55
58 Part number 5070, Fibre Washer FIBRE WASHER
Vokera part no. 5070		 £0.30
59 Part number 5072, Fibre Washer FIBRE WASHER
Vokera part no. 5072		 £0.64
60 Part number 5079, Screw SCREW
Vokera part no. 5079		 £0.35
61   SCREW
Vokera part no. 5080		 £0.21
62   SCREW M4 X 8
Vokera part no. 5086
63   MACHINE SCREW 10MM L X 5MM 0
Vokera part no. 5092
64   RIVET
Vokera part no. 5093
65   RIVET
Vokera part no. 5094
66   SCREW
Vokera part no. 5124		 £0.30
67 Part number 5128, Edge Clip EDGE CLIP
Vokera part no. 5128		 £0.21
68   MACHINE SCREWS FOR MOUNTING THERMOSTAT
Vokera part no. 5129
69   SCREW
Vokera part no. 5131
70   HEXAGON M4 NUT (BRASS)
Vokera part no. 5132
71   TOOTHED LOCK WASHER OD 8MM ID 4MM
Vokera part no. 5133
72   EARTH CONNECTOR
Vokera part no. 5134
73 Part number 5151, Edge Clip EDGE CLIP
Vokera part no. 5151		 £0.19
74   OBSOLETE SELF-TAPPING SCREW 10MM L X 4MM 0
Vokera part no. 5165
75   SELF TAPPING SCREW
Vokera part no. 5169
76 Part number 5170, Screw SCREW
Vokera part no. 5170		 £0.44
77   SCREW
Vokera part no. 5171
78 Part number 5172, Burner Plate BURNER PLATE
Vokera part no. 5172		 £0.29
79   SCREW
Vokera part no. 5176		 £0.30
80   FRAME
Vokera part no. 5251
81   DOOR PANEL
Vokera part no. 5254
82   CASE REINFORCEMENT R/H
Vokera part no. 5255
83   CASE REINFORCEMENT L/H
Vokera part no. 5256
84   CONTROL PANEL SUPPORT BRACKET (R/H)
Vokera part no. 5259
85   GUARD
Vokera part no. 5261
86 Part number 5262, Temperature Gauge TEMPERATURE GAUGE
Vokera part no. 5262
87 Part number 5263, Pressure Gauge PRESSURE GAUGE
Vokera part no. 5263		 £21.86
88   THERMOSTAT KNOB
Vokera part no. 5264
89 Part number 5269, Front Insulation Panel for Combustion Chamber FRONT INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5269		 £15.98
90 Part number 5270, Rear Insulation Panel for Combustion Chamber REAR INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5270		 £15.98
91 Part number 5271, Side Insulation Panel for Combustion Chamber SIDE INSULATION PANEL FOR COMBUSTION CHAMBER
Vokera part no. 5271		 £9.55
92 Part number 5275, Spring For Control Panel SPRING FOR CONTROL PANEL
Vokera part no. 5275
93 Part number 5279, Gas Valve Support GAS VALVE SUPPORT
Vokera part no. 5279		 £2.33
94 Part number 5280, Pilot Assembly PILOT ASSEMBLY
Vokera part no. 5280		 £14.76
95   ON/OFF SWITCH
Vokera part no. 5284
96   OBSOLETE PLASTIC COVER
Vokera part no. 5285
97 Part number 5295, NOW USE 10020104 BURNER NOW USE 10020104 BURNER
Vokera part no. 5295
97 Part number 10020104, Burner (replaces 5295) BURNER (REPLACES 5295)
Vokera part no. 10020104		 £97.36
98   GROMMET
Vokera part no. 5298
99 Part number 5301, Spindle SPINDLE
Vokera part no. 5301		 £3.27
100   PLASTIC BUSH
Vokera part no. 5303
101   PLASTIC BUSH
Vokera part no. 5304		 £1.36
102   PLASTIC PLATE
Vokera part no. 5305
103 Part number 5309, Spark Electrode SPARK ELECTRODE
Vokera part no. 5309		 £7.96
104   COVER FOR PCB
Vokera part no. 5329
105   SELF ADHESIVE ALUM SHEET
Vokera part no. 5333
106   EXPANSION PIPE
Vokera part no. 5335
107 Part number 5351, Heat Exchanger HEAT EXCHANGER
Vokera part no. 5351		 £225.47
108   GAS VALVE KNOB
Vokera part no. 5366
109   CABLE CLAMP
Vokera part no. 5371
110   OBSOLETE FRONT PANEL SUPPORT (RIGHT)
Vokera part no. 5397
111   OBSOLETE PLASTIC TRADE MARK LABEL VOKERA (WHITE)
Vokera part no. 5636
112   OBSOLETE GAS VALVE SUPPORT
Vokera part no. 5796
113 Part number 5797, Circuit Board CIRCUIT BOARD
Vokera part no. 5797		 £135.81
114 Part number 5800, Piezo Ignitor PIEZO IGNITOR
Vokera part no. 5800		 £14.69
115   COMBUSTION CHAMBER FOR 20/80 FLOWMATIC
Vokera part no. 5901
116   SIDE PANEL
Vokera part no. 5903
117   FRONT PANEL
Vokera part no. 5904
118 Part number 5905, Combustion Chamber seal (1 metre) COMBUSTION CHAMBER SEAL (1 METRE)
Vokera part no. 5905		 £2.37
119 Part number 5906, Hood Assembly HOOD ASSEMBLY
Vokera part no. 5906		 £35.02
120 Part number 5908, Combustion Chamber Front (Metal) COMBUSTION CHAMBER FRONT (METAL)
Vokera part no. 5908		 £9.71
121 Part number 5910, Fan Assembly FAN ASSEMBLY
Vokera part no. 5910		 £106.11
122 Part number 5912, Fan Gasket FAN GASKET
Vokera part no. 5912		 £12.52
123   FLUE CONNECTION
Vokera part no. 5913		 £8.81
124   TUBE
Vokera part no. 5915
125 Part number 5916, NOW USE 7315 Maintenance Clip (small) NOW USE 7315 MAINTENANCE CLIP (SMALL)
Vokera part no. 5916
125 Part number 7315, Clamp CLAMP
Vokera part no. 7315		 £1.61
126 Part number 7317, Washer WASHER
Vokera part no. 7317		 £1.31
126 Part number 5917, NOW USE 7317 Seal For Maintenance Clip (small) NOW USE 7317 SEAL FOR MAINTENANCE CLIP (SMALL)
Vokera part no. 5917
128   OBSOLETE MAINTENANCE CLIP (LARGE)
Vokera part no. 5919
129   OBSOLETE SEAL FOR MAINTENANCE CLIP (LARGE)
Vokera part no. 5920
130 Part number 5921, Venturi VENTURI
Vokera part no. 5921
131   AIR FLANGE
Vokera part no. 5922
132   AIR DEFLECTOR
Vokera part no. 5923
133   AIR BAFFLE
Vokera part no. 5924
134 Part number 5925, OBSOLETE Pressure Differential Switch Housing OBSOLETE PRESSURE DIFFERENTIAL SWITCH HOUSING
Vokera part no. 5925
135 Part number 5926, Pressure Switch PRESSURE SWITCH
Vokera part no. 5926		 £64.38
136   SEAL
Vokera part no. 5927		 £4.47
137   OBSOLETE GROMMET
Vokera part no. 5928
138 Part number 5929, Pipe PIPE
Vokera part no. 5929
139   RETURN PIPE AND AIR SEPARATOR
Vokera part no. 5931
140   ALUMINIUM PIPE
Vokera part no. 5938
141 Part number 5944, NOW USE 1457 Silicone Tube NOW USE 1457 SILICONE TUBE
Vokera part no. 5944
141 Part number 1457, Silicone tube (1 Metre) SILICONE TUBE (1 METRE)
Vokera part no. 1457		 £2.12
142   GAS CONNECTION PIPE
Vokera part no. 5945
143   COVER
Vokera part no. 5948
144   AIR BAFFLE
Vokera part no. 5949		 £2.04
145   PIPE FIXING BRACKET
Vokera part no. 5973
146 Part number 6027, Combustion Chamber COMBUSTION CHAMBER
Vokera part no. 6027		 £22.28
147   NOW USE 20109067 PUMP 25-50
Vokera part no. 6090
147   ERP PUMP - REPLACED 6090 AND 6110
Vokera part no. 20109067		 £141.00
148   LEAD FOR PIEZO
Vokera part no. 6151
149   REAR PLASTIC DOOR
Vokera part no. 6160
155   BLANKING PLUG
Vokera part no. 4977
156 Part number 4026, 3/4" BSP Locknut 3/4" BSP LOCKNUT
Vokera part no. 4026		 £1.38
157   NOW USE 6493 RESISTOR
Vokera part no. 4028
157 Part number 6493, Resistor Replaced 4028 RESISTOR REPLACED 4028
Vokera part no. 6493		 £15.89
158   RUBBER RING FOR 4018
Vokera part no. 4036
159   SEAL
Vokera part no. 4039
160 Part number 4492, Expansion Vessel EXPANSION VESSEL
Vokera part no. 4492		 £92.84
