VIESSMANN
100-W WB1C 30KW COMBI (SERIAL NO. 7441745) - (Hydraulic Block)
Appliance Code: 7441745

Appliance Diagram

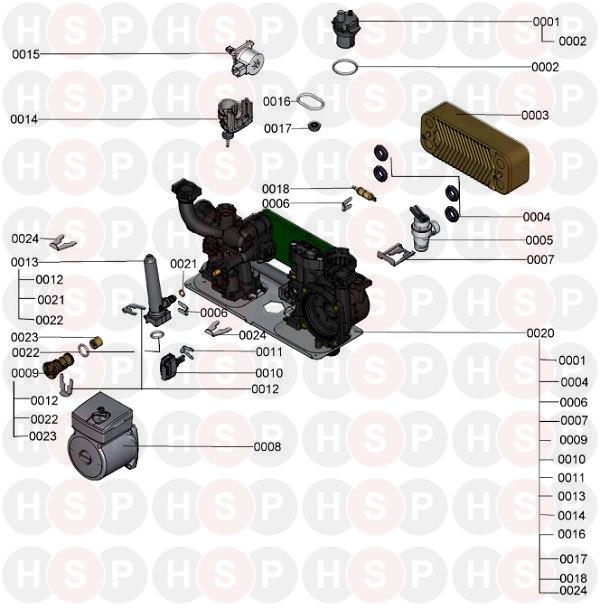

Hydraulic Block diagram for Viessmann 100-W WB1C 30kW Combi (Serial No. 7441745)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0001 Part number 7828750, Air vent (Caleffi) CPK / B2Tx AIR VENT (CALEFFI) CPK / B2TX
Viessmann part no. 7828750		 £23.75
0002 Part number 7831408, O RING (5 PIECES) 34X3mm O RING (5 PIECES) 34X3MM
Viessmann part no. 7831408		 £18.99
0003 Part number 7828746, Plate heat exchanger 20 plates 4 O-rings PLATE HEAT EXCHANGER 20 PLATES 4 O-RINGS
Viessmann part no. 7828746		 £146.06
0004 Part number 7828747, Gasket set, plate Ht. Exch. CPK GASKET SET, PLATE HT. EXCH. CPK
Viessmann part no. 7828747		 £24.70
0005 Part number 7833029, Safety valve 3bar no clip 7828763 SAFETY VALVE 3BAR NO CLIP 7828763
Viessmann part no. 7833029		 £35.15
0006   CLIP D= 8 (SET OF 5) CPK
Viessmann part no. 7828758		 £21.85
0007   CLIP SIV SPEC.(SET OF 5) CPK
Viessmann part no. 7828763		 £53.20
0008 Part number 7829302, NOW USE 7874668 Pump motor UPR-15/60 NOW USE 7874668 PUMP MOTOR UPR-15/60
Viessmann part no. 7829302
0008   PUMP HIGH EFFICIENCY
Viessmann part no. 7874668		 £272.00
0009 Part number 7828756, Bypass cartridge CPK BYPASS CARTRIDGE CPK
Viessmann part no. 7828756		 £38.39
0010 Part number 7828749, Flow sensor CPK FLOW SENSOR CPK
Viessmann part no. 7828749		 £70.30
0011 Part number 7828759, Clip D=10 CLIP D=10
Viessmann part no. 7828759		 £16.15
0012 Part number 7828761, Clip D=16 (set of 5) CPK CLIP D=16 (SET OF 5) CPK
Viessmann part no. 7828761		 £16.15
0013 Part number 7829297, Expansion pipe CPK EXPANSION PIPE CPK
Viessmann part no. 7829297		 £37.05
0014 Part number 7831530, Adapter step motor ADAPTER STEP MOTOR
Viessmann part no. 7831530		 £54.15
0015 Part number 7828748, Step motor (linear) CPK STEP MOTOR (LINEAR) CPK
Viessmann part no. 7828748		 £61.75
0016 Part number 7831410, Casing seal oval (5 pcs) CASING SEAL OVAL (5 PCS)
Viessmann part no. 7831410		 £25.65
0017   WATER LEVEL LIMITER TYPE A 12L
Viessmann part no. 7828753		 £18.05
0018 Part number 7819967, Temperature sensor TEMPERATURE SENSOR
Viessmann part no. 7819967		 £66.50
0020   HYDRAULIC COMBI GB
Viessmann part no. 7837240		 £446.50
0021 Part number 7831409, O-ring (set of 5, 8x2) B2 O-RING (SET OF 5, 8X2) B2
Viessmann part no. 7831409		 £19.00
0022 Part number 7831407, O-ring (5 Stck) 16 x 3 O-RING (5 STCK) 16 X 3
Viessmann part no. 7831407		 £17.10
0023   NOW USE 7828756 NON RETURN VALVE
Viessmann part no. 7828757
0023 Part number 7828756, Bypass cartridge CPK BYPASS CARTRIDGE CPK
Viessmann part no. 7828756		 £38.39
0024 Part number 7828762, Clip D=18 (set of 5) CPK CLIP D=18 (SET OF 5) CPK
Viessmann part no. 7828762		 £9.50
