100-W WB1A 30KW COMBI (SERIAL NO. 7179916) - (Hydraulic Block)
Appliance Code: 47-819-05

Appliance Diagram


Hydraulic Block diagram for Viessmann 100-W WB1A 30kW Combi (Serial No. 7179916)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

002 Part number 7819967, Temperature sensor TEMPERATURE SENSOR
Viessmann part no. 7819967
£66.50
021 Part number 7823858, Plate heat exchanger PLATE HEAT EXCHANGER
Viessmann part no. 7823858
£111.15
022 Part number 7823859, Sealing of plate heat exchanger SEALING OF PLATE HEAT EXCHANGER
Viessmann part no. 7823859
£8.55
026 Part number 7823863, NOW USE 7828557 QUICK AIR VENT VALVE CARTRIDGE NOW USE 7828557 QUICK AIR VENT VALVE CARTRIDGE
Viessmann part no. 7823863

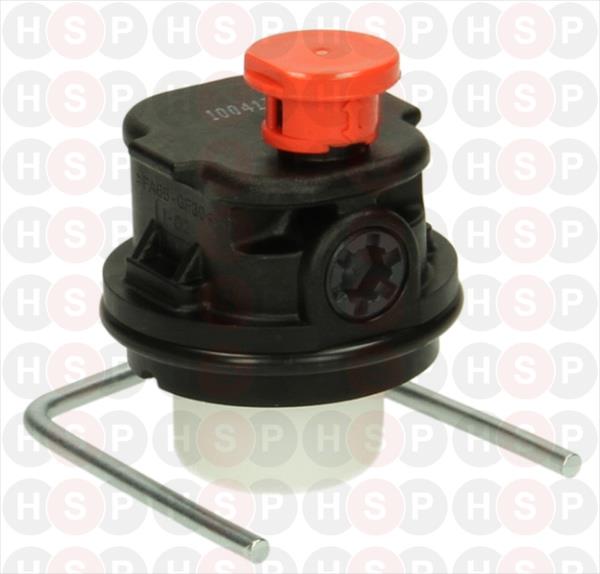

026 Part number 7828557, Auto air vent + clip AUTO AIR VENT + CLIP
Viessmann part no. 7828557
£22.80
027   SAFETY VALVE 3BAR D=19,9 X G1/2
Viessmann part no. 7833037
£35.15

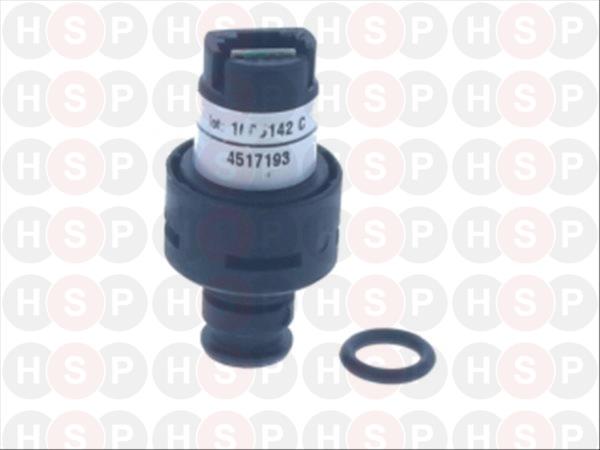

028 Part number 7828530, Water pressure sensor WB1A WATER PRESSURE SENSOR WB1A
Viessmann part no. 7828530
£59.85
029 Part number 7828287, Cold water inlet elbow with CW flow switch COLD WATER INLET ELBOW WITH CW FLOW SWITCH
Viessmann part no. 7828287
£53.20
030 Part number 7824699, Cartridge with step motor CARTRIDGE WITH STEP MOTOR
Viessmann part no. 7824699
£78.85
031 Part number 7823868, NOW USE 7874717 Pump VIMb 12/6HE NOW USE 7874717 PUMP VIMB 12/6HE
Viessmann part no. 7823868

031   PUMP MOTOR W HE SC
Viessmann part no. 7874717
£219.00
032 Part number 7823869, By-pass / overflow valve BY-PASS / OVERFLOW VALVE
Viessmann part no. 7823869
£54.15
035 Part number 7823872, Spring clips (set of assorted) SPRING CLIPS (SET OF ASSORTED)
Viessmann part no. 7823872
£17.10
036   FLOW LIMITER 10L
Viessmann part no. 7824249
£34.20
043 Part number 7825933, Connection elbow WW CONNECTION ELBOW WW
Viessmann part no. 7825933
£37.05
203   DOMESTIC HOT WATER FITTINGS
Viessmann part no. 7187449
£84.55
204 Part number 7187448, Isolation valves (F & R) WB1A ISOLATION VALVES (F & R) WB1A
Viessmann part no. 7187448
£178.60
205   CORNER GAS TAP RC1/2
Viessmann part no. 7187022
£22.80
206   ANGLE SET WITH LOCK RINGS 22MM
Viessmann part no. 7190100
