VALOR GAS FIRE
VICTORIAN CLASSIC 413 - (Controls)
Appliance Code: 32-810-70

Appliance Diagram


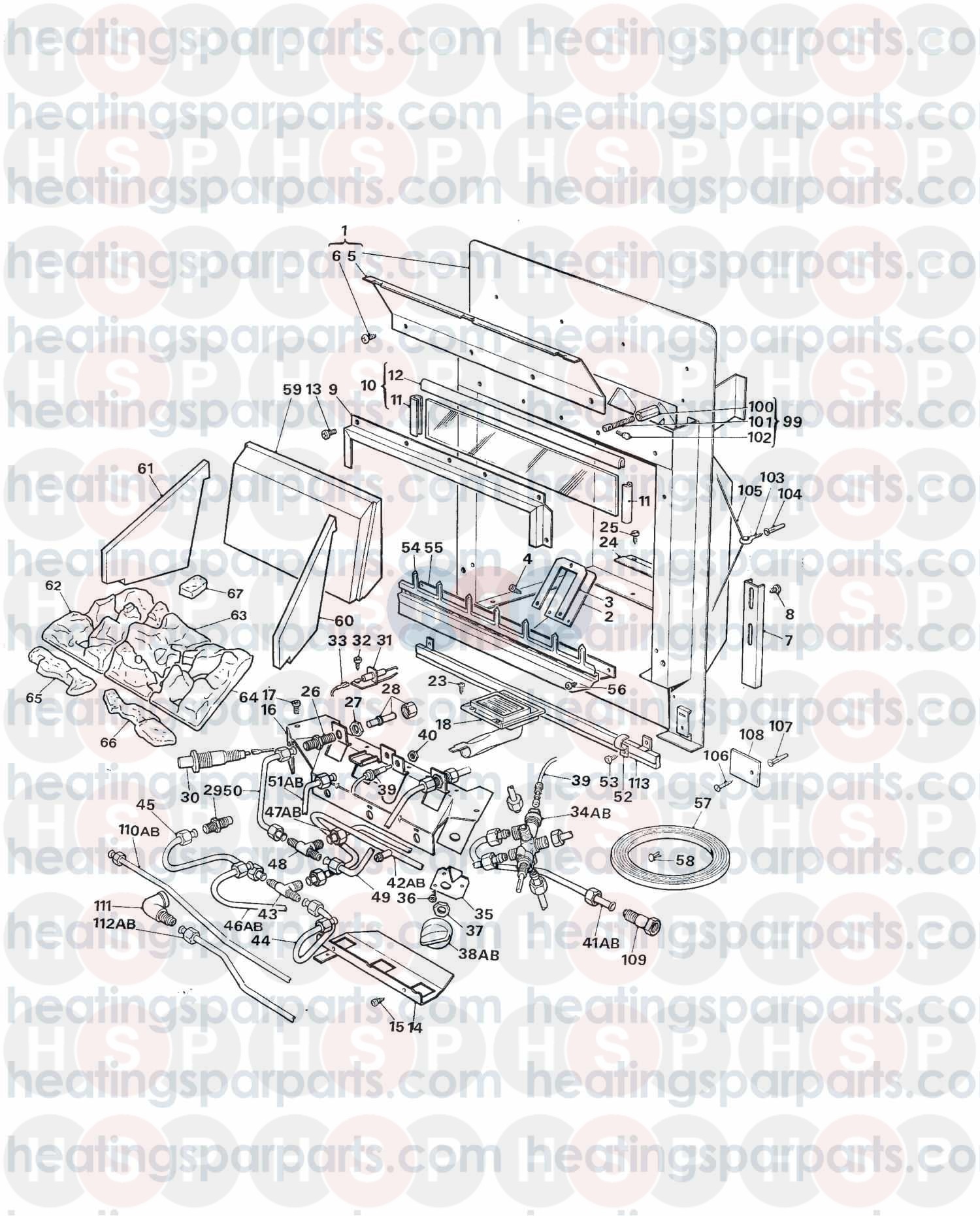

Controls diagram for Valor Gas Fire Victorian Classic 413Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE HEARTH BOX/RADIANT BO
Valor Gas Fire part no. 0542939

2   OBSOLETE SEAL
Valor Gas Fire part no. 0543609

3   OBSOLETE CLAMP PLATE
Valor Gas Fire part no. 0543619

4   OBSOLETE NO8 X 3/8 PAN HD POZI SCREWS
Valor Gas Fire part no. 0536699

5   OBSOLETE OUTLET BAFFLE
Valor Gas Fire part no. 0542949

6   OBSOLETE NO8X1/4 SCREW
Valor Gas Fire part no. 0542239

7   OBSOLETE LEVELLING FOOT
Valor Gas Fire part no. 0542249

9   OBSOLETE GLASS FRAME
Valor Gas Fire part no. 0542959

10   OBSOLETE GLASS SCREEN & GKT SE
Valor Gas Fire part no. 0542969

11   OBSOLETE GLASS SCREEN SIDE GKT
Valor Gas Fire part no. 0542979

12   OBSOLETE GASKET SCREEN TOP
Valor Gas Fire part no. 0538039

13   OBSOLETE SCREW
Valor Gas Fire part no. 0513349

14   OBSOLETE H/SHIELD-PIPE SUPPORT SUB-ASSY
Valor Gas Fire part no. 0543629

15   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
16   OBSOLETE BURNER RAIL
Valor Gas Fire part no. 0542999

17   OBSOLETE SCREW
Valor Gas Fire part no. 0533329

18   OBSOLETE BURNER ASS
Valor Gas Fire part no. 0543009

23   OBSOLETE M4X8 POZI PAN T/T NP
Valor Gas Fire part no. 0551119

24   OBSOLETE BURNER CAN RETAINER
Valor Gas Fire part no. 0542299

26   OBSOLETE CONN.& RESTRICTOR ASS
Valor Gas Fire part no. 0543059

27   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0528839

28   OBSOLETE FLAME TUBE OLIVE & NUT
Valor Gas Fire part no. 0543069

29   OBSOLETE INJECTOR
Valor Gas Fire part no. 0543079

31   OBSOLETE ELECTRODE
Valor Gas Fire part no. 0543089

33 Part number 0542349, OBSOLETE Electrode 245-255mm Lead OBSOLETE ELECTRODE 245-255MM LEAD
Valor Gas Fire part no. 0542349

34   OBSOLETE GAS TAP-SOURDILLON REF:51437/4
Valor Gas Fire part no. 0543099

34   OBSOLETE GAS TAP - CONCENTRIC TESA 849
Valor Gas Fire part no. 0543109

35   OBSOLETE CONTROL INDICATOR BRK
Valor Gas Fire part no. 0543129

37   LOCK NUT
Valor Gas Fire part no. 0502739
38   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0543529

38   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0543139

39   OBSOLETE THERMOCOUPLE
Valor Gas Fire part no. 0542399

40 Part number 0547759, OBSOLETE LOCKNUT OBSOLETE LOCKNUT
Valor Gas Fire part no. 0547759

41   OBSOLETE R/H INLET PIPE
Valor Gas Fire part no. 0543149

41   OBSOLETE R/H INLET PIPE
Valor Gas Fire part no. 0543159

42   OBSOLETE TAP MAIN BURNER T/PCE
Valor Gas Fire part no. 0543169

42   OBSOLETE TAP - MAIN BURNER TEE
Valor Gas Fire part no. 0543179

43   OBSOLETE TEE FITTING
Valor Gas Fire part no. 0542449

44   OBSOLETE T/PCE-MAIN BURNER R/H
Valor Gas Fire part no. 0543189

45   OBSOLETE T/PCE MAIN BURNER L/H
Valor Gas Fire part no. 0543199

46   OBSOLETE TAP-MAIN BURNER CENTR
Valor Gas Fire part no. 0543209

46   OBSOLETE TAP MAIN BURNER CEN.
Valor Gas Fire part no. 0543219

47   OBSOLETE TAP FLAME BURNER T/PC
Valor Gas Fire part no. 0543239

47   OBSOLETE TAP-FLAME BURNER T/PC
Valor Gas Fire part no. 0543229

48   OBSOLETE T PIECE ASSEMBLY
Valor Gas Fire part no. 0548679

49   OBSOLETE T/PCE-FLAME BURNER R/
Valor Gas Fire part no. 0543249

50   OBSOLETE T/PCE-FLAME BURNER L/
Valor Gas Fire part no. 0543259

51   OBSOLETE TAP-FLAME BURNR CENTR
Valor Gas Fire part no. 0543269

51   OBSOLETE TAP-FLAME BURNR CENTRE PIPE
Valor Gas Fire part no. 0543279

52   OBSOLETE INLET PIPE BRACKET
Valor Gas Fire part no. 0513449

53   SCREW
Valor Gas Fire part no. 0513359
54   OBSOLETE FIRE BAR
Valor Gas Fire part no. 0543289

55   OBSOLETE CERAMIC SUPPORT BAR
Valor Gas Fire part no. 0543299

57   OBSOLETE SEALING STRIP
Valor Gas Fire part no. 0542809

58   OBSOLETE (FASTENER)1/2 POINTED BINDER
Valor Gas Fire part no. 0542879

59   OBSOLETE BACK BRICK
Valor Gas Fire part no. 0543309

60   OBSOLETE R/H SIDE CHEEK
Valor Gas Fire part no. 0543319

61   OBSOLETE L/H SIDE CHEEK
Valor Gas Fire part no. 0543329

62   OBSOLETE A COAL
Valor Gas Fire part no. 0543339

63   OBSOLETE B COAL
Valor Gas Fire part no. 0543349

64   OBSOLETE C COAL
Valor Gas Fire part no. 0543359

65   OBSOLETE D COAL
Valor Gas Fire part no. 0543369

66   OBSOLETE E COAL
Valor Gas Fire part no. 0543379

67   OBSOLETE SMALL SOFT CERAMIC COAL
Valor Gas Fire part no. 0543589

68   OBSOLETE HOOD ASSEMBLY
Valor Gas Fire part no. 0542549

69   OBSOLETE INNER HOOD PANEL
Valor Gas Fire part no. 0542559

70   OBSOLETE HOOD BAFFLE
Valor Gas Fire part no. 0542569

71   OBSOLETE L/H INNER CASE SIDE PANEL
Valor Gas Fire part no. 0542579

72   OBSOLETE R/H INNER CASE SIDE P
Valor Gas Fire part no. 0542589

73   OBSOLETE TOP
Valor Gas Fire part no. 0542599

74   OBSOLETE CORNER CAP
Valor Gas Fire part no. 0542609

76   8X3/8 SCREW
Valor Gas Fire part no. 0511569
77   OBSOLETE L/H CASING LOCATOR
Valor Gas Fire part no. 0542639

78   OBSOLETE R/H CASING LOCATOR
Valor Gas Fire part no. 0542649

79 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
80   OBSOLETE HEARTH RAIL UNIT ASS
Valor Gas Fire part no. 0542619

81   OBSOLETE DECORATIVE SWAG
Valor Gas Fire part no. 0542629

82   FIX
Valor Gas Fire part no. 0534419
84   SCREW
Valor Gas Fire part no. 0534719
85   OBSOLETE DRESSGUARD
Valor Gas Fire part no. 0542659

86   OBSOLETE LOWER HEARTH ASS
Valor Gas Fire part no. 0543419

87   OBSOLETE FLOOR(HEARTH ASS.SHIE
Valor Gas Fire part no. 0543429

88   OBSOLETE HEARTH KNOB
Valor Gas Fire part no. 0542689

89   OBSOLETE HEARTH KNOB WASHER
Valor Gas Fire part no. 0542859

90   OBSOLETE TAPPING NUT
Valor Gas Fire part no. 0542699

91   OBSOLETE NAME VICTORIAN PLATE
Valor Gas Fire part no. 0542719

93   OBSOLETE ACCESS (HEARTH KNOB)
Valor Gas Fire part no. 0542729

95   OBSOLETE OUTER CASING
Valor Gas Fire part no. 0542819

96 Part number 0502649, NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK
Valor Gas Fire part no. 0502649

96   SCREW M5X10 PAN.POZ.BLACK
Valor Gas Fire part no. 633988
97   NUT
Valor Gas Fire part no. 0534679
98   OBSOLETE WASHER
Valor Gas Fire part no. 0515509

99 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
99 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739

100 Part number 0542749, NOW USE 5109975 CABLE UNIT ASSY NOW USE 5109975 CABLE UNIT ASSY
Valor Gas Fire part no. 0542749

101   NOW USE 5109975 CABLE ADJUSTER BOLT
Valor Gas Fire part no. 0542759

102   OBSOLETE M4X12MM TH/SCREW
Valor Gas Fire part no. 0542769

103   OBSOLETE 12G X 55MM SCREW-EYE
Valor Gas Fire part no. 0542779

104   OBSOLETE NO.12X1.5 FIBRE RAWLPLUG
Valor Gas Fire part no. 0542789

105 Part number 0542799, NOW USE 5109975 TENSION WIRE NOW USE 5109975 TENSION WIRE
Valor Gas Fire part no. 0542799

106   OBSOLETE WOOD SCREW
Valor Gas Fire part no. 0543599

107   RAWL PLUG
Valor Gas Fire part no. 0534659
108   OBSOLETE CLAMP PLATE
Valor Gas Fire part no. 0543659

109   OBSOLETE ADAPTER
Valor Gas Fire part no. 0534349

110   OBSOLETE L/H INLET PIPE
Valor Gas Fire part no. 0543439

110   OBSOLETE L/H INLET PIPE
Valor Gas Fire part no. 0543449

111 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
112   OBSOLETE CONCEALED INLET (RED)
Valor Gas Fire part no. 0543669

112   OBSOLETE CONCEALED INLET(YELLOW PIPE)
Valor Gas Fire part no. 0543679

113   OBSOLETE FLOOR SEAL STRIP ASSEMBLY
Valor Gas Fire part no. 0543709

114   OBSOLETE INSTALLATION 413 INSTRUCTIONS
Valor Gas Fire part no. 0543689

115   OBSOLETE USERS 413 INSTRUCTIONS
Valor Gas Fire part no. 0543699
