VALOR GAS FIRE
VICTORIAN 411 - (Fire Front)
Appliance Code: 32-810-60

Appliance Diagram


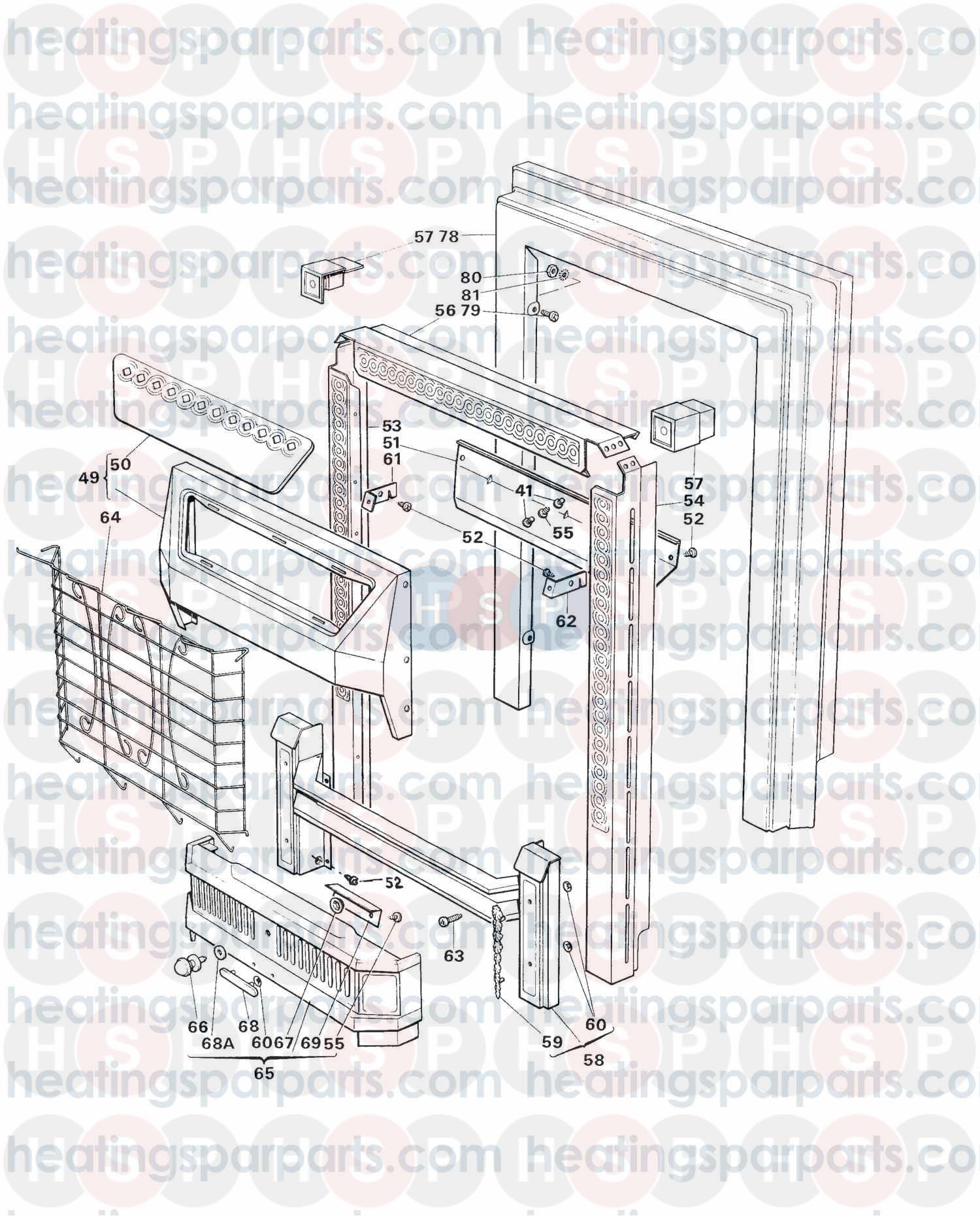

Fire Front diagram for Valor Gas Fire Victorian 411Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE HEARTH & RADIANT BOX ASSEMBLY
Valor Gas Fire part no. 0542219

2   OBSOLETE OUTLET BAFFLE
Valor Gas Fire part no. 0542229

3   OBSOLETE NO8X1/4 SCREW
Valor Gas Fire part no. 0542239

4   OBSOLETE LEVELLING FOOT
Valor Gas Fire part no. 0542249

5   OBSOLETE SCREW
Valor Gas Fire part no. 0533329

6   OBSOLETE GLASS FRAME
Valor Gas Fire part no. 0542259

7   OBSOLETE GLASS SCREEN & GASKET SET
Valor Gas Fire part no. 0538019

8   OBSOLETE GASKET SCREEN SIDE
Valor Gas Fire part no. 0538029

9   OBSOLETE GASKET SCREEN TOP
Valor Gas Fire part no. 0538039

10   OBSOLETE SCREW
Valor Gas Fire part no. 0513349

11   OBSOLETE FLOOR H/SHIELD
Valor Gas Fire part no. 0542849

11   OBSOLETE BURNER RAIL
Valor Gas Fire part no. 0542269

12   OBSOLETE BURNER GRID MAIN
Valor Gas Fire part no. 0542279

13   OBSOLETE BURNER OUTLETS
Valor Gas Fire part no. 0542289

14   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
15   OBSOLETE BURNER CAN RETAINER
Valor Gas Fire part no. 0542299

16   OBSOLETE PIECE TEE
Valor Gas Fire part no. 0542309

17   OBSOLETE PRESSURE TEST POINT A
Valor Gas Fire part no. 0542319

18   OBSOLETE PRESSURE TEST POINT SCR
Valor Gas Fire part no. 0516379

19   OBSOLETE WASHER
Valor Gas Fire part no. 0516389

20   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0528839

21   OBSOLETE JET
Valor Gas Fire part no. 0542329

22   OBSOLETE FLICKER FLAME ASSY TUBE
Valor Gas Fire part no. 0542339

24 Part number 0542349, OBSOLETE Electrode 245-255MM Lead OBSOLETE ELECTRODE 245-255MM LEAD
Valor Gas Fire part no. 0542349

25   OBSOLETE ELECTRODE RETAINER
Valor Gas Fire part no. 0542869

25   OBSOLETE ELECTRODE ASSEMBLY
Valor Gas Fire part no. 0542359

26   OBSOLETE TAP SOURDILLON 51335/886
Valor Gas Fire part no. 0542369

27   OBSOLETE INDICATOR BRACKET
Valor Gas Fire part no. 0542379

28   LOCK NUT
Valor Gas Fire part no. 0502739
29   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0542389

30   OBSOLETE THERMOCOUPLE
Valor Gas Fire part no. 0542399

31 Part number 0547759, OBSOLETE LOCKNUT OBSOLETE LOCKNUT
Valor Gas Fire part no. 0547759

32   OBSOLETE PIPE TAP TO CENTRE BN
Valor Gas Fire part no. 0542409

34   OBSOLETE PIPE T PIECE L.H. BNR
Valor Gas Fire part no. 0542429

35   OBSOLETE PIPE T PIECE R/H BNR
Valor Gas Fire part no. 0542439

36   OBSOLETE TEE FITTING
Valor Gas Fire part no. 0542449

37   OBSOLETE ADAPTER
Valor Gas Fire part no. 0534349

38   OBSOLETE INLET L/H. PIPE
Valor Gas Fire part no. 0542459

39   OBSOLETE R/H INLET PIPE
Valor Gas Fire part no. 0542469

40   OBSOLETE INLET PIPE BRACKET
Valor Gas Fire part no. 0513449

41   SCREW
Valor Gas Fire part no. 0513359
42   OBSOLETE FIRE BAR
Valor Gas Fire part no. 0542479

43   OBSOLETE BACK BRICK
Valor Gas Fire part no. 0542489

44   OBSOLETE L/H SIDE CHEEK
Valor Gas Fire part no. 0542499

45   OBSOLETE R/H SIDE CHEEK
Valor Gas Fire part no. 0542509

46   OBSOLETE OWER NO.1 COAL
Valor Gas Fire part no. 0542519

47   OBSOLETE COAL NO 2
Valor Gas Fire part no. 0542529

48   OBSOLETE UPPER NO. 3. COAL
Valor Gas Fire part no. 0542539

49   OBSOLETE HOOD ASSEMBLY
Valor Gas Fire part no. 0542549

50   OBSOLETE INNER HOOD PANEL
Valor Gas Fire part no. 0542559

51   OBSOLETE HOOD BAFFLE
Valor Gas Fire part no. 0542569

52 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
53   OBSOLETE L/H INNER CASE SIDE PANEL
Valor Gas Fire part no. 0542579

54   OBSOLETE R/H INNER CASE SIDE P
Valor Gas Fire part no. 0542589

55   8X3/8 SCREW
Valor Gas Fire part no. 0511569
56   OBSOLETE TOP
Valor Gas Fire part no. 0542599

57   OBSOLETE CORNER CAP
Valor Gas Fire part no. 0542609

58   OBSOLETE HEARTH RAIL UNIT ASS
Valor Gas Fire part no. 0542619

59   OBSOLETE DECORATIVE SWAG
Valor Gas Fire part no. 0542629

60   FIX
Valor Gas Fire part no. 0534419
61   OBSOLETE L/H CASING LOCATOR
Valor Gas Fire part no. 0542639

62   OBSOLETE R/H CASING LOCATOR
Valor Gas Fire part no. 0542649

63   SCREW
Valor Gas Fire part no. 0534719
64   OBSOLETE DRESSGUARD
Valor Gas Fire part no. 0542659

65   OBSOLETE LOWER HEARTH ASS
Valor Gas Fire part no. 0542679

66   OBSOLETE HEARTH KNOB
Valor Gas Fire part no. 0542689

67   OBSOLETE TAPPING NUT
Valor Gas Fire part no. 0542699

68   OBSOLETE HEARTH KNOB WASHER
Valor Gas Fire part no. 0542859

68   OBSOLETE NAME VICTORIAN PLATE
Valor Gas Fire part no. 0542719

69   OBSOLETE ACCESS (HEARTH KNOB)
Valor Gas Fire part no. 0542729

70 Part number 0542739, NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY NOW USE 5109975 CABLE CLAMPING UNIT ASSEMBLY
Valor Gas Fire part no. 0542739

70 Part number 5109975, CABLE RETENTION KIT CABLE RETENTION KIT
Valor Gas Fire part no. 5109975
71 Part number 0542749, NOW USE 5109975 CABLE UNIT ASSY NOW USE 5109975 CABLE UNIT ASSY
Valor Gas Fire part no. 0542749

72   NOW USE 5109975 CABLE ADJUSTER BOLT
Valor Gas Fire part no. 0542759

73   OBSOLETE M4X12MM TH/SCREW
Valor Gas Fire part no. 0542769

74   OBSOLETE 12G X 55MM SCREW-EYE
Valor Gas Fire part no. 0542779

75   OBSOLETE NO.12X1.5 FIBRE RAWLPLUG
Valor Gas Fire part no. 0542789

76 Part number 0542799, NOW USE 5109975 TENSION WIRE NOW USE 5109975 TENSION WIRE
Valor Gas Fire part no. 0542799

77   OBSOLETE SEALING STRIP
Valor Gas Fire part no. 0542809

77   OBSOLETE BOTTOM SEALING STRIP
Valor Gas Fire part no. 0542919

77   OBSOLETE (FASTENER)1/2 POINTED BINDER
Valor Gas Fire part no. 0542879

78   OBSOLETE OUTER CASING
Valor Gas Fire part no. 0542819

79   SCREW M5X10 PAN.POZ.BLACK
Valor Gas Fire part no. 633988
79 Part number 0502649, NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK NOW USE 633988 M5X10 POZI PAN HD SCREW BLACK
Valor Gas Fire part no. 0502649

80   NUT
Valor Gas Fire part no. 0534679
81   OBSOLETE WASHER
Valor Gas Fire part no. 0515509

82   OBSOLETE PIEZO SHIELD
Valor Gas Fire part no. 0542889

83   RAWL PLUG
Valor Gas Fire part no. 0534659
84   OBSOLETE NO.8X1 MIRROR SLTD M/
Valor Gas Fire part no. 0542899

85   OBSOLETE DECORATIVE SCREW CAP
Valor Gas Fire part no. 0542909

86   OBSOLETE USERS INSTRUCTIONS - 32 810 60
Valor Gas Fire part no. 0542829

87   OBSOLETE INSTALLATION INSTR. - 32 810 6
Valor Gas Fire part no. 0542839

88   OBSOLETE VICTORIANA SURROUND AND HEARTH
Valor Gas Fire part no. 411S

89   OBSOLETE VICTORIANA HEARTH
Valor Gas Fire part no. 411H
