VALOR GAS FIRE
UNIGAS SUPERGLO BF - (Exploded View)
Appliance Code: 32-810-37

Appliance Diagram


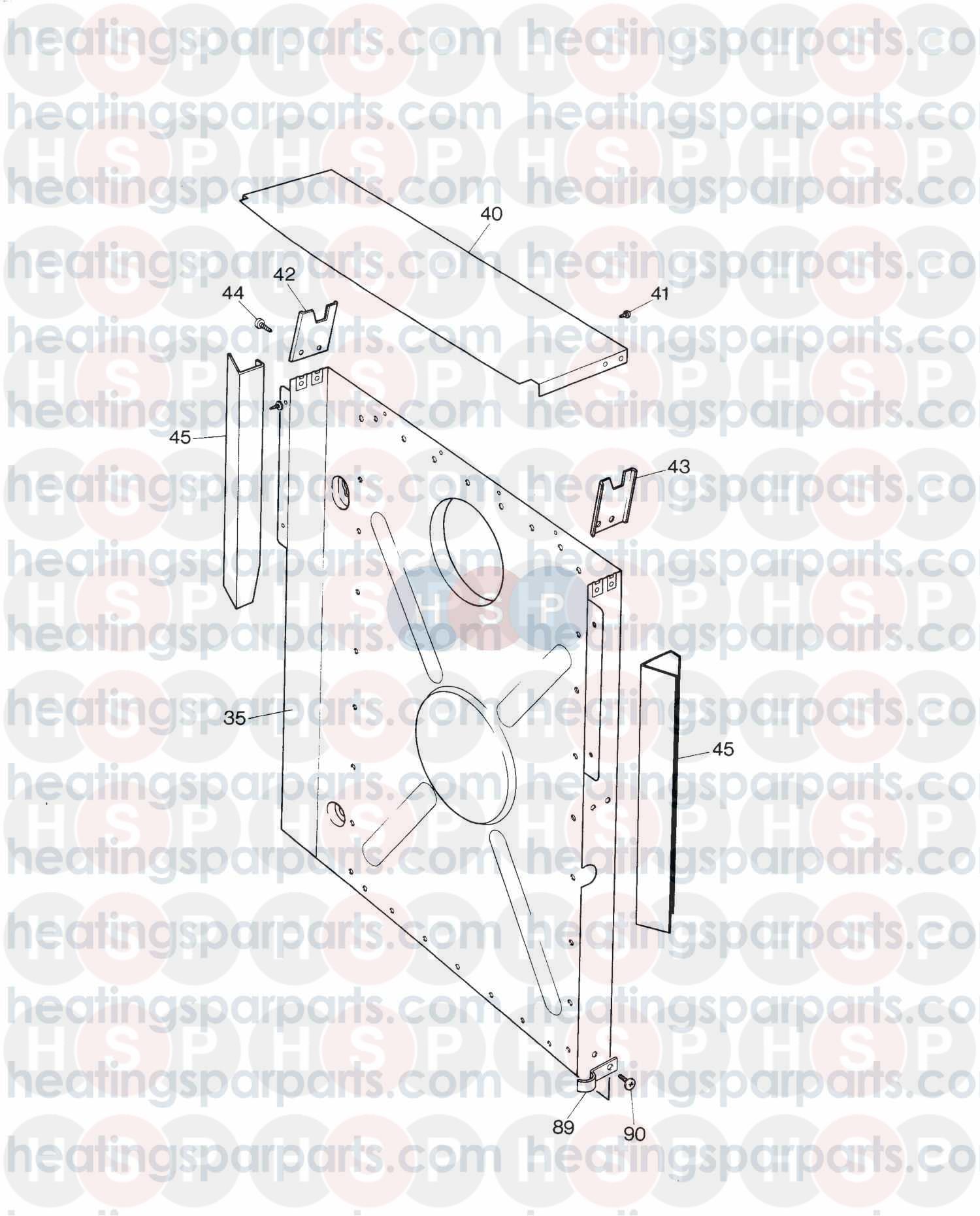

Exploded View diagram for Valor Gas Fire Unigas Superglo BFClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FRONT CASE ASSEMBLY COMPLETE
Valor Gas Fire part no. 4411000

2   OBSOLETE TOP CASE FRAME ASSEMBLY
Valor Gas Fire part no. 1410120

3   OBSOLETE WOOD SIDE LH
Valor Gas Fire part no. 8618700

4   OBSOLETE WOOD SIDE RH
Valor Gas Fire part no. 8618600

6   OBSOLETE HOOD AND GRILLE ASSEMBLY
Valor Gas Fire part no. 0522409

7   OBSOLETE TRIM - COAL EFFECT
Valor Gas Fire part no. 8618300

8   OBSOLETE NO.6X3/8 PAN POZI ZPS
Valor Gas Fire part no. 0514929

9   OBSOLETE TOP TRIM - FRONT CHANNEL
Valor Gas Fire part no. 8619700

10   OBSOLETE ASSEMBLY LAMP HOLDER BRACKET - LEFT HAND
Valor Gas Fire part no. 2411200

11   OBSOLETE ASSEMBLY LAMP HOLDER BRACKET - RIGHT HAND
Valor Gas Fire part no. 2411300

12   SCREW NO8 X 3/8INCH
Valor Gas Fire part no. 0547479
13   OBSOLETE DIFFUSER GLASS - LAMPS
Valor Gas Fire part no. 8618900

14   OBSOLETE SPINNER LH RED CENTRE
Valor Gas Fire part no. 0531269

15   OBSOLETE R/HAND SPINNER
Valor Gas Fire part no. 0531279

16   OBSOLETE LAMP HOLDER ASSY
Valor Gas Fire part no. 0542079

17   OBSOLETE LAMP 40W
Valor Gas Fire part no. 0529229

17   OBSOLETE LAMP 60W FIREGLOW.
Valor Gas Fire part no. 8200402

18   OBSOLETE INTERNAL LEAD (400MM LG ) BLACK
Valor Gas Fire part no. 8619000

19   OBSOLETE INTERNAL LEAD (250MM LG) BLACK
Valor Gas Fire part no. 8619010

20   OBSOLETE INTERNAL LEAD (150MM LG ) BLACK
Valor Gas Fire part no. 8618400

23   OBSOLETE TERMINAL BLOCK
Valor Gas Fire part no. 8578500

24   OBSOLETE TERMINAL BLOCK INSULATION
Valor Gas Fire part no. 8590300

25   OBSOLETE SCREW 4BA X 1IN. SLOTTED ROUND HEAD - STEEL BS57
Valor Gas Fire part no. 8181314

26   OBSOLETE S/P M4 TYPE 12/INT ZP WASHER
Valor Gas Fire part no. 0552239

27   OBSOLETE NUT 4 BA X 0.
Valor Gas Fire part no. 0511909

28   OBSOLETE MACHINE SCREW M5 X 16 RECESSED PAN HEAD - BRASS
Valor Gas Fire part no. 80180152

29   OBSOLETE NUT
Valor Gas Fire part no. 0532739

30   OBSOLETE 2BA SP INT/T WASHER PH BRONZE
Valor Gas Fire part no. 8215772

31   OBSOLETE WASHER CABLE CLAMP R.COURTNEY NO 240004
Valor Gas Fire part no. 8160637

32   OBSOLETE MAINS CABLE
Valor Gas Fire part no. 8578800

33   OBSOLETE STRAIN RELIEF CLIP FOR 6/12.5MM CABLE - NATURAL
Valor Gas Fire part no. 8631000

33   OBSOLETE CORD GRIP ELKAY 750
Valor Gas Fire part no. 8181319

34   OBSOLETE M 10 X 1IN HEX. LOCKNUT - SPECIAL FINE PITCH
Valor Gas Fire part no. 8180806

34   OBSOLETE SCREW
Valor Gas Fire part no. 0513059

35   OBSOLETE BACK PANEL
Valor Gas Fire part no. 7612600

36   OBSOLETE GASKET SIDE
Valor Gas Fire part no. 8615600

37   OBSOLETE GASKET
Valor Gas Fire part no. 80560400

38   OBSOLETE AIR DUCT TRAY
Valor Gas Fire part no. 7612500

40   OBSOLETE REMOVABLE TOP
Valor Gas Fire part no. 7612700

41   OBSOLETE M3.X 6 SCREW
Valor Gas Fire part no. 0547299

42   OBSOLETE CASE LOCATING BRACKET LH
Valor Gas Fire part no. 7616700

43   OBSOLETE CASE LOCATING BRACKET RH
Valor Gas Fire part no. 7616800

44   OBSOLETE SCREW
Valor Gas Fire part no. 0536119

45   OBSOLETE WALL SHIELD
Valor Gas Fire part no. 7612800

46   OBSOLETE GASKET - FLUE SPIGOT
Valor Gas Fire part no. 80613600

47   OBSOLETE GASKET - AIR INLET
Valor Gas Fire part no. 80614100

48   OBSOLETE M4X10 POZI PAN ZP SCR
Valor Gas Fire part no. 0549219

49   OBSOLETE HEAT EXCHANGER ASSEMBLY
Valor Gas Fire part no. 0507449

50   OBSOLETE BACK RADIANT BOX
Valor Gas Fire part no. 0520419

51   OBSOLETE SCREW 3/16BSW X 3/8IN. HEXAGON HEAD - STAINLESS
Valor Gas Fire part no. 8132290

52   OBSOLETE RADIANT BOX SIDE LH
Valor Gas Fire part no. 7616300

53   OBSOLETE RH RADIANT BOX SIDE
Valor Gas Fire part no. 0523309

55   OBSOLETE TAPPING SCREW ISO NO. 6AB X 9.5 RECESSED FLANGE
Valor Gas Fire part no. 080180715

56   OBSOLETE RADIANT SUPPORT BRACKET
Valor Gas Fire part no. 0519669

58   OBSOLETE INSULATION PAD
Valor Gas Fire part no. 8617600

59   OBSOLETE SIDE CHEEKS
Valor Gas Fire part no. 8617700

60   OBSOLETE FLUE SPIGOT
Valor Gas Fire part no. 80613500

62   OBSOLETE RADIANT ASSY
Valor Gas Fire part no. 0521099

63   OBSOLETE WINDOW ASSY
Valor Gas Fire part no. 0507459

64   WASHER
Valor Gas Fire part no. 0533589
64   OBSOLETE STUD
Valor Gas Fire part no. 0508259

65   OBSOLETE NUT
Valor Gas Fire part no. 0512849

66   OBSOLETE GASKET - WINDOW TOP
Valor Gas Fire part no. 0508239

67   OBSOLETE GASKET
Valor Gas Fire part no. 0539529

68   OBSOLETE WINDOW GASKET - SIDES
Valor Gas Fire part no. 0508249

69   OBSOLETE SUPPORT - REMOVABLE TOP
Valor Gas Fire part no. 7590900

70 Part number 080215717, NOW USE 062583 Taptite Screw M5 x 10 Recessed Pan He NOW USE 062583 TAPTITE SCREW M5 X 10 RECESSED PAN HE
Valor Gas Fire part no. 080215717

70   SCR-TF-M5X10MM PN HD PZ S ZNPD
Valor Gas Fire part no. 062583
71   OBSOLETE CASE FIXING BRACKET
Valor Gas Fire part no. 7587300

73   OBSOLETE PRECISION SCREW M5 X 12 HEXAGON/SLOTTED HEAD -
Valor Gas Fire part no. 080180609

74   OBSOLETE TAP AND PIEZO BRACKET
Valor Gas Fire part no. 0522399

75   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
76   OBSOLETE SCREW
Valor Gas Fire part no. 0533329

78   GAS TAP
Valor Gas Fire part no. 0507469
78   OBSOLETE COMBINED TAP AND FLAME SUPERVISION DEVICE -
Valor Gas Fire part no. 8610220

79   OBSOLETE CONTROL TRIM
Valor Gas Fire part no. 8613700

80   OBSOLETE NO.6AB X 5/8 PZ PN BL
Valor Gas Fire part no. 0557389

81   OBSOLETE LOCKNUT 1/4IN BSP ST PAINTED
Valor Gas Fire part no. 8129238

82   OBSOLETE CONTROL KNOB - BRAILLE
Valor Gas Fire part no. 8594035

82   OBSOLETE KNOB C/W CLIP
Valor Gas Fire part no. 8614200

82   OBSOLETE CONTROL KNOB - ARTHRITIC
Valor Gas Fire part no. 0508179

84   OBSOLETE THERMOCOUPLE C/W NUT
Valor Gas Fire part no. 0507479

85   OBSOLETE PIPE TAP TO BURNER TOP INJECTOR
Valor Gas Fire part no. 8614300

86   OBSOLETE PIPE TAP TO BURNER BOTTOM INJECTOR
Valor Gas Fire part no. 8614400

87   OBSOLETE PIPE INLET
Valor Gas Fire part no. 8614500

88 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
89   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 70616000

91   OBSOLETE BURNER BRAY AB 9514-W
Valor Gas Fire part no. 8615800

92   OBSOLETE INJECTOR BRAY CAT 31 SIZE 130
Valor Gas Fire part no. 0539519

93   OBSOLETE INJECTOR BOTTOM BRAY CAT 31 SIZE 240
Valor Gas Fire part no. 8126448

94   OBSOLETE GASKET
Valor Gas Fire part no. 0522569

96   OBSOLETE ELECTRODE
Valor Gas Fire part no. 0507489

97   OBSOLETE LEAD ELECTRODE
Valor Gas Fire part no. 080482800

98   OBSOLETE EARTH ELECTRODE
Valor Gas Fire part no. 8617200

99   OBSOLETE GASKET - ELECTRODE LE
Valor Gas Fire part no. 0523979

100   OBSOLETE SEALING RING - 120 ID
Valor Gas Fire part no. 80598400

101   OBSOLETE SCREW
Valor Gas Fire part no. 0534729

102   OBSOLETE FLUE PIPE ASSEMBLY COMPLETE
Valor Gas Fire part no. 0507089

103   OBSOLETE SEALING RING TERMINAL
Valor Gas Fire part no. 8503600

104   OBSOLETE TERMINAL
Valor Gas Fire part no. 0521629

105   OBSOLETE TERMINAL GUARD
Valor Gas Fire part no. 0516539

106   OBSOLETE WOOD SCREW NO.8 X 1IN. SLOTTED ROUND HEAD - STEE
Valor Gas Fire part no. 80181308

107   OBSOLETE RAWLPLUG - NO 8 X 25MM - FIBRE
Valor Gas Fire part no. 80181309

108   OBSOLETE WOOD SCREW NO.12 X 2IN. SLOTTED ROUND HEAD - STEE
Valor Gas Fire part no. 80519000

109   OBSOLETE RAWLPLUG - SUITABLE FOR NO. 8. 10 & 12 WOOD SREW
Valor Gas Fire part no. 8518900

110   OBSOLETE INSTALLATION AND SERVICING INSTRUCTIONS
Valor Gas Fire part no. 8181529

111   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 8181629

112   OBSOLETE GLASS CULLET & BOX
Valor Gas Fire part no. 0509079

113   OBSOLETE GUARD FOR FLICKER NEEDLE
Valor Gas Fire part no. 8630000
