VALOR GAS FIRE
SIERRA NEVADA - (Controls)
Appliance Code: 35-810-04

Appliance Diagram


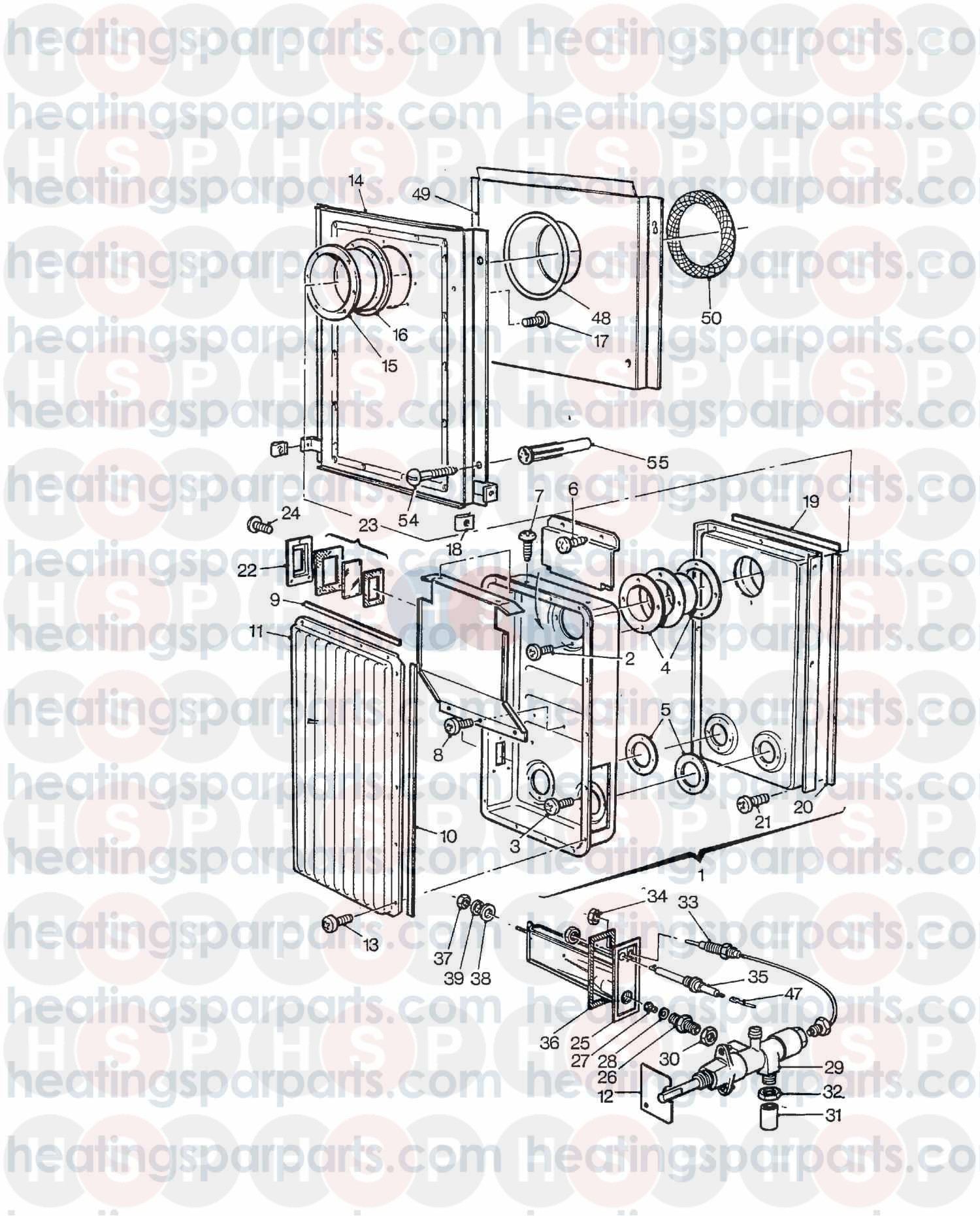

Controls diagram for Valor Gas Fire Sierra NevadaClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE HEAT EXCHANGER ASSEMBLY
Valor Gas Fire part no. 0518299

4   OBSOLETE FLUE SPIGOT GASKET
Valor Gas Fire part no. 0516569

5   OBSOLETE AIR DUCT/HEAT EXCHANGER
Valor Gas Fire part no. 0516579

7   OBSOLETE NO8X3/8 SELF TAP SCREW
Valor Gas Fire part no. 0536809

10   OBSOLETE GASKET AIR DUCT TRAY TOP/BOTTO
Valor Gas Fire part no. 0549189

11   OBSOLETE FRONT COVER
Valor Gas Fire part no. 0514719

12   OBSOLETE LOCKNUT 1/4BSW HEXAGON - BRASS BS450 SELF COLOUR
Valor Gas Fire part no. 0534187

12   OBSOLETE GAS TAP STEADY PLATE
Valor Gas Fire part no. 0518309

13   OBSOLETE SCREW
Valor Gas Fire part no. 0513059

14   OBSOLETE OUTER BACK ASS
Valor Gas Fire part no. 0518319

15   OBSOLETE FLUE OUTER BACK SPIGOT
Valor Gas Fire part no. 0516599

16   OBSOLETE FLUE OUTER BACK GASKE
Valor Gas Fire part no. 0516609

17   OBSOLETE SCREW M4X10
Valor Gas Fire part no. 0541089

18   OBSOLETE EDGE SNU2811 17 40 CL
Valor Gas Fire part no. 0514759

19   HEAT EXCHANGER COVER GASKET
Valor Gas Fire part no. 0514709
21   SCREW
Valor Gas Fire part no. 0513359
22   OBSOLETE INSPECTION WINDOW FRAME
Valor Gas Fire part no. 0514729

23   OBSOLETE INSPECTION WINDOW KIT
Valor Gas Fire part no. 0514739

25   OBSOLETE BURNER & SPARK TARGET
Valor Gas Fire part no. 0514779

26   OBSOLETE INJECTOR CARRIER
Valor Gas Fire part no. 0514789

27   OBSOLETE BRAY:-CAT 969 SIZE 220
Valor Gas Fire part no. 0513149

28   OBSOLETE COPPER IBA SELF COLOUR WASHER
Valor Gas Fire part no. 0514809

29   OBSOLETE GAS TAP
Valor Gas Fire part no. 0514819

30   OBSOLETE LOCKNUT
Valor Gas Fire part no. 0528839

31   OBSOLETE SOCKET
Valor Gas Fire part no. 0514829

32   OBSOLETE 1/4" BSP MS ZP LOCKNUT
Valor Gas Fire part no. 0549589

33   OBSOLETE THERMOCOUPLE & LOCKNUT
Valor Gas Fire part no. 0514839

34 Part number 0547759, OBSOLETE LOCKNUT OBSOLETE LOCKNUT
Valor Gas Fire part no. 0547759

35   OBSOLETE ELECTRODE
Valor Gas Fire part no. 0514849

36   OBSOLETE BURNER PLATE GASKET
Valor Gas Fire part no. 0514859

37   OBSOLETE NUT
Valor Gas Fire part no. 0547669

38   OBSOLETE .8MM BLACK FIBRE WASHER
Valor Gas Fire part no. 0549419

39   OBSOLETE DOUBLE COIL WASHER
Valor Gas Fire part no. 0514869

40   OBSOLETE CASE ASSEMBLY
Valor Gas Fire part no. 0518329

41   OBSOLETE TOP & BOTTOM TRIM
Valor Gas Fire part no. 0518389

42   OBSOLETE GRILLE
Valor Gas Fire part no. 0518399

43   OBSOLETE FRONT (GRAPHICS) PAN
Valor Gas Fire part no. 0518409

44   OBSOLETE LOWER FRONT PANEL
Valor Gas Fire part no. 0518419

45   OBSOLETE NO.6X3/8 PAN POZI ZPS
Valor Gas Fire part no. 0514929

46 Part number 0504709, PIEZO GEN. PIEZO GEN.
Valor Gas Fire part no. 0504709
47 Part number 0542349, OBSOLETE Electrode 245-255mm Lead OBSOLETE ELECTRODE 245-255MM LEAD
Valor Gas Fire part no. 0542349

48   OBSOLETE SEALING RING
Valor Gas Fire part no. 0514939

49   OBSOLETE WALL COOLER PLATE
Valor Gas Fire part no. 0518339

50   OBSOLETE 8 SEALING RING
Valor Gas Fire part no. 0514959

51   OBSOLETE FLUE PIPE & TERMINAL
Valor Gas Fire part no. 0518349

52   OBSOLETE FLUE PIPE SEALING TAPE
Valor Gas Fire part no. 0516869

53   OBSOLETE KNOB & CLIP ASSEMBLY
Valor Gas Fire part no. 0513279

54   OBSOLETE 12X2 RD HD SLOT ZP WD/SCREW
Valor Gas Fire part no. 0549759

55   OBSOLETE NO.12 HEAVY DUTY WALL PLUG
Valor Gas Fire part no. 0516879

56   OBSOLETE TERMINAL GUARD
Valor Gas Fire part no. 0516539

57   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0518359

58   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0518369
