VALOR GAS FIRE
MODEL 963 HOMEFLAME DREAM PETRUS - (Convector Box)
Appliance Code: 32-032-92

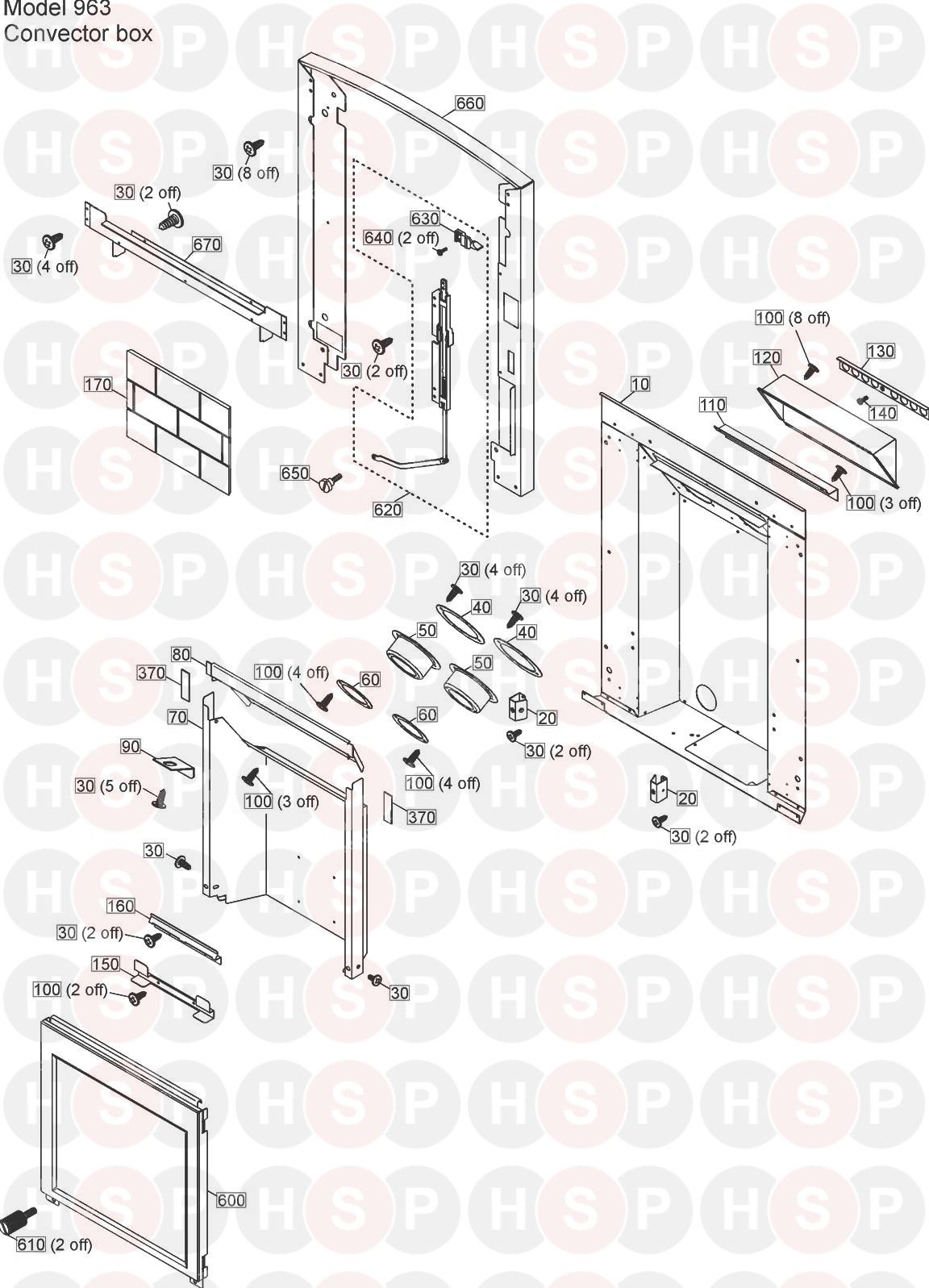

Appliance Diagram


Convector Box diagram for Valor Gas Fire Model 963 Homeflame Dream PetrusClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

10   OBSOLETE CONVECTION BOX UNIT ASSY
Valor Gas Fire part no. 5137171

20   OBSOLETE FIXING BRACKET
Valor Gas Fire part no. 5137088

30   SCREW
Valor Gas Fire part no. 0508109
40   OBSOLETE GASKET PORT (LARGE)
Valor Gas Fire part no. 5137103

50   OBSOLETE EXHAUST PORT
Valor Gas Fire part no. 5136477

60   OBSOLETE GASKET PORT (SMALL)
Valor Gas Fire part no. 5137101

70   OBSOLETE RADIANT PANEL ASSY
Valor Gas Fire part no. 5137060

80   OBSOLETE RADIANT TOP
Valor Gas Fire part no. 5137074

90   OBSOLETE CERAMIC TOP SUPPORT
Valor Gas Fire part no. 5137207WP

100 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
110   OBSOLETE DRAUGHT DIVERTER
Valor Gas Fire part no. 5137079

120   OBSOLETE DEBRIS DEFLECTOR
Valor Gas Fire part no. 5137078

130   OBSOLETE RESTRICTOR
Valor Gas Fire part no. 5137086

140   SCREW
Valor Gas Fire part no. 0535569
150   OBSOLETE TRAY SUPPORT C2
Valor Gas Fire part no. 3003185

160   OBSOLETE CERAMIC SUPPORT - LOWER
Valor Gas Fire part no. 5137196

170   OBSOLETE REAR BRICK CERAMIC
Valor Gas Fire part no. 5137206

370   OBSOLETE GASKET
Valor Gas Fire part no. 5137926

600   WINDOW FRAME ASSY
Valor Gas Fire part no. 5137158

610   OBSOLETE M5X10 SHOULDER SCREW
Valor Gas Fire part no. 5137210

620   SLIDER ASSY
Valor Gas Fire part no. 5137212
630 Part number 0573309, OBSOLETE CONTROL KNOB OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0573309

640   SCREW
Valor Gas Fire part no. 0513359
650   SHOULDER SCREW (M4 SPECIAL)
Valor Gas Fire part no. 5131139
660   SPACER FRAME ASSY
Valor Gas Fire part no. 5137192PP
670   OBSOLETE FASCIA MOUNTING BRACKET
Valor Gas Fire part no. 5137156
