VALOR GAS FIRE
HOMEFLAME SUPER BLACK/BROWN - (Fire Front)
Appliance Code: 32-810-45

Appliance Diagram


Fire Front diagram for Valor Gas Fire Homeflame Super Black/BrownClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

4   NOW USE 0534629 SCREW
Valor Gas Fire part no. 534629

4 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
8   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
8   NOW USE 0516349 TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 516349

11   NOW USE 0547909 M4X10 TAPTITE SCREW
Valor Gas Fire part no. 547909

11   M4X10 TAPTITE SCREW
Valor Gas Fire part no. 0547909
15 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Valor Gas Fire part no. 635506

16   OBSOLETE WASHER
Valor Gas Fire part no. 0515509

16   OBSOLETE WASHER
Valor Gas Fire part no. 515509

39 Part number 534039, OBSOLETE HEATER ROD OBSOLETE HEATER ROD
Valor Gas Fire part no. 534039
39 Part number 0534039, OBSOLETE ROD-HEATER OBSOLETE ROD-HEATER
Valor Gas Fire part no. 0534039

56 Part number 0547319, THERMOCOUPLE THERMOCOUPLE
Valor Gas Fire part no. 0547319
56 Part number 547319, NOW USE 0547319 THERMOCOUPLE NOW USE 0547319 THERMOCOUPLE
Valor Gas Fire part no. 547319

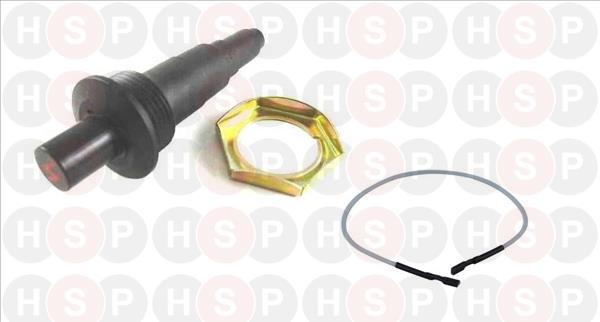

58 Part number 550539, NOW USE 0550539 PIEZO NUT AND LEAD NOW USE 0550539 PIEZO NUT AND LEAD
Valor Gas Fire part no. 550539

58 Part number 554909, OBSOLETE PIEZO + NUT OBSOLETE PIEZO + NUT
Valor Gas Fire part no. 554909

58 Part number 0550539, OBSOLETE PIEZO, NUT AND LEAD OBSOLETE PIEZO, NUT AND LEAD
Valor Gas Fire part no. 0550539

58 Part number 0554909, OBSOLETE PIEZO & NUT ASSY OBSOLETE PIEZO & NUT ASSY
Valor Gas Fire part no. 0554909

62   LOCK NUT
Valor Gas Fire part no. 0502739
62   NOW USE 0502739 LOCK NUT
Valor Gas Fire part no. 502739

71 Part number 534149, OBSOLETE SPARK ELECTRODE OBSOLETE SPARK ELECTRODE
Valor Gas Fire part no. 534149

71 Part number 0534149, OBSOLETE ELECTRODE ASS. OBSOLETE ELECTRODE ASS.
Valor Gas Fire part no. 0534149

79   PIPE FIXING BRACKET
Valor Gas Fire part no. 0535639
79   NOW USE 0535639 PIPE FIXING BRACKET
Valor Gas Fire part no. 535639

80 Part number 532519, NOW USE 0532519 ELBOW NOW USE 0532519 ELBOW
Valor Gas Fire part no. 532519

80 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
92   FIX
Valor Gas Fire part no. 0534419
92   NOW USE 0534419 FIX
Valor Gas Fire part no. 534419

98   NOW USE 0534719 SCREW
Valor Gas Fire part no. 534719

98   SCREW
Valor Gas Fire part no. 0534719
102   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0548199

103   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0548209
