VALOR GAS FIRE
HOMEFLAME ELECTRONIC 487 BLACK - (Fire Front)
Appliance Code: 32-810-72

Appliance Diagram


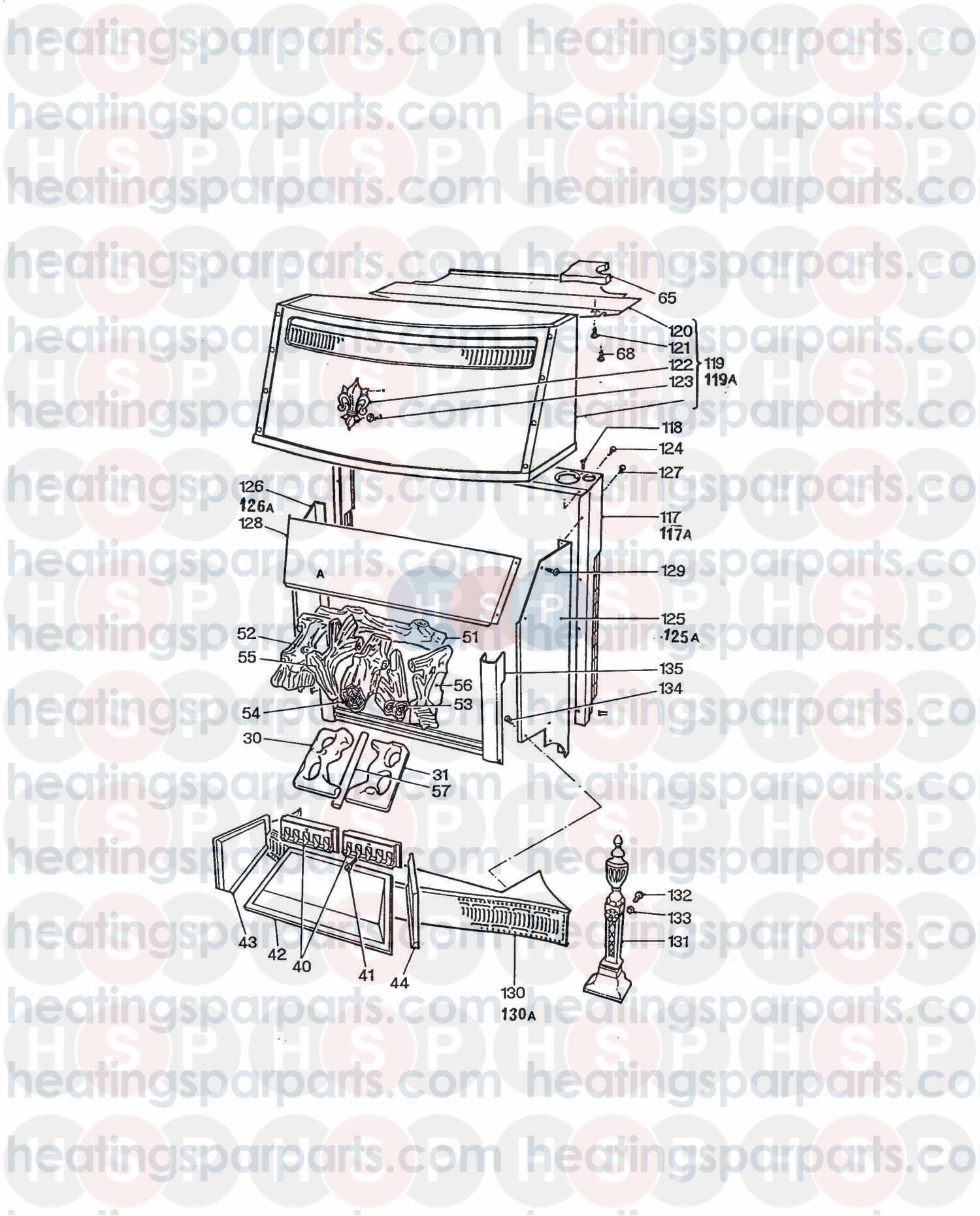

Fire Front diagram for Valor Gas Fire Homeflame Electronic 487 BlackClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FLUE SPIGOT ASS
Valor Gas Fire part no. 0547019

3   OBSOLETE FLUE BAFFLE
Valor Gas Fire part no. 0547029

5   OBSOLETE FLUE DEFL/TOR
Valor Gas Fire part no. 0547039

7   OBSOLETE BACK PANEL ASSEMBLY
Valor Gas Fire part no. 0555959

8   OBSOLETE GROMMET
Valor Gas Fire part no. 0555969

9   OBSOLETE TOP LOCATION BRK
Valor Gas Fire part no. 0547739

10   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
11   OBSOLETE L/H BOTTOM SPACER
Valor Gas Fire part no. 0552119

13   OBSOLETE BANC-LOK FASTENER
Valor Gas Fire part no. 0547649

14   M4X10 TAPTITE SCREW
Valor Gas Fire part no. 0547909
15   OBSOLETE HEAT EXCHANGER P
Valor Gas Fire part no. 0547659

16   OBSOLETE SPACER
Valor Gas Fire part no. 0547059

17   OBSOLETE SCREW
Valor Gas Fire part no. 0533579

18 Part number 0532279, NUT NUT
Valor Gas Fire part no. 0532279

18 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Valor Gas Fire part no. 635506

20   OBSOLETE HEAT EXCHANGER GASKET
Valor Gas Fire part no. 0547919

21   OBSOLETE L/HAND FOOT & FASTENE
Valor Gas Fire part no. 0547119

22   OBSOLETE R/H FOOT ASSEMBLY
Valor Gas Fire part no. 0555979

23   OBSOLETE BANC-LOK FASTENER
Valor Gas Fire part no. 0547679

24   OBSOLETE SCREW
Valor Gas Fire part no. 0547689

25   OBSOLETE LEVELLING SCREW
Valor Gas Fire part no. 0535979

26   OBSOLETE NUT
Valor Gas Fire part no. 0532259

27   OBSOLETE RAD - BOX UNIT ASSY
Valor Gas Fire part no. 0547099

30   OBSOLETE L/HAND COKE GRID
Valor Gas Fire part no. 0547929

31   OBSOLETE R/HAND COKE GRID
Valor Gas Fire part no. 0547939

32   OBSOLETE COLLECTOR BOX PACK
Valor Gas Fire part no. 0550499

33   OBSOLETE COLLECTOR BOX BAFFLE
Valor Gas Fire part no. 0549959

34   OBSOLETE GASKET
Valor Gas Fire part no. 0547089

35   OBSOLETE NO8X1/2 SCREW
Valor Gas Fire part no. 0548369

36   OBSOLETE SPACER
Valor Gas Fire part no. 0547069

37   OBSOLETE SCREW
Valor Gas Fire part no. 0533869

40   OBSOLETE REAR TUBE SUPPORT
Valor Gas Fire part no. 0534009

41   OBSOLETE SCREW
Valor Gas Fire part no. 0534019

42   OBSOLETE BASE BOARD
Valor Gas Fire part no. 0547129

43   OBSOLETE L/HAND SIDE CHEEK
Valor Gas Fire part no. 0533989

44   OBSOLETE R/HAND SIDE CHEEK
Valor Gas Fire part no. 0533999

45   OBSOLETE GLASS FRAME BOTTOM RET
Valor Gas Fire part no. 0547709

46   OBSOLETE LOCATION BAR
Valor Gas Fire part no. 0534029

48   OBSOLETE SCREW
Valor Gas Fire part no. 0533329

49   OBSOLETE F.F.D.MOUNTING BRACKET
Valor Gas Fire part no. 0547149

51   OBSOLETE NO.1 LOG
Valor Gas Fire part no. 0547949

52   OBSOLETE NO.2 LOG
Valor Gas Fire part no. 0547189

53   OBSOLETE NO.3 LOG
Valor Gas Fire part no. 0547959

54   OBSOLETE NO.4 LOG
Valor Gas Fire part no. 0547209

55   OBSOLETE NO.5 LOG
Valor Gas Fire part no. 0547969

56   OBSOLETE NO.6 LOG
Valor Gas Fire part no. 0547979

57 Part number 0534039, OBSOLETE ROD-HEATER OBSOLETE ROD-HEATER
Valor Gas Fire part no. 0534039

58   OBSOLETE GAS TAP BRACKET
Valor Gas Fire part no. 0548019

60   OBSOLETE GAS TAP - COPRECI 18700/50
Valor Gas Fire part no. 0555989

61   LOCK NUT
Valor Gas Fire part no. 0502739
62   OBSOLETE CONTROL SPINDLE/ADAPT A
Valor Gas Fire part no. 0547999

63 Part number 0536949, SPLIT PIN SPLIT PIN
Valor Gas Fire part no. 0536949
64   OBSOLETE BACK PANEL INSUL/TR
Valor Gas Fire part no. 0547799

65   OBSOLETE KNOB INSUL/TR
Valor Gas Fire part no. 0547809

66   OBSOLETE WASHER
Valor Gas Fire part no. 0532529

67   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0555999

67   OBSOLETE KNOB ADAPTER
Valor Gas Fire part no. 0547839

69   OBSOLETE CONTROL INDIC/TR
Valor Gas Fire part no. 0547769

70 Part number 0547319, THERMOCOUPLE THERMOCOUPLE
Valor Gas Fire part no. 0547319
71 Part number 0547759, OBSOLETE LOCKNUT OBSOLETE LOCKNUT
Valor Gas Fire part no. 0547759

73 Part number 0547259, OBSOLETE ELECTRODE LEAD OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0547259

73   OBSOLETE GROMMET
Valor Gas Fire part no. 0512509

74   NOW USE 082061 TIE LEAD
Valor Gas Fire part no. 0547699

75   OBSOLETE INSULATION RET BRKT
Valor Gas Fire part no. 0547789

78   OBSOLETE MAIN FURIGAS BURNER
Valor Gas Fire part no. 0548039

78   OBSOLETE MAIN-AEROMATIC BURNER
Valor Gas Fire part no. 0548029

79   OBSOLETE FLAME-AEROMATIC BURNER
Valor Gas Fire part no. 0548049

79   OBSOLETE BURNER UNIT
Valor Gas Fire part no. 0548059

80   OBSOLETE BURNER UNIT
Valor Gas Fire part no. 0548069

81   OBSOLETE FLAME BUR. REST/TOR
Valor Gas Fire part no. 0548579

83   OBSOLETE UPPER CAT.77 SIZE 120
Valor Gas Fire part no. 0548079

84 Part number 0548089, LOWER CAT.77 SIZE 220 INJECTOR LOWER CAT.77 SIZE 220 INJECTOR
Valor Gas Fire part no. 0548089
85 Part number 0534149, OBSOLETE ELECTRODE ASS. OBSOLETE ELECTRODE ASS.
Valor Gas Fire part no. 0534149

88   OBSOLETE ELECTROMAGNETIC VALV
Valor Gas Fire part no. 0556009

90   OBSOLETE M5X30MM SCREW
Valor Gas Fire part no. 0556029

91   OBSOLETE INLET TO TAP PIPE
Valor Gas Fire part no. 0556039

92   OBSOLETE DEC.BRNR CENTRE/VALVE PIPE
Valor Gas Fire part no. 0556049

93   OBSOLETE DEC.BURNER OUTER/VALVE PIPE
Valor Gas Fire part no. 0556059

94   OBSOLETE MAIN BURNER UPPER/TAP PIPE
Valor Gas Fire part no. 0556069

95   OBSOLETE PRESS.TEST T/OLIVE/NU
Valor Gas Fire part no. 0556079

96   OBSOLETE PRESSURE TEST POINT SCR
Valor Gas Fire part no. 0516379

97   OBSOLETE WASHER
Valor Gas Fire part no. 0516389

98   OBSOLETE PIPE ASSEMBLY
Valor Gas Fire part no. 0556089

99   OBSOLETE TAP/E.M. VALVE TOP PI
Valor Gas Fire part no. 0556099

100   OBSOLETE TAP/E.M.VALVE FRONT P
Valor Gas Fire part no. 0556109

101   PIPE FIXING BRACKET
Valor Gas Fire part no. 0535639
103 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
104   OBSOLETE CORD GRIP
Valor Gas Fire part no. 0535719

104   OBSOLETE SCREW
Valor Gas Fire part no. 0535729

104   OBSOLETE RECEIVER BOX ASSEMBLY
Valor Gas Fire part no. 0556119

105   OBSOLETE EARTH RECEIVER-CASIN
Valor Gas Fire part no. 0556129

106   OBSOLETE NUT
Valor Gas Fire part no. 0532739

107   OBSOLETE WASHER
Valor Gas Fire part no. 0515509

108   OBSOLETE HEAT BAFFLE LOWER SIDE
Valor Gas Fire part no. 0556019

109   8X3/8 SCREW
Valor Gas Fire part no. 0511569
110   OBSOLETE SCREW
Valor Gas Fire part no. 0513349

111   OBSOLETE FLOOR PLATE & BAFFLE
Valor Gas Fire part no. 0548169

112 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
113   OBSOLETE GLASS FRAME ASSEMBLY
Valor Gas Fire part no. 0547409

114   OBSOLETE L/HAND GLASS RETAINER
Valor Gas Fire part no. 0547719

115   OBSOLETE R/HAND GLASS RETAINER
Valor Gas Fire part no. 0547729

116   OBSOLETE NUT
Valor Gas Fire part no. 0547749

117   OBSOLETE BACK CASING
Valor Gas Fire part no. 0547439

117   OBSOLETE BACK CASING
Valor Gas Fire part no. 0555689

118   OBSOLETE INDICATOR
Valor Gas Fire part no. 0530939

119   OBSOLETE HOOD PACK - BLACK
Valor Gas Fire part no. 0547449

119   OBSOLETE HOOD ASSEMBLY - BROWN
Valor Gas Fire part no. 0555699

120   OBSOLETE HOOD TOP H/SHIELD
Valor Gas Fire part no. 0547459

122   OBSOLETE HOOD MOTIF
Valor Gas Fire part no. 0547469

123   FIX
Valor Gas Fire part no. 0534419
125   OBSOLETE R/HAND SIDE PANEL
Valor Gas Fire part no. 0547489

125   OBSOLETE R/HAND SIDE PANEL
Valor Gas Fire part no. 0555719

126   OBSOLETE L/HAND SIDE PANEL
Valor Gas Fire part no. 0555709

126   OBSOLETE SIDE PANEL - LH - BLACK
Valor Gas Fire part no. 0547852

128   OBSOLETE H/SHIELD
Valor Gas Fire part no. 0547509

130   OBSOLETE HEARTH ASSEMBLY
Valor Gas Fire part no. 0558039

130   OBSOLETE ANTIQUE COPPER HEARTH ASSY
Valor Gas Fire part no. 0558049

131   OBSOLETE BRASS DOG
Valor Gas Fire part no. 0547529

132   SCREW
Valor Gas Fire part no. 0534719
135   OBSOLETE FRONT(WINDOW)TRIM ASSEMBLY
Valor Gas Fire part no. 0547419

136   OBSOLETE THERMO. PHIAL KK3 AN
Valor Gas Fire part no. 0513589

137   OBSOLETE NO8X3/4 RD POZI MS ZP
Valor Gas Fire part no. 0536969

138   OBSOLETE SPIRE FIX
Valor Gas Fire part no. 0511329

140   OBSOLETE IRON SOCKET
Valor Gas Fire part no. 0547579

141   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0548229

142   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0548239

143   OBSOLETE CLOSURE PLATE ASSEMBLY
Valor Gas Fire part no. 0549969

144   OBSOLETE HAND CONTROL UNIT ASS
Valor Gas Fire part no. 0556139

145   OBSOLETE CONTROL BAT.COVE
Valor Gas Fire part no. 0556149

146 Part number 0553389, 9 VOLT PP35 BATTERY 9 VOLT PP35 BATTERY
Valor Gas Fire part no. 0553389
147   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0556169

148   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0556179
