VALOR GAS FIRE
FLORIDA TC - (Controls)
Appliance Code: 35-810-02

Appliance Diagram


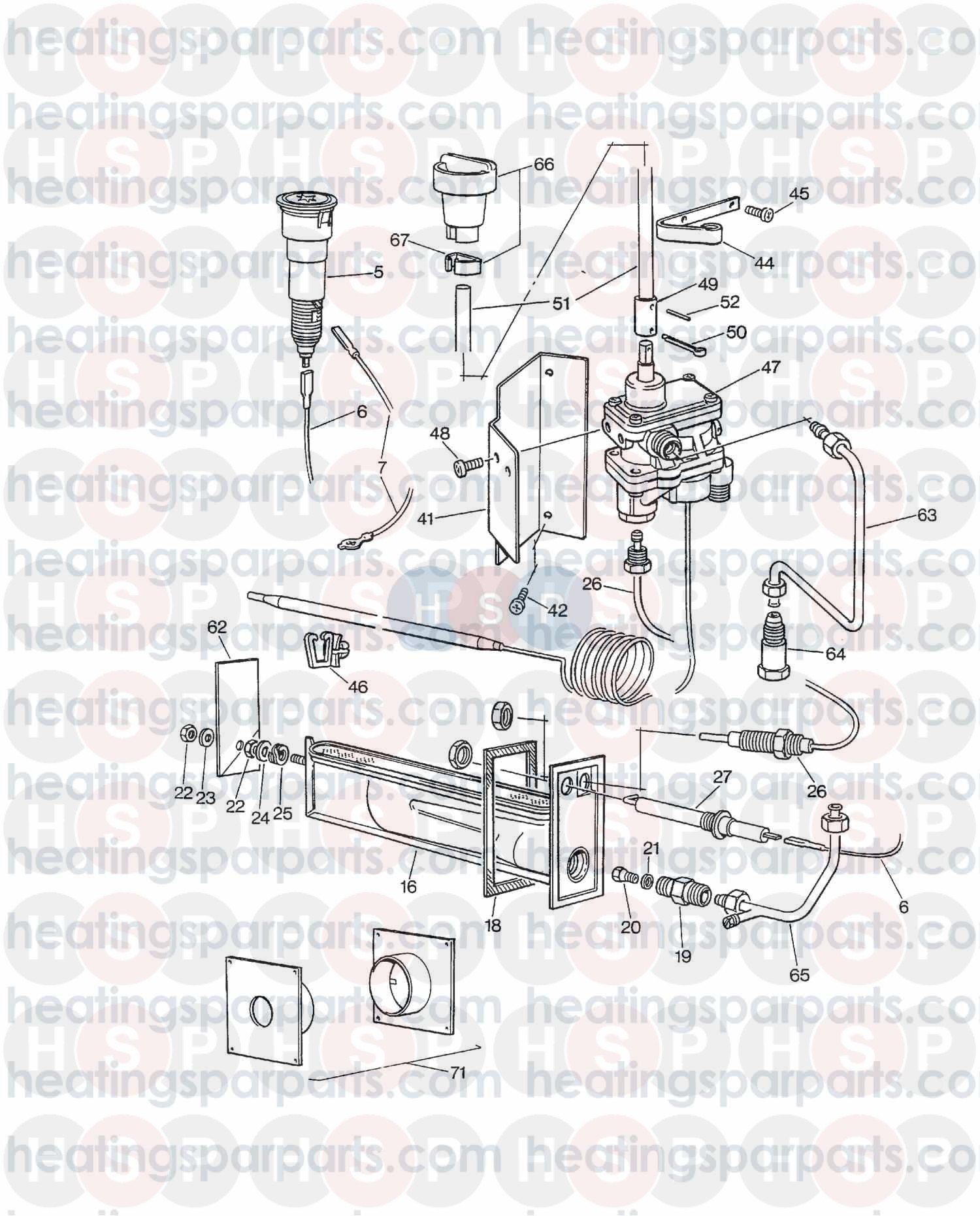

Controls diagram for Valor Gas Fire Florida TCClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE CASE ASSEMBLY
Valor Gas Fire part no. 0516779
2   OBSOLETE BOTTOM (GRAPHICS) PAN
Valor Gas Fire part no. 0516789
3   OBSOLETE CONTROL BEZEL
Valor Gas Fire part no. 0516809
4   OBSOLETE BUTTON
Valor Gas Fire part no. 0516819
5   OBSOLETE PIEZO
Valor Gas Fire part no. 0516829
6   OBSOLETE PIEZO LEAD
Valor Gas Fire part no. 0516839
7   OBSOLETE EARTH LEAD
Valor Gas Fire part no. 0516739
8   OBSOLETE CASE MIDDLE PANEL H/S
Valor Gas Fire part no. 0516799
10   OBSOLETE HEAT EXCHANGER ASSEMBLY
Valor Gas Fire part no. 0516549
11   OBSOLETE FRONT COVER
Valor Gas Fire part no. 0514719
12   HEAT EXCHANGER COVER GASKET
Valor Gas Fire part no. 0514709
13   OBSOLETE GASKET AIR DUCT TRAY TOP/BOTTO
Valor Gas Fire part no. 0549189
14   OBSOLETE INSPECTION WINDOW FRAME
Valor Gas Fire part no. 0514729
15   OBSOLETE INSPECTION WINDOW KIT
Valor Gas Fire part no. 0514739
16   OBSOLETE BURNER & SPARK TARGET
Valor Gas Fire part no. 0514779
18   OBSOLETE BURNER PLATE GASKET
Valor Gas Fire part no. 0514859
19   OBSOLETE INJECTOR CARRIER
Valor Gas Fire part no. 0516639
20   OBSOLETE BRAY:-CAT 969 SIZE 220
Valor Gas Fire part no. 0513149
21   OBSOLETE COPPER IBA SELF COLOUR WASHER
Valor Gas Fire part no. 0514809
22   OBSOLETE NUT
Valor Gas Fire part no. 0547669
23   OBSOLETE M5 PLAIN WASHER
Valor Gas Fire part no. 0548879
24   OBSOLETE .8MM BLACK FIBRE WASHER
Valor Gas Fire part no. 0549419
25   OBSOLETE DOUBLE COIL WASHER
Valor Gas Fire part no. 0514869
26   OBSOLETE THERMOCOUPLE & LOCKNUT
Valor Gas Fire part no. 0514839
27   OBSOLETE ELECTRODE
Valor Gas Fire part no. 0514849
28   OBSOLETE SCREW
Valor Gas Fire part no. 0513059
29   OBSOLETE SCREW M4X10
Valor Gas Fire part no. 0541089
30   OBSOLETE NO8X3/8 SELF TAP SCREW
Valor Gas Fire part no. 0536809
32   OBSOLETE AIR DUCT/HEAT EXCHANGER
Valor Gas Fire part no. 0516579
33   OBSOLETE FLUE SPIGOT GASKET
Valor Gas Fire part no. 0516569
37   OBSOLETE OUTER BACK ASSEMBLY
Valor Gas Fire part no. 0516589
38   OBSOLETE EDGE SNU2811 17 40 CL
Valor Gas Fire part no. 0514759
39   OBSOLETE NO.6X3/8 PAN POZI ZPS
Valor Gas Fire part no. 0514929
40   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
41   OBSOLETE THERMOSTAT CONTROL BRACKET
Valor Gas Fire part no. 0516619
42   OBSOLETE SCREW
Valor Gas Fire part no. 0513349
43   OBSOLETE INTERNAL BAFFLE ASSEM
Valor Gas Fire part no. 0516689
44   OBSOLETE CONTROL SPINDLE BRACKET
Valor Gas Fire part no. 0516699
45   8X3/8 SCREW
Valor Gas Fire part no. 0511569
46   OBSOLETE CLIP
Valor Gas Fire part no. 0516729
47   OBSOLETE GAS TAP/THERMOSTAT PAC
Valor Gas Fire part no. 0513549
48   OBSOLETE M4X6MM PAN MS POZI SC
Valor Gas Fire part no. 0516629
49   OBSOLETE CONTROL SPINDLE ADAPTER
Valor Gas Fire part no. 0516669
50   OBSOLETE COTTER PIN
Valor Gas Fire part no. 0528389
51   OBSOLETE SPINDLE & ADAPTER ASS
Valor Gas Fire part no. 0516659
52   OBSOLETE TENSION 160/180 PIN
Valor Gas Fire part no. 0516679
53   OBSOLETE FLUE OUTER BACK GASKE
Valor Gas Fire part no. 0516609
54   OBSOLETE FLUE OUTER BACK SPIGOT
Valor Gas Fire part no. 0516599
55   OBSOLETE SEALING RING
Valor Gas Fire part no. 0514939
56   OBSOLETE 8 SEALING RING
Valor Gas Fire part no. 0514959
57   OBSOLETE COOLER PLATE
Valor Gas Fire part no. 0516849
58   OBSOLETE 12X2 RD HD SLOT ZP WD/SCREW
Valor Gas Fire part no. 0549759
59   OBSOLETE NO.12 HEAVY DUTY WALL PLUG
Valor Gas Fire part no. 0516879
60   OBSOLETE TAP BRACKET
Valor Gas Fire part no. 0516769
62   OBSOLETE VIEWING MIRROR
Valor Gas Fire part no. 0516649
63   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0516749
64   OBSOLETE ADAPTER
Valor Gas Fire part no. 0534349
65   OBSOLETE AP-BURNER PIPE
Valor Gas Fire part no. 0516759
66   OBSOLETE KNOB & CLIP ASSEMBLY
Valor Gas Fire part no. 0513279
68   OBSOLETE TELESCOPIC FLUE 9 1/2 X 14 1/2
Valor Gas Fire part no. 0516859
69   OBSOLETE NO8X3/4 RD POZI MS ZP
Valor Gas Fire part no. 0536969
70   OBSOLETE FLUE PIPE SEALING TAPE
Valor Gas Fire part no. 0516869
71   OBSOLETE FLORIDA WALL LINER KI
Valor Gas Fire part no. 0590349
72   OBSOLETE TERMINAL GUARD
Valor Gas Fire part no. 0516539
73   OBSOLETE FLUE PIPE ASSEMBLY PACK
Valor Gas Fire part no. 0513289
74   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0516889
75   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0516899
