VALOR GAS FIRE
FLAMENCO UNIGAS - (Fire Front)
Appliance Code: 32-810-66

Appliance Diagram


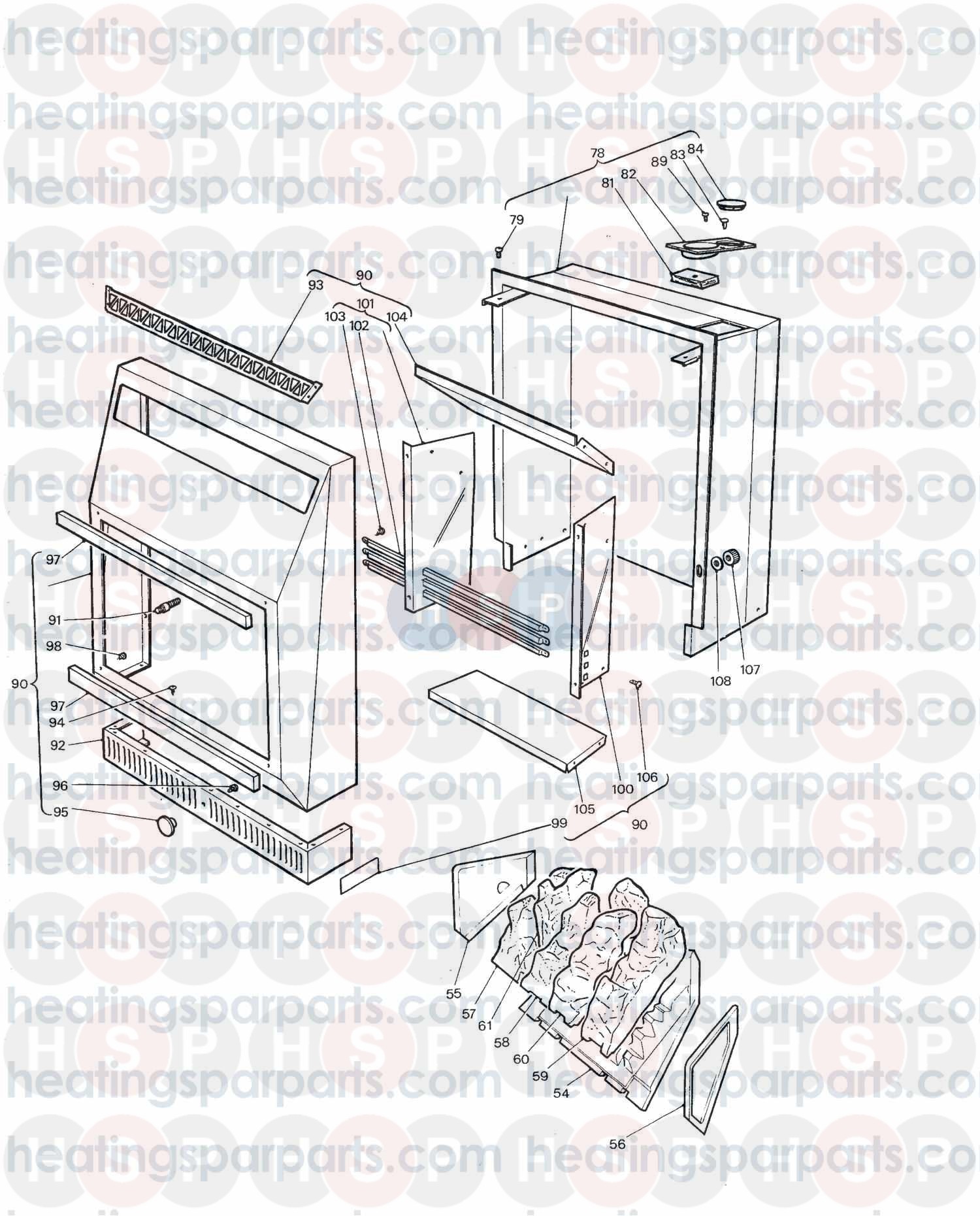

Fire Front diagram for Valor Gas Fire Flamenco UnigasClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FIREBOX ASSEMBLY
Valor Gas Fire part no. 0549309

2   OBSOLETE (FLUE SPIGOT) GASKET
Valor Gas Fire part no. 0549329

3   OBSOLETE (AIR INLET SPIGOT) GAS
Valor Gas Fire part no. 0549339

4   OBSOLETE BACK PANEL ASS
Valor Gas Fire part no. 0556569

5   OBSOLETE AIR DUCT TRAY
Valor Gas Fire part no. 0549199

6   OBSOLETE FLUE 479SPIGOT
Valor Gas Fire part no. 0549209

8   OBSOLETE SPACER
Valor Gas Fire part no. 541291300

9   8X3/8 SCREW
Valor Gas Fire part no. 0511569
10   OBSOLETE AIR DUCT TRAY SIDES GASKET
Valor Gas Fire part no. 0549179

11   OBSOLETE GASKET AIR DUCT TRAY TOP/BOTTO
Valor Gas Fire part no. 0549189

12   OBSOLETE M4X10 POZI PAN ZP SCR
Valor Gas Fire part no. 0549219

13   OBSOLETE COOLER PLATE
Valor Gas Fire part no. 0549159

14   OBSOLETE SCREW
Valor Gas Fire part no. 0513059

15   OBSOLETE FLUE SPIGOT SEALING RI
Valor Gas Fire part no. 0549169

16   OBSOLETE LOG SUPPORT BRACKET AS
Valor Gas Fire part no. 0549349

17   OBSOLETE M4X8 POZI PAN ZP SCREW
Valor Gas Fire part no. 0549359

18   OBSOLETE SWITCH LOCATION TAG
Valor Gas Fire part no. 0553369

18   OBSOLETE NO.2X1/2 PAN HD POZI SCREW
Valor Gas Fire part no. 0553359

18   OBSOLETE SWITCH SUPPORT BRT
Valor Gas Fire part no. 0553349

18   OBSOLETE MICRO SWITCH
Valor Gas Fire part no. 0553339

20   OBSOLETE TAP FIXING BRACKET
Valor Gas Fire part no. 0556579

20   OBSOLETE TAP FIXING BRKT
Valor Gas Fire part no. 0510579

22   OBSOLETE BNR BOX & FE BNR BRKT
Valor Gas Fire part no. 0549369

23   OBSOLETE F.E. BURNER
Valor Gas Fire part no. 0549379

23   OBSOLETE F.E.BURNER GASKET
Valor Gas Fire part no. 0557129

25   OBSOLETE M3.X 6 SCREW
Valor Gas Fire part no. 0547299

26   OBSOLETE BURNER
Valor Gas Fire part no. 0549389

27   OBSOLETE ELECTRODE
Valor Gas Fire part no. 0549399

29   OBSOLETE BURNER STIFFENING BRK
Valor Gas Fire part no. 0549409

31   OBSOLETE NUT
Valor Gas Fire part no. 0547669

33   OBSOLETE CLEANING ACCESS PLATE
Valor Gas Fire part no. 0549429

34   OBSOLETE M5 BLACK WING NUT
Valor Gas Fire part no. 0550919

35   OBSOLETE ELECTRODE ACCESS COVER
Valor Gas Fire part no. 0549449

36   OBSOLETE ELEC-ACCESS HOLE COVER
Valor Gas Fire part no. 0549459

37   OBSOLETE ELECT/DE LEAD CLAMPING
Valor Gas Fire part no. 0549469

38   OBSOLETE ELEC ACCESS HOLE COVER
Valor Gas Fire part no. 0549479

40   OBSOLETE THERMOCOUPLE BRACKET
Valor Gas Fire part no. 0549489

41   OBSOLETE THERMOCOUPLE BRACKET GASKET
Valor Gas Fire part no. 0549499

43   OBSOLETE EDGE REF:22440-07CLI
Valor Gas Fire part no. 0549519

44   TAPTITE M4X6MM POZI ZP SCREW
Valor Gas Fire part no. 0516349
45   OBSOLETE MAIN BURNER ADAPTER
Valor Gas Fire part no. 0549529

46   OBSOLETE MAIN BURNER INJECTOR
Valor Gas Fire part no. 0557159

47   OBSOLETE F/BOX SIDES BURNER/BOX GASKET
Valor Gas Fire part no. 0549549

50   OBSOLETE 479 GAS-TAP
Valor Gas Fire part no. 0549579

51   OBSOLETE 1/4 BSP MS ZP LOCKNUT
Valor Gas Fire part no. 0549589

52   OBSOLETE CONTROL SPINDLE
Valor Gas Fire part no. 0557199

53   OBSOLETE SPLIT COTTER PIN 3/32IN DIA. X 1/2IN. - STAINLESS
Valor Gas Fire part no. 80181368

54   OBSOLETE CERAMIC LOG SUPPORT P
Valor Gas Fire part no. 0549609

55   OBSOLETE L/H SIDE CHEEK
Valor Gas Fire part no. 0549619

56   OBSOLETE R/H SIDE CHEEK
Valor Gas Fire part no. 0549629

57   OBSOLETE COAL NO. 1
Valor Gas Fire part no. 0507229

58   OBSOLETE COAL NO. 2
Valor Gas Fire part no. 0507239

59   OBSOLETE COAL NO. 3
Valor Gas Fire part no. 0507249

60   OBSOLETE COAL NO. 4
Valor Gas Fire part no. 0507259

61   OBSOLETE COAL NO.5
Valor Gas Fire part no. 0507269

62   OBSOLETE INLET PIPE
Valor Gas Fire part no. 0557209

63   OBSOLETE TAP TO F.E BURNER PIP
Valor Gas Fire part no. 0557219

64   OBSOLETE TAP TO MAIN BURNER PI
Valor Gas Fire part no. 0557229

65   OBSOLETE PIPE CLAMP
Valor Gas Fire part no. 0549719

66   OBSOLETE SCREW
Valor Gas Fire part no. 0533329

67 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
68   OBSOLETE WINDOW FRAME ASSEMBLY
Valor Gas Fire part no. 0549729

69   OBSOLETE WINDOW OUTER & STAPLES SEAL
Valor Gas Fire part no. 0549739

70 Part number 636102, OBSOLETE NUT WING M5 SN OBSOLETE NUT WING M5 SN
Valor Gas Fire part no. 636102

70 Part number 0533249, OBSOLETE WING NUT OBSOLETE WING NUT
Valor Gas Fire part no. 0533249

71   OBSOLETE ASSEMBLY FLUE TERMINAL
Valor Gas Fire part no. 0549749

72   OBSOLETE TERMINAL GUARD
Valor Gas Fire part no. 0516539

73   OBSOLETE SEALING RING
Valor Gas Fire part no. 0549799

74   OBSOLETE 12X2 RD HD SLOT ZP WD/SCREW
Valor Gas Fire part no. 0549759

75   OBSOLETE RAWL-PLUG - NO 12 X 2IN FIBRE
Valor Gas Fire part no. 80518900

76   OBSOLETE FRONT HEATSHIELD DEFLECTOR
Valor Gas Fire part no. 0557109

77   OBSOLETE NO.8X1/2 POZI PAN BLACK SCREW
Valor Gas Fire part no. 0548989

78   OBSOLETE ASSEMBLY
Valor Gas Fire part no. 571276800

80   M4X10 POZI PN HD BLACK SCREW
Valor Gas Fire part no. 0550929
81   OBSOLETE BEZEL INSULATION
Valor Gas Fire part no. 0557249

82   OBSOLETE CONTROLS BEZEL
Valor Gas Fire part no. 0557259

83   OBSOLETE BUTTON
Valor Gas Fire part no. 0516819

84   OBSOLETE BEZEL GROMMET}
Valor Gas Fire part no. 0510599

85   OBSOLETE IGNITION SWITCH LEAD
Valor Gas Fire part no. 0553209

85   OBSOLETE IGNITION SWITCH/EARTH LEAD
Valor Gas Fire part no. 0553199

86   OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0553159

87   OBSOLETE BATTERY UNIT BRACKET
Valor Gas Fire part no. 0553169

88 Part number 5122420, SPARK GENERATOR SPARK GENERATOR
Valor Gas Fire part no. 5122420
88   OBSOLETE GENERATOR COVER
Valor Gas Fire part no. 0510609

88   OBSOLETE M3.5 TAPTITE PAN HD
Valor Gas Fire part no. 0552229

88   NOW USE 5122420 ELECTRONIC IGNITION UNIT
Valor Gas Fire part no. 0554949

90   OBSOLETE FRONT CASE UNIT ASSY
Valor Gas Fire part no. 0507409

91   OBSOLETE M5 STUD
Valor Gas Fire part no. 0557569

92   OBSOLETE LOWER GRILLE & BADGE ASSY
Valor Gas Fire part no. 0507849

93   OBSOLETE UPPER GRILLE
Valor Gas Fire part no. 0505119

95   OBSOLETE DECORATIVE KNOB
Valor Gas Fire part no. 0517679

97   OBSOLETE HORIZONTAL CASE TRIM
Valor Gas Fire part no. 0505179

98   OBSOLETE NO.6X1/4 A/B PN PZ SC
Valor Gas Fire part no. 0557909

99   OBSOLETE NAME BADGE
Valor Gas Fire part no. 81290500

100   OBSOLETE RH SIDE WINDOW TRIM
Valor Gas Fire part no. 0510669

101   OBSOLETE LH SIDE WINDOW TRIM
Valor Gas Fire part no. 0510679

102   OBSOLETE TIE TRIM
Valor Gas Fire part no. 0505149

103   OBSOLETE NO.6X3/8 PAN POZI ZPS
Valor Gas Fire part no. 0514929

104   OBSOLETE TOP WINDOW TRIM
Valor Gas Fire part no. 0510689

105   OBSOLETE BOTTOM WINDOW TRIM
Valor Gas Fire part no. 0510699

107   OBSOLETE KNURLED THUMB NUT
Valor Gas Fire part no. 0514679

108   OBSOLETE .8MM BLACK FIBRE WASHER
Valor Gas Fire part no. 0549419

109   OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0549139

110   OBSOLETE INSTALLATION AND SERVICING INSTRUCTIONS
Valor Gas Fire part no. 80181598

111   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 80181698
