VALOR GAS FIRE
FLAMENCO SUPER FOR SERIAL NOS. W/O SUFFIX 'A' - (Exploded View)
Appliance Code: 32-810-86

Appliance Diagram


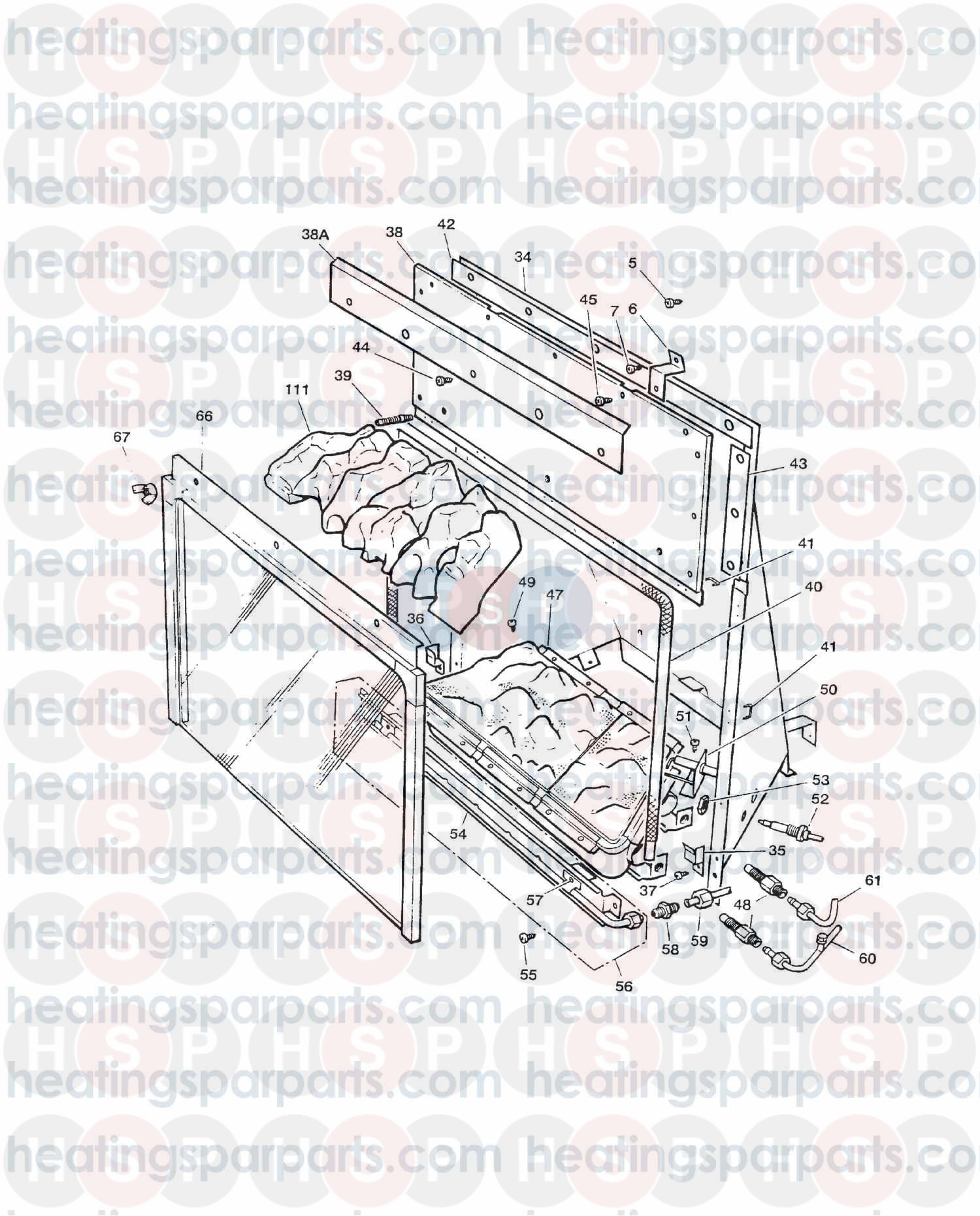

Exploded View diagram for Valor Gas Fire Flamenco Super For Serial NOS. W/O Suffix 'A'Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE OUTER BACK RIVETED A
Valor Gas Fire part no. 0507769

2   OBSOLETE HEAT EXCH UNIT ASSY
Valor Gas Fire part no. 0504729

3   OBSOLETE LH HEAT EX/OUTER BACK
Valor Gas Fire part no. 0504739

4   OBSOLETE RH HEAT EX/OUTER BACK
Valor Gas Fire part no. 0504749

6   OBSOLETE HT EX/FIREBOX BRKT
Valor Gas Fire part no. 0504759

8   OBSOLETE GASKET
Valor Gas Fire part no. 0504769

10   OBSOLETE SCREW
Valor Gas Fire part no. 0513059

11   OBSOLETE FLUE BAFFLE ASSY
Valor Gas Fire part no. 0507779

12   OBSOLETE EARTH LEAD ASSY
Valor Gas Fire part no. 0504779

13   OBSOLETE NO8X3/8 SELF TAP SCREW
Valor Gas Fire part no. 0536809

15   OBSOLETE RH TOP WALL MTG BRKT
Valor Gas Fire part no. 0507789

16   OBSOLETE LH TOP WALL MTG BRKT
Valor Gas Fire part no. 0507799

18   OBSOLETE TAP FIXING BRKT
Valor Gas Fire part no. 0504789

20   OBSOLETE GAS TAP
Valor Gas Fire part no. 0504799

21   LOCK NUT
Valor Gas Fire part no. 0502739
22   OBSOLETE CONTROL SPINDLE ADAPTER
Valor Gas Fire part no. 0516669

23   OBSOLETE CONTROL SPINDLE
Valor Gas Fire part no. 0504809

24   OBSOLETE TENSION 160/180 PIN
Valor Gas Fire part no. 0516679

25 Part number 0536949, SPLIT PIN SPLIT PIN
Valor Gas Fire part no. 0536949
26   OBSOLETE RH FOOT & RIVNUT ASSY
Valor Gas Fire part no. 0507809

27   OBSOLETE LH FOOT & RIVNUT ASSY
Valor Gas Fire part no. 0507819

28   OBSOLETE LEVELLING SCREW
Valor Gas Fire part no. 0535979

29   OBSOLETE NUT
Valor Gas Fire part no. 0532259

30   OBSOLETE AIR GUIDE TRAY
Valor Gas Fire part no. 0505319

32   OBSOLETE BOTTOM WALL MTG BRKT
Valor Gas Fire part no. 0507829

33   M4X12 POZI PAN TT CH/B
Valor Gas Fire part no. 0552839
34   OBSOLETE FIREBOX ASSY
Valor Gas Fire part no. 0509779

35   OBSOLETE RH BOTTOM LOCATION BRACKET
Valor Gas Fire part no. 0509789

36   OBSOLETE LH BOTTOM LOCATION BRACKET
Valor Gas Fire part no. 0509799

38   OBSOLETE FIREBOX FRONT TOP PLATE ASSY
Valor Gas Fire part no. 0504889

38   OBSOLETE TOP FRONT BAFFLE
Valor Gas Fire part no. 0539539

39   OBSOLETE M5 STUD
Valor Gas Fire part no. 0549319

40   OBSOLETE WINDOW SEAL 463
Valor Gas Fire part no. 0504899

41   OBSOLETE STAPLE
Valor Gas Fire part no. 0504909

42   OBSOLETE TOP FRONT PLATE GASKET
Valor Gas Fire part no. 0504919

43   OBSOLETE FRONT TOP PLATE SIDE GASKET
Valor Gas Fire part no. 0504929

47   OBSOLETE BURNER BOX UNIT ASSY
Valor Gas Fire part no. 0509809

48   INJECTOR
Valor Gas Fire part no. 0504949
49   OBSOLETE SCREW
Valor Gas Fire part no. 0534729

50   OBSOLETE ELECTRODE ASSY
Valor Gas Fire part no. 0509819

51   OBSOLETE SCREW
Valor Gas Fire part no. 0509829

52   OBSOLETE THERMOCOUPLE
Valor Gas Fire part no. 0509839

53 Part number 0547759, OBSOLETE LOCKNUT OBSOLETE LOCKNUT
Valor Gas Fire part no. 0547759

54   OBSOLETE FRONT FUEL SUPPORT
Valor Gas Fire part no. 0509849

56   OBSOLETE FLAME EFFECT BURNER
Valor Gas Fire part no. 0509859

57   OBSOLETE M3.X 6 SCREW
Valor Gas Fire part no. 0547299

58   OBSOLETE FLAME BURNER RESTRICTOR
Valor Gas Fire part no. 0510759

59   OBSOLETE PIPE ASSY - TAP/FLAME BNR
Valor Gas Fire part no. 0504969

60   OBSOLETE PIPE ASSY TAP/FRONT INJ
Valor Gas Fire part no. 0504979

61   OBSOLETE PIPE ASSY - TAP/REAR INJ
Valor Gas Fire part no. 0504989

62   OBSOLETE INLET PIPE ASSY
Valor Gas Fire part no. 0507839

63   OBSOLETE INLET PIPE RETAINING
Valor Gas Fire part no. 0517199

65 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
66 Part number 0505029, OBSOLETE WINDOW UNIT ASSY 460 OBSOLETE WINDOW UNIT ASSY 460
Valor Gas Fire part no. 0505029

67 Part number 0533249, OBSOLETE WING NUT OBSOLETE WING NUT
Valor Gas Fire part no. 0533249

67 Part number 636102, OBSOLETE NUT WING M5 SN OBSOLETE NUT WING M5 SN
Valor Gas Fire part no. 636102

68   OBSOLETE REAR CASE WELDED ASSY
Valor Gas Fire part no. 0507419

69   OBSOLETE NO.8X1/2 POZI PAN BLACK SCREW
Valor Gas Fire part no. 0548989

70   OBSOLETE NO.6AB X 5/8 PZ PN BL
Valor Gas Fire part no. 0557389

71   OBSOLETE BEZEL INSULATION
Valor Gas Fire part no. 0557249

72 Part number 0505049, OBSOLETE CONTROL KNOB OBSOLETE CONTROL KNOB
Valor Gas Fire part no. 0505049

73   OBSOLETE CONTROLS BEZEL
Valor Gas Fire part no. 0557259

74   OBSOLETE BUTTON
Valor Gas Fire part no. 0516819

75 Part number 0507669, PIEZO IGNITOR UNIT PIEZO IGNITOR UNIT
Valor Gas Fire part no. 0507669

76   OBSOLETE ELECTRODE LEAD
Valor Gas Fire part no. 0509879

77   OBSOLETE INSULATION SLEEVE
Valor Gas Fire part no. 0509889

78   OBSOLETE EDGE CLIP
Valor Gas Fire part no. 0507679

79   OBSOLETE OUTER CASE UNIT ASSY
Valor Gas Fire part no. 0509899

80   OBSOLETE LOWER GRILLE & BADGE
Valor Gas Fire part no. 0509909

81   OBSOLETE CASE FRONT HEATSHIELD
Valor Gas Fire part no. 0505089

83   OBSOLETE UPPER TRIM BAR ASSY
Valor Gas Fire part no. 0509929

85   OBSOLETE HORIZONTAL CASE TRIM
Valor Gas Fire part no. 0505179

86   OBSOLETE NAME BADGE VALOR
Valor Gas Fire part no. 0509939

87   FIX
Valor Gas Fire part no. 0534419
88   OBSOLETE WINDOW TRIM SURR.ASSY
Valor Gas Fire part no. 0509949

89   OBSOLETE RH SIDE WINDOW TRIM
Valor Gas Fire part no. 0509959

90   OBSOLETE LH SIDE WINDOW TRIM A
Valor Gas Fire part no. 0509969

91   OBSOLETE TIE TRIM
Valor Gas Fire part no. 0505149

92   OBSOLETE TIE TRIM
Valor Gas Fire part no. 0509979

94   OBSOLETE TOP WINDOW TRIM
Valor Gas Fire part no. 0509989

96   OBSOLETE WINDOW TRIM
Valor Gas Fire part no. 0505169

98   OBSOLETE NO.6X1/4 A/B PN PZ SC
Valor Gas Fire part no. 0557909

100   OBSOLETE M5 STUD
Valor Gas Fire part no. 0557569

101   OBSOLETE KNURLED THUMB NUT
Valor Gas Fire part no. 0514679

102   OBSOLETE .8MM BLACK FIBRE WASHER
Valor Gas Fire part no. 0549419

103   OBSOLETE CLOSURE PLATE
Valor Gas Fire part no. 0507429

104   OBSOLETE FLUE SPIGOT
Valor Gas Fire part no. 0507879

105   OBSOLETE NO.6X3/8 PAN POZI ZPS
Valor Gas Fire part no. 0514929

106   8X3/8 SCREW
Valor Gas Fire part no. 0511569
107   OBSOLETE 12X2 RD HD SLOT ZP WD/SCREW
Valor Gas Fire part no. 0549759

108   OBSOLETE NO.12 HEAVY DUTY WALL PLUG
Valor Gas Fire part no. 0516879

109   OBSOLETE RH REAR CASE SIDE EXT
Valor Gas Fire part no. 0507889

110   OBSOLETE LH REAR CASE SIDE EXT
Valor Gas Fire part no. 0507899

111 Part number 0510029, OBSOLETE COAL BED OBSOLETE COAL BED
Valor Gas Fire part no. 0510029

112   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0510009

113   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0510019
