VALOR GAS FIRE
FAVOURITE 302 - (Controls)
Appliance Code: 32-811-09

Appliance Diagram


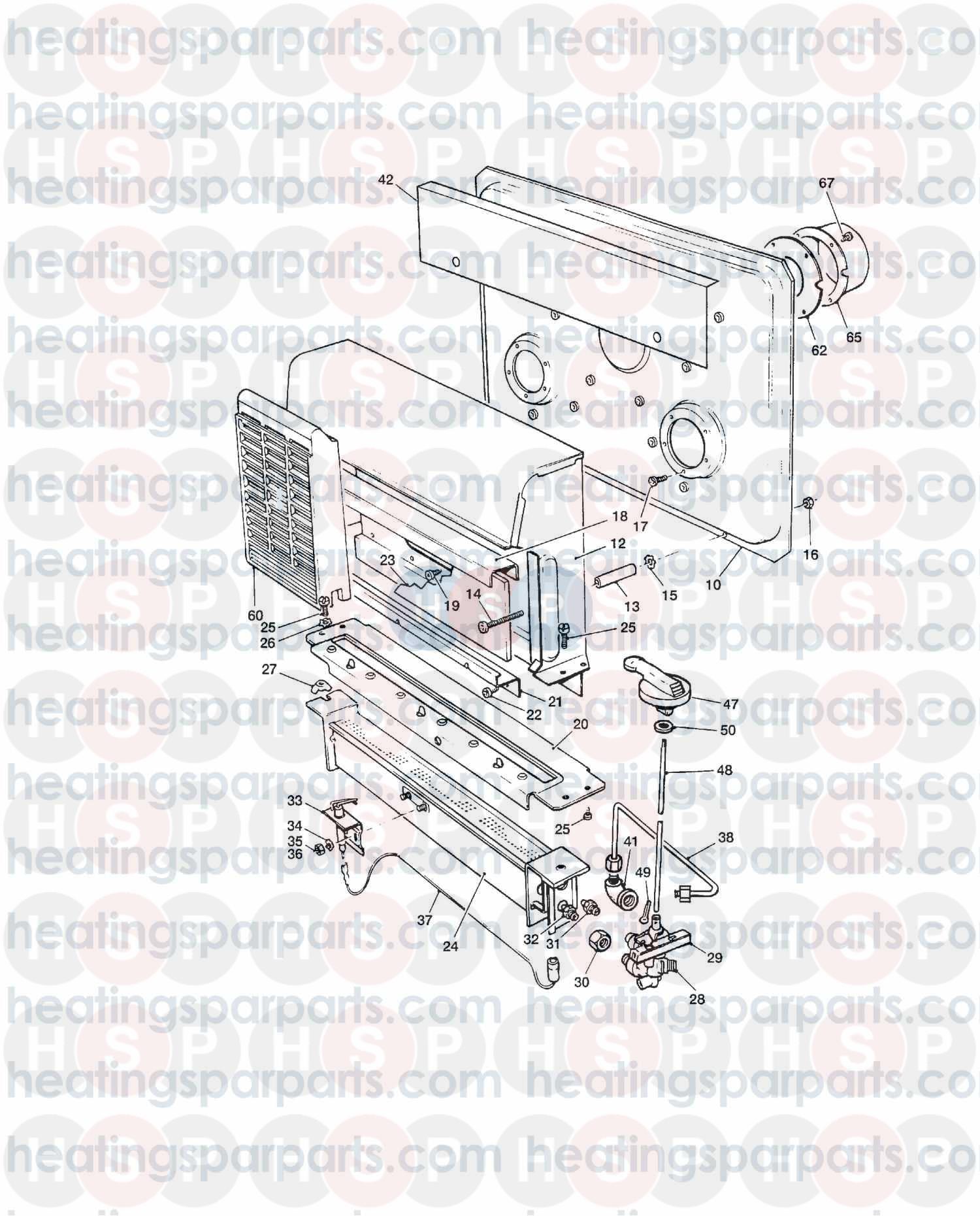

Controls diagram for Valor Gas Fire Favourite 302Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE INSTALLATION INSTR. - 32 811 0
Valor Gas Fire part no. 0545289

0   OBSOLETE INSTALLATION INSTRUCTIONS
Valor Gas Fire part no. 0523869

0   OBSOLETE USERS INSTRUCTIONS
Valor Gas Fire part no. 0523879

1   OBSOLETE CASING UNIT ASSY
Valor Gas Fire part no. 0523769

2   OBSOLETE LOCATION BRACKET
Valor Gas Fire part no. 0535779

3   OBSOLETE LOCATION STUD
Valor Gas Fire part no. 0535769

4   OBSOLETE M5X35MM HEX HD BLACK SCREW
Valor Gas Fire part no. 0514459

5   NUT
Valor Gas Fire part no. 0534679
6   OBSOLETE NAME PLATE
Valor Gas Fire part no. 0523779

7   OBSOLETE CHANNEL SUPPORT
Valor Gas Fire part no. 0536329

9   OBSOLETE BEZEL
Valor Gas Fire part no. 0523789

10   OBSOLETE HEAT EXCHANGER ASSY
Valor Gas Fire part no. 0544689

10   OBSOLETE HEAT EXCHANGER ASSEMBLY
Valor Gas Fire part no. 0535469

11 Part number 0534629, SCREW SCREW
Valor Gas Fire part no. 0534629
12 Part number 0536259, OBSOLETE RADIANT BOX OBSOLETE RADIANT BOX
Valor Gas Fire part no. 0536259

13   OBSOLETE SPACER
Valor Gas Fire part no. 0535479

14   OBSOLETE SCREW
Valor Gas Fire part no. 0535489

15   OBSOLETE WASHER
Valor Gas Fire part no. 0515509

16 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Valor Gas Fire part no. 635506

16 Part number 0532279, NUT NUT
Valor Gas Fire part no. 0532279

17   OBSOLETE NO8X3/8 SELF TAP SCREW
Valor Gas Fire part no. 0536809

18   OBSOLETE RADIANT UPPER SUPPORT
Valor Gas Fire part no. 0535519

20   OBSOLETE AIR GUIDE PLATE
Valor Gas Fire part no. 0535539

21   OBSOLETE RADIANT LOWER SUPPORT
Valor Gas Fire part no. 0535529

23   OBSOLETE INSULATION BOARD
Valor Gas Fire part no. 0536159

24   OBSOLETE BURNER 303/333
Valor Gas Fire part no. 0535559

25   SCREW
Valor Gas Fire part no. 0535569
27 Part number 0533249, OBSOLETE WING NUT OBSOLETE WING NUT
Valor Gas Fire part no. 0533249

27 Part number 636102, OBSOLETE NUT WING M5 SN OBSOLETE NUT WING M5 SN
Valor Gas Fire part no. 636102

28   OBSOLETE GAS TAP
Valor Gas Fire part no. 0536039

29   OBSOLETE PIEZO
Valor Gas Fire part no. 0536049

30   LOCK NUT
Valor Gas Fire part no. 0502739
31 Part number 0535599, UPPER CAT28 SIZE135 INJECTOR UPPER CAT28 SIZE135 INJECTOR
Valor Gas Fire part no. 0535599
32 Part number 0535609, LOWER CAT28 SIZE270INJECTOR LOWER CAT28 SIZE270INJECTOR
Valor Gas Fire part no. 0535609
33 Part number 0531559, ELECTRODE ELECTRODE
Valor Gas Fire part no. 0531559
36   OBSOLETE NUT
Valor Gas Fire part no. 0532739

37   OBSOLETE IGNITION LEAD
Valor Gas Fire part no. 0535619

38   OBSOLETE INLET PIPE ASS
Valor Gas Fire part no. 0536059

39   PIPE FIXING BRACKET
Valor Gas Fire part no. 0535639
41 Part number 0532519, ELBOW ELBOW
Valor Gas Fire part no. 0532519
42   OBSOLETE HEAT EXCH. FRONT BAFFL
Valor Gas Fire part no. 0539549

42   OBSOLETE UPPER CHASSIS
Valor Gas Fire part no. 0536089

44   OBSOLETE UPPER FRONT ASSY
Valor Gas Fire part no. 0523799

45   OBSOLETE SPIRE FIX
Valor Gas Fire part no. 0511329

47   OBSOLETE CONTROL KNOB & CLIP
Valor Gas Fire part no. 0523809

48   OBSOLETE CONTROL SPINDLE
Valor Gas Fire part no. 0526309

49 Part number 0536949, SPLIT PIN SPLIT PIN
Valor Gas Fire part no. 0536949
50   OBSOLETE WASHER
Valor Gas Fire part no. 0532529

51   OBSOLETE BOTTOM PANEL ASSY
Valor Gas Fire part no. 0523819

52   OBSOLETE APRON ASSY
Valor Gas Fire part no. 0523829

53   OBSOLETE BOTTOM PANEL
Valor Gas Fire part no. 0523839

54   SCREW NO8 X 3/8INCH
Valor Gas Fire part no. 0547479
55   OBSOLETE NAME BADGE VALOR
Valor Gas Fire part no. 0509939

56   FIX
Valor Gas Fire part no. 0534419
57   OBSOLETE RH REFLECTOR
Valor Gas Fire part no. 0523849

58   OBSOLETE LH REFLECTOR
Valor Gas Fire part no. 0523859

60 Part number 0535549, NOW USE 0544649 Radiant NOW USE 0544649 RADIANT
Valor Gas Fire part no. 0535549

60 Part number 0544649, RADIANT ASSEMBLY RADIANT ASSEMBLY
Valor Gas Fire part no. 0544649
61   OBSOLETE DRESS GUARD
Valor Gas Fire part no. 0523689

62   OBSOLETE FLUE SPIGOT RESTRICT
Valor Gas Fire part no. 0536219

62   OBSOLETE FLUE SPIGOT RESTRICTOR
Valor Gas Fire part no. 0544749

63   OBSOLETE COOLER PLATE
Valor Gas Fire part no. 0536549

64   OBSOLETE CLOSURE PLATE
Valor Gas Fire part no. 0536299

64 Part number 0544759, CLOSURE PLATE CLOSURE PLATE
Valor Gas Fire part no. 0544759
65 Part number 0535419, OBSOLETE FLUE SPIGOT OBSOLETE FLUE SPIGOT
Valor Gas Fire part no. 0535419

66   OBSOLETE FLOOR PLATE
Valor Gas Fire part no. 0523699
