VAILLANT
VWZ MEH 60 2013 ONWARDS - (Exploded View VWZ MEH 60 2013 Onwards)
Appliance Code: 0020145030

Appliance Diagram

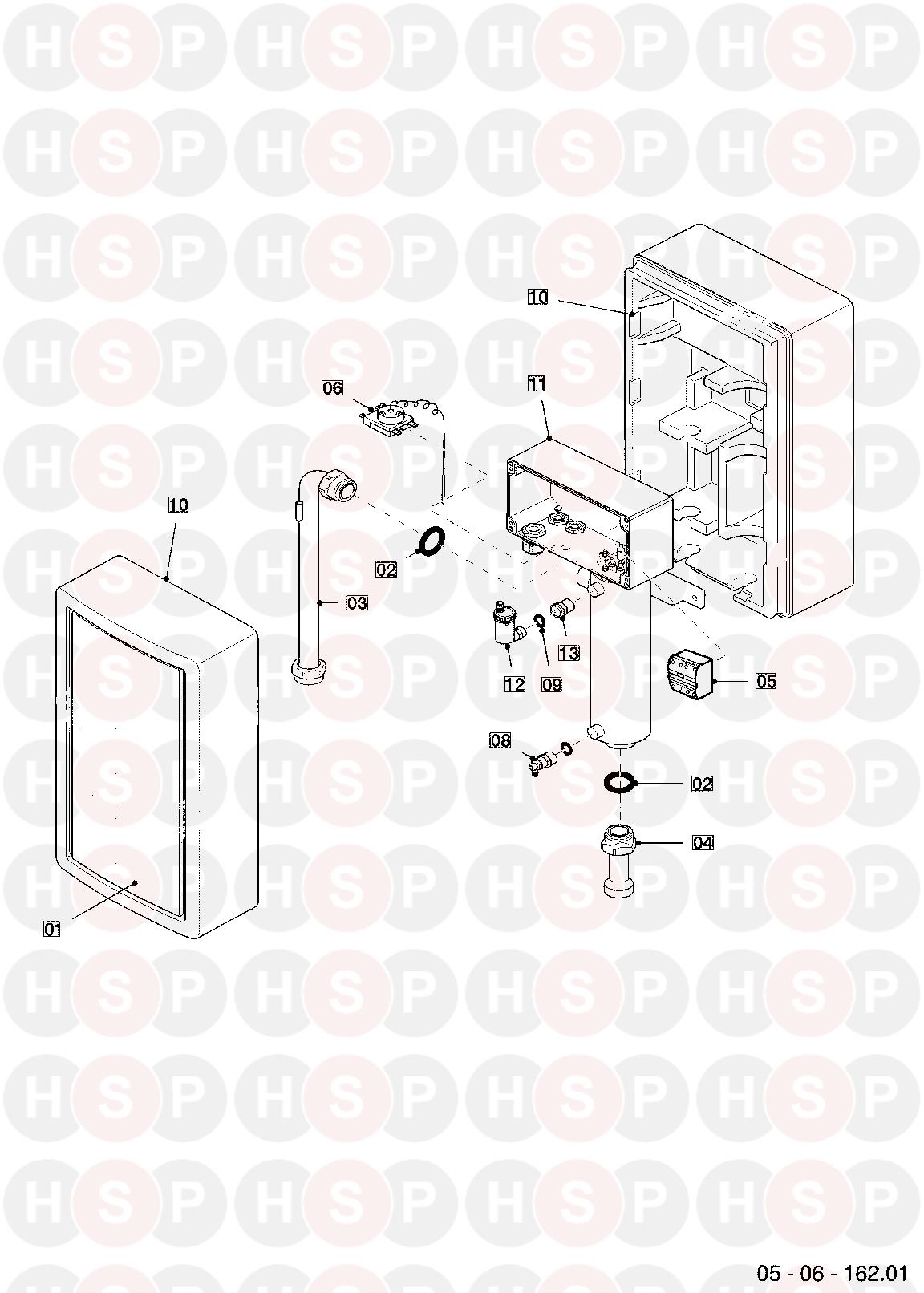

Exploded View VWZ MEH 60 2013 Onwards diagram for Vaillant VWZ MEH 60 2013 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0020166926, Front panel FRONT PANEL
Vaillant part no. 0020166926
£81.64
2 Part number 0020166927, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020166927
£6.71
3 Part number 0020166928, Tube TUBE
Vaillant part no. 0020166928
£63.59
4 Part number 0020166929, Tube TUBE
Vaillant part no. 0020166929
£39.02
5 Part number 0020166930, Relay RELAY
Vaillant part no. 0020166930
£165.39
6 Part number 0020166931, Sensor SENSOR
Vaillant part no. 0020166931
£88.53
8 Part number 0020170628, Tap TAP
Vaillant part no. 0020170628
£16.52
9 Part number 0020073879, GASKET 1/2G (X10) GASKET 1/2G (X10)
Vaillant part no. 0020073879
£5.44
10 Part number 0020198360, FRONT PANEL FRONT PANEL
Vaillant part no. 0020198360
£108.07
11 Part number 0020231155, HEATING ELEMENT HEATING ELEMENT
Vaillant part no. 0020231155
£712.28
12 Part number 0020198362, AUTOMATIC AIR VENT AUTOMATIC AIR VENT
Vaillant part no. 0020198362
£103.49
13 Part number 0020198363, NIPPLE NIPPLE
Vaillant part no. 0020198363
£58.03
