VAILLANT
VCW 25/1 T3 WH - (Heat Exchanger)
Appliance Code: 47-044-05

Appliance Diagram

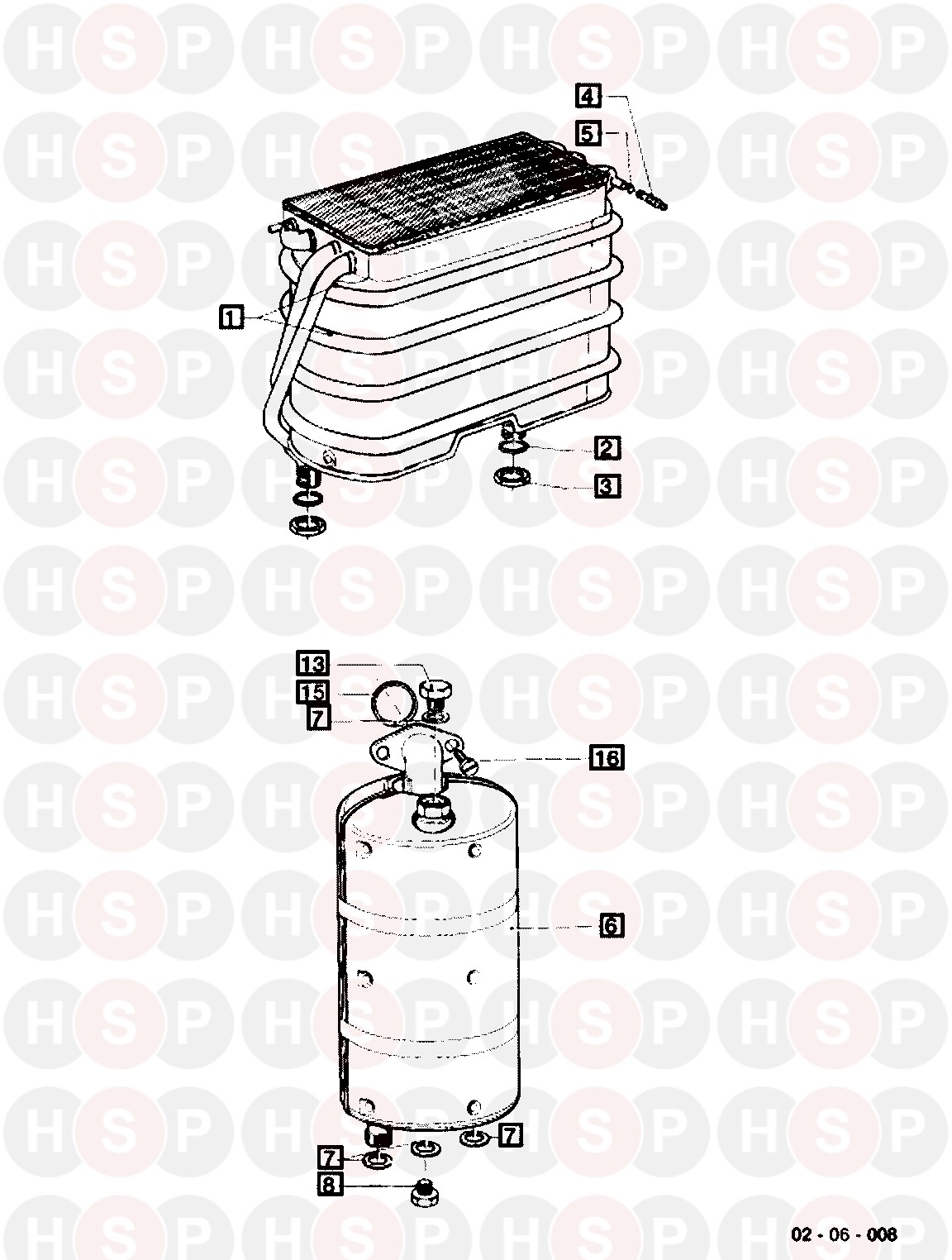

Heat Exchanger diagram for Vaillant VCW 25/1 T3 WHClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 061604, OBSOLETE heat exchanger Vcw 15/1 T3 w OBSOLETE HEAT EXCHANGER VCW 15/1 T3 W
Vaillant part no. 061604

1 Part number 061017, OBSOLETE heat exchanger - Vcw 20/1 T3 w OBSOLETE HEAT EXCHANGER - VCW 20/1 T3 W
Vaillant part no. 061017

1 Part number 061038, heat exchanger Vcw 25/1 T3 w HEAT EXCHANGER VCW 25/1 T3 W
Vaillant part no. 061038

2 Part number 981140, Sealing ring, 3/4 (PK10) SEALING RING, 3/4 (PK10)
Vaillant part no. 981140
£7.05
3   OBSOLETE DOUBLE NUT
Vaillant part no. 080052

4 Part number 140015, Screw - De-aeration SCREW - DE-AERATION
Vaillant part no. 140015
£6.66
5 Part number 981166, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981166
£6.66
6 Part number 061804, heat exchanger HEAT EXCHANGER
Vaillant part no. 061804
£117.27
7 Part number 981147, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981147

8   OBSOLETE ADJUSTING SCREW
Vaillant part no. 060023

15 Part number 981151, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981151
£7.86
16   OBSOLETE CYLINDER SCREW
Vaillant part no. 105736
