VAILLANT
TURBOMAX VUW 242/1E 1998-2001 - (04 Burner)
Appliance Code: 47-044-02

Appliance Diagram

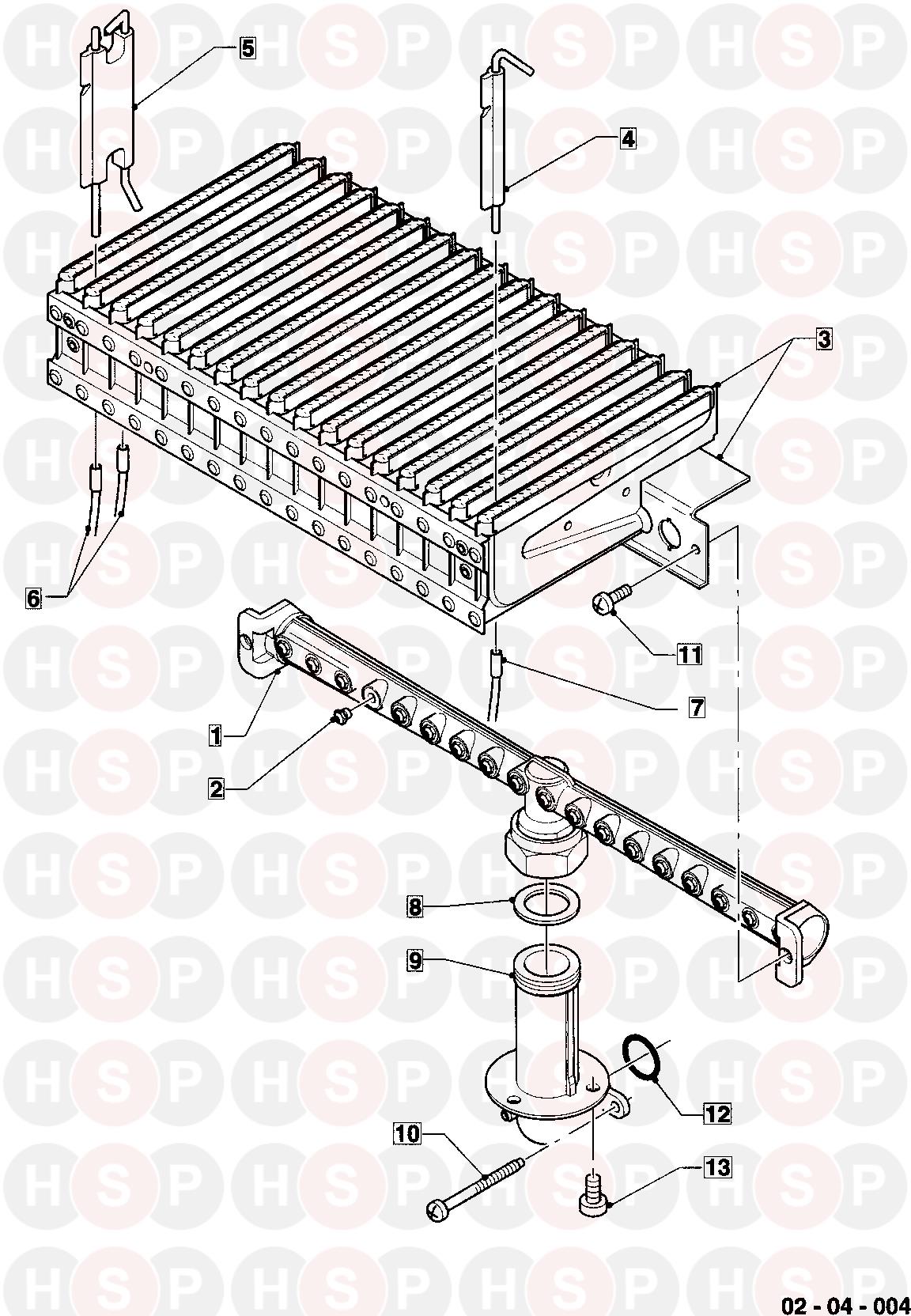

04 Burner diagram for Vaillant Turbomax VUW 242/1E 1998-2001Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BURNER SUPPORT VU242E
Vaillant part no. 126568

2 Part number 0020228101, Injector, (PK10) INJECTOR, (PK10)
Vaillant part no. 0020228101

2 Part number 0020228102, Injector, (PK10) INJECTOR, (PK10)
Vaillant part no. 0020228102

3 Part number 041960, OBSOLETE Burner chamber group OBSOLETE BURNER CHAMBER GROUP
Vaillant part no. 041960

4 Part number 090563, monitoring electrode MONITORING ELECTRODE
Vaillant part no. 090563
£11.95
5 Part number 090562, ignition electrode double IGNITION ELECTRODE DOUBLE
Vaillant part no. 090562
£26.51
6 Part number 0020107741, Cable (Ignition) CABLE (IGNITION)
Vaillant part no. 0020107741

7 Part number 256018, cable tree CABLE TREE
Vaillant part no. 256018

8 Part number 981169, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981169
£6.66
9 Part number 081641, Connection piece CONNECTION PIECE
Vaillant part no. 081641

10 Part number 118944, lens head screw LENS HEAD SCREW
Vaillant part no. 118944
£5.13
11 Part number 118937, Pan head screw (M 5x12) PAN HEAD SCREW (M 5X12)
Vaillant part no. 118937
£5.13
12 Part number 982446, Gasket GASKET
Vaillant part no. 982446

13 Part number 118883, Flat head screw ISO 7045 FLAT HEAD SCREW ISO 7045
Vaillant part no. 118883
