VAILLANT
THERMOCOMPACT 628E VU 282/2-5 2000-2001,
THERMOCOMPACT 628E VU 282/2-5 2001-2002,
THERMOCOMPACT 628E VU 282/2-5 R1 2002-2003,
THERMOCOMPACT 628E VU 282/2-5 R2 2003-2004,
THERMOCOMPACT 628E VU 282/2-5 R3 2004-2008 - (05 Gas Section R1)
Appliance Code: 41-044-26-R1

Appliance Diagram

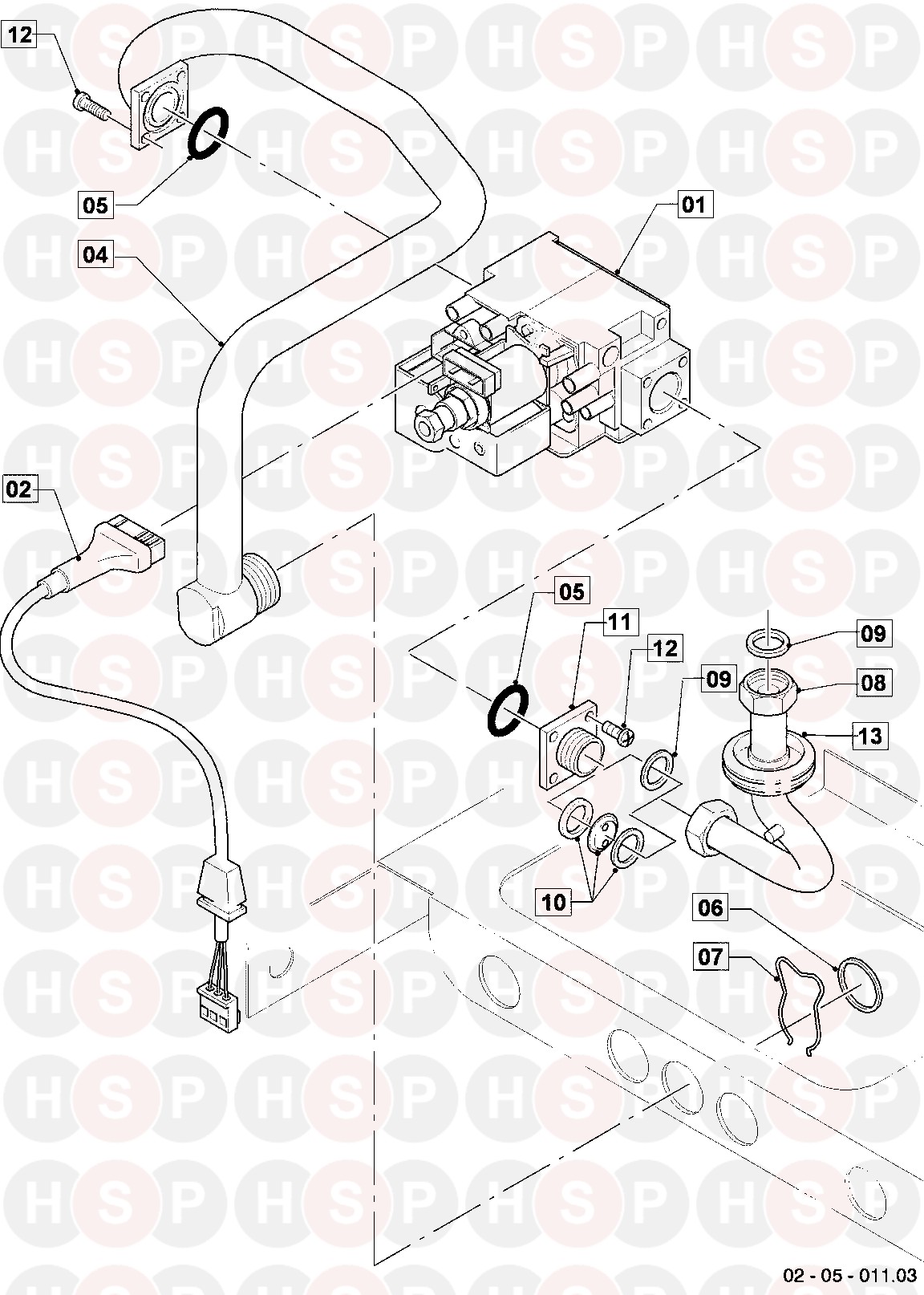

05 Gas Section R1 diagram for Vaillant Thermocompact 628E VU 282/2-5 R1 2002-2003Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 053561, Gas section GAS SECTION
Vaillant part no. 053561		 £149.10
1 Part number 114189, Gas section H-gas GAS SECTION H-GAS
Vaillant part no. 114189		 £102.54
2 Part number 090915, Connection cable CONNECTION CABLE
Vaillant part no. 090915		 £14.02
2 Part number 114192, Connection cable CONNECTION CABLE
Vaillant part no. 114192
3   GAS TUBE VU
Vaillant part no. 123526
4 Part number 0020107695, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020107695		 £6.66
5 Part number 123522, Gas tube GAS TUBE
Vaillant part no. 123522
6 Part number 0020085467, Gasket GASKET
Vaillant part no. 0020085467		 £6.54
7 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
8 Part number 049750, Throttle jet 2 x 3.50 THROTTLE JET 2 X 3.50
Vaillant part no. 049750		 £8.97
9 Part number 981307, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981307		 £6.66
