VAILLANT
MAG 440/9 W 1992-1994 - (07A Casing)
Appliance Code: 440/9 W

Appliance Diagram

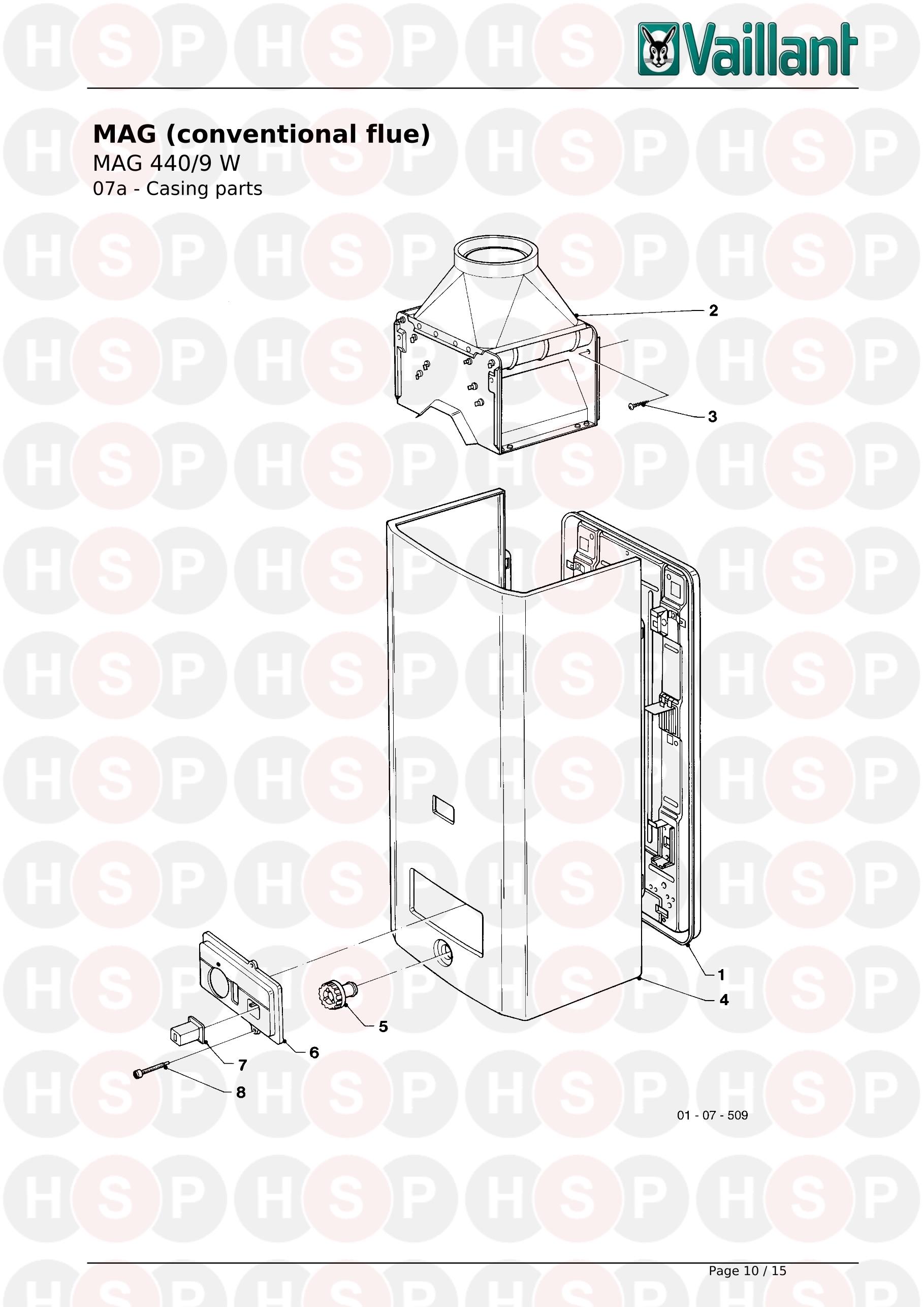

07A Casing diagram for Vaillant Mag 440/9 W 1992-1994Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE BACK PANEL
Vaillant part no. 079765

2   OBSOLETE DRAFT DIVERTER
Vaillant part no. 074984

3 Part number 235727, screw SCREW
Vaillant part no. 235727
£5.13
4   OBSOLETE COWLING
Vaillant part no. 072938

5 Part number 0020107726, BUSH BUSH
Vaillant part no. 0020107726
£5.13
6 Part number 075544, covering plate COVERING PLATE
Vaillant part no. 075544
£3.91
7   OBSOLETE PUSH BUTTON
Vaillant part no. 285517

7   PUSH BUTTON
Vaillant part no. 285531
£3.91
8 Part number 105804, cylinder screw CYLINDER SCREW
Vaillant part no. 105804
£5.13
