VAILLANT
MAG 275/9 W 1992-1994 - (08A Connection Parts)
Appliance Code: 275/9 W

Appliance Diagram

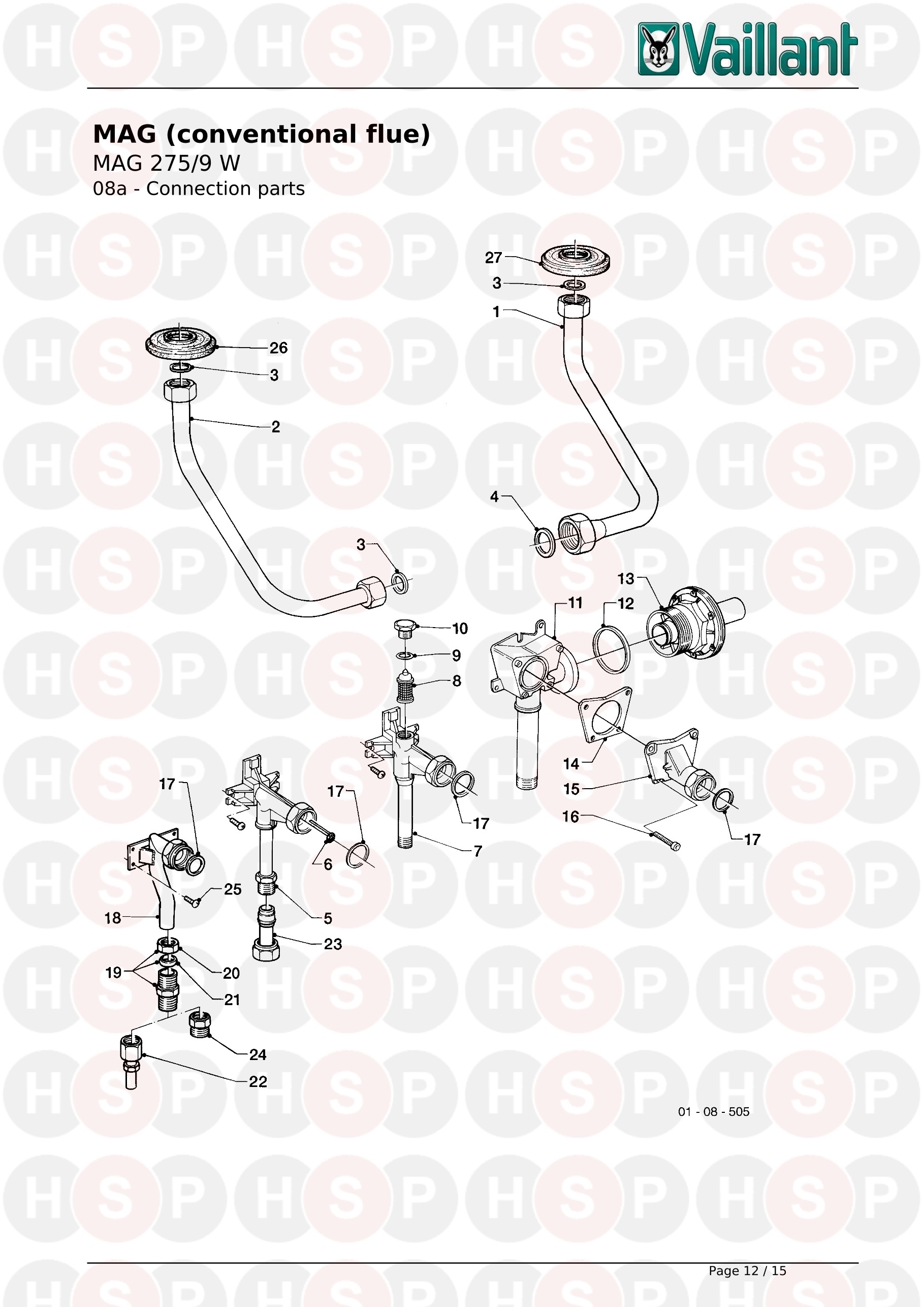

08A Connection Parts diagram for Vaillant Mag 275/9 W 1992-1994Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE COLD WATER TUBE
Vaillant part no. 083780

2 Part number 083948, warm water tube WARM WATER TUBE
Vaillant part no. 083948
£9.13
3 Part number 981143, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981143
£6.66
4 Part number 981141, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981141
£6.66
5   OBSOLETE GAS CONNECTION
Vaillant part no. 082579

6   OBSOLETE GAS FILTER
Vaillant part no. 108905

17 Part number 981162, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981162
£5.13
