VAILLANT
MAG 14-0/0 XZ 2004-2009 - (8 Connections)
Appliance Code: 14-0/0 XZ

Appliance Diagram

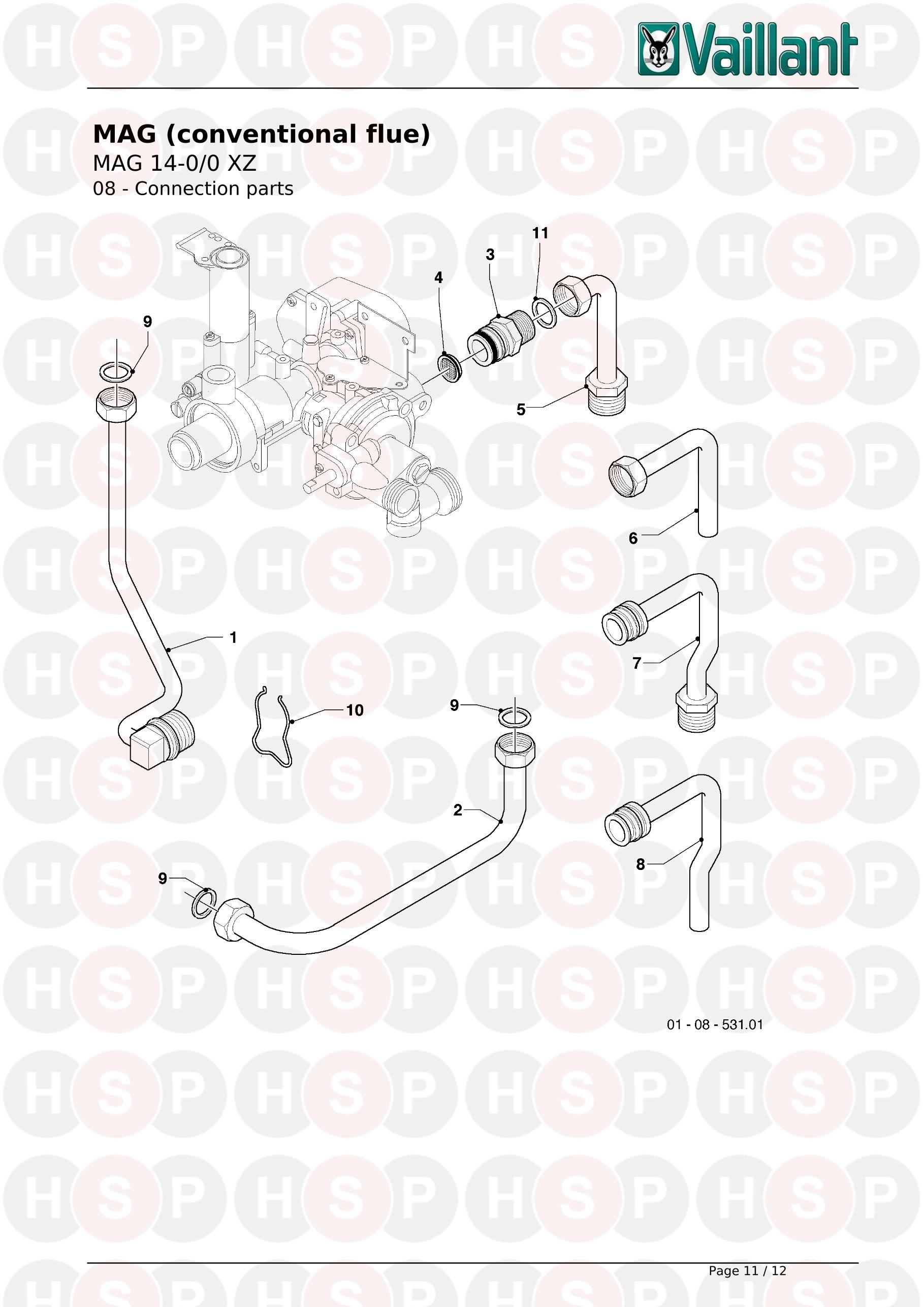

8 Connections diagram for Vaillant Mag 14-0/0 XZ 2004-2009Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 115185, Warm water tube WARM WATER TUBE
Vaillant part no. 115185		 £22.56
2 Part number 115184, Cold water tube COLD WATER TUBE
Vaillant part no. 115184		 £15.41
3 Part number 115265, Gas connection GAS CONNECTION
Vaillant part no. 115265		 £14.72
4 Part number 115299, Gas filter, O-Ring GAS FILTER, O-RING
Vaillant part no. 115299		 £6.71
5 Part number 115271, Tube TUBE
Vaillant part no. 115271		 £15.90
9 Part number 981143, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981143		 £6.66
10 Part number 256619, Spring clamp (PK10) SPRING CLAMP (PK10)
Vaillant part no. 256619		 £11.24
11 Part number 117396, Gasket (PK10) GASKET (PK10)
Vaillant part no. 117396		 £6.71
