VAILLANT
MAG 125/11 OZ 1997-1999 - (04 Burner H)
Appliance Code: 125/11 OZ

Appliance Diagram

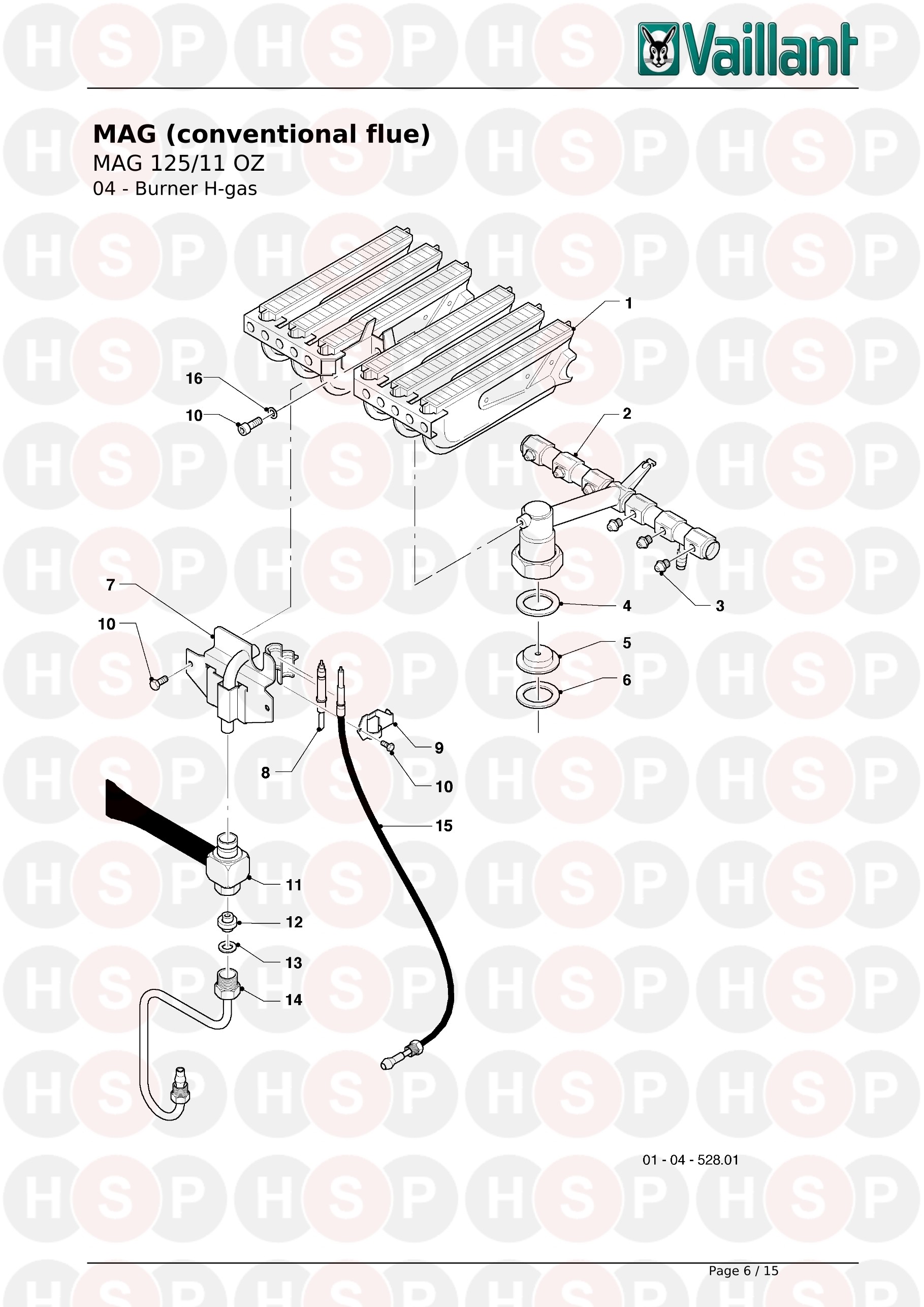

04 Burner H diagram for Vaillant Mag 125/11 OZ 1997-1999Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE BURNER SUPPORT
Vaillant part no. 126720

3 Part number 241410, OBSOLETE burner nozzle OBSOLETE BURNER NOZZLE
Vaillant part no. 241410

4   PACKING RING
Vaillant part no. 980291
£3.91
5   OBSOLETE THROTTLE JET 1 X 3.80
Vaillant part no. 042535

6 Part number 981168, OBSOLETE packing ring (set of 10) OBSOLETE PACKING RING (SET OF 10)
Vaillant part no. 981168

7   OBSOLETE PILOT BURNER
Vaillant part no. 042174

8 Part number 0020107719, OBSOLETE ELECTRODE OBSOLETE ELECTRODE
Vaillant part no. 0020107719

9 Part number 195964, strip STRIP
Vaillant part no. 195964

10 Part number 060018, screw SCREW
Vaillant part no. 060018
£6.66
11   OBSOLETE MIXING TUBE, CPL.
Vaillant part no. 042437

12 Part number 042825, Pilot burner nozzle PILOT BURNER NOZZLE
Vaillant part no. 042825
£6.66
13 Part number 981145, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981145
£6.66
14 Part number 043997, pilot burner tube, cpl. PILOT BURNER TUBE, CPL.
Vaillant part no. 043997

15 Part number 171125, thermo-couple THERMO-COUPLE
Vaillant part no. 171125

16   SAFETY DISC
Vaillant part no. 090034
£3.91
