VAILLANT
MAG-SINE 325/8 ARTZH LP - (Water Section Low Pressure Rem)
Appliance Code: 52-044-07

Appliance Diagram


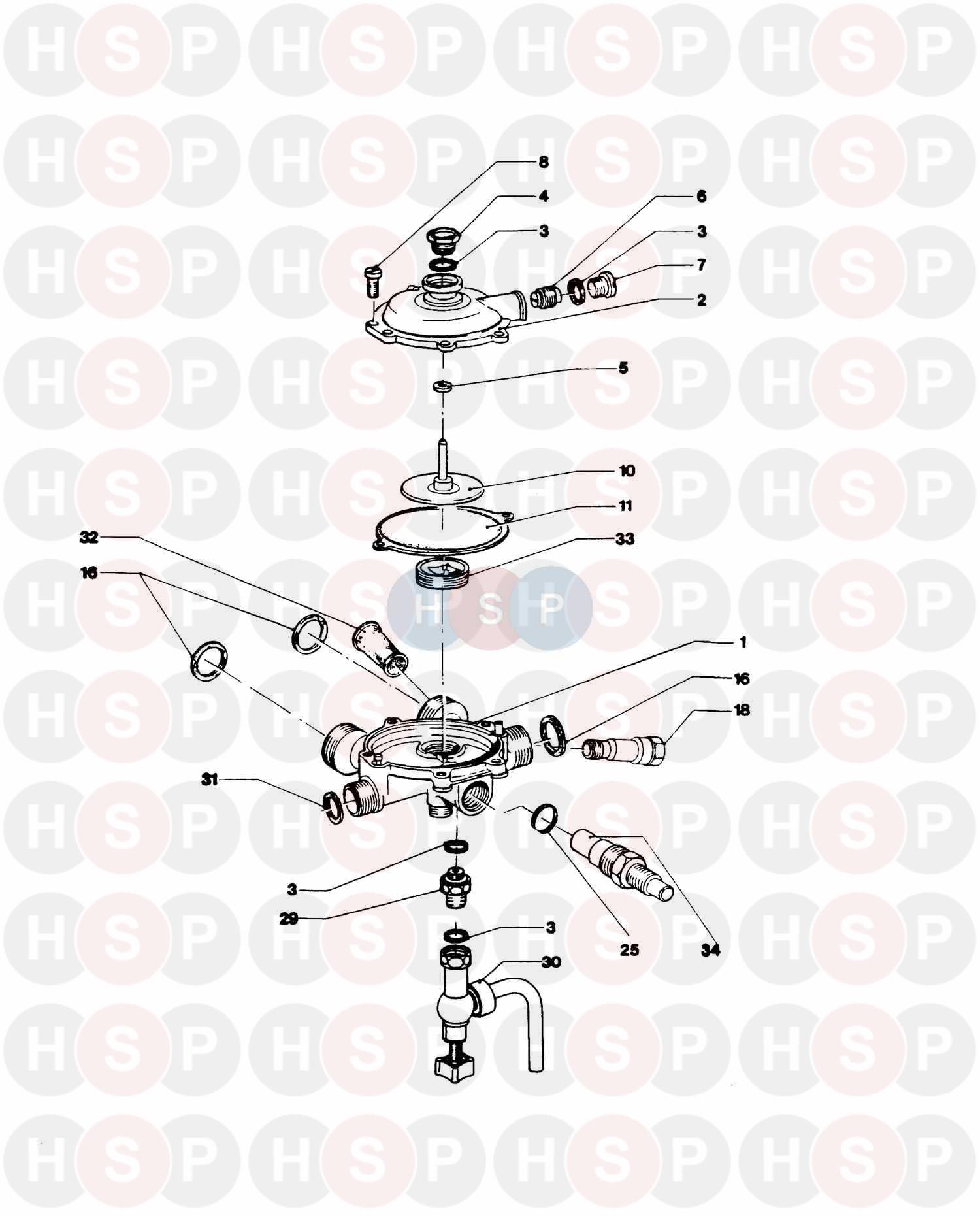

Water Section Low Pressure Rem diagram for Vaillant Mag-Sine 325/8 ARTZH LPClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE WATER VALVE
Vaillant part no. 011116
1   WATER VALVE
Vaillant part no. 11177
1   WATER VALVE
Vaillant part no. 011177
2 Part number 013014, Water valve, upper part WATER VALVE, UPPER PART
Vaillant part no. 013014
2 Part number 13014, WATER VALVE - UPPER PART WATER VALVE - UPPER PART
Vaillant part no. 13014
3 Part number 981159, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981159		 £6.66
4 Part number 12156, NOW USE 012156 STUFFING BOX NOW USE 012156 STUFFING BOX
Vaillant part no. 12156
4 Part number 012156, stuffing box STUFFING BOX
Vaillant part no. 012156		 £7.03
5   OBSOLETE
Vaillant part no. 164315
6 Part number 10216, NOW USE 010216 slow ignition valve NOW USE 010216 SLOW IGNITION VALVE
Vaillant part no. 10216
6 Part number 010216, slow ignition valve SLOW IGNITION VALVE
Vaillant part no. 010216
7 Part number 010050, screw SCREW
Vaillant part no. 010050		 £6.66
7 Part number 10050, NOW USE 010050 SCREW NOW USE 010050 SCREW
Vaillant part no. 10050
8 Part number 10003, NOW USE 010003 diaphragm screw NOW USE 010003 DIAPHRAGM SCREW
Vaillant part no. 10003
8 Part number 010003, Screw - Diaphragm SCREW - DIAPHRAGM
Vaillant part no. 010003		 £6.66
9 Part number 010009, spring SPRING
Vaillant part no. 010009		 £6.66
9 Part number 10009, NOW USE 010009 SPRING NOW USE 010009 SPRING
Vaillant part no. 10009
10 Part number 10007, NOW USE 010007 diaphragm disc NOW USE 010007 DIAPHRAGM DISC
Vaillant part no. 10007
10 Part number 010007, diaphragm disc DIAPHRAGM DISC
Vaillant part no. 010007
11 Part number 010375, Diaphragm (PK5) DIAPHRAGM (PK5)
Vaillant part no. 010375
11 Part number 10375, NOW USE 010375 diaphragm (set of 5) NOW USE 010375 DIAPHRAGM (SET OF 5)
Vaillant part no. 10375
12 Part number 12947, NOW USE 012947 WATER QUANTITY REGULATOR CPL. NOW USE 012947 WATER QUANTITY REGULATOR CPL.
Vaillant part no. 12947
12 Part number 012947, Water quantity regulator WATER QUANTITY REGULATOR
Vaillant part no. 012947		 £7.92
14 Part number 010081, spring SPRING
Vaillant part no. 010081
14 Part number 10081, spring SPRING
Vaillant part no. 10081
15   NOW USE 012947 WATER QUANTITY REGULATOR
Vaillant part no. 982463
15 Part number 012947, Water quantity regulator WATER QUANTITY REGULATOR
Vaillant part no. 012947		 £7.92
16 Part number 981152, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981152		 £7.03
17 Part number 173077, OBSOLETE bush OBSOLETE BUSH
Vaillant part no. 173077
18   NO LONGER AVAILABLE
Vaillant part no. 010030
19 Part number 981605, Washer WASHER
Vaillant part no. 981605
20 Part number 012766, tap spindle set TAP SPINDLE SET
Vaillant part no. 012766		 £41.22
20 Part number 950137, NOW USE 012766 tap spindle set NOW USE 012766 TAP SPINDLE SET
Vaillant part no. 950137
21   OBSOLETE
Vaillant part no. 109913
22 Part number 12772, NOW USE 012772 TAP SPINDLE SET NOW USE 012772 TAP SPINDLE SET
Vaillant part no. 12772
22 Part number 012772, Tap spindle set TAP SPINDLE SET
Vaillant part no. 012772		 £21.29
23 Part number 010088, temperature selector TEMPERATURE SELECTOR
Vaillant part no. 010088
23 Part number 10088, temperature selector TEMPERATURE SELECTOR
Vaillant part no. 10088
24 Part number 981160, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981160		 £6.66
25 Part number 981172, O-ring (PK10) O-RING (PK10)
Vaillant part no. 981172		 £6.66
26 Part number 010143, OBSOLETE guiding bush OBSOLETE GUIDING BUSH
Vaillant part no. 010143
27 Part number 182654, OBSOLETE screw M20x1,5 OBSOLETE SCREW M20X1,5
Vaillant part no. 182654
28 Part number 143937, knob KNOB
Vaillant part no. 143937		 £16.66
29   OBSOLETE DRAIN NIPPLE
Vaillant part no. 010118
30   NOW USE 010120 DRAIN VALVE
Vaillant part no. 10120
30   DRAIN VALVE
Vaillant part no. 010120		 £15.31
31 Part number 981142, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981142		 £8.62
32 Part number 10053, NOW USE 010053 WATER FILTER NOW USE 010053 WATER FILTER
Vaillant part no. 10053
32 Part number 010053, water filter WATER FILTER
Vaillant part no. 010053
33 Part number 147617, OBSOLETE regulating screw OBSOLETE REGULATING SCREW
Vaillant part no. 147617
34   OBSOLETE PLUG
Vaillant part no. 010113
35   NO LONGER AVAILABLE
Vaillant part no. 021159
36   OBSOLETE PIN
Vaillant part no. 128074
37   OBSOLETE STUFFING BOX
Vaillant part no. 012116
38 Part number 981149, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981149		 £7.96
39   OBSOLETE NOZZLE SCREW 5,4 325-400 HL
Vaillant part no. 020360
40   OBSOLETE PACKING RING
Vaillant part no. 980217
41 Part number 981150, Sealing ring, (PK10) SEALING RING, (PK10)
Vaillant part no. 981150		 £6.66
42 Part number 012130, OBSOLETE stuffing box OBSOLETE STUFFING BOX
Vaillant part no. 012130
43 Part number 280818, handle HANDLE
Vaillant part no. 280818
44 Part number 060036, spring lock washer SPRING LOCK WASHER
Vaillant part no. 060036		 £3.91
44 Part number 60036, NOW USE 060036 spring lock washer NOW USE 060036 SPRING LOCK WASHER
Vaillant part no. 60036
46   OBSOLETE PLUG
Vaillant part no. 137241
47 Part number 91037, OBSOLETE piezo ignition OBSOLETE PIEZO IGNITION
Vaillant part no. 91037
47 Part number 091037, OBSOLETE piezo ignition OBSOLETE PIEZO IGNITION
Vaillant part no. 091037
48   OBSOLETE CYLINDER SCREW
Vaillant part no. 105758
49 Part number 118874, screw SCREW
Vaillant part no. 118874		 £3.91
50 Part number 195110, insert INSERT
Vaillant part no. 195110		 £3.91
51   OBSOLETE GAS FILTER
Vaillant part no. 108919
52   OBSOLETE PACKING RING
Vaillant part no. 980768
53   OBSOLETE STUFFING BOX
Vaillant part no. 012111
54   OBSOLETE PIN
Vaillant part no. 128067
57   OBSOLETE PILOT GAS VALVE
Vaillant part no. 020812
58   OBSOLETE PACKING RING
Vaillant part no. 980769
59 Part number 170250, magneto MAGNETO
Vaillant part no. 170250		 £17.32
60   LOCKING PLATE
Vaillant part no. 170025		 £3.91
61 Part number 40364, NUT NUT
Vaillant part no. 40364
61 Part number 040364, nut NUT
Vaillant part no. 040364
62   OBSOLETE PACKING RING
Vaillant part no. 981721
63   OBSOLETE WATER DEFICCIENY VALVE
Vaillant part no. 020738
64   OBSOLETE SPRING
Vaillant part no. 104150
64   OBSOLETE SPRING
Vaillant part no. 104151
65   OBSOLETE PACKING RING
Vaillant part no. 980757
66   OBSOLETE GAS QUANTITY REGULATOR
Vaillant part no. 031212
67 Part number 980213, packing ring PACKING RING
Vaillant part no. 980213		 £3.91
68   OBSOLETE PLUG
Vaillant part no. 113702
69   OBSOLETE PACKING RING
Vaillant part no. 982447
70   NOW USE 040186 TENSION RING
Vaillant part no. 40186
70   TENSION RING
Vaillant part no. 040186		 £3.91
71   OBSOLETE LOCKING PLATE
Vaillant part no. 283007
72   OBSOLETE WIRE
Vaillant part no. 173314
73   OBSOLETE BURNER
Vaillant part no. 041475
74   OBSOLETE BURNER NOZZLE
Vaillant part no. 040084
75   OBSOLETE BURNER CHAMBER GROUP, RIGHT
Vaillant part no. 040172
76 Part number 040171, OBSOLETE burner chamber group, left OBSOLETE BURNER CHAMBER GROUP, LEFT
Vaillant part no. 040171
76 Part number 042667, OBSOLETE pilot burner, cpl. OBSOLETE PILOT BURNER, CPL.
Vaillant part no. 042667
78 Part number 192119, protection sheet PROTECTION SHEET
Vaillant part no. 192119		 £10.48
79   OBSOLETE DOUBLE NUT
Vaillant part no. 040512
80 Part number 40516, air filter AIR FILTER
Vaillant part no. 40516
80 Part number 040516, air filter AIR FILTER
Vaillant part no. 040516
81 Part number 042418, mixing tube MIXING TUBE
Vaillant part no. 042418
81 Part number 42418, mixing tube MIXING TUBE
Vaillant part no. 42418
82 Part number 40548, NOW USE 040548 pilot burner nozzle (D=0.40 mm) NOW USE 040548 PILOT BURNER NOZZLE (D=0.40 MM)
Vaillant part no. 40548
82 Part number 040548, pilot burner nozzle (D=0.40 mm) PILOT BURNER NOZZLE (D=0.40 MM)
Vaillant part no. 040548		 £6.66
83 Part number 981145, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 981145		 £6.66
83 Part number 980225, NOW USE 981145 packing ring NOW USE 981145 PACKING RING
Vaillant part no. 980225
84   PILOT BURNER TUBE, CPL.
Vaillant part no. 43781
84   PILOT BURNER TUBE, CPL.
Vaillant part no. 043781
85   GASKET, (X5)
Vaillant part no. 0010027618		 £5.80
85 Part number 980766, NOW USE 0010027618 seal NOW USE 0010027618 SEAL
Vaillant part no. 980766
86   NLA IGNITION DEVICE
Vaillant part no. 040853
87   OBSOLETE HOSE
Vaillant part no. 080360		 £3.91
90 Part number 60018, NOW USE 060018 screw NOW USE 060018 SCREW
Vaillant part no. 60018
90 Part number 060018, screw SCREW
Vaillant part no. 060018		 £6.66
91 Part number 089549, connection line CONNECTION LINE
Vaillant part no. 089549		 £3.91
91   NOW USE 089549 CONNECTION LINE
Vaillant part no. 89549
93   BUSH
Vaillant part no. 173101		 £3.91
94 Part number 171140, thermo-couple THERMO-COUPLE
Vaillant part no. 171140
96 Part number 980772, packing ring PACKING RING
Vaillant part no. 980772
96   NOW USE 080093 DOUBLE NUT
Vaillant part no. 80093
96   DOUBLE NUT
Vaillant part no. 080093		 £7.37
97   OBSOLETE COWLING
Vaillant part no. 072881
98   OBSOLETE SPRING RING
Vaillant part no. 070321
99   OBSOLETE FASTENING DOWEL
Vaillant part no. 070320
100   OBSOLETE CAP
Vaillant part no. 072345
101 Part number 980763, packing ring PACKING RING
Vaillant part no. 980763		 £5.55
102   OBSOLETE SCREW
Vaillant part no. 500055
103   NOW USE 040009 HEXAGONAL NUT
Vaillant part no. 40009
103   HEXAGONAL NUT
Vaillant part no. 040009		 £5.63
104   OBSOLETE FLUE BEND
Vaillant part no. 116623
105   OBSOLETE WASHER
Vaillant part no. 286401
106 Part number 492032, Washer WASHER
Vaillant part no. 492032		 £5.63
108 Part number 235727, screw SCREW
Vaillant part no. 235727		 £5.13
109   OBSOLETE SEALING PROFILE
Vaillant part no. 282815
110 Part number 280204, OBSOLETE clip OBSOLETE CLIP
Vaillant part no. 280204
111   OBSOLETE
Vaillant part no. 072829
112 Part number 282249, INSPECTION WINDOW RING INSPECTION WINDOW RING
Vaillant part no. 282249		 £3.91
113 Part number 981746, packing ring PACKING RING
Vaillant part no. 981746		 £3.91
114 Part number 161225, OBSOLETE Inspection glass OBSOLETE INSPECTION GLASS
Vaillant part no. 161225
115   OBSOLETE DISC
Vaillant part no. 950242
116 Part number 235748, Tapping screw ISO 7049 TAPPING SCREW ISO 7049
Vaillant part no. 235748		 £5.13
118 Part number 282813, OBSOLETE sealing profile OBSOLETE SEALING PROFILE
Vaillant part no. 282813
119 Part number 980765, NOW USE 0020085467 grommet NOW USE 0020085467 GROMMET
Vaillant part no. 980765
119 Part number 0020085467, Gasket GASKET
Vaillant part no. 0020085467		 £6.54
120   PACKING RING
Vaillant part no. 980764		 £3.91
121   OBSOLETE
Vaillant part no. 073126
121   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073116
121   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073114
121   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073112
121   OBSOLETE WALL CASE INNER PART
Vaillant part no. 073110
122   OBSOLETE SUPPORT
Vaillant part no. 086527
123 Part number 114848, Hexagon nut HEXAGON NUT
Vaillant part no. 114848		 £3.91
124   OBSOLETE DISC
Vaillant part no. 191350
125   OBSOLETE NUT
Vaillant part no. 212718
126   OBSOLETE SUPPORT
Vaillant part no. 086103
127   OBSOLETE SCREW
Vaillant part no. 202612
128   NUT
Vaillant part no. 950237		 £3.91
131   OBSOLETE DISC
Vaillant part no. 284030
132   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145574
132   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145575
132   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145576
133   OBSOLETE WALL CASE EXTERIOR PART
Vaillant part no. 073019
133   OBSOLETE OUTER PART - 130MM
Vaillant part no. 073020
133   OBSOLETE WALL CASE EXTERIOR PART
Vaillant part no. 073021
134   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145516
134   OBSOLETE FLUE EXTENSION DUCT
Vaillant part no. 145518
136   BUSH
Vaillant part no. 124835		 £3.91
137   OBSOLETE SAFETY DISC
Vaillant part no. 115520
138   OBSOLETE SEALING PROFILE
Vaillant part no. 282822
139   OBSOLETE COLD WATER TUBE
Vaillant part no. 080084
140   OBSOLETE REGULATION
Vaillant part no. 080091
141 Part number 981163, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981163		 £7.03
142   OBSOLETE SAFETY RING
Vaillant part no. 080090
143   WARM WATER TUBE
Vaillant part no. 83965
143   WARM WATER TUBE
Vaillant part no. 083965
144   NO LONGER AVAILABLE
Vaillant part no. 082541
145   SCREW
Vaillant part no. 040038
145   SCREW
Vaillant part no. 40038
146 Part number 82741, NOW USE 082741 gas shut-off valve NOW USE 082741 GAS SHUT-OFF VALVE
Vaillant part no. 82741
146 Part number 082741, gas shut-off valve VC221T H, 110T H VC 182 E H, VC 242 E H, VC 282 E H GAS SHUT-OFF VALVE VC221T H, 110T H VC 182 E H, VC 242 E H, VC 282 E H
Vaillant part no. 082741
147   OBSOLETE TUBE
Vaillant part no. 137439
154 Part number 950088, rose ROSE
Vaillant part no. 950088		 £6.66
155 Part number 950029, warm water connection WARM WATER CONNECTION
Vaillant part no. 950029
155 Part number 081138, warm water connection WARM WATER CONNECTION
Vaillant part no. 081138
155   WARM WATER CONNECTION
Vaillant part no. 81138
156 Part number 950017, Cap CAP
Vaillant part no. 950017		 £6.66
157 Part number 950183, reversing cock REVERSING COCK
Vaillant part no. 950183		 £126.23
158 Part number 980149, NOW USE 981165 packing ring NOW USE 981165 PACKING RING
Vaillant part no. 980149
158 Part number 981165, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 981165		 £6.69
159 Part number 950020, cap CAP
Vaillant part no. 950020		 £3.91
160   SHOWER TUBE
Vaillant part no. 950002
161   HAND SHOWER
Vaillant part no. 083208
161 Part number 083210, Hand Shower HAND SHOWER
Vaillant part no. 083210
162 Part number 980313, Washer WASHER
Vaillant part no. 980313
163 Part number 081719, OBSOLETE cold water connection valve OBSOLETE COLD WATER CONNECTION VALVE
Vaillant part no. 081719
163 Part number 0020107747, Valve VALVE
Vaillant part no. 0020107747		 £43.86
164 Part number 114235, knob, cpl. KNOB, CPL.
Vaillant part no. 114235
165 Part number 950057, upper part of valve UPPER PART OF VALVE
Vaillant part no. 950057


Heating spares made simple this website is secured by Geotrust

 HSP K J Plumbing Factors

Copyright ©2020 >Heating Spare Parts - All Rights Reserved

Site Map | About Us | Parts Lists & Diagrams | Privacy Policy | Terms & Conditions

Facebook Twitter
