VAILLANT
HOME SYSTEM 12 -A - (04 - Burner, Heat Exchanger)
Appliance Code: 41-044-94

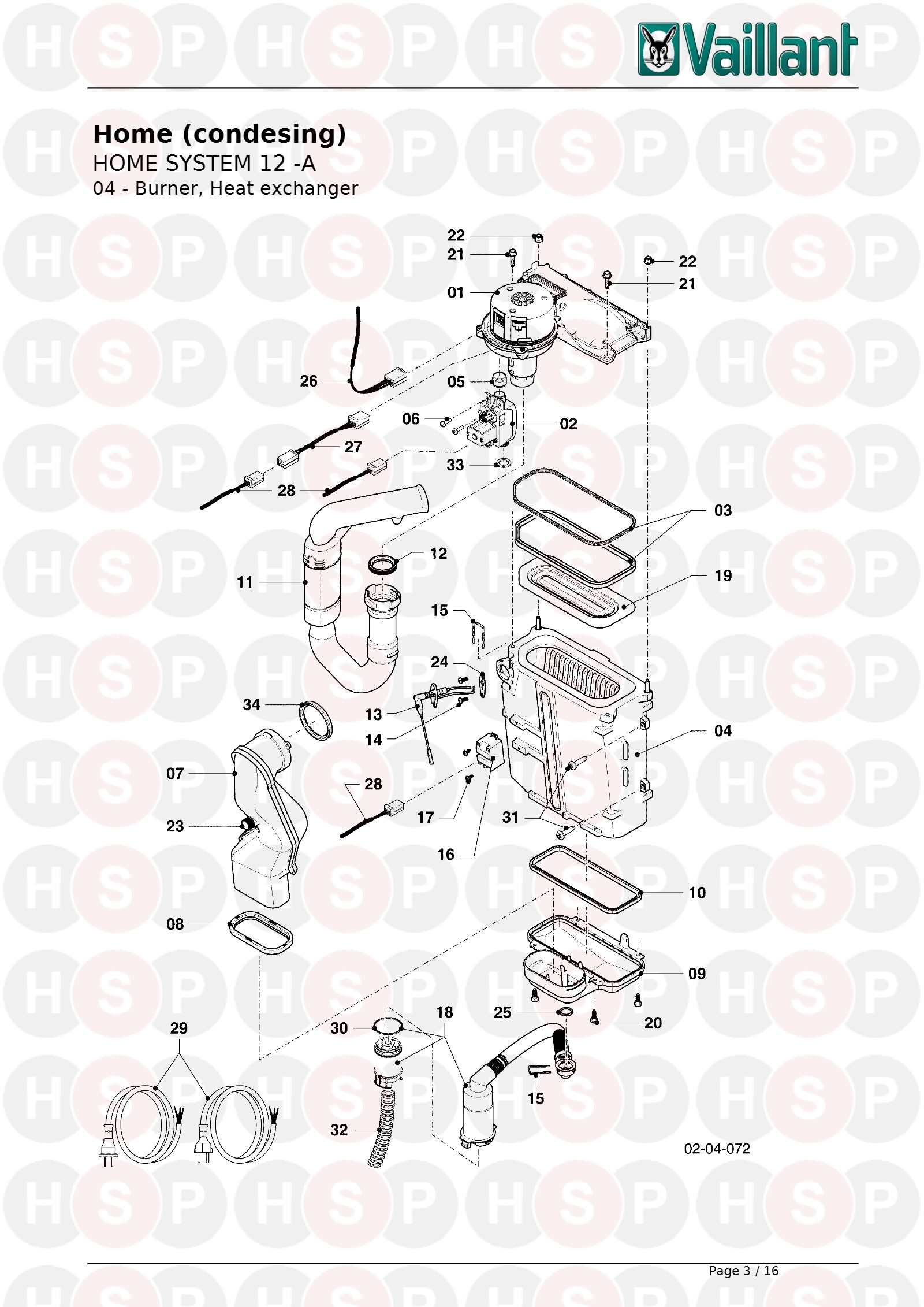

Appliance Diagram


04 - Burner, Heat Exchanger diagram for Vaillant Home System 12 -AClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

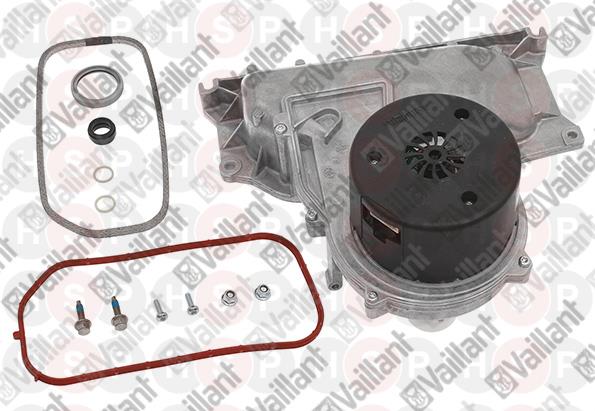

1 Part number 0020195453, Fan, with combustion chamber cover FAN, WITH COMBUSTION CHAMBER COVER
Vaillant part no. 0020195453		 £211.20
2 Part number 0020195458, Gas control valve (-5Pa) GAS CONTROL VALVE (-5PA)
Vaillant part no. 0020195458		 £172.19
3 Part number 0020195459, Gasket, combustion chamber cover GASKET, COMBUSTION CHAMBER COVER
Vaillant part no. 0020195459		 £25.40
4 Part number 0020195460, Heat exchanger HEAT EXCHANGER
Vaillant part no. 0020195460		 £413.83
5 Part number 0020195462, Gasket GASKET
Vaillant part no. 0020195462		 £6.53
6 Part number 0020195473, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195473		 £6.53
6 Part number 0020195474, Flue pipe FLUE PIPE
Vaillant part no. 0020195474		 £17.10
8 Part number 0020195476, Gasket GASKET
Vaillant part no. 0020195476		 £6.53
9 Part number 0020195478, Condensate drain CONDENSATE DRAIN
Vaillant part no. 0020195478		 £21.35
10 Part number 0020195479, Gasket, Condensate drain GASKET, CONDENSATE DRAIN
Vaillant part no. 0020195479		 £15.12
11 Part number 0020195480, Air inlet duct AIR INLET DUCT
Vaillant part no. 0020195480		 £10.78
12 Part number 0020135149, Gasket air inlet duct GASKET AIR INLET DUCT
Vaillant part no. 0020135149		 £6.66
13 Part number 0020195481, Electrode (ignition and sensing) ELECTRODE (IGNITION AND SENSING)
Vaillant part no. 0020195481		 £13.57
14 Part number 0020195482, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195482		 £6.53
15 Part number 178992, Clip, (PK10) CLIP, (PK10)
Vaillant part no. 178992		 £8.18
16 Part number 091258, Spark generator SPARK GENERATOR
Vaillant part no. 091258		 £28.84
17 Part number 0020195483, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195483		 £6.53
18 Part number 0020195484, Siphon SIPHON
Vaillant part no. 0020195484		 £6.53
19 Part number 0020195487, Burner NG BURNER NG
Vaillant part no. 0020195487		 £63.40
20 Part number 0020195488, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195488		 £6.53
21 Part number 0020195489, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195489		 £10.64
22 Part number 0020026537, Nut, M6 (PK5) NUT, M6 (PK5)
Vaillant part no. 0020026537		 £6.66
23 Part number 0020195490, Cap, (PK5) CAP, (PK5)
Vaillant part no. 0020195490		 £6.53
24 Part number 0020195491, Gasket, Electrode GASKET, ELECTRODE
Vaillant part no. 0020195491		 £6.53
25 Part number 0020195504, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 0020195504		 £6.53
28 Part number 0020195505, Wiring harness, heat engine WIRING HARNESS, HEAT ENGINE
Vaillant part no. 0020195505		 £16.15
30 Part number 0020231195, O-ring O-RING
Vaillant part no. 0020231195		 £8.91
31 Part number 0020195593, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020195593		 £6.53
32 Part number 0020215129, Hose HOSE
Vaillant part no. 0020215129
33 Part number 108588, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 108588		 £6.71
34 Part number 0020195477, Gasket GASKET
Vaillant part no. 0020195477		 £6.53
