VAILLANT
ECOTEC PLUS VU GB 1006/5-5 R4 2017 ONWARDS - (16 Pump)
Appliance Code: 41-044-69 R4

Appliance Diagram

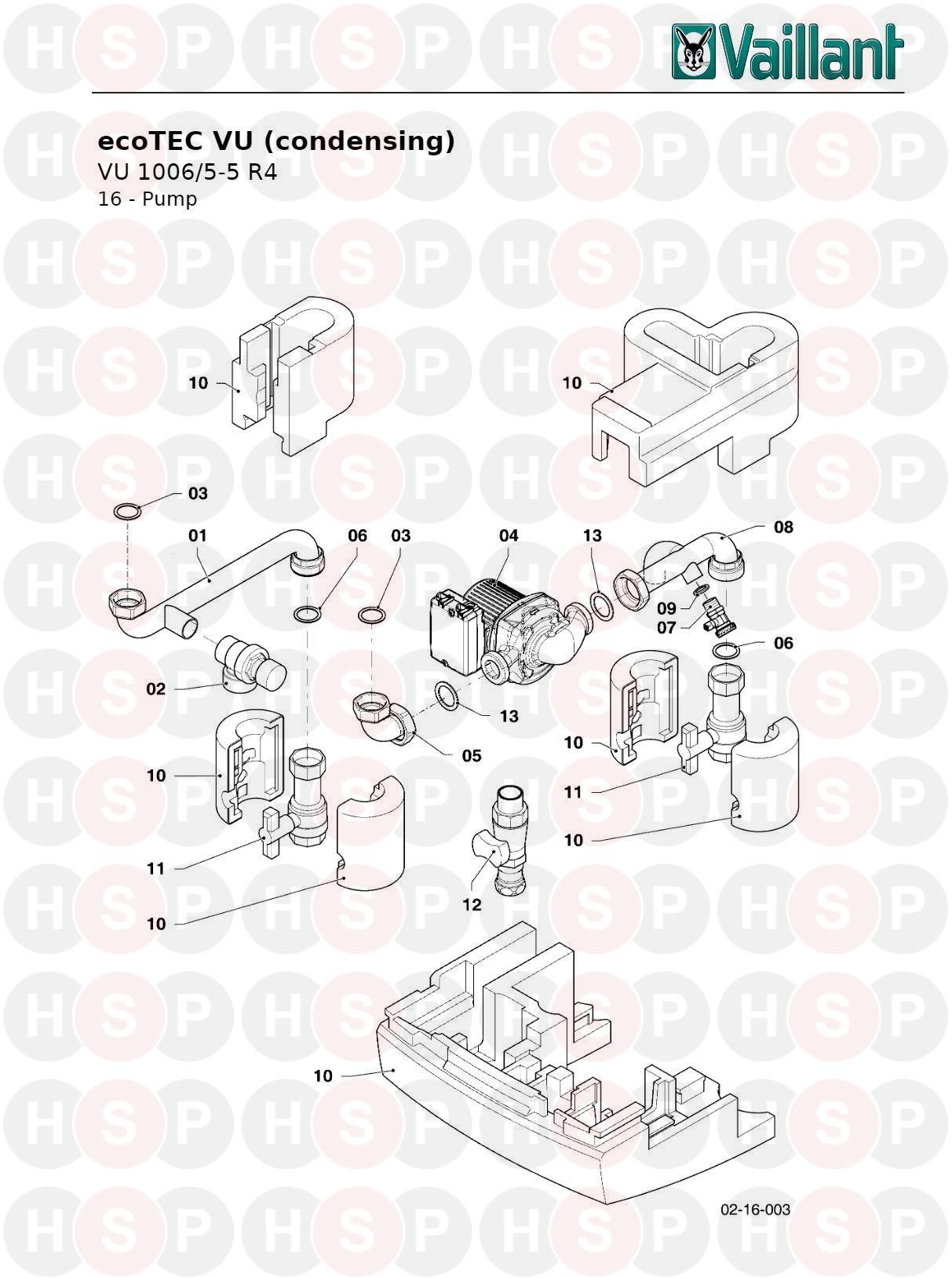

16 Pump diagram for Vaillant Ecotec Plus VU GB 1006/5-5 R4 2017 OnwardsClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

01 Part number 0020143538, Tube TUBE
Vaillant part no. 0020143538
£174.05
02 Part number 0020106057, SAFETY VALVE 4 BAR SAFETY VALVE 4 BAR
Vaillant part no. 0020106057

02 Part number 0020174846, Pressure relief valve, 6 bar PRESSURE RELIEF VALVE, 6 BAR
Vaillant part no. 0020174846
£49.95
03 Part number 0020143503, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 0020143503
£11.30
04 Part number 0020197544, CLIP (X10) CLIP (X10)
Vaillant part no. 0020197544
£6.21
04 Part number 0020240341, Pump PUMP
Vaillant part no. 0020240341
£414.47
05 Part number 0020143542, Tube TUBE
Vaillant part no. 0020143542
£37.21
06 Part number 0020143526, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 0020143526
£6.71
07 Part number 106350, drain cock DRAIN COCK
Vaillant part no. 106350
£7.61
08 Part number 0020143471, Tube TUBE
Vaillant part no. 0020143471
£98.36
09   PRICE ON APPLICATION
Vaillant part no. 0000

10   PRICE ON APPLICATION
Vaillant part no. 0000

11 Part number 0020059560, Isolation Valve ISOLATION VALVE
Vaillant part no. 0020059560
£143.78
12 Part number 009299, OBSOLETE GAS COCK STRAIGHT 1INCH OBSOLETE GAS COCK STRAIGHT 1INCH
Vaillant part no. 009299

13 Part number 0020143526, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 0020143526
£6.71
