VAILLANT
ECOFIT PURE 425 VU 256/6-3 OV (H-GB) - (08 Hydraulic Parts)
Appliance Code: 41-694-11

Appliance Diagram

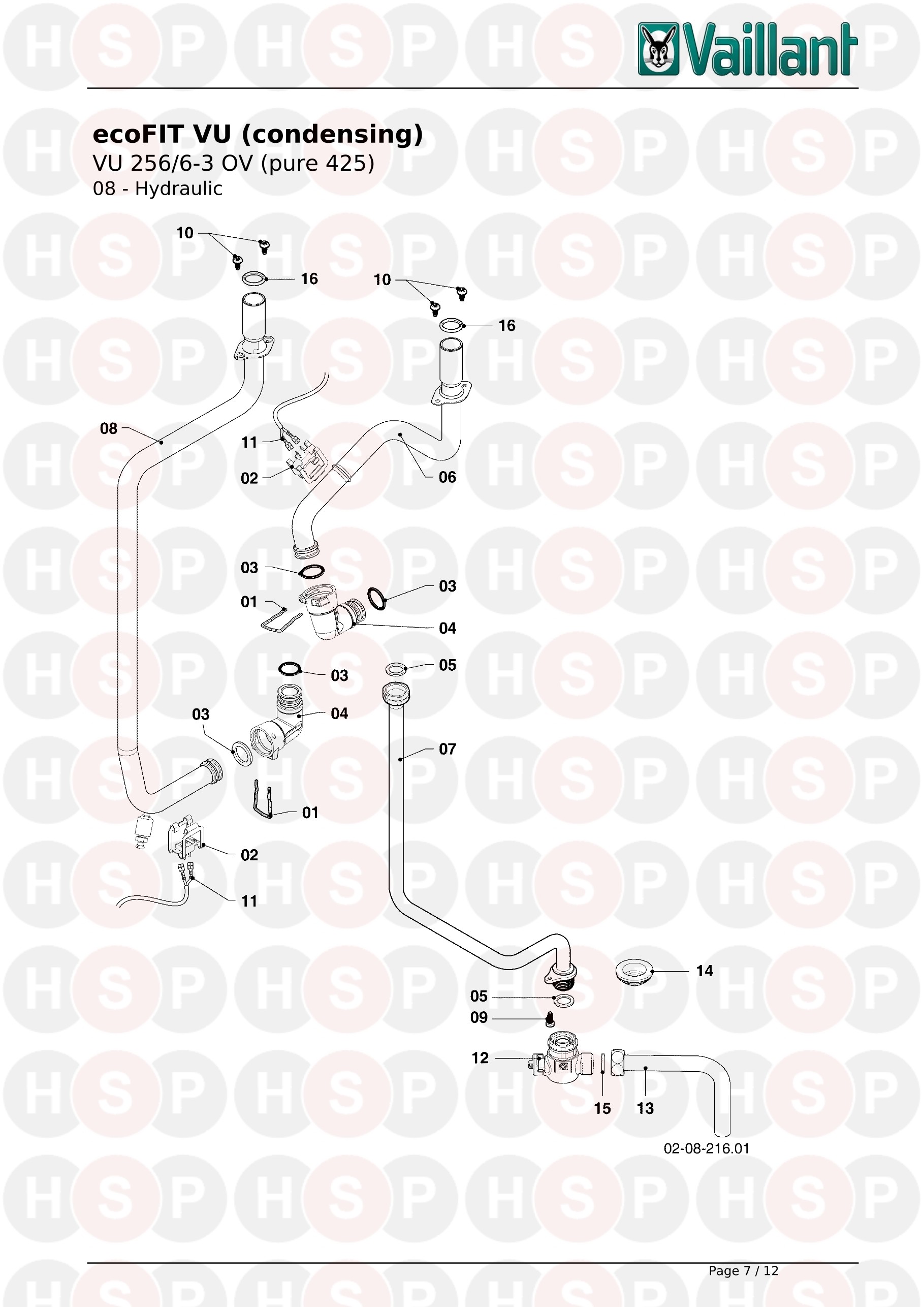

08 Hydraulic Parts diagram for Vaillant Ecofit Pure 425 VU 256/6-3 Ov (H-GB)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 178992, Clip, (PK10) CLIP, (PK10)
Vaillant part no. 178992
£8.18
2 Part number 193592, Sensor NTC (CH flow/CH return) SENSOR NTC (CH FLOW/CH RETURN)
Vaillant part no. 193592
£9.67
3 Part number 103415, O-ring, (PK10) O-RING, (PK10)
Vaillant part no. 103415
£7.67
4 Part number 0020211097, Elbow ELBOW
Vaillant part no. 0020211097
£6.71
5 Part number 108588, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 108588
£6.71
6 Part number 0020195613, Tube TUBE
Vaillant part no. 0020195613
£20.66
7 Part number 0020195614, Gas pipe GAS PIPE
Vaillant part no. 0020195614
£23.68
8 Part number 0020195616, Tube TUBE
Vaillant part no. 0020195616
£50.91
9 Part number 0020211098, Screw, (PK10) SCREW, (PK10)
Vaillant part no. 0020211098
£6.53
10 Part number 0020073877, Screw (PK10) SCREW (PK10)
Vaillant part no. 0020073877
£6.71
11 Part number 0020195505, Wiring harness, heat engine WIRING HARNESS, HEAT ENGINE
Vaillant part no. 0020195505
£16.15
12 Part number 0020211099, Gas valve GAS VALVE
Vaillant part no. 0020211099
£38.14
13 Part number 0020211100, Gas pipe GAS PIPE
Vaillant part no. 0020211100
£9.41
14 Part number 509120, Gasket, (PK10) GASKET, (PK10)
Vaillant part no. 509120
£12.95
15 Part number 108588, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 108588
£6.71
16 Part number 0020249330, Gasket, (PK10) GASKET, (PK10)
Vaillant part no. 0020249330
£8.32
