VAILLANT
ECOFIT PURE 418 VU 186/6-3 OV (H-GB) - (08C Hydraulic Connections)
Appliance Code: 41-694-10

Appliance Diagram

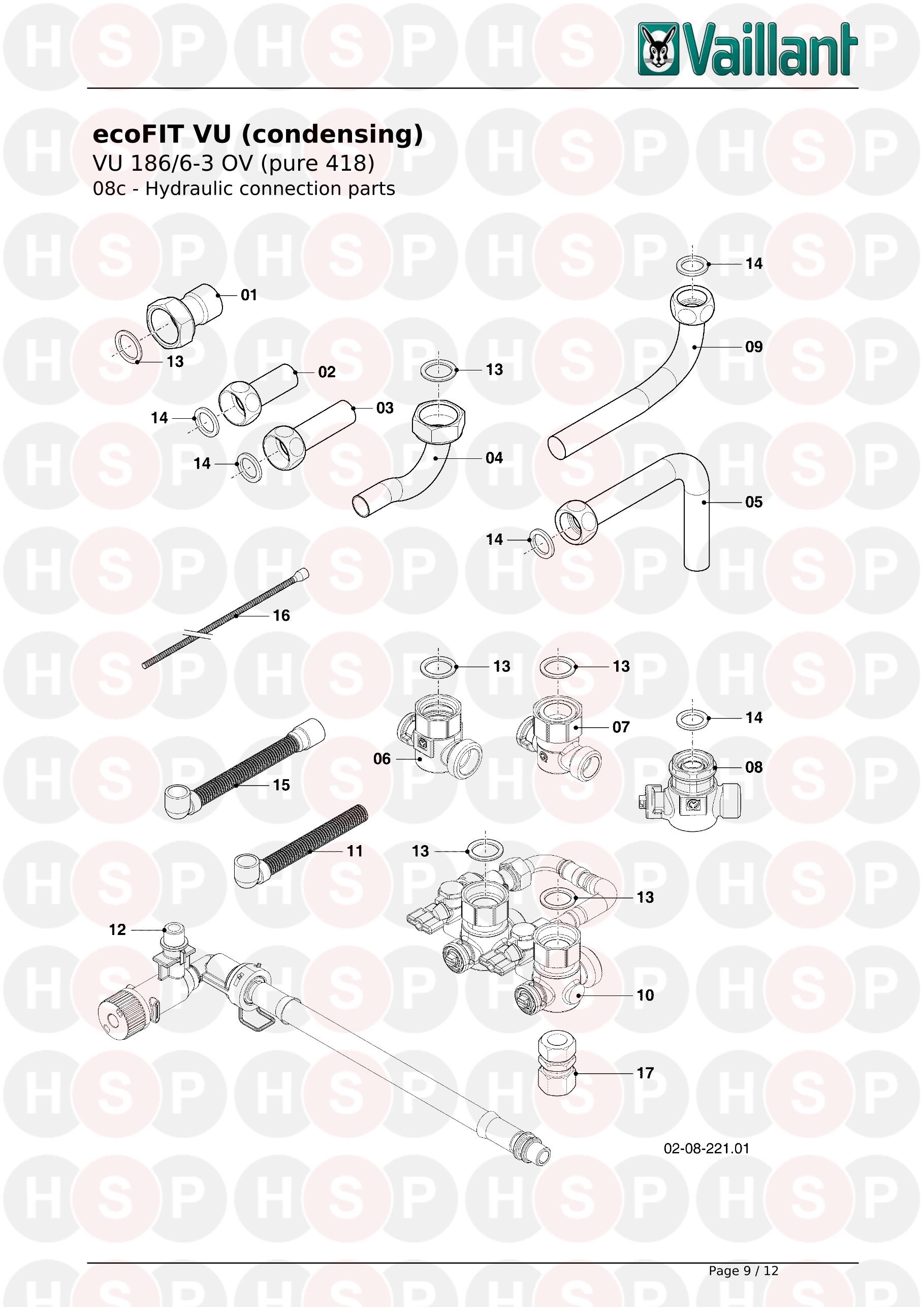

08C Hydraulic Connections diagram for Vaillant Ecofit Pure 418 VU 186/6-3 Ov (H-GB)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

5 Part number 0020211100, Gas pipe GAS PIPE
Vaillant part no. 0020211100
£9.41
8 Part number 0020211099, Gas valve GAS VALVE
Vaillant part no. 0020211099
£38.14
14 Part number 108588, Sealing ring (PK10) SEALING RING (PK10)
Vaillant part no. 108588
£6.71
15 Part number 0020211449, Hose HOSE
Vaillant part no. 0020211449
£6.71
17 Part number 0020236296, Compression fitting, 22 mm COMPRESSION FITTING, 22 MM
Vaillant part no. 0020236296
£30.38
