MIDAS B 1991 - (Assembly 1)
Appliance Code: 47-838-01

Appliance Diagram

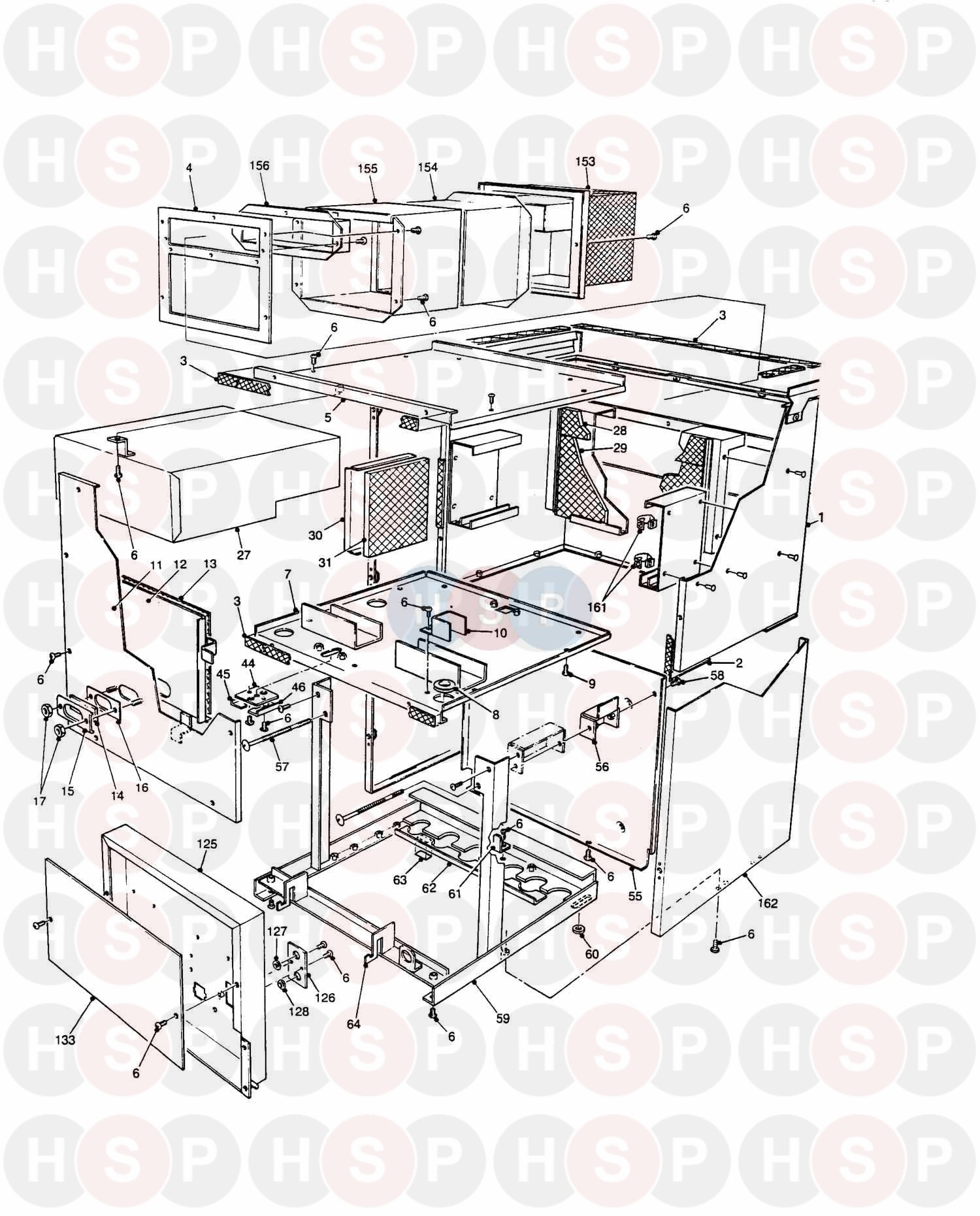

Assembly 1 diagram for Thorn Midas B 1991Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0 Part number B53617, OBSOLETE INSPECTION WINDOW 305C282 / OBSOLETE INSPECTION WINDOW 305C282 /
Thorn part no. B53617

12   OBSOLETE TRAY DOOR INSULATION
Thorn part no. 404C832

15   OBSOLETE CHANNEL INSPECTION WINDO
Thorn part no. 305C1369

16   OBSOLETE GASKET
Thorn part no. 305C280

25   OBSOLETE SCREW
Thorn part no. 11/11592

54   OBSOLETE GASKET
Thorn part no. 403S332

77   OBSOLETE WASHER
Thorn part no. 403C146

86   OBSOLETE GASKET
Thorn part no. 404C588

99   WASHER
Thorn part no. 403C145
£3.73
134   OBSOLETE CONTROLLER
Thorn part no. W9335B1047

135   OBSOLETE FUSE 1AMP
Thorn part no. 403S226

135   OBSOLETE FUSE 2AMP
Thorn part no. 403S225

137   OBSOLETE ASSY WIRING HARNESS POTS
Thorn part no. 404A796

138   OBSOLETE ASSY CONTROL KNOB
Thorn part no. 404A039

140   OBSOLETE CONTROL KNOB COMBI
Thorn part no. 309S371

162   OBSOLETE SIDE PANEL ASSY.LH
Thorn part no. 404A289

163   OBSOLETE OUTER CASE ASSY
Thorn part no. 404A050

165   OBSOLETE ASSY BOTTOM COVER KIRKBY
Thorn part no. 404A012

166   OBSOLETE LABEL LIGHTING INST. KIRK
Thorn part no. 404C299

167   OBSOLETE VALVE ISOLATING
Thorn part no. 404S454

168   OBSOLETE VALVE ISOLATING 15MM
Thorn part no. 404S298

172   OBSOLETE WATER FILTER
Thorn part no. 403C263

173   OBSOLETE WASHER
Thorn part no. 403C258
