REMEHA-COMMERCIAL
GAS 310/610 ECO PRO - (Frame Assembly)
Appliance Code: 310/610 ECO PRO

Appliance Diagram


Frame Assembly diagram for Remeha-Commercial Gas 310/610 Eco ProClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

Part number S103294, Gas 310/610 Pro Service Kit (2 req GAS 310/610 PRO SERVICE KIT (2 REQ
Remeha-Commercial part no. S103294		 £143.35
1001   TOP COVER 8-10 SECTION
Remeha-Commercial part no. S103091		 £204.39
1001   TOP COVER 5-7 SECTIONS
Remeha-Commercial part no. S103092		 £174.59
1002   TOP COVER FRONT (BIG)
Remeha-Commercial part no. S103095		 £195.88
1005 Part number S103242, Bracket 44-49 M8 BRACKET 44-49 M8
Remeha-Commercial part no. S103242		 £42.71
1006   SIDE PANEL 8-10 SECTIONS (CORNER LEFT SIDE)
Remeha-Commercial part no. S103084		 £369.03
1006   SIDE PANEL 8-10 SECTIONS (CORNER RIGHT SIDE)
Remeha-Commercial part no. S103085		 £369.03
1006   SIDE PANEL 5-7 SECTIONS (CORNER LEFT SIDE)
Remeha-Commercial part no. S103086		 £305.16
1006   SIDE PANEL 5-7 SECTIONS (CORNER RIGHT SIDE)
Remeha-Commercial part no. S103087		 £305.16
1007   SIDE PANEL WITH LOGO LEFT
Remeha-Commercial part no. S103080		 £468.39
1007   SIDE PANEL WITH LOGO RIGHT
Remeha-Commercial part no. S103081		 £468.39
1007   SIDE PANEL RIGHT
Remeha-Commercial part no. S103082		 £327.88
1007   SIDE PANEL LEFT
Remeha-Commercial part no. S103083		 £327.88
1008   BACK COVER LEFT
Remeha-Commercial part no. S103089		 £234.20
1008   BACK COVER RIGHT
Remeha-Commercial part no. S103090		 £234.20
1009 Part number S100419, Casing Front Handle CASING FRONT HANDLE
Remeha-Commercial part no. S100419		 £26.96
1012   FRAME TOP 5-7 SECTIONS
Remeha-Commercial part no. S103152		 £769.29
1012   FRAME TOP 8-10 SECTIONS
Remeha-Commercial part no. S103153		 £787.74
1015   FRAME 5-7 SECTIONS
Remeha-Commercial part no. S103144		 £1,599.59
1015   FRAME 8-10 SECTIONS
Remeha-Commercial part no. S103145		 £1,635.08
1017 Part number S14254, Sheet-metal screw 4,2x9,5 (20 pcs.) SHEET-METAL SCREW 4,2X9,5 (20 PCS.)
Remeha-Commercial part no. S14254		 £11.05
1019   TOP COVER MIDDLE
Remeha-Commercial part no. S103093		 £154.71
1020   TOP COVER FRONT (SMALL)
Remeha-Commercial part no. S103094		 £141.09
1021   TOP COVER SWITCH INSTRUMENT EN
Remeha-Commercial part no. S103088		 £231.36
1022   BRACKET SUPPORT FRAME FRONT
Remeha-Commercial part no. S103154		 £95.53
1023 Part number S103155, Bracket support frame back BRACKET SUPPORT FRAME BACK
Remeha-Commercial part no. S103155		 £120.64
1024 Part number S100570, Bolt M5X20 (10 Pcs) BOLT M5X20 (10 PCS)
Remeha-Commercial part no. S100570		 £28.39
1025 Part number S103156, Bracket air box BRACKET AIR BOX
Remeha-Commercial part no. S103156		 £157.54
1027 Part number S103246, Pressure Differential Switch PRESSURE DIFFERENTIAL SWITCH
Remeha-Commercial part no. S103246		 £149.04
1028 Part number S103247, Clip Pressure Differential Switch (5x) CLIP PRESSURE DIFFERENTIAL SWITCH (5X)
Remeha-Commercial part no. S103247		 £14.76
1029 Part number S103251, Transformer Ignition TRANSFORMER IGNITION
Remeha-Commercial part no. S103251		 £22.71
1030 Part number S21473, Washer Spring Ring A4,3 (10 Pcs.) WASHER SPRING RING A4,3 (10 PCS.)
Remeha-Commercial part no. S21473		 £8.46
1031 Part number S103315, Cable Clamp (10x) CABLE CLAMP (10X)
Remeha-Commercial part no. S103315		 £16.19

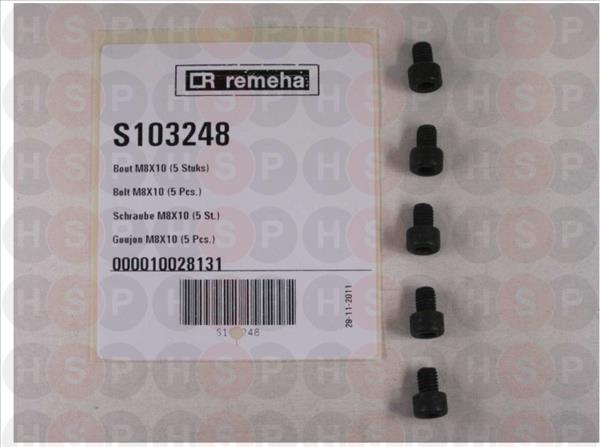

1032 Part number S103248, Bolt M8X10 (5 Pcs.) BOLT M8X10 (5 PCS.)
Remeha-Commercial part no. S103248		 £14.34
1033 Part number S103140, Sealing Ring Flue D:250 (2 Pcs.) SEALING RING FLUE D:250 (2 PCS.)
Remeha-Commercial part no. S103140		 £16.19
1034 Part number S103244, Screw Cap Flue Gas Measure Point (2 Pcs.) SCREW CAP FLUE GAS MEASURE POINT (2 PCS.)
Remeha-Commercial part no. S103244		 £42.71
1035 Part number S62288, Sampling Point Bung Quinta/310 Pro (For 210 PRO use S100850) SAMPLING POINT BUNG QUINTA/310 PRO (FOR 210 PRO USE S100850)
Remeha-Commercial part no. S62288		 £7.11
1035A   FLUE GAS THERMOSTAT
Remeha-Commercial part no. S103023		 £94.10
1036 Part number S103250, Bolt M 8 X 35 (10 Pcs.) BOLT M 8 X 35 (10 PCS.)
Remeha-Commercial part no. S103250		 £11.70
1037 Part number S103260, Bolt M 8 X 20 (10 Pcs.) BOLT M 8 X 20 (10 PCS.)
Remeha-Commercial part no. S103260		 £10.65
1038 Part number S103249, Washer D:8.4Mm (10 Pcs.) WASHER D:8.4MM (10 PCS.)
Remeha-Commercial part no. S103249		 £2.70
1039 Part number S103137, Flue Gas Discharge Adapter 5+8 Sections FLUE GAS DISCHARGE ADAPTER 5+8 SECTIONS
Remeha-Commercial part no. S103137		 £263.99

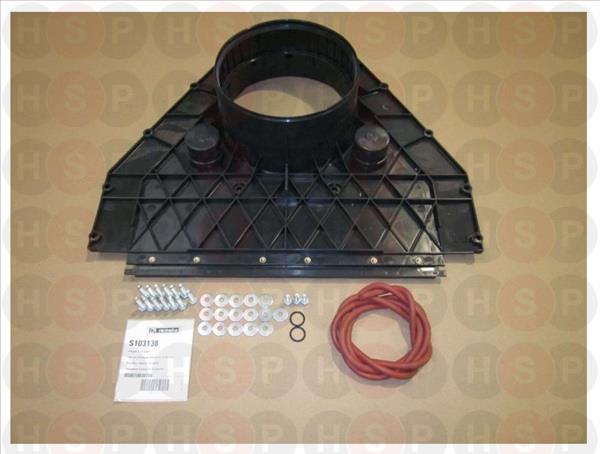

1039 Part number S103138, Flue Gas Discharge Adapter 6+9 Sections FLUE GAS DISCHARGE ADAPTER 6+9 SECTIONS
Remeha-Commercial part no. S103138		 £344.90
1039 Part number S103139, Flue Gas Discharge Adapter 7+10 sections FLUE GAS DISCHARGE ADAPTER 7+10 SECTIONS
Remeha-Commercial part no. S103139		 £339.23
1040 Part number S103141, Sealant Cap (2x) SEALANT CAP (2X)
Remeha-Commercial part no. S103141		 £38.33
1041 Part number S101372, Silicone Cord 10mm (5m) SILICONE CORD 10MM (5M)
Remeha-Commercial part no. S101372		 £122.06
1042 Part number S103135, Condensate Collector 5-7 Sections CONDENSATE COLLECTOR 5-7 SECTIONS
Remeha-Commercial part no. S103135		 £716.78
1042 Part number S103136, Condensate Collector 8-10 sections CONDENSATE COLLECTOR 8-10 SECTIONS
Remeha-Commercial part no. S103136		 £844.50
1043 Part number S103302, Condensate Collector Strip 6 Sections CONDENSATE COLLECTOR STRIP 6 SECTIONS
Remeha-Commercial part no. S103302		 £183.09
1044 Part number S62713, O-RING 20 X 2,5 (10PCS) O-RING 20 X 2,5 (10PCS)
Remeha-Broag part no. S62713		 £16.09
1045 Part number S103243, Adjusting Foot (2x) ADJUSTING FOOT (2X)
Remeha-Commercial part no. S103243		 £42.71
1046 Part number S103143, Connection Syphon CONNECTION SYPHON
Remeha-Commercial part no. S103143		 £17.74
1047 Part number S103261, Sealing Ring 45X34X3 (10 Pcs.) SEALING RING 45X34X3 (10 PCS.)
Remeha-Commercial part no. S103261		 £20.58
1048 Part number S103142, Syphon Assembly SYPHON ASSEMBLY
Remeha-Commercial part no. S103142		 £78.08
1049   AIR/FLUE GAS ADAPTER
Remeha-Commercial part no. S103179		 £289.19
1049A Part number 7600367, CLAMP BAND + GASKET RING 200MM CLAMP BAND + GASKET RING 200MM
Remeha-Broag part no. 7600367		 £268.49
1050 Part number S103178, Flue gas Adapter FLUE GAS ADAPTER
Remeha-Commercial part no. S103178		 £675.60
1050A Part number 7600368, Gas 610 Pro Clamp GAS 610 PRO CLAMP
Remeha-Broag part no. 7600368		 £75.23
