REMEHA-COMMERCIAL
GAS 220 ACE 160 KW BEFORE SERIAL NO. STARTING 20251 - (Gas Valve/Fan Assembly)
Appliance Code: GAS 220 ACE 160 KW BEFORE

Appliance Diagram


Gas Valve/Fan Assembly diagram for Remeha-Commercial Gas 220 ACE 160 kW BEFORE SERIAL NO. STARTING 20251Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

3001 Part number 7628630, Fan including Venturi FAN INCLUDING VENTURI
Remeha-Commercial part no. 7628630		 £533.68
3002 Part number 7628636, Gas Valve 160 GAS VALVE 160
Remeha-Commercial part no. 7628636		 £633.04
3003 Part number 7628639, Venturi Lower VENTURI LOWER
Remeha-Commercial part no. 7628639		 £49.96
3004 Part number 7628710, Set Sealings SET SEALINGS
Remeha-Commercial part no. 7628710		 £38.33
3005   FASTENER SET (GAS/AIR SYSTEM)(QUINTA ACE)
Remeha-Broag part no. 7628712		 £25.34
3006   MIXING ADAPTER FAN SIDE
Remeha-Commercial part no. 7628462		 £110.70

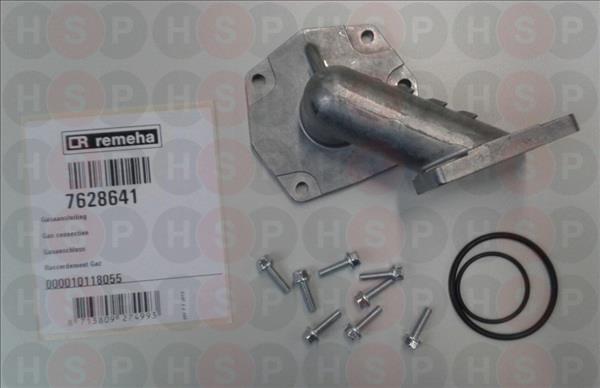

3007 Part number 7628641, Gas Connection GAS CONNECTION
Remeha-Broag part no. 7628641		 £32.79
3008 Part number S100619, O-RING D:52,39X3,53 (5 PCS.) O-RING D:52,39X3,53 (5 PCS.)
Remeha-Commercial part no. S100619		 £9.81
3009   GAS PIPE
Remeha-Broag part no. 7628642		 £68.14
3010 Part number S44483, Nut M 8 (10 pcs.) NUT M 8 (10 PCS.)
Remeha-Commercial part no. S44483		 £17.49
3011 Part number S103356, Pressure Test Nipple 1/8" (2x) PRESSURE TEST NIPPLE 1/8" (2X)
Remeha-Commercial part no. S103356		 £42.71
3012   GAS PIPE
Remeha-Commercial part no. 7656688		 £161.81
3013   WASHER D8 X 24 X 3 MM (10X)
Remeha-Commercial part no. 7660018		 £19.16
3013 Part number S44483, Nut M 8 (10 pcs.) NUT M 8 (10 PCS.)
Remeha-Commercial part no. S44483		 £17.49
3014   SET GROMMETS (RED BLEU AND YE
Remeha-Commercial part no. 7656696		 £32.65
3015 Part number 7633294, Air Inlet Damper AIR INLET DAMPER
Remeha-Commercial part no. 7633294		 £45.55
3016 Part number S103260, Bolt M 8 X 20 (10 Pcs.) BOLT M 8 X 20 (10 PCS.)
Remeha-Commercial part no. S103260		 £10.65
3017   WASHER 8.4MM +Y - PACK OF 25
Remeha-Commercial part no. S100088		 £9.81
