Appliance Code: GAS 120 ACE 115 KW

Appliance Diagram

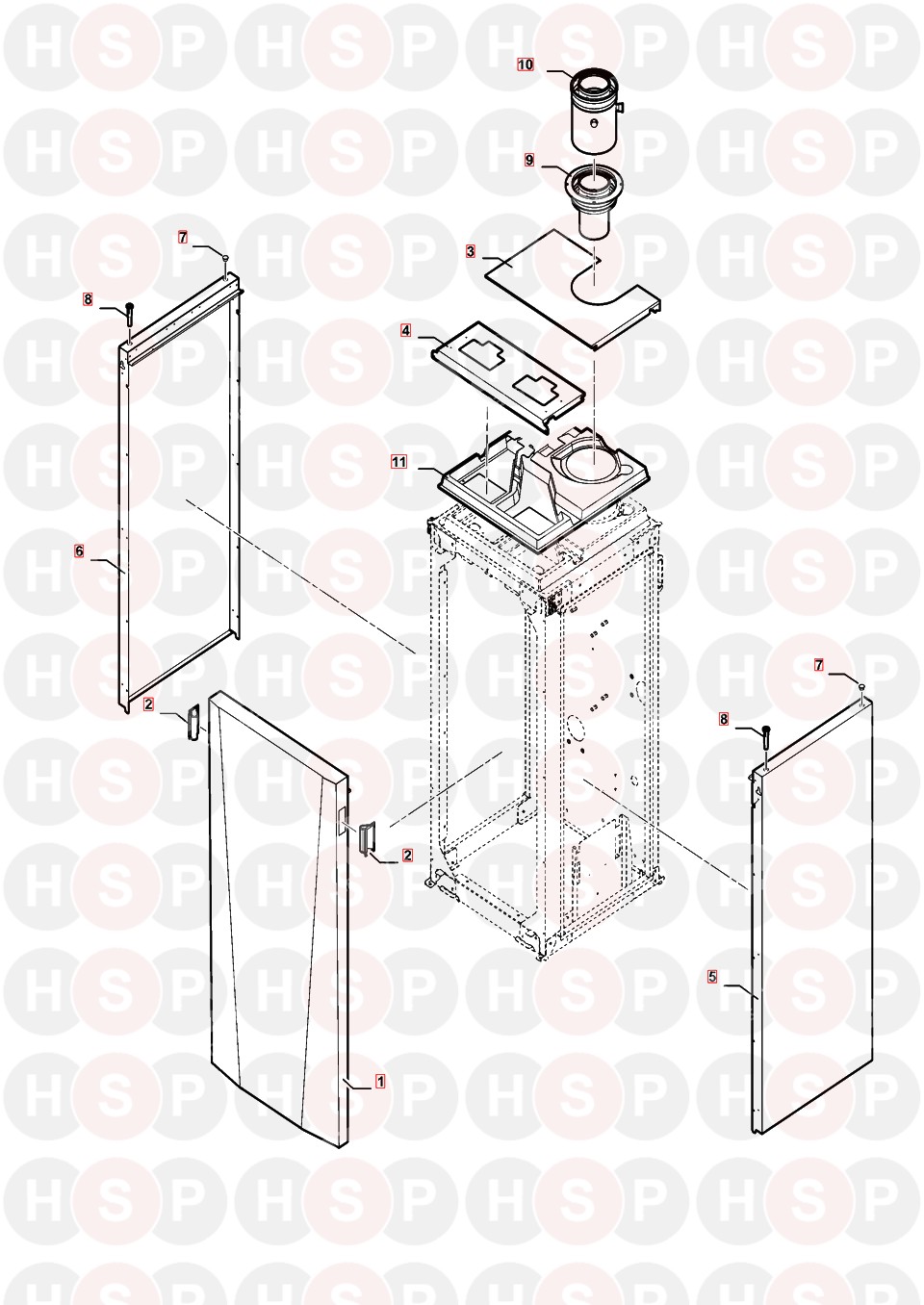

Casing diagram for Remeha-Commercial Gas 120 ACE 115 kWClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   FRONT PANEL - RED
Remeha-Broag part no. 7701417		 £340.65
2 Part number S100419, Casing Front Handle CASING FRONT HANDLE
Remeha-Commercial part no. S100419		 £26.96
3   COVER - TOP (RED)
Remeha-Broag part no. 7701326		 £25.55
4   COVER - TOP/FRONT (RED)
Remeha-Broag part no. 7701403		 £26.96
5   SIDE PANEL - RH
Remeha-Broag part no. 7701440		 £97.09
6   SIDE PANEL - LH
Remeha-Broag part no. 7701441		 £97.09
7   PLUG - 15.9MM (BLACK)
Remeha-Broag part no. 7702298		 £0.35
8   UNLOCKING GUIDE
Remeha-Broag part no. 7697418		 £3.91
9   FLUE ADAPTER - 111/150MM
Remeha-Broag part no. 7673627		 £72.39
10   FLUE ADAPTER EXTENSION - 100/150MM
Remeha-Broag part no. 7700395		 £68.14
11   CABLE SUPPORT
Remeha-Broag part no. 7676213		 £85.30
