RAVENHEAT
CSI 120 LOW NOX NG/LPG UP TO SERIAL NO 16007132 - (Exploded View Serial UP TO NO 16007132)
Appliance Code: 47-581-37

Appliance Diagram


Exploded View Serial UP TO NO 16007132 diagram for Ravenheat CSI 120 Low NOx NG/LPG Up To Serial No 16007132Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 0014PAN11005/0, INSTRUMENT PANEL - CSI120 - WHITE INSTRUMENT PANEL - CSI120 - WHITE
Ravenheat part no. 0014PAN11005/0		 £66.68
2 Part number 0012INT09010/0, SUMMER WINTER/MAIN SWITCH - LS & 120/150 SUMMER WINTER/MAIN SWITCH - LS & 120/150
Ravenheat part no. 0012INT09010/0		 £21.95
3 Part number 0012POT11005/0, D.H.W/C.H. POTENTIOMETER - LOW NOX D.H.W/C.H. POTENTIOMETER - LOW NOX
Ravenheat part no. 0012POT11005/0		 £40.98
4 Part number 0007TER08005/0, OVERHEAT STAT AUTO RESET-0204 20/20 CSI OVERHEAT STAT AUTO RESET-0204 20/20 CSI
Ravenheat part no. 0007TER08005/0		 £14.14
5 Part number 0006IDR11005/0, WATER PRESSURE GAUGE WATER PRESSURE GAUGE
Ravenheat part no. 0006IDR11005/0		 £39.52
6 Part number 0007SON11010/0, CLIP ON SENSOR 18mm CH CLIP ON SENSOR 18MM CH
Ravenheat part no. 0007SON11010/0		 £22.06
8 Part number 0012TRA11010/0, AC/DC TRANSFORMER AC/DC TRANSFORMER
Ravenheat part no. 0012TRA11010/0		 £58.16
9 Part number 0012GEN11005/0, IGNITION CONTROL BOARD IGNITION CONTROL BOARD
Ravenheat part no. 0012GEN11005/0		 £193.83
10 Part number 0008VAL11005/0, NOW USE 0008VAL11005/1 GAS VALVE NOW USE 0008VAL11005/1 GAS VALVE
Ravenheat part no. 0008VAL11005/0

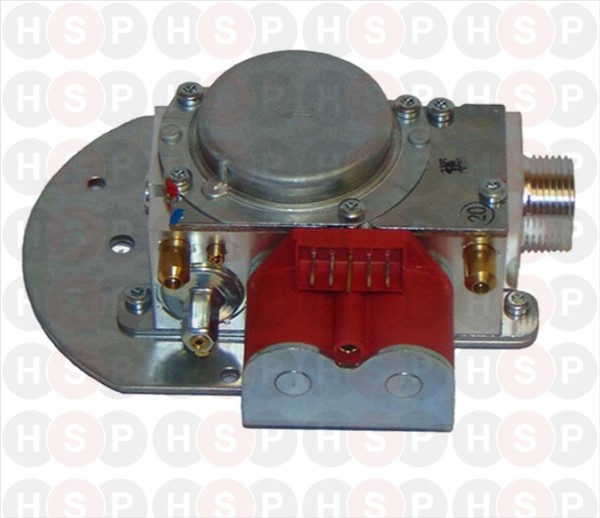

10 Part number 0008VAL11005/1, DUNGS GAS VALVE CSI 120 DUNGS GAS VALVE CSI 120
Ravenheat part no. 0008VAL11005/1		 £225.94
11 Part number 0012CAN11005/0, IGNITION ELECTRODE - CSI120 IGNITION ELECTRODE - CSI120
Ravenheat part no. 0012CAN11005/0		 £9.79
12 Part number 0012CAN11010/0, SENSING ELECTRODE - CSI120 SENSING ELECTRODE - CSI120
Ravenheat part no. 0012CAN11010/0		 £9.79
13 Part number 0012CAV11005/0, CABLE FOR SPARK ELECTRODE - CSI120 CABLE FOR SPARK ELECTRODE - CSI120
Ravenheat part no. 0012CAV11005/0
15 Part number 0002SCA11005/0, HEAT EXCHANGER CSI 120 HEAT EXCHANGER CSI 120
Ravenheat part no. 0002SCA11005/0		 £522.28
16   HEAT EXCHANGER COVER ASSEMBLY
Ravenheat part no. 0002COP11005/0		 £169.91
17 Part number 0012VEN11005/0, FAN - CSI120 FAN - CSI120
Ravenheat part no. 0012VEN11005/0		 £240.94
18 Part number 0012CIR11015/0, MODULATING CONTROL BOARD MODULATING CONTROL BOARD
Ravenheat part no. 0012CIR11015/0		 £214.53

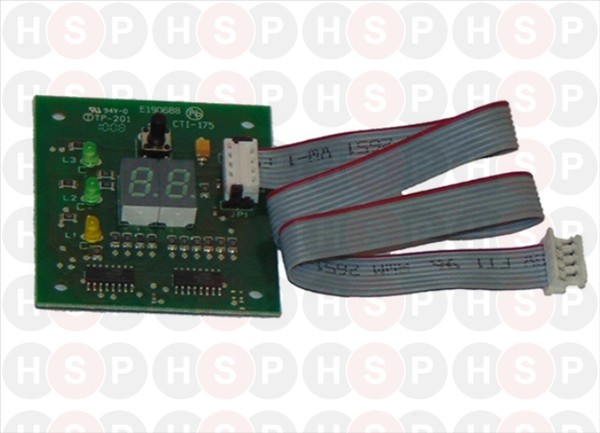

19 Part number 0012CIR11020/0, DIGITAL DISPLAY BOARD DIGITAL DISPLAY BOARD
Ravenheat part no. 0012CIR11020/0		 £67.44
20 Part number 0014RAC11005/0, CONDENSATE TRAP - CSI120 CONDENSATE TRAP - CSI120
Ravenheat part no. 0014RAC11005/0		 £30.24
21 Part number 0009CIR11005/0, CIRCULATION PUMP CSI120/150 CIRCULATION PUMP CSI120/150
Ravenheat part no. 0009CIR11005/0		 £113.31
22 Part number 0008VAL11010/0, AIR PURGE VALVE AIR PURGE VALVE
Ravenheat part no. 0008VAL11010/0		 £12.08
23 Part number 0008VAL01018/1, SAFETY RELIEF VALVE - PUSH TO PUSH FIT SAFETY RELIEF VALVE - PUSH TO PUSH FIT
Ravenheat part no. 0008VAL01018/1		 £14.52
24 Part number 0002COL11005/0, FLUE GAS EXHAUST MANIFOLD FLUE GAS EXHAUST MANIFOLD
Ravenheat part no. 0002COL11005/0		 £65.48
25 Part number 0003BRU11005/0, BURNER - CSI120 BURNER - CSI120
Ravenheat part no. 0003BRU11005/0		 £105.23
25   BURNER - CSI150
Ravenheat part no. 0003BRU11010/0		 £105.23
26 Part number 0008VAL09010/0, 3 WAY VALVE - LS80/LS100 3 WAY VALVE - LS80/LS100
Ravenheat part no. 0008VAL09010/0		 £147.77
27 Part number 0005PRE03010/0, LOW WATER PRESSURE SWITCH LOW WATER PRESSURE SWITCH
Ravenheat part no. 0005PRE03010/0		 £34.72
28 Part number 0004VAS11011/0, 8 LT EXPANSION VESSEL - 3/8 LOW NOX 8 LT EXPANSION VESSEL - 3/8 LOW NOX
Ravenheat part no. 0004VAS11011/0		 £81.39
29 Part number 0002SCA11030/0, HEAT EXCHANGER - 20 PLATE CSI 120 HEAT EXCHANGER - 20 PLATE CSI 120
Ravenheat part no. 0002SCA11030/0		 £174.43
30 Part number TM6192, DIGITAL TIMER DIGITAL TIMER
Ravenheat part no. TM6192		 £65.09
32 Part number 5021103, 500 MIL. AMP FUSE 500 MIL. AMP FUSE
Ravenheat part no. 5021103		 £0.89
33 Part number 0012FUS01015/0, INTERNAL FUSE - 3A INTERNAL FUSE - 3A
Ravenheat part no. 0012FUS01015/0		 £0.94
