WORCESTER
CAMRAY 25/32 SYSTEM (AUG 2007 ONWARDS) 7716100123 - (Hydraulics)
Appliance Code: 7716100123

Appliance Diagram

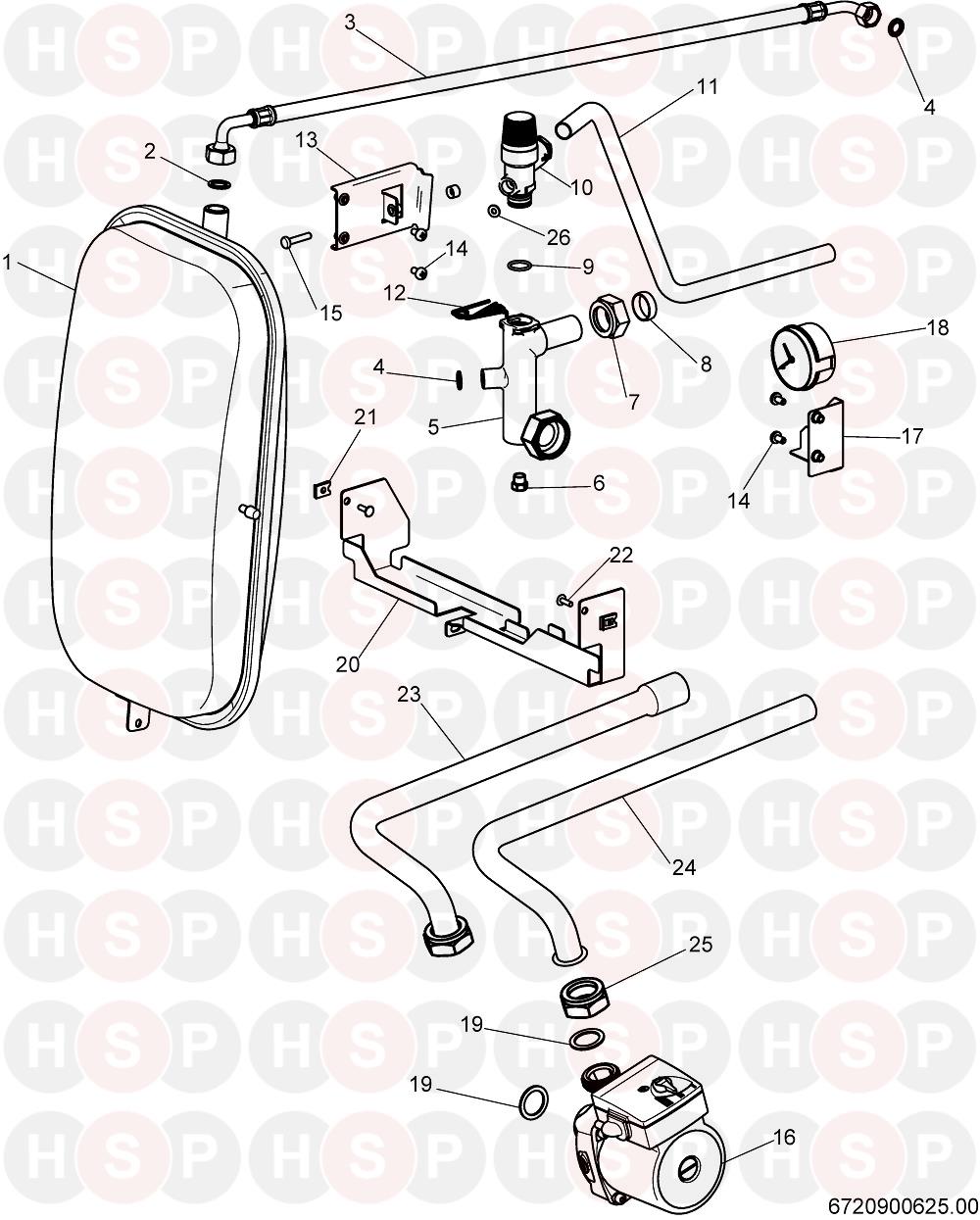

Hydraulics diagram for Worcester Camray 25/32 System (Aug 2007 Onwards) 7716100123Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 87154072960, NOW USE 8716122434 EXPANSION VESSEL 7L NOW USE 8716122434 EXPANSION VESSEL 7L
Worcester part no. 87154072960
1   EXPANSION VESSEL
Worcester part no. 8716122434		 £92.23
2 Part number 87101030450, WASHER 18.6 X 13.5 X 1.5 (10X) WASHER 18.6 X 13.5 X 1.5 (10X)
Worcester part no. 87101030450		 £2.95
2 Part number 87161156800, WASHER 18.6 X 13.5 X 1.5 (1X) WASHER 18.6 X 13.5 X 1.5 (1X)
Worcester part no. 87161156800		 £0.86
3 Part number 87161124260, FLEXIBLE HOSE FLEXIBLE HOSE
Worcester part no. 87161124260		 £22.40
4 Part number 87161409210, WASHER FIBRE 15.0 X 10.0 X 1.0 WASHER FIBRE 15.0 X 10.0 X 1.0
Worcester part no. 87161409210		 £3.20
5   SYSTEM MANIFOLD ASSEMBLY
Worcester part no. 87161120670		 £81.96
6 Part number 87161402110, PLUG 1/8 TAPER PLUG 1/8 TAPER
Worcester part no. 87161402110		 £3.53
7 Part number 87161480110, CAP NUT 22MM CAP NUT 22MM
Worcester part no. 87161480110		 £1.18
8 Part number 87161402960, RING-COMPRESSION 22MM RING-COMPRESSION 22MM
Worcester part no. 87161402960		 £4.31
9 Part number 87161156750, O-RING 16X2 (X1) O-RING 16X2 (X1)
Worcester part no. 87161156750		 £2.79
9 Part number 87161408140, O-RING 2.0 X 16.00 ID EP (10X) O-RING 2.0 X 16.00 ID EP (10X)
Worcester part no. 87161408140		 £2.79
10 Part number 87161424220, PRESSURE RELIEF VALVE - 314439 PRESSURE RELIEF VALVE - 314439
Worcester part no. 87161424220		 £17.17
11   PRV DRAIN PIPE
Worcester part no. 87161120660		 £11.37
12 Part number 87186846990, CLIP WIRE 18MM (10X) CLIP WIRE 18MM (10X)
Worcester part no. 87186846990		 £2.78
13   BRACKET EXPANSION TANK
Worcester part no. 87161120720		 £4.94
14 Part number 29124511520, SCREW M5 X 10 PAN HEAD POZI ZP BEFORE FD005 SCREW M5 X 10 PAN HEAD POZI ZP BEFORE FD005
Worcester part no. 29124511520		 £2.63
15 Part number 29124511640, SCREW M5 X 25 PAN HD POZI BEFORE FD005 SCREW M5 X 25 PAN HD POZI BEFORE FD005
Worcester part no. 29124511640		 £0.05
16 Part number 87161122930, NOW USE 8716119842 PUMP ASSEMBLY NOW USE 8716119842 PUMP ASSEMBLY
Worcester part no. 87161122930
16   PUMP ASSEMBLY
Worcester part no. 8716119842		 £139.97
17   BRACKET GAUGE
Worcester part no. 87161132840		 £13.03
18 Part number 87161076380, PRESSURE GAUGE PRESSURE GAUGE
Worcester part no. 87161076380		 £18.44
19 Part number 87161409200, WASHER 30.5X22.2X1.5 WASHER 30.5X22.2X1.5
Worcester part no. 87161409200		 £2.79
20   BRACKET EXPANSION TANK
Worcester part no. 87161120740		 £31.45
21 Part number 87161482040, NUT CAPTIVE NO:8 NUT CAPTIVE NO:8
Worcester part no. 87161482040		 £4.24
22 Part number 87161153060, SCREW (10X) 8X1/2" AFTER FD992 SCREW (10X) 8X1/2" AFTER FD992
Worcester part no. 87161153060		 £3.59
23   PIPE PUMP TO CH OUT
Worcester part no. 87161124270		 £36.70
26 Part number 87161409120, WASHER WASHER
Worcester part no. 87161409120		 £2.63
