VOKERA
LINEA 25 HE REV 9 (06/2008) - (Hydraulics 2)
Appliance Code: 47-094-60 Rev 9

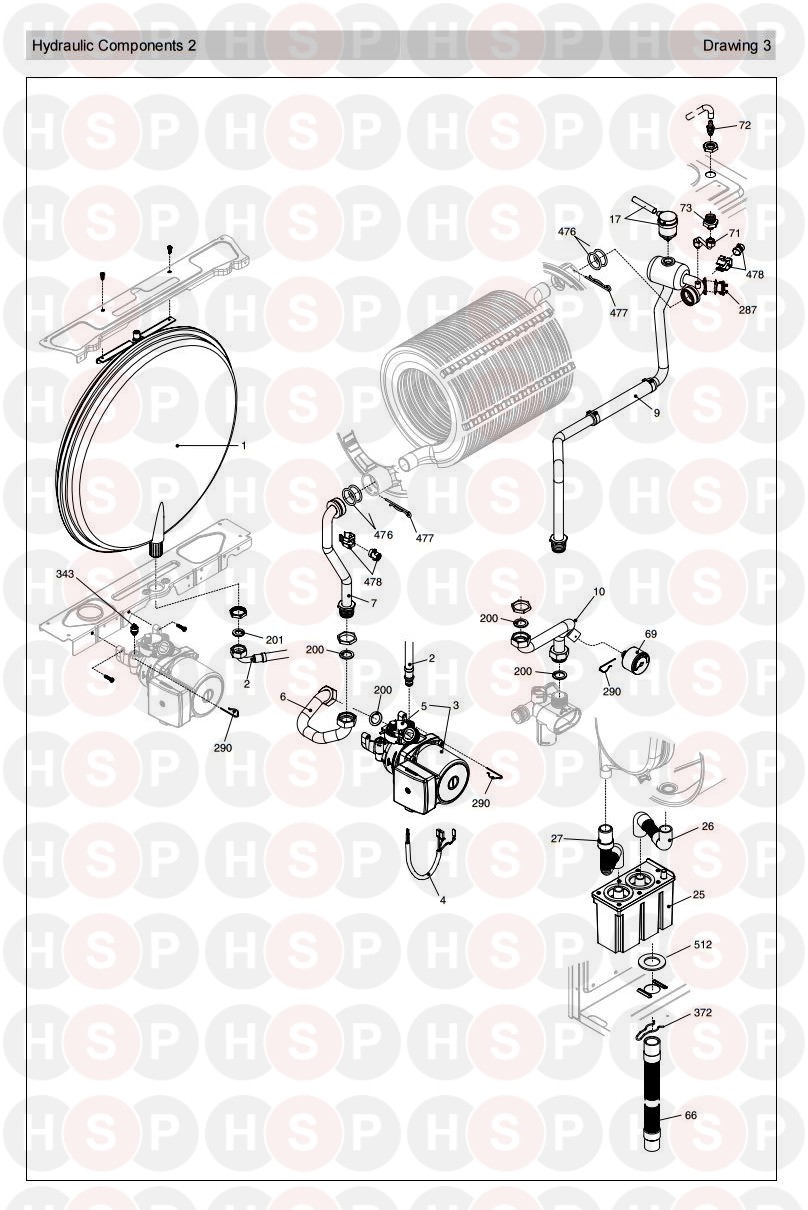

Appliance Diagram


Hydraulics 2 diagram for Vokera Linea 25 HE Rev 9 (06/2008)Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1 Part number 2573, Expansion Vessel Rep 106333 10 Litre EXPANSION VESSEL REP 106333 10 LITRE
Vokera part no. 2573		 £108.30
2 Part number 10025188, Flexible pipe for Expansion vessel FLEXIBLE PIPE FOR EXPANSION VESSEL
Vokera part no. 10025188		 £16.15
3 Part number 10027571, NOW USE 20185332 Pump NOW USE 20185332 PUMP
Vokera part no. 10027571
3   ERP PUMP - REPLACED 10027571 10027258 20039926 & 20005582
Vokera part no. 20185332		 £209.00
4   J8 TO PUMP WIRING HARNESS
Vokera part no. 10026338		 £16.15
5 Part number 10025485, Auto air vent bottle (Pump) AUTO AIR VENT BOTTLE (PUMP)
Vokera part no. 10025485		 £19.95
6 Part number 10026264, Pipe PIPE
Vokera part no. 10026264		 £19.95
7 Part number 10026267, Pipe (Rep 10027317) PIPE (REP 10027317)
Vokera part no. 10026267		 £29.45
10   PIPE
Vokera part no. 10027146		 £30.40
17 Part number 10029306, Auto air vent (Brass) Replaced 100618 AUTO AIR VENT (BRASS) REPLACED 100618
Vokera part no. 10029306		 £20.90
25 Part number 10028405, Siphon SIPHON
Vokera part no. 10028405		 £56.05
26 Part number 10027191, Pipe PIPE
Vokera part no. 10027191		 £7.79
27 Part number 10027192, Flexible pipe FLEXIBLE PIPE
Vokera part no. 10027192		 £7.13
66 Part number 10026272, Flexible Pipe FLEXIBLE PIPE
Vokera part no. 10026272		 £8.55
69 Part number 10027135, Pressure gauge PRESSURE GAUGE
Vokera part no. 10027135		 £22.80
71   NOW USE 20019766 PIPE
Vokera part no. 10028516
71   AIR BLEEDING CONNECTION PIPE (REP 10028516 & 10028515)
Vokera part no. 20019766		 £13.30
72 Part number 01005137, Venting Plugs Kit VENTING PLUGS KIT
Vokera part no. 01005137		 £10.45
73 Part number 10028431, COCK (up to serial no, 20099226O0950120) COCK (UP TO SERIAL NO, 20099226O0950120)
Vokera part no. 10028431		 £9.50
200 Part number 5023, 3/4" Fibre Washer 3/4" FIBRE WASHER
Vokera part no. 5023		 £0.48
201 Part number 5026, 1/2" Fibre Washer 1/2" FIBRE WASHER
Vokera part no. 5026		 £0.38
287 Part number 2258, High Limit Thermostat HIGH LIMIT THERMOSTAT
Vokera part no. 2258		 £9.50
290 Part number 10027757, Locking Pin LOCKING PIN
Vokera part no. 10027757		 £0.76
290 Part number 2165, NOW USE 10027757 LOCKING PIN NOW USE 10027757 LOCKING PIN
Vokera part no. 2165
343 Part number 2216, Manifold Plug MANIFOLD PLUG
Vokera part no. 2216		 £3.14
372   CLIP
Vokera part no. 2588		 £0.86
476 Part number 10026324, O ring O RING
Vokera part no. 10026324		 £2.95
477 Part number 10026269, Clip CLIP
Vokera part no. 10026269		 £1.05
478 Part number 10026273, NOW USE 20081926 NTC NOW USE 20081926 NTC
Vokera part no. 10026273
478 Part number 20081926, Thermistor/NTC Replaced 20003819 and 20004365 THERMISTOR/NTC REPLACED 20003819 AND 20004365
Vokera part no. 20081926		 £17.10
512 Part number 10027193, Washer WASHER
Vokera part no. 10027193		 £1.14
