POTTERTON
PROMAX HE STORE 115 LITRES - (Hydraulics)
Appliance Code: 41-591-76

Appliance Diagram

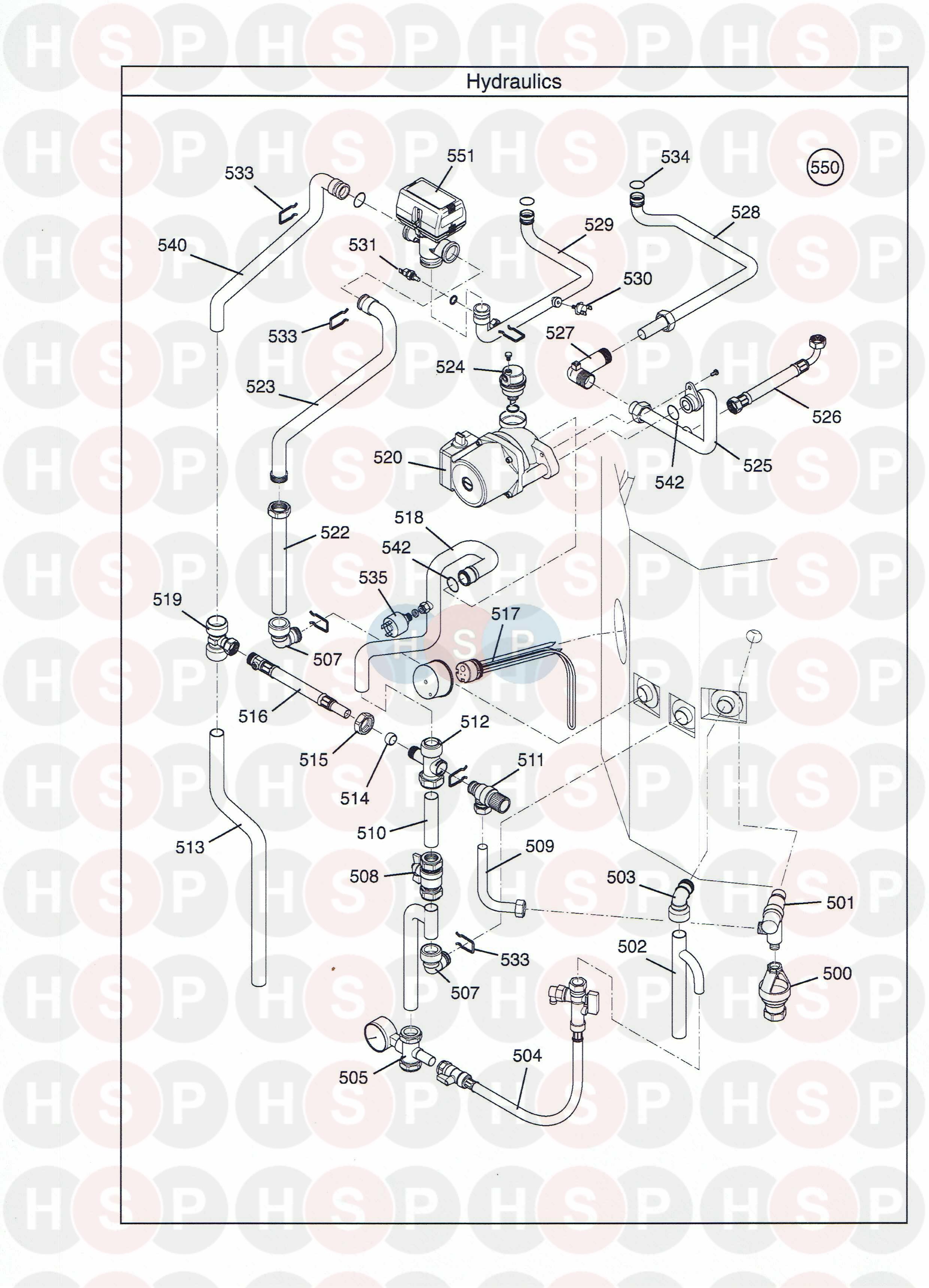

Hydraulics diagram for Potterton Promax HE Store 115 LitresClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

101   TOP PANEL LID ASSY
Potterton part no. 5120121		 £61.56
105   TOP FRONT PANEL ASSY
Potterton part no. 5120122		 £68.69
110   FRONT PANEL ASSEMBLY (GLOSS)
Potterton part no. 5108273		 £86.17
115   LOWER PLINTH 115LT(GLOSS)
Potterton part no. 5108280		 £59.89
120 Part number 5117117, IMMERSION HEATER KIT 3KW IMMERSION HEATER KIT 3KW
Potterton part no. 5117117		 £164.15
125   NOW USE 670022 M5X10POZI P/HD SET SCREW PK10
Potterton part no. 5106921
125   SCREW M5X8 MCHEX POZ SZ
Potterton part no. 670022		 £3.16
201 Part number 248088, COVER - ELECTRICAL BOX COVER - ELECTRICAL BOX
Potterton part no. 248088		 £9.83
203 Part number 248072, PANEL - ACCESS PANEL - ACCESS
Potterton part no. 248072		 £5.88
205 Part number 5117086, PCB PROMAX STORE PCB PROMAX STORE
Potterton part no. 5117086		 £136.46
206 Part number 248096, DRIVE PIN - POTENTIOMETER DRIVE PIN - POTENTIOMETER
Potterton part no. 248096		 £3.26
210 Part number 5117092, PROGRAMMER PROGRAMMER
Potterton part no. 5117092
220 Part number 248095, SWITCH - SELECTOR SWITCH - SELECTOR
Potterton part no. 248095		 £11.95
225 Part number 247480, TERMINAL BLOCK TERMINAL BLOCK
Potterton part no. 247480		 £7.15
226 Part number 248089, NOW USE 7727139 FUSE (2A 250V) NOW USE 7727139 FUSE (2A 250V)
Potterton part no. 248089
226 Part number 720853801, NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER NOW USE 7727139 FUSE 2A 250V IN FUSE HOLDER
Potterton part no. 720853801
226 Part number 7727139, FUSE 2A 250V IN FUSEHOLDER FUSE 2A 250V IN FUSEHOLDER
Baxi part no. 7727139		 £29.61
226   KIT TERMINAL BLOCK AND FUSES
Potterton part no. 7727139		 £29.61
227 Part number 5114775, TERMINAL BLOCK TERMINAL BLOCK
Potterton part no. 5114775		 £5.88
228 Part number 247481, FUSE HOLDER FUSE HOLDER
Potterton part no. 247481		 £4.57
230   FASCIA PROMAX HE WHITE ABS
Potterton part no. 5117104		 £30.36
231 Part number 5116069, KNOB SELECTOR SWITCH KNOB SELECTOR SWITCH
Potterton part no. 5116069		 £3.26
235 Part number 248090, GAUGE PRESSURE C/W RETAINER GAUGE PRESSURE C/W RETAINER
Potterton part no. 248090		 £23.80
301   WIRING HARNESS-LIMIT.FLUE.FAN
Potterton part no. 5117673		 £32.49
305   WIRING HARNESS - PROGRAMMER
Potterton part no. 5117088		 £8.00
310   WIRING HARNESS-PUMP.DIV.G/VALV
Potterton part no. 5117670		 £31.98
315   WIRING HARNESS - WPS.DHW.PROG
Potterton part no. 5117671		 £14.51
320 Part number 5106290, DHW SENSOR C/W CABLE 1000mm DHW SENSOR C/W CABLE 1000MM
Potterton part no. 5106290		 £27.87
325   WIRING HARNESS - FAN.SPARK GEN
Potterton part no. 5117672		 £27.51
330 Part number 5114787, EARTH CABLE - PCB EARTH CABLE - PCB
Potterton part no. 5114787		 £3.10
335   WIRING HARNESS - SELECT SWIT.
Potterton part no. 5114784		 £5.45
340   WIRING HARNESS - CONNECTOR
Potterton part no. 5114785		 £3.14
345 Part number 5114786, EARTH CABLE EARTH CABLE
Potterton part no. 5114786		 £2.89
400 Part number 5114687, HEAT EXCHANGER 5E HEAT EXCHANGER 5E
Potterton part no. 5114687		 £414.94
401 Part number 5114747, NTC SENSOR NTC SENSOR
Potterton part no. 5114747		 £15.58
405 Part number 5115060, REAR INSULATION REAR INSULATION
Potterton part no. 5115060		 £9.51
406 Part number 5114686, INSULATION PANEL INSULATION PANEL
Potterton part no. 5114686		 £26.24
407 Part number 5114755, COMB. CHAMBER GASKET COMB. CHAMBER GASKET
Potterton part no. 5114755		 £15.61
410 Part number 5114697, NOW USE 7682284 BURNER-5 ELEMENT NOW USE 7682284 BURNER-5 ELEMENT
Potterton part no. 5114697
410 Part number 7682284, BURNER AND DOOR KIT 5E BURNER AND DOOR KIT 5E
Potterton part no. 7682284		 £79.61
411 Part number 5114751, BURNER GASKET BURNER GASKET
Potterton part no. 5114751		 £3.26
412   SPACER - MANIFOLD TO COVER
Potterton part no. 5117077		 £14.36
430 Part number 5114750, COMB. CHAMBER UPPER COVER COMB. CHAMBER UPPER COVER
Potterton part no. 5114750		 £39.25
435   SIGHT GLASS
Potterton part no. 5106034		 £10.67
437 Part number 5114759, GASKET GASKET
Potterton part no. 5114759		 £4.00
438 Part number 5114701, LEAD - IGNITION LEAD - IGNITION
Potterton part no. 5114701		 £14.36
439 Part number 5114772, GASKET - ELECTRODE GASKET - ELECTRODE
Potterton part no. 5114772		 £3.26
440 Part number 5114752, ELECTRODE GASKET ELECTRODE GASKET
Potterton part no. 5114752		 £3.26
441 Part number 5114702, NOW USE 720222801 IGNITION ELECTRODE NOW USE 720222801 IGNITION ELECTRODE
Potterton part no. 5114702
441 Part number 720222801, KIT - ELECTRODE IGNITION KIT - ELECTRODE IGNITION
Potterton part no. 720222801		 £25.98
442 Part number 5117275, ELECTRODE - IONISATION ELECTRODE - IONISATION
Potterton part no. 5117275		 £40.08
443 Part number 5114770, EARTH/IGNITOR CABLE EARTH/IGNITOR CABLE
Potterton part no. 5114770		 £4.57
450   GAS PIPE ASSY 18MM VALV-VENTURI
Potterton part no. 5117076		 £19.25
452 Part number 5114757, GAS VALVE CONNECTOR GAS VALVE CONNECTOR
Potterton part no. 5114757		 £6.28
453 Part number 5114733, CONNECTOR - GAS VALVE INLET CONNECTOR - GAS VALVE INLET
Potterton part no. 5114733		 £18.65
454   GAS PIPE ASSY 18MM 3/4U X 22MM
Potterton part no. 5117506		 £27.58
455   GASCOCK 22MM
Potterton part no. 5117507		 £33.88
456   BRACKET GAS VALVE UPPER
Potterton part no. 5118106		 £9.04
457   BRACKET GAS VALVE LOWER
Potterton part no. 5118107		 £6.31
460   OBSOLETE O RING - GAS
Potterton part no. 5402011
461   SEAL GAS FLANGED
Potterton part no. 5408221		 £3.34
462   GASKET
Potterton part no. 5404652		 £14.21
480 Part number 720514301, NOW USE 720301001 GAS VALVE NOW USE 720301001 GAS VALVE
Potterton part no. 720514301
480   KIT GAS VALVE
Potterton part no. 720301001		 £80.78
489 Part number 5114769, AIR/GAS COVER ASSY AIR/GAS COVER ASSY
Potterton part no. 5114769		 £35.08
491 Part number 5114682, PRESSURE SENSING VENTURI PRESSURE SENSING VENTURI
Potterton part no. 5114682		 £52.94
492 Part number 5114758, FAN GASKET FAN GASKET
Potterton part no. 5114758		 £5.88
493   INJECTOR
Potterton part no. 5117504		 £9.57
500 Part number 5106019, TUNDISH TUNDISH
Potterton part no. 5106019		 £13.99
501 Part number 5106095, TRPV 1/2 x 15 TRPV 1/2 X 15
Potterton part no. 5106095		 £50.91
502   FILLING LOOP INLET PIPE
Potterton part no. 5106147		 £29.64
503   ELBOW (PUSH FIT)
Potterton part no. 5114603		 £35.33
504 Part number 5106144, FILLING LOOP C/W DOUBLE CV FILLING LOOP C/W DOUBLE CV
Potterton part no. 5106144		 £40.48
505   PRESSURE GAUGE ASSEMBLY
Potterton part no. 5106224		 £50.55
508   22MM 1/4 TURN VALVE (BEMASAN)
Potterton part no. 5107382		 £20.40
509   DISCHARGE PIPE 15MM
Potterton part no. 5106137		 £13.52
510   CONE ENDED PIPE & NUT
Potterton part no. 5106141		 £13.52
511 Part number 5106288, PRESSURE RELIEF VALVE PRESSURE RELIEF VALVE
Potterton part no. 5106288		 £24.64
512   OBSOLETE CROSS PRV ASSEMBLY
Potterton part no. 5106219
516 Part number 5111833, FLEXIBLE BYPASS VALVE - KIT FLEXIBLE BYPASS VALVE - KIT
Potterton part no. 5111833		 £46.25
518   RETURN PIPE - CROSS TO PUMP
Potterton part no. 5117079		 £60.01
519   TECHTITE FITTING
Potterton part no. 5117293		 £29.46
522   PIPE FLOW CYLINDER 115L
Potterton part no. 5106182		 £26.88
523   PIPE - DIV TO CYLINDER
Potterton part no. 5117082		 £48.91
524 Part number 248043, AIR VENT - AUTOMATIC AIR VENT - AUTOMATIC
Potterton part no. 248043		 £12.50
525   RETURN PIPE PUMP ISOLATING VLV
Potterton part no. 5117407		 £26.56
526   FLEXIBLE HOSE (EXP VESSEL)
Potterton part no. 5117635		 £13.35
527   ISOLATING VALVE
Potterton part no. 5117631		 £31.10
528   RETURN PIPE ISO VLV TO HEAT EX
Potterton part no. 5117075		 £23.36
529   FLOW PIPE - HEAT EX TO DIV
Potterton part no. 5117080		 £35.51
530 Part number 5106291, OVERHEAT THERMOSTAT OVERHEAT THERMOSTAT
Potterton part no. 5106291		 £27.90
531 Part number 5114725, NTC SENSOR NTC SENSOR
Potterton part no. 5114725		 £11.06
533   RETAINING SPRING CLIP
Potterton part no. 5106603		 £5.88
534   O RING 17.86X2.68MM EPDM(PK 2)
Potterton part no. 5106237		 £7.15
535 Part number 5114748, PRESSURE SWITCH PRESSURE SWITCH
Potterton part no. 5114748		 £19.79
540   PIPE DIV TO CH
Potterton part no. 5117083		 £27.29
541 Part number 240812, O-RING 20.64 x 2.62mm O-RING 20.64 X 2.62MM
Potterton part no. 240812		 £3.26
542 Part number 247429, O RING 22MM X 3MM O RING 22MM X 3MM
Potterton part no. 247429		 £3.16
550 Part number 5106931, 3 WAY VALVE ASSEMBLY 3 WAY VALVE ASSEMBLY
Potterton part no. 5106931		 £207.80
551 Part number 5107000, VALVE ACTUATOR HEAD VALVE ACTUATOR HEAD
Potterton part no. 5107000		 £127.65
600 Part number 5112369, FLUE ADAPTER HE (NO SEALS) FLUE ADAPTER HE (NO SEALS)
Potterton part no. 5112369		 £12.33
601 Part number 5112370, GASKET ADAPTER GASKET ADAPTER
Potterton part no. 5112370		 £4.57
602 Part number 247731, PLATE BLANKING PLATE BLANKING
Potterton part no. 247731		 £5.88
603 Part number 247732, GASKET - PLATE BLANKING GASKET - PLATE BLANKING
Potterton part no. 247732		 £3.26
604 Part number 5113313, TAP ADAPTER TAP ADAPTER
Potterton part no. 5113313		 £4.57
605   CROSS BAR TOP
Potterton part no. 5117070		 £10.60
606 Part number 5117636, EXPANSION VESSEL EXPANSION VESSEL
Potterton part no. 5117636		 £118.11
607 Part number 5114774, GASKET WITH DOUBLE LIP GASKET WITH DOUBLE LIP
Potterton part no. 5114774		 £3.26
608 Part number 5114771, GROMMET GROMMET
Potterton part no. 5114771		 £3.26
610   U BRACKET FLUE P/MAX STORE
Potterton part no. 5120113		 £3.44
611   CONDENSATE HOSE
Potterton part no. 5118166		 £10.23
612   SPRING CLIP
Potterton part no. 5119888		 £4.87
613   SPRING CLIP
Potterton part no. 5119886		 £3.98
614   BULK HEAD FITTING
Potterton part no. 5117091		 £4.88
615   SPRING CLIP
Potterton part no. 5119887		 £3.52
616   CONDENSATE HOSE
Potterton part no. 5118167		 £9.50
617   CONDENSATE TRAP ASSY INC HOSE
Potterton part no. 5117676		 £31.29
618   BRACKET UPPER CONDENSATE TRAP
Potterton part no. 5117073		 £7.91
619   BRACKET LOWER CONDENSATE TRAP
Potterton part no. 5117096		 £6.58
620   FITTING TRAP INLET
Potterton part no. 5117926		 £5.11
630   AIR BOX FRONT COVER
Potterton part no. 5117272		 £75.38
633   RETAINING BRACKET
Potterton part no. 5114841		 £6.57
635   PUMP BRACKET
Potterton part no. 5117394		 £14.07
636   SET SCREW M6X12 SEMS HEX SSA2
Potterton part no. 5106196		 £3.89
637   EXPANSION VESSEL SUPPORT CHANE
Potterton part no. 5117087		 £13.74
