PROMAX FSB 30 HE - (Identification)
Appliance Code: 41-595-39

Appliance Diagram


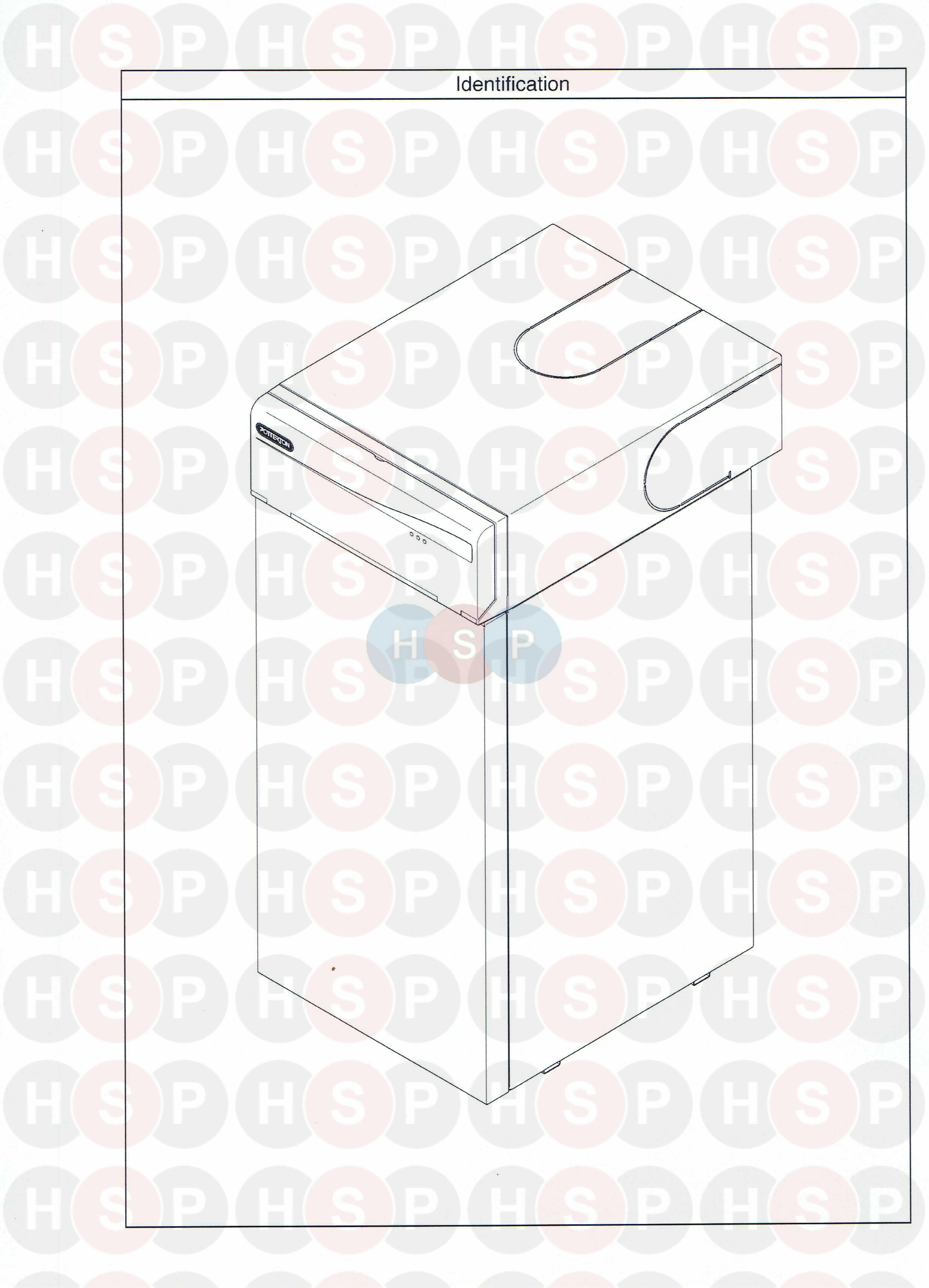

Identification diagram for Potterton Promax FSB 30 HEClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

102   PANEL CASE SIDE PAINTED
Potterton part no. 5117465		 £50.02
103   PANEL CASE BASE PLATE
Potterton part no. 5116608		 £26.62
104   ASSY BRKT COMB BOX SUPPORT
Potterton part no. 5117470		 £15.37
105 Part number 5109996, KNOB CONTROL KNOB CONTROL
Potterton part no. 5109996		 £5.79
106   ASSY CASE PANEL REAR
Potterton part no. 5116631		 £48.82
107   ASSY PANEL CASE TOP
Potterton part no. 5117468		 £29.77
109   SCR-TF-M4X10MM-PAN POZI ZNPD
Potterton part no. 062757		 £3.06
110 Part number 5110991, NOW USE 5121025 ELECTRONIC CONTROL NOW USE 5121025 ELECTRONIC CONTROL
Potterton part no. 5110991
110 Part number 5121025, ELECTRONIC CONTROL ELECTRONIC CONTROL
Potterton part no. 5121025		 £272.31
113   NOW USE 5121214 PANEL CASE TOP WRAP PAINTED
Potterton part no. 5117466
113   PROMAX FSB TOP PANEL - SPARE
Potterton part no. 5121214		 £50.37
114   PANEL CASE DOOR PAINTED
Potterton part no. 5117467		 £39.24
115   FACIA ASSEMBLY
Potterton part no. 5117031		 £44.81
115   DECAL PROMAX FSB HE
Potterton part no. 5117172		 £11.29
116 Part number 5113473, BUTTON RESET - PURPLE BUTTON RESET - PURPLE
Potterton part no. 5113473
117   M5 RETAINING WASHER
Potterton part no. 371875		 £2.65
201 Part number 242235, NOW USE 7671968 THERMOSTAT OVERHEAT NOW USE 7671968 THERMOSTAT OVERHEAT
Potterton part no. 242235
201 Part number 7671968, THERMOSTAT OVERHEAT-242235 THERMOSTAT OVERHEAT-242235
Potterton part no. 7671968		 £20.37
202 Part number 062532, SCR-TF-M4x8mm-PAN POZI ZN PD SCR-TF-M4X8MM-PAN POZI ZN PD
Potterton part no. 062532		 £3.01
203 Part number 5107427, BURNER FEED PIPE BURNER FEED PIPE
Potterton part no. 5107427		 £19.93
204 Part number 242227, O-RING 13.3mm I/Dx2.4mm VITON O-RING 13.3MM I/DX2.4MM VITON
Potterton part no. 242227		 £5.88
205 Part number 242555, O RING 9.6mm ID x2.4mm VITON O RING 9.6MM ID X2.4MM VITON
Potterton part no. 242555		 £4.57
206 Part number 242470, VENTURI VENTURI
Potterton part no. 242470		 £7.09
207 Part number 247710, NOW USE 7672063 GASKET-MANIFOLD-FAN NOW USE 7672063 GASKET-MANIFOLD-FAN
Potterton part no. 247710
207 Part number 7672063, GASKET MANIFOLD FAN GASKET MANIFOLD FAN
Potterton part no. 7672063		 £3.26
208 Part number 062697, SCR-SET-M5x10mm-PAN POZI ZN P SCR-SET-M5X10MM-PAN POZI ZN P
Potterton part no. 062697		 £3.14
209 Part number 5109925, NOW USE 720011701 FAN CENTRIFUGAL 325V DC NOW USE 720011701 FAN CENTRIFUGAL 325V DC
Potterton part no. 5109925
209 Part number 720011701, FAN FAN
Potterton part no. 720011701		 £146.77
210 Part number 062596, NUT-WING M5 STEEL ZN PD NUT-WING M5 STEEL ZN PD
Potterton part no. 062596		 £3.05
211 Part number 239226, DOOR INNER CASE ASSEMBLY (FSB) DOOR INNER CASE ASSEMBLY (FSB)
Potterton part no. 239226		 £41.26
212 Part number 242483, SEAL - DOOR SEAL - DOOR
Potterton part no. 242483		 £12.16
213 Part number 242484, VIEWING WINDOW ASSY VIEWING WINDOW ASSY
Potterton part no. 242484		 £8.11
214 Part number 5111714, CONDENSATE TRAP KIT - SPARES CONDENSATE TRAP KIT - SPARES
Potterton part no. 5111714		 £63.39
217 Part number 5110233, NOW USE 720012201 COMB BOX DOOR ASSEMBLY NOW USE 720012201 COMB BOX DOOR ASSEMBLY
Potterton part no. 5110233
217 Part number 720012201, KIT COMBUSTION BOX DOOR KIT COMBUSTION BOX DOOR
Potterton part no. 720012201		 £84.62
218 Part number 242489, SEAL - COMB BOX DOOR SEAL - COMB BOX DOOR
Potterton part no. 242489		 £9.43
219 Part number 5110992, KIT ELECTRODES (SINGLE BRACKET NO WIRING KIT ELECTRODES (SINGLE BRACKET NO WIRING
Potterton part no. 5110992		 £68.03
220 Part number 5111348, ASSY AIR BOX 100/2HE (SPARES) ASSY AIR BOX 100/2HE (SPARES)
Potterton part no. 5111348		 £144.87
221 Part number 241139, DZUS RETAINER - SPARES KIT DZUS RETAINER - SPARES KIT
Potterton part no. 241139		 £6.15
223   BRACKET RETAINING HEAT ENGINE
Potterton part no. 5117526		 £4.96
224 Part number 062583, SCR-TF-M5x10MM PN HD PZ S ZNPD SCR-TF-M5X10MM PN HD PZ S ZNPD
Potterton part no. 062583		 £3.12
225 Part number 247173, SCREW SET M5 x 15MM SS HEX SCREW SET M5 X 15MM SS HEX
Potterton part no. 247173		 £3.26
226 Part number 237235, FLUE BOX ASSEMBLY FLUE BOX ASSEMBLY
Potterton part no. 237235		 £54.67
228 Part number 244738, KIT FIBRE WASHER AND LOCKNUT KIT FIBRE WASHER AND LOCKNUT
Potterton part no. 244738		 £10.55
229 Part number 247015BAX, KIT-CONDENSE TRAP PLUG/WASHER KIT-CONDENSE TRAP PLUG/WASHER
Potterton part no. 247015BAX		 £11.22
231 Part number 242820, NOW USE 7683432 NUT OUTLET 1in BSP NOW USE 7683432 NUT OUTLET 1IN BSP
Potterton part no. 242820
231   NUT OUTLET 1IN BSP
Potterton part no. 7683432		 £5.88
232   ELBOW WASTE 21.5 MM
Potterton part no. 5117174		 £10.56
233   TUBE CONDENSATE OUTLET
Potterton part no. 5117182		 £7.77
234 Part number 5117661, ASSY PUMP CONDENSATE - SPARES ASSY PUMP CONDENSATE - SPARES
Potterton part no. 5117661		 £374.86
235   NOW USE 5118081 KIT MAIN SWITCH
Potterton part no. 5117591
235   CONDENSATE PUMP - SWITCH ASSY
Potterton part no. 5118081		 £127.08
236   NOW USE 5118081 KIT OVER-LEVEL SWITCH
Potterton part no. 5117592
301 Part number 5107430, NOW USE 5114009 BURNER - CERAMIC NOW USE 5114009 BURNER - CERAMIC
Potterton part no. 5107430
301 Part number 5114009, KIT BURNER - SPARES KIT BURNER - SPARES
Potterton part no. 5114009		 £146.29
302 Part number 247174, SCREW SET M6x 30MM SS HEX SCREW SET M6X 30MM SS HEX
Potterton part no. 247174		 £3.26
303 Part number 242497, HEAT EX. ASSY PACKED HEAT EX. ASSY PACKED
Potterton part no. 242497		 £513.61
304 Part number 247506, KIT-BOX-BURNER KIT-BOX-BURNER
Potterton part no. 247506		 £71.01
305 Part number 242499, INSULATION PAD ASSY - SPARES INSULATION PAD ASSY - SPARES
Potterton part no. 242499		 £29.15
306 Part number 242500, HEAT EX RUBBER SEAL - SPARES HEAT EX RUBBER SEAL - SPARES
Potterton part no. 242500		 £11.53
307 Part number 246468, SCREW SET M5 x 20mm POZI HEX SCREW SET M5 X 20MM POZI HEX
Potterton part no. 246468		 £3.26
308 Part number 237259, SEAL - FLUE SEAL - FLUE
Potterton part no. 237259		 £5.88
401 Part number 240670, NOW USE 7671970 THERMOSTAT BOILER NOW USE 7671970 THERMOSTAT BOILER
Potterton part no. 240670
401 Part number 7671970, THERMOSTAT BOILER-240670 THERMOSTAT BOILER-240670
Potterton part no. 7671970		 £13.59
402 Part number 242459, FLOW SWITCH FLOW SWITCH
Potterton part no. 242459		 £49.78
404 Part number 243133, ADAPTER RETURN ASSEMBLY ADAPTER RETURN ASSEMBLY
Potterton part no. 243133		 £33.69
405   SCREW M6 X 16MM HEX S/S
Potterton part no. 249614		 £2.78
407 Part number 242226, SCR SET M5x15mm CAP HD SOCKET SCR SET M5X15MM CAP HD SOCKET
Potterton part no. 242226		 £3.26
408 Part number 241900, VALVE MULTIFUNCTIONAL VALVE MULTIFUNCTIONAL
Potterton part no. 241900		 £144.98
410 Part number 242475, 5mm PIPE - SPARES 5MM PIPE - SPARES
Potterton part no. 242475		 £19.61
411 Part number 242229, GASKET GASKET
Potterton part no. 242229		 £3.16
415 Part number 242493, HEAT EX. MANIFOLD HEAT EX. MANIFOLD
Potterton part no. 242493		 £34.55
416 Part number 241806, PLUG DRAIN PLUG DRAIN
Potterton part no. 241806		 £7.09
417 Part number 240676, NOW USE 7671969 SEAL MANIFOLD 2.62mm DIA NOW USE 7671969 SEAL MANIFOLD 2.62MM DIA
Potterton part no. 240676
417 Part number 7671969, SEAL MANIFOLD 2.62mm D-240676 SEAL MANIFOLD 2.62MM D-240676
Potterton part no. 7671969		 £7.63
418 Part number 240799, PIPE CLIP PIPE CLIP
Potterton part no. 240799		 £5.88
419 Part number 243007BAX, WIRE G/Y SILICONE x160mm WIRE G/Y SILICONE X160MM
Potterton part no. 243007BAX		 £12.46
420 Part number 5107787, GAS COCK FLANGED 15MM COMPRESSION GAS COCK FLANGED 15MM COMPRESSION
Potterton part no. 5107787		 £13.58
423 Part number 5114338, FILTER EMC CHASSIS MOUNT FILTER EMC CHASSIS MOUNT
Potterton part no. 5114338		 £38.51
424 Part number 242819, NUT COMPRESSION 28MM NUT COMPRESSION 28MM
Potterton part no. 242819		 £4.73
425 Part number 102218, OLIVE-28MM-CONEX OLIVE-28MM-CONEX
Potterton part no. 102218		 £5.38
426   ASSY PIPE RETURN
Potterton part no. 5116648		 £29.16
428   PIPE GAS
Potterton part no. 5117463		 £3.27
429   FITTING COMPRESSION G 1/2
Potterton part no. 5111802		 £4.45
430   OLIVE 15MM
Potterton part no. 631319		 £4.03
431   P CLIP DIA 18 - BLACK
Potterton part no. 5117225		 £2.72
501   HARNESS CONDENSATE PUMP
Potterton part no. 5117478		 £111.22
502 Part number 5117171, HARNESS PROMAX FSB 30HE HARNESS PROMAX FSB 30HE
Potterton part no. 5117171		 £129.80
601 Part number 236921, KIT - FLUE TERMINAL CONDENSING KIT - FLUE TERMINAL CONDENSING
Potterton part no. 236921		 £254.23
602 Part number 241737, Trim Flue TRIM FLUE
Potterton part no. 241737		 £6.28
