POTTERTON
PROMAX 24 STORE CYLINDER 150LTR ERP ISS 04 ENDING BC - (Wiring)
Appliance Code: 41-592-49 BC

Appliance Diagram


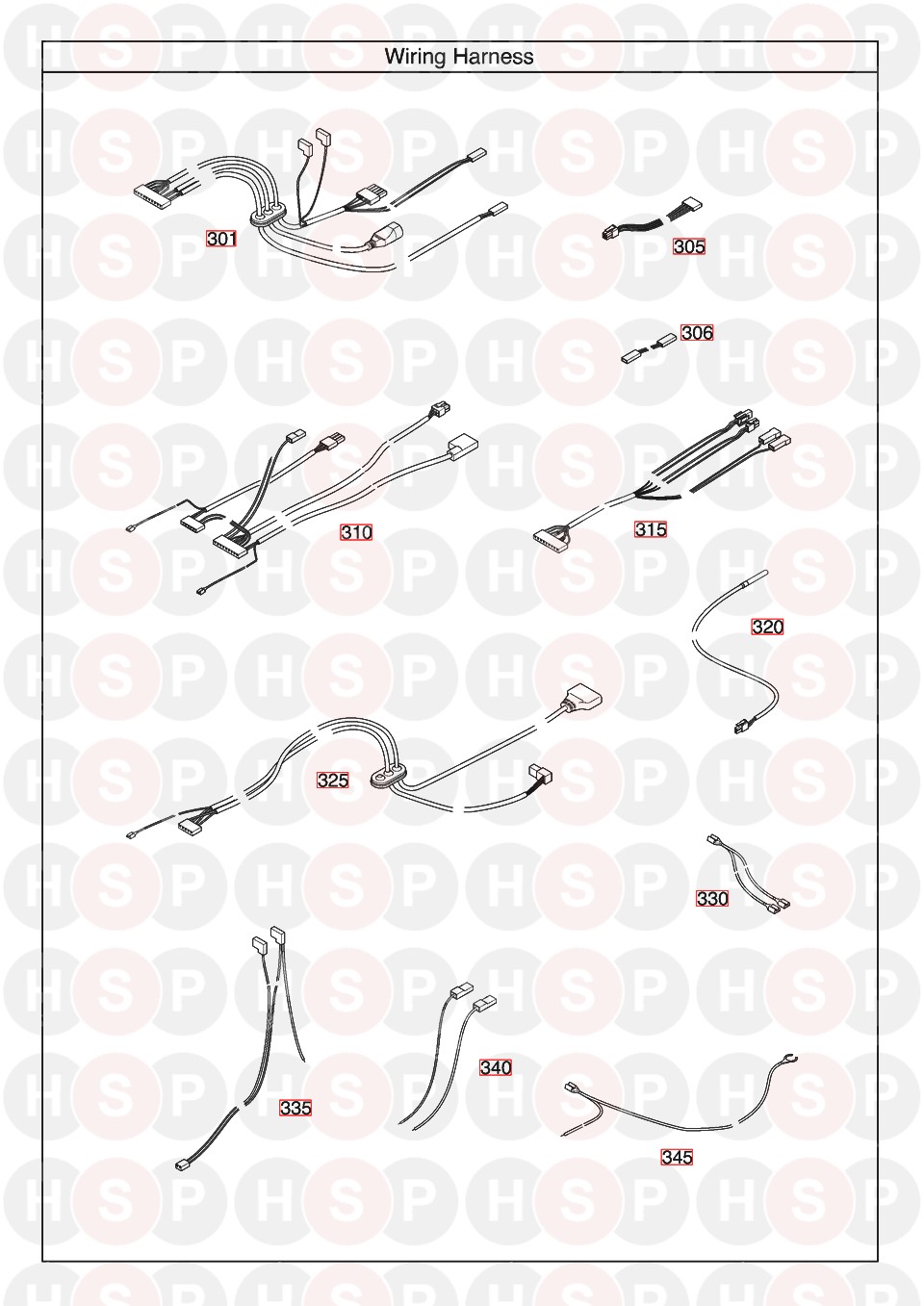

Wiring diagram for Potterton Promax 24 Store Cylinder 150LTR ERP ISS 04 Ending BCClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

301   KIT - HARN FLUE STAT FAN SENS
Potterton part no. 7649086
£89.52
305   WIRING HARNESS - PROGRAMMER
Potterton part no. 5117088
£8.00
306 Part number 7223321, CABLE - RELAY PCB CABLE - RELAY PCB
Potterton part no. 7223321
£12.37
310   WIRING HARNESS-PUMP.DIV.G/VALV
Potterton part no. 5117670
£31.98
315   WIRING HARNESS - WPS.DHW.PROG
Potterton part no. 5117671
£14.51
320 Part number 5106290, DHW SENSOR C/W CABLE 1000mm DHW SENSOR C/W CABLE 1000MM
Potterton part no. 5106290
£27.87
325   WIRING HARNESS - FAN.SPARK GEN
Potterton part no. 5117672
£27.51
330 Part number 5114787, EARTH CABLE - PCB EARTH CABLE - PCB
Potterton part no. 5114787
£3.10
335   WIRING HARNESS - SELECT SWIT.
Potterton part no. 5114784
£5.45
340   WIRING HARNESS - CONNECTOR
Potterton part no. 5114785
£3.14
345 Part number 5114786, EARTH CABLE EARTH CABLE
Potterton part no. 5114786
£2.89
