POTTERTON
PERFORMA 12 HE SYSTEM - (Short Parts List)
Appliance Code: 41-591-24

Appliance Diagram

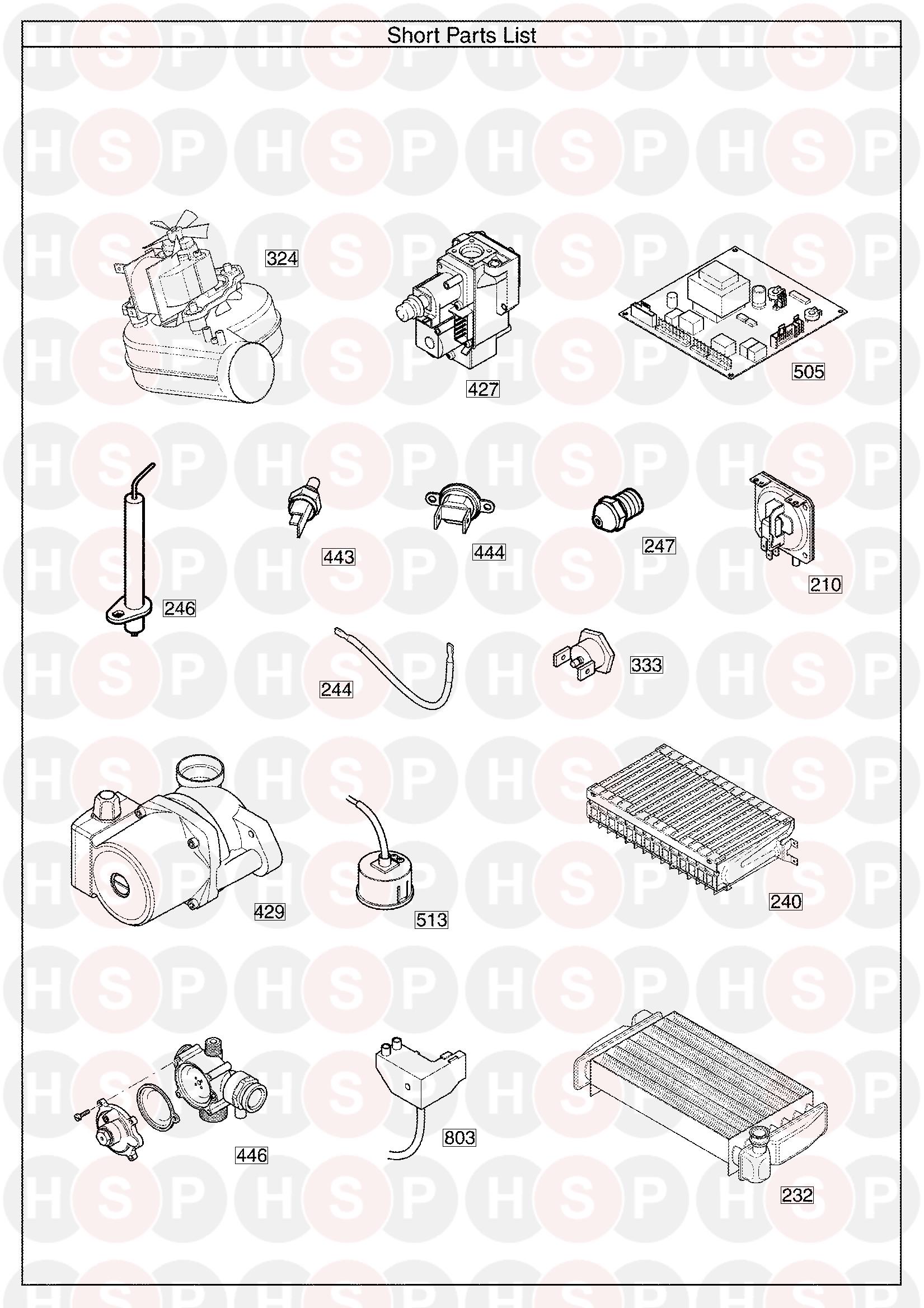

Short Parts List diagram for Potterton Performa 12 HE SystemClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

210 Part number 5107375, PRESSURE SWITCH PRESSURE SWITCH
Potterton part no. 5107375
£46.30
232 Part number 5113284, HEAT EXCHANGER-PRIMARY 12/18HE HEAT EXCHANGER-PRIMARY 12/18HE
Potterton part no. 5113284
£157.27
244 Part number 248037, LEAD - IGNITION ELECTRODE LEAD - IGNITION ELECTRODE
Potterton part no. 248037
£5.88
246   COMBUSTION CHAMBER ASSY - 12HE
Potterton part no. 5113281
£25.20
247 Part number 247384, IGNITION ELECTRODE - FRONT IGNITION ELECTRODE - FRONT
Potterton part no. 247384
£11.95
324 Part number 5113278, FAN - 12/18HE FAN - 12/18HE
Potterton part no. 5113278
£92.24
333 Part number 5112395, OVERHEAT FLUE THERMOSTAT OVERHEAT FLUE THERMOSTAT
Potterton part no. 5112395
£7.15
427 Part number 5107339, GAS VALVE ASSY INC O-RINGS GAS VALVE ASSY INC O-RINGS
Potterton part no. 5107339
£173.39
429 Part number 7722642, PUMP 15-60 105 PUMP 15-60 105
Potterton part no. 7722642
£254.27
429 Part number 248042, NOW USE 7722642 PUMP (15-60) - 105 NOW USE 7722642 PUMP (15-60) - 105
Potterton part no. 248042

443 Part number 5108265, TEMPERATURE SENSOR TEMPERATURE SENSOR
Potterton part no. 5108265
£20.07
444 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Potterton part no. 248079
£12.56
446 Part number 248021, O RING 17.86 x 2.62 O RING 17.86 X 2.62
Potterton part no. 248021
£3.16
505 Part number 5112380, PRINTED CIRCUIT BOARD PRINTED CIRCUIT BOARD
Potterton part no. 5112380
£186.11
513 Part number 248090, GAUGE PRESSURE C/W RETAINER GAUGE PRESSURE C/W RETAINER
Potterton part no. 248090
£23.80
803 Part number 5112385, CABLE-GAS VALVE/IGNITER CABLE-GAS VALVE/IGNITER
Potterton part no. 5112385
£23.31
