POTTERTON
KINGFISHER RS80 - (Heat Exch. Flue Hood & Combust)
Appliance Code: 41-601-41

Appliance Diagram

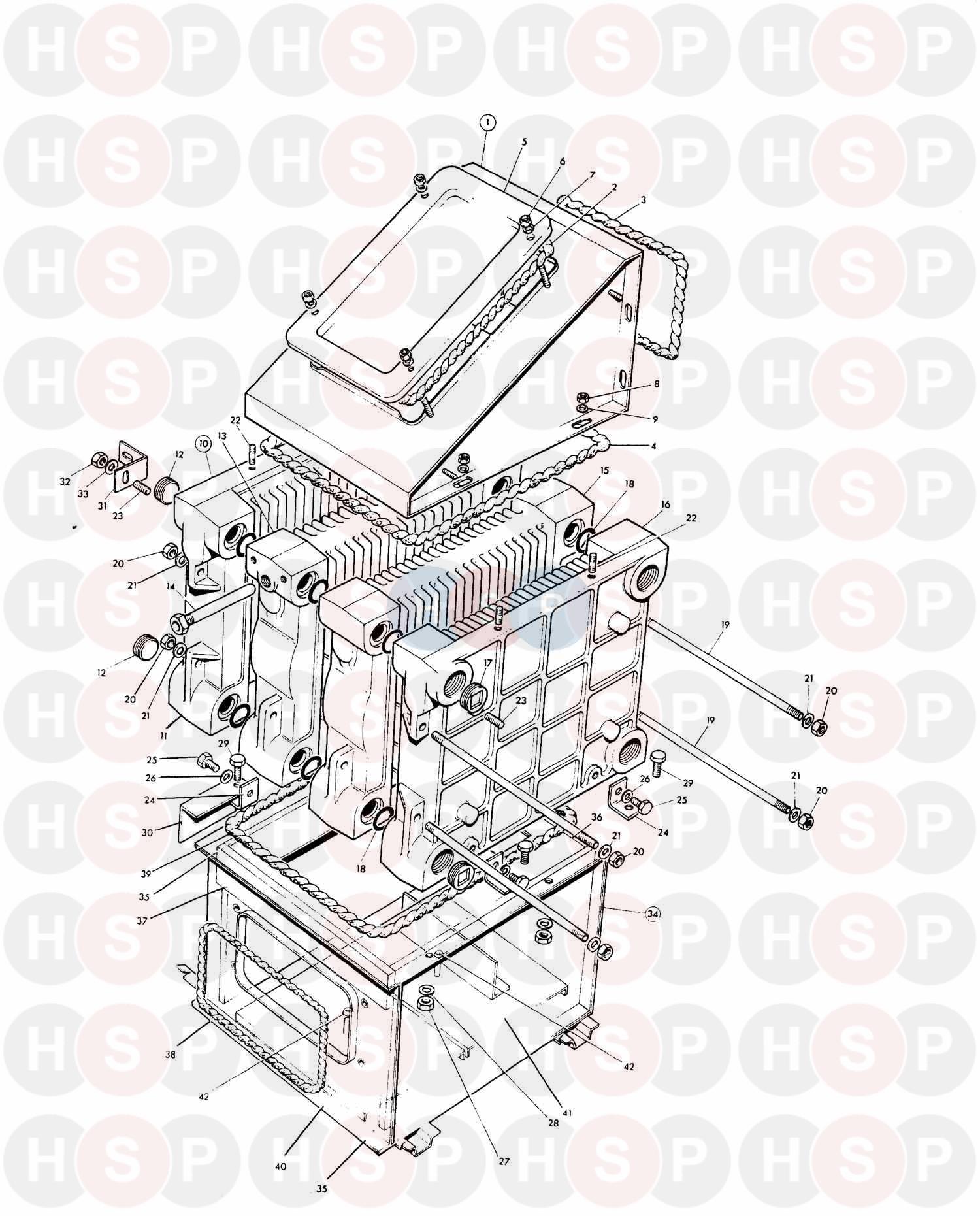

Heat Exch. Flue Hood & Combust diagram for Potterton Kingfisher RS80Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

1   OBSOLETE FLUE HOOD ASSY
Potterton part no. 204278

2 Part number 65063701, ROPE CERAMIC CABLE12MM X 1M L ROPE CERAMIC CABLE12MM X 1M L
Potterton part no. 65063701

5   OBSOLETE FLUE HOOD SEALING PLATE
Potterton part no. 203032

10   OBSOLETE HEAT EXCH ASSY K/F RS 80
Potterton part no. 204382

11   OBSOLETE W/WAY SECTION L/H K/F REAR F
Potterton part no. 906168

12   OBSOLETE PLUG RECESSED SOCKET 1IN
Potterton part no. 629414

13   OBSOLETE HEAT EXCHANGER INTER
Potterton part no. 204227

14   OBSOLETE THERMOSTAT POCKET ASSY
Potterton part no. 206750

15   OBSOLETE DIVERTER DISC
Potterton part no. 204771

16   OBSOLETE WATERWAY SECTION - RH
Potterton part no. 906154

18 Part number 401631, OBSOLETE O RING GACO OBSOLETE O RING GACO
Potterton part no. 401631

19   OBSOLETE TIE ROD M8 X 295MM
Potterton part no. 635813

22   OBSOLETE STUD M6 X20MM MS
Potterton part no. 635207

23   OBSOLETE M8 X 18MM STUD
Potterton part no. 635225
£2.89
24   OBSOLETE H/EXCH FIXING BRKT
Potterton part no. 204258

34   OBSOLETE COMBUSTION CHAMBER ASSY
Potterton part no. 204385

35   OBSOLETE INSULATION SIDE
Potterton part no. 204291

36   OBSOLETE INSULATION BACK
Potterton part no. 204293

37   OBSOLETE INSULATION FRONT
Potterton part no. 204403

102 Part number 629828, GASCOCK ASY L/K 1/2MF BRS GASCOCK ASY L/K 1/2MF BRS
Potterton part no. 629828

104   OBSOLETE PIEZO GENR VERNITRON
Potterton part no. 407627

105 Part number 407626, ELECTRODE LEAD ELECTRODE LEAD
Potterton part no. 407626

108   OBSOLETE BRACKET VALVE KFI RS60 80 CF8
Potterton part no. 204256

111   OBSOLETE GAS VALVE BOXED
Potterton part no. 402809

112 Part number 402492, SHR OFF UNION 6MM LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492
£5.88
113   OBSOLETE OPERATOR SOLENOID TRADELINE
Potterton part no. 904750

114   OBSOLETE REGULATOR PRESS V5306A/E HW
Potterton part no. 904751

115   OBSOLETE TOP OUTLET COVER
Potterton part no. 402816

117   OBSOLETE CONTROL VALVE LEAD ASSY
Potterton part no. 204244

117   OBSOLETE PLUG 3POLE BULGIN SA 2403
Potterton part no. 640249

120 Part number 700723, ALUMINIUM TUBE KIT 6MM OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723

121   OBSOLETE C/CHBR DOOR S/A K/F RS80
Potterton part no. 204526

124   OBSOLETE PRES TEST NIPPLE 1/8 BSP
Potterton part no. 400988

125 Part number 413501, OBSOLETE SIGHT GLASS OBSOLETE SIGHT GLASS
Potterton part no. 413501

126   OBSOLETE GASKET SIGHT GLASS PR K/F F
Potterton part no. 907166

128   OBSOLETE SIGHT GLASS RETAINER
Potterton part no. 202100

131 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701

131 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788
£8.96
132   OBSOLETE ELECTRODE
Potterton part no. 407657

133 Part number 402840, PILOT BURNER ASSY. PILOT BURNER ASSY.
Potterton part no. 402840

136 Part number 410917, PILOT INJ DUAL ORIFICE PILOT INJ DUAL ORIFICE
Potterton part no. 410917

139   OBSOLETE FURIGAS BURNER
Potterton part no. 414558

142   OBSOLETE BRNR INJ 3.1MM AEROMATIC
Potterton part no. 410908

154   OBSOLETE CNTRL MODULE ASSY K/F
Potterton part no. 204091

155 Part number 404456, THERMOSTAT RANCO CL.6 THERMOSTAT RANCO CL.6
Potterton part no. 404456

156 Part number 200277, THERMOSTAT KNOB THERMOSTAT KNOB
Potterton part no. 200277

166   OBSOLETE TERML BLK 12 WAY 10 AMP
Potterton part no. 640303

201   OBSOLETE AIR DUCT ASSEMBLY
Potterton part no. 204388

205   OBSOLETE TERMINAL PACK RS.80
Potterton part no. 206670

211   OBSOLETE GRILLE ASSY
Potterton part no. 204511

404 Part number 200455, OBSOLETE FLUE BRUSH OBSOLETE FLUE BRUSH
Potterton part no. 200455
£2.78
405   OBSOLETE TERMINAL GUARD RS.80
Potterton part no. 903766
