POTTERTON
KINGFISHER RS 100 - (Outer Case)
Appliance Code: 41-601-59

Appliance Diagram

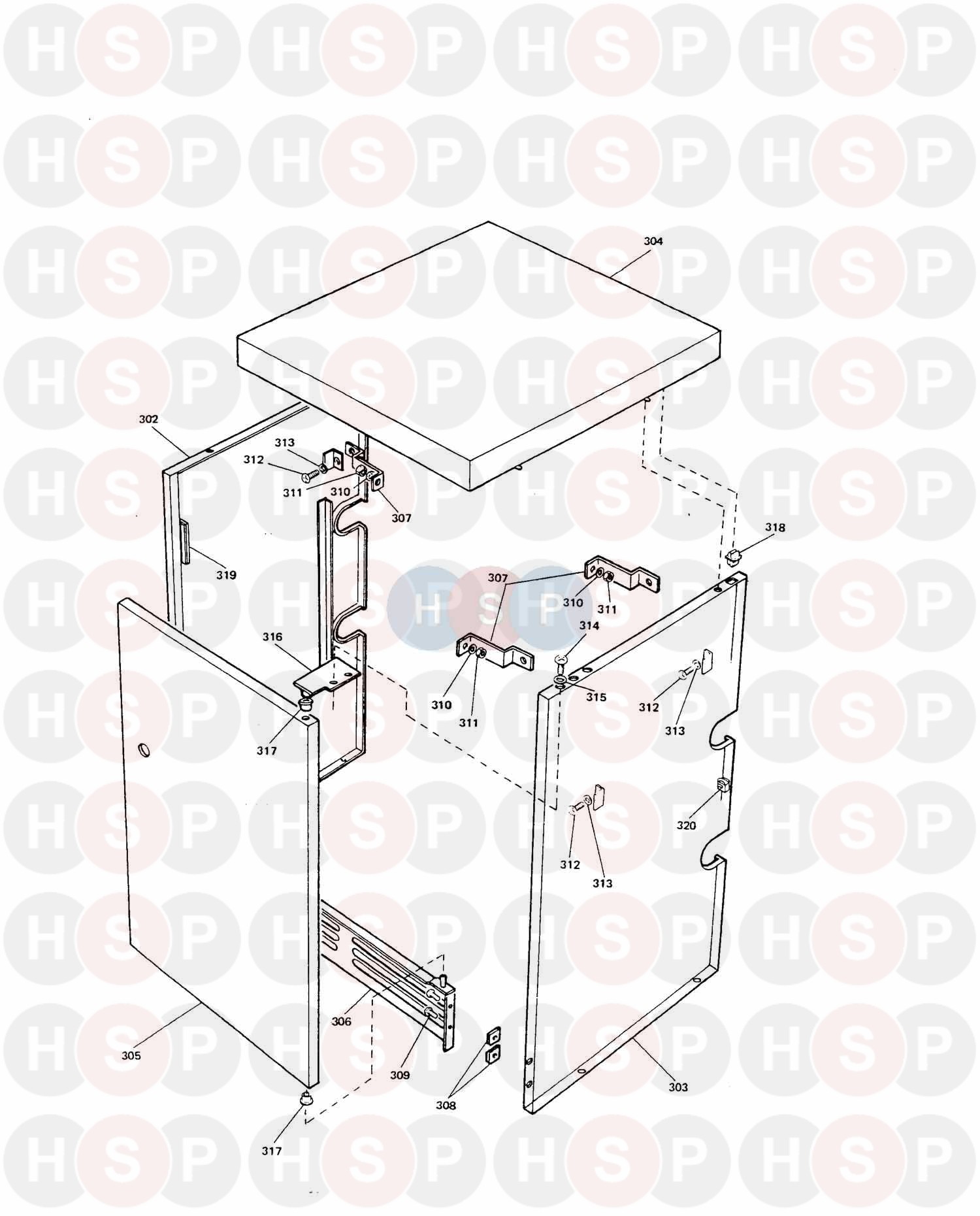

Outer Case diagram for Potterton Kingfisher RS 100Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

0   OBSOLETE FLUE TERMINAL EXTENSION KIT - 24IN.
Potterton part no. 204973

1   OBSOLETE FLUE HOOD ASY K/F RS100
Potterton part no. 204706

3 Part number 65063701, ROPE CERAMIC CABLE12mm X 1M L ROPE CERAMIC CABLE12MM X 1M L
Potterton part no. 65063701

6   OBSOLETE FLUE HOOD SEALING PLATE
Potterton part no. 203032

10   OBSOLETE HEAT EXCH ASSY K/F CF 100
Potterton part no. 204664

11   OBSOLETE W/WAY SECTION L/H K/F REAR F
Potterton part no. 906168

13   OBSOLETE HEAT EXCHANGER INTER
Potterton part no. 204227

15   OBSOLETE DIVERTER DISC
Potterton part no. 204771

16   OBSOLETE THERMOSTAT POCKET ASSY
Potterton part no. 206750

17   OBSOLETE WATERWAY SECTION - RH
Potterton part no. 906154

18   OBSOLETE PLUG RECESSED SOCKET 1IN
Potterton part no. 629414

19 Part number 401631, OBSOLETE O RING GACO OBSOLETE O RING GACO
Potterton part no. 401631

20   OBSOLETE TIE ROD M8 X 375MM
Potterton part no. 635814

23   OBSOLETE STUD M6 X20MM MS
Potterton part no. 635207

25   OBSOLETE M8 X 18MM STUD
Potterton part no. 635225
£2.89
26   OBSOLETE H/EXCH FIXING BRKT
Potterton part no. 204258

35   OBSOLETE COMBUSTION CHAMBER ASSY
Potterton part no. 206860

36   OBSOLETE INSULATION SIDE
Potterton part no. 204291

37   OBSOLETE INSULATION BACK
Potterton part no. 204674

38   OBSOLETE INSULATION FRONT
Potterton part no. 204675

102 Part number 629828, GASCOCK ASY L/K 1/2MF BRS GASCOCK ASY L/K 1/2MF BRS
Potterton part no. 629828

103   OBSOLETE GAS VALVE BOXED
Potterton part no. 402809

104   OBSOLETE OPERATOR SOLENOID TRADELINE
Potterton part no. 904750

105   OBSOLETE REGULATOR PRESS V5306A/E HW
Potterton part no. 904751

107   OBSOLETE TOP OUTLET COVER
Potterton part no. 402816

110   OBSOLETE CONTROL VALVE LEAD ASSY
Potterton part no. 204244

111   OBSOLETE PLUG 3POLE BULGIN SA 2403
Potterton part no. 640249

116 Part number 700723, ALUMINIUM TUBE KIT 6mm OD ALUMINIUM TUBE KIT 6MM OD
Potterton part no. 700723

117   OBSOLETE C/CHBR DOOR ASY K/F RS100
Potterton part no. 204715

121 Part number 413501, OBSOLETE SIGHT GLASS OBSOLETE SIGHT GLASS
Potterton part no. 413501

122   OBSOLETE GASKET SIGHT GLASS PR K/F F
Potterton part no. 907166

123   OBSOLETE SIGHT GLASS RETAINER
Potterton part no. 202100

126 Part number 40225701, NOW USE Q309A2788 THERMOCOUPLE 1000mm Q309/MTRL TY NOW USE Q309A2788 THERMOCOUPLE 1000MM Q309/MTRL TY
Potterton part no. 40225701

126 Part number Q309A2788, THERMOCOUPLE THERMOCOUPLE
Potterton part no. Q309A2788
£8.96
127   OBSOLETE ELECTRODE
Potterton part no. 407657

128 Part number 402840, PILOT BURNER ASSY. PILOT BURNER ASSY.
Potterton part no. 402840

130 Part number 402492, SHR OFF UNION 6mm LG SHNK (STD SHR OFF UNION 6MM LG SHNK (STD
Potterton part no. 402492
£5.88
131 Part number 410917, PILOT INJ DUAL ORIFICE PILOT INJ DUAL ORIFICE
Potterton part no. 410917

135   OBSOLETE BURNER ASSY
Potterton part no. 414555

136   OBSOLETE BRNR INJ 3.5 AEROMATIC
Potterton part no. 410902

142   OBSOLETE PIEZO GENR VERNITRON
Potterton part no. 407627

143 Part number 407626, ELECTRODE LEAD ELECTRODE LEAD
Potterton part no. 407626

150 Part number 200277, THERMOSTAT KNOB THERMOSTAT KNOB
Potterton part no. 200277

151 Part number 404456, THERMOSTAT RANCO CL.6 THERMOSTAT RANCO CL.6
Potterton part no. 404456

201   OBSOLETE AIR DUCT ASSY K/F RS 100
Potterton part no. 204756

207   OBSOLETE TERMINAL PACK.K/F.IIRS100
Potterton part no. 206899

319   OBSOLETE MAGNET AND HOUSING
Potterton part no. 630744

323 Part number 200455, OBSOLETE FLUE BRUSH OBSOLETE FLUE BRUSH
Potterton part no. 200455
£2.78
404   OBSOLETE TERMINAL GUARD
Potterton part no. 905487
