POTTERTON
HOUSEWARMER (LATER) 45 & ELEGANT 2 1994 - (Outer Case)
Appliance Code: 44-494-16

Appliance Diagram

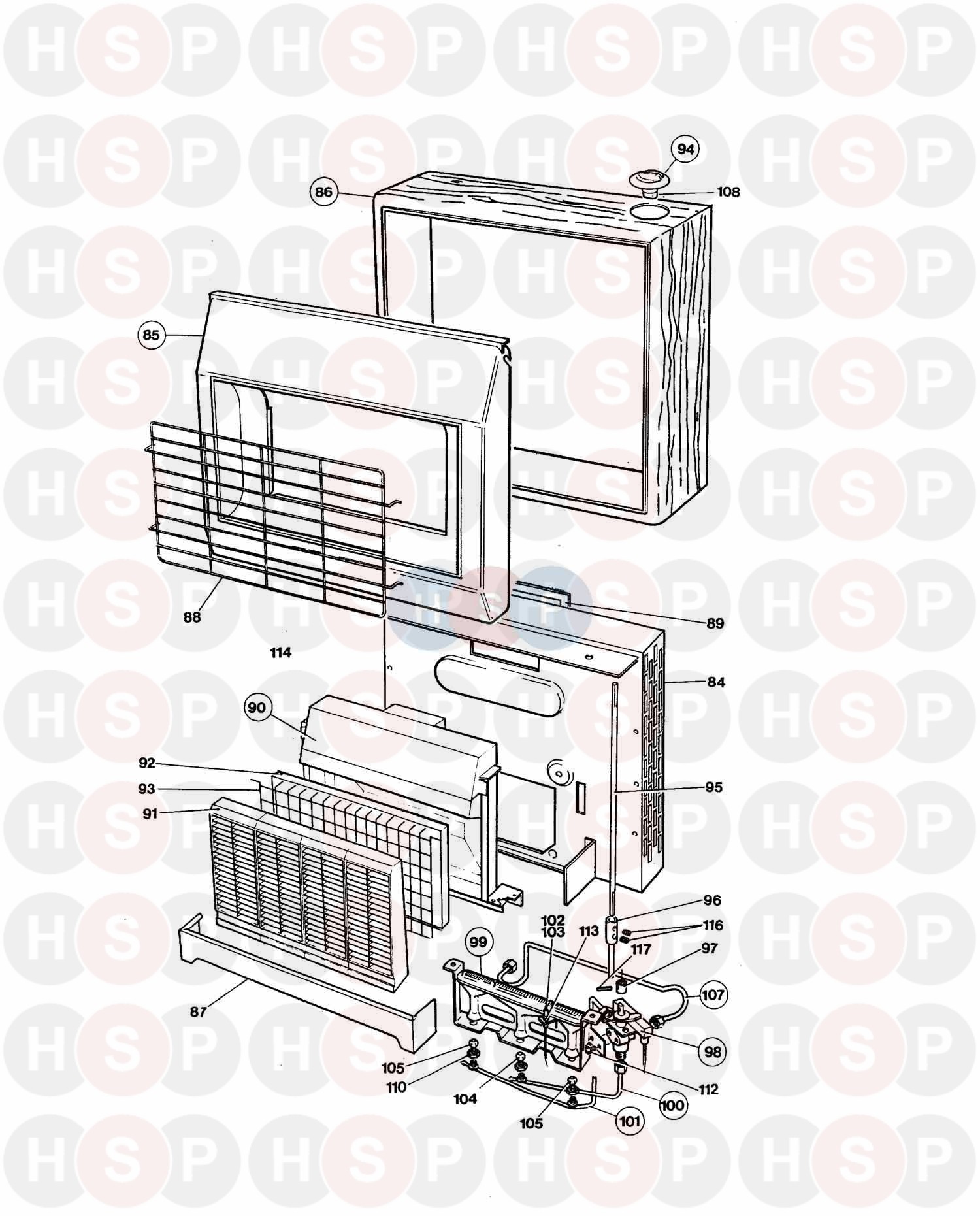

Outer Case diagram for Potterton Housewarmer (Later) 45 & Elegant 2 1994Click the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

2   OBSOLETE CAPOSIL BLOCK 232059 BAGGED
Main part no. 308C037
5   OBSOLETE THERMOSTAT POCKET
Main part no. B53736
7   OBSOLETE ELBOW 3/4 M/F 627105
Main part no. B5258
8   OBSOLETE ELBOW 3/4IN X 1IN BSPT M/F 627
Main part no. B5313
15   OBSOLETE BURNER 232088
Main part no. 308S076
16   OBSOLETE LINT FILTER
Main part no. 308S110
17 Part number 308S111, END PLATE GASKET END PLATE GASKET
Main part no. 308S111		 £7.73
20 Part number 308S116, SPARK ELECTRODE. SPARK ELECTRODE.
Main part no. 308S116
21 Part number 402S089, IGNITOR LEAD IGNITOR LEAD
Main part no. 402S089
22 Part number 308S041, OBSOLETE INJECTOR CAT 16/1250 232087 OBSOLETE INJECTOR CAT 16/1250 232087
Main part no. 308S041
23   OBSOLETE PILOT INJECTOR 232155
Main part no. 307S535
24 Part number 308S117, PILOT TOP SOCKET 232090 PILOT TOP SOCKET 232090
Main part no. 308S117
28 Part number 402S083, SPARK GENERATOR SPARK GENERATOR
Main part no. 402S083
30   OBSOLETE GAS MANIFOLD BURNER 232077/232
Main part no. 308A046
35   OBSOLETE GAS COCK
Main part no. 308S132
36   OBSOLETE ASSY PRESSURE TEST POINT
Main part no. 402S572
61   OBSOLETE NUT LONG M6
Main part no. 307C188
62 Part number 635506, NUT M5 FULL BRASS NUT M5 FULL BRASS
Main part no. 635506
69   OBSOLETE SCREW
Main part no. 11/11592
73   OBSOLETE 8 X 1/2 STEEL SCREW
Main part no. 168S
74 Part number S/108/12, OBSOLETE SCREW NO.8X3/8 PN HD POZI OBSOLETE SCREW NO.8X3/8 PN HD POZI
Main part no. S/108/12
81   OBSOLETE WASHER 1/4INCH
Main part no. 99/03302
84   OBSOLETE BACK CASING ASSY
Main part no. 928NC/1176
85   OBSOLETE FRONT ASSY
Main part no. 929NC/1023
85   OBSOLETE FRONT ASSY.
Main part no. 978/1023
86   OBSOLETE WOOD SURROUND ASSY.
Main part no. 929/1325
87   OBSOLETE PLINTH ASSEMBLY.
Main part no. 929/1788
87   OBSOLETE PLINTH ASSY
Main part no. 929NC/1788
90   OBSOLETE FIREBOX & BACK CASING ASSY.
Main part no. 879/1947
91 Part number 800THL/9347, OBSOLETE RADIANT PACK OF 4 OBSOLETE RADIANT PACK OF 4
Main part no. 800THL/9347
91 Part number 800/9347, RADIANT RADIANT
Potterton part no. 800/9347
92   OBSOLETE BACK INSULATION
Main part no. 800/9331
93   OBSOLETE BACK INSULATION GUARD
Main part no. 800/7584
94 Part number 834/1051, OBSOLETE KNOB ASSY. OBSOLETE KNOB ASSY.
Main part no. 834/1051
95   OBSOLETE CONTROL ROD PAINTED.
Main part no. 26/929/7559
96 Part number 804/7562, OBSOLETE TAP ADAPTER OBSOLETE TAP ADAPTER
Main part no. 804/7562
97   OBSOLETE CONTROL TAP EXTENSION SPI
Main part no. 976/7017
98   OBSOLETE TAP ASSY.COMPLETE.
Main part no. 976FK/1017
99   OBSOLETE BURNER ASSY.
Main part no. 879/1276
100   OBSOLETE BURNER CENTRE TUBE ASSY.
Main part no. 879/1411
101   OBSOLETE BURNER SIDE TUBE ASSY.
Main part no. 879/1671
102 Part number 804/9446, ELECTRODE ELECTRODE
Main part no. 804/9446
103   OBSOLETE ELECTRODE WASHER
Main part no. 839/2676
104   OBSOLETE INJECTOR NG
Main part no. 812N/705/1
105   OBSOLETE INJECTOR NG
Main part no. 812N/705/2
107   OBSOLETE INLET PIPE
Main part no. 879/9051
108   OBSOLETE KNOB CLIP
Main part no. S/34/11
109 Part number S/54/36, NOW USE 062441 M6 FULL HEXAGON NUT. NOW USE 062441 M6 FULL HEXAGON NUT.
Main part no. S/54/36
109 Part number 062441, NUT-FULL HEX-6MM ZINC PLTD NUT-FULL HEX-6MM ZINC PLTD
Potterton part no. 062441		 £3.01
110   OBSOLETE HEX LOCKNUT
Main part no. 812/7233
111   OBSOLETE CAPTIVE NUT
Main part no. S/32/1
113   OBSOLETE SCREW M4X8 HEX HD
Main part no. S/265/15
116   OBSOLETE SOCKET SET SCREW
Main part no. S/368/1
117   OBSOLETE ROLL PIN
Main part no. S/369/1
