POTTERTON
GOLD SYSTEM 24 ERP SERIAL NO. ENDING IN DC - (Hydraulics)
Appliance Code: 41-592-40 DC

Appliance Diagram

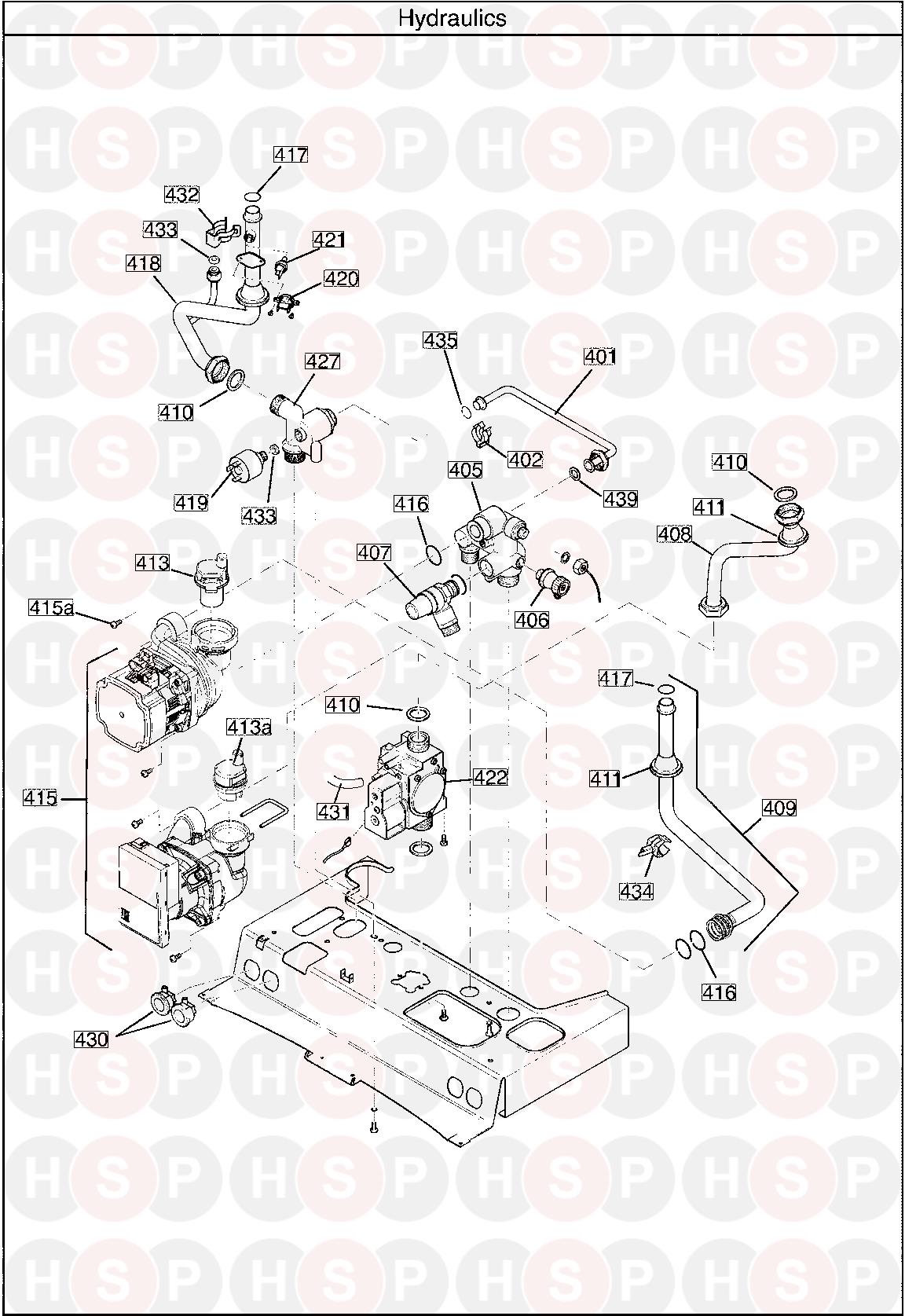

Hydraulics diagram for Potterton Gold System 24 Erp Serial No. Ending in DCClick the diagram to open it on a new page

You can then pinch & zoom to adjust the size.

401   BY-PASS PIPE ASSY - SYSTEM
Potterton part no. 5114714		 £10,87
402 Part number 5114716, FIXING CLIP FIXING CLIP
Potterton part no. 5114716		 £3,26
405   HYDRAULIC INLET ASSY
Potterton part no. 7223330		 £69,32
406 Part number 248055, DRAIN TAP DRAIN TAP
Potterton part no. 248055		 £9,88
407 Part number 248056, SAFETY VALVE - 3 BAR (FEMALE) SAFETY VALVE - 3 BAR (FEMALE)
Potterton part no. 248056		 £14,76
408 Part number 5114699, GAS PIPE ASSY GAS PIPE ASSY
Potterton part no. 5114699		 £18,73
409   PIPE - EXCHANGER/PUMP ASSY
Potterton part no. 7223327		 £48,16
410 Part number 247745, SEALING WASHER G. 3/4 SEALING WASHER G. 3/4
Potterton part no. 247745		 £3,16
411 Part number 5114771, GROMMET GROMMET
Potterton part no. 5114771		 £3,26
413 Part number 720777601, AIR VENT VALVE AIR VENT VALVE
Potterton part no. 720777601		 £31,80
413A   AIR VENT VALVE INC CLIP
Potterton part no. 7224446		 £17,29
415 Part number 7654033, NOW USE 7713520 PUMP KIT ERP NOW USE 7713520 PUMP KIT ERP
Potterton part no. 7654033
415 Part number 7713520, PUMP KIT UPM3-6 - ND PUMP KIT UPM3-6 - ND
Potterton part no. 7713520		 £332,16
415A Part number 26009031, SCREW M6 X 25MM SCREW M6 X 25MM
Potterton part no. 26009031		 £3,26
416 Part number 247429, O RING 22MM X 3MM O RING 22MM X 3MM
Potterton part no. 247429		 £3,16
417 Part number 248021, O RING 17.86 x 2.62 O RING 17.86 X 2.62
Potterton part no. 248021		 £3,16
418 Part number 5118379, HEAT EX PIPE 24/28 HEAT EX PIPE 24/28
Potterton part no. 5118379		 £46,50
419 Part number 5114748, PRESSURE SWITCH PRESSURE SWITCH
Potterton part no. 5114748		 £19,79
420 Part number 248079, THERMOSTAT - LIMIT THERMOSTAT - LIMIT
Potterton part no. 248079		 £12,56
421 Part number 5114725, NTC SENSOR NTC SENSOR
Potterton part no. 5114725		 £11,06
422   KIT GAS VALVE
Potterton part no. 720301001		 £80,78
427 Part number 5118382, CH OUTLET ASSY CH OUTLET ASSY
Potterton part no. 5118382		 £113,34
430 Part number 247776, CLAMP - INPUT CABLE CLAMP - INPUT CABLE
Potterton part no. 247776		 £4,38
431 Part number 247996, PRESSURE SWITCH PIPE PRESSURE SWITCH PIPE
Potterton part no. 247996		 £6,07
432 Part number 5114690, FIXING CLIP FIXING CLIP
Potterton part no. 5114690		 £4,04
433 Part number 248000, WASHER - SEALING WASHER - SEALING
Potterton part no. 248000		 £3,16
434 Part number 5114726, NTC RETURN SENSOR CLIP NTC RETURN SENSOR CLIP
Potterton part no. 5114726		 £11,95
435 Part number 5114756, O-RING O-RING
Potterton part no. 5114756		 £3,16
439   WASHER DE 18.5
Potterton part no. 7211552		 £2,51
